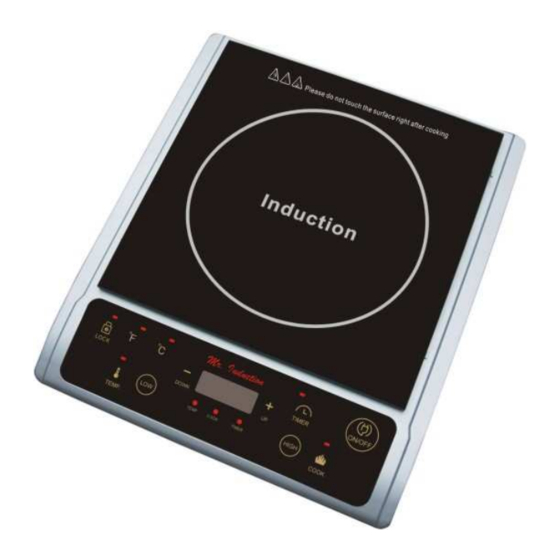

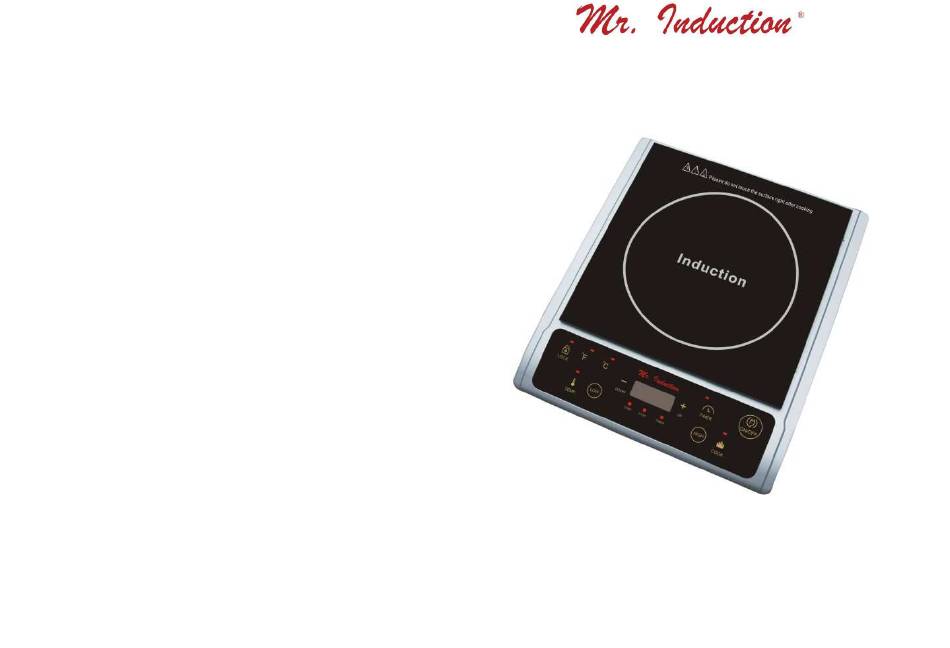

- Page 1 Micro-Computer Induction Cooktop SR-964T INSTRUCTION MANUAL Thank you for your purchase. Please read thoroughly before initial use and keep in a safe place for future reference.
-
Page 2: Table Of Contents
IMPORTANT SAFEGUARDS SPECIFICATIONS Read all instructions. Model SR-964T Do not touch hot surfaces Voltage 120V ~/ 60Hz To protect against electrical shock, do not immerse cord or appliance Power consumption 1300W (max) in water or any other liquid. Dimension 11.81 W x 14.17 D x 2.48 H in. -
Page 3: Structure Description & Function
STRUCTURE DESCRIPTION & FUNCTION OPERATION COOK Mode: Heat is constantly added at the selected power level. • 7 COOK levels (wattage): 100, 300, 500, 700, 900, 1100, 1300. TEMP Mode: Unit will maintain at selected temperature. • 13 TEMP settings (° F/° C): 100/40, 120/50, 140/60, 160/70, 180/80, 190/90, 210/100, 230/110, 250/120, 280/140, 300/160, 350/180, 390/200 •... -
Page 4: Lock Button
KEY POINTS LOCK BUTTON 1. Press LOCK button to lock in settings. If no cookware is placed or sensed on the unit, cooker will When locked, display will jump between time left and setting. automatically shut off after 10 seconds. No changes can be made (mode, level or time). -
Page 5: Troubleshooting
TROUBLESHOOTING ERROR CODE ERROR CODE INSPECTION PROBLEM CHECK POINTS Either there is no cookware or no Is cooktop firmly plugged into a correct compatible cookware placed on unit. outlet? Flashes “E0” – beeps and shuts Cookware may be too small or too Is cooktop plugged in a dedicated outlet? No power or unit off after 10 seconds. - Page 6 Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: •...
