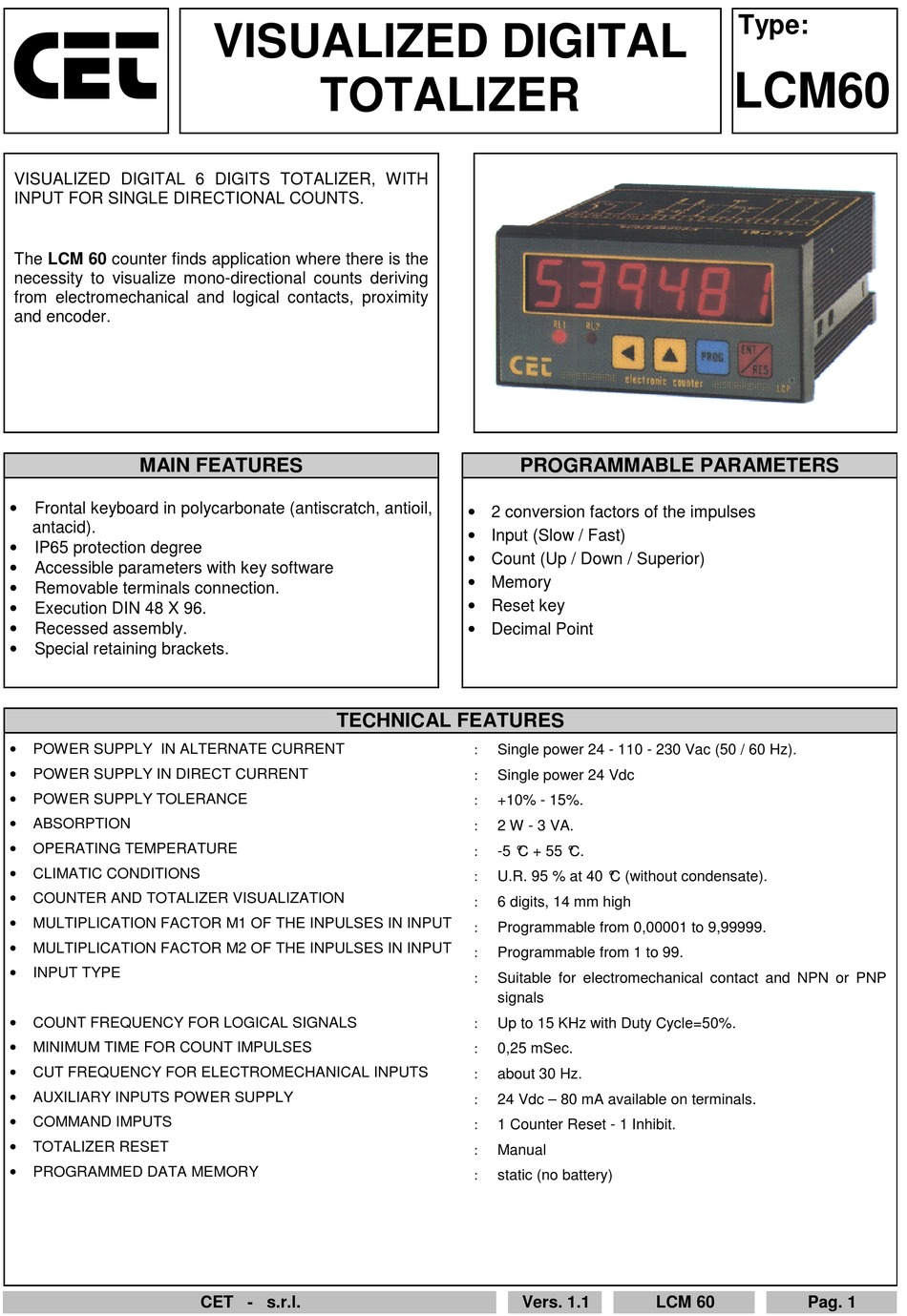

CET LCM60 Manual

CET
VISUALIZED DIGITAL 6 DIGITS TOTALIZER, WITH
INPUT FOR SINGLE DIRECTIONAL COUNTS.
The LCM 60 counter finds application where there is the
necessity to visualize mono-directional counts deriving
from electromechanical and logical contacts, proximity
and encoder.
MAIN FEATURES
•
Frontal keyboard in polycarbonate (antiscratch, antioil,
antacid).
•
IP65 protection degree
•
Accessible parameters with key software
•
Removable terminals connection.
•
Execution DIN 48 X 96.
•
Recessed assembly.
•
Special retaining brackets.
•
POWER SUPPLY IN ALTERNATE CURRENT
•
POWER SUPPLY IN DIRECT CURRENT
•
POWER SUPPLY TOLERANCE
•
ABSORPTION
•
OPERATING TEMPERATURE
•
CLIMATIC CONDITIONS
•
COUNTER AND TOTALIZER VISUALIZATION
•
MULTIPLICATION FACTOR M1 OF THE INPULSES IN INPUT
•
MULTIPLICATION FACTOR M2 OF THE INPULSES IN INPUT
•
INPUT TYPE
•
COUNT FREQUENCY FOR LOGICAL SIGNALS
•
MINIMUM TIME FOR COUNT IMPULSES
•
CUT FREQUENCY FOR ELECTROMECHANICAL INPUTS
•
AUXILIARY INPUTS POWER SUPPLY
•
COMMAND IMPUTS
•
TOTALIZER RESET
•
PROGRAMMED DATA MEMORY
VISUALIZED DIGITAL
TOTALIZER
TECHNICAL FEATURES
CET - s.r.l.
PROGRAMMABLE PARAMETERS
• 2 conversion factors of the impulses
• Input (Slow / Fast)
• Count (Up / Down / Superior)
• Memory
• Reset key
• Decimal Point
: Single power 24 - 110 - 230 Vac (50 / 60 Hz).
: Single power 24 Vdc
+10% - 15%.
:
: 2 W - 3 VA.
-5 ° C + 55 ° C.
:
: U.R. 95 % at 40 ° C (without condensate).
6 digits, 14 mm high
:
: Programmable from 0,00001 to 9,99999.
Programmable from 1 to 99.
:
: Suitable for electromechanical contact and NPN or PNP
signals
Up to 15 KHz with Duty Cycle=50%.
:
: 0,25 mSec.
about 30 Hz.
:
24 Vdc – 80 mA available on terminals.
:
1 Counter Reset - 1 Inhibit.
:
Manual
:
: static (no battery)
Vers. 1.1
Type:
LCM60
LCM 60 Pag. 1
