Installation and Assembly:

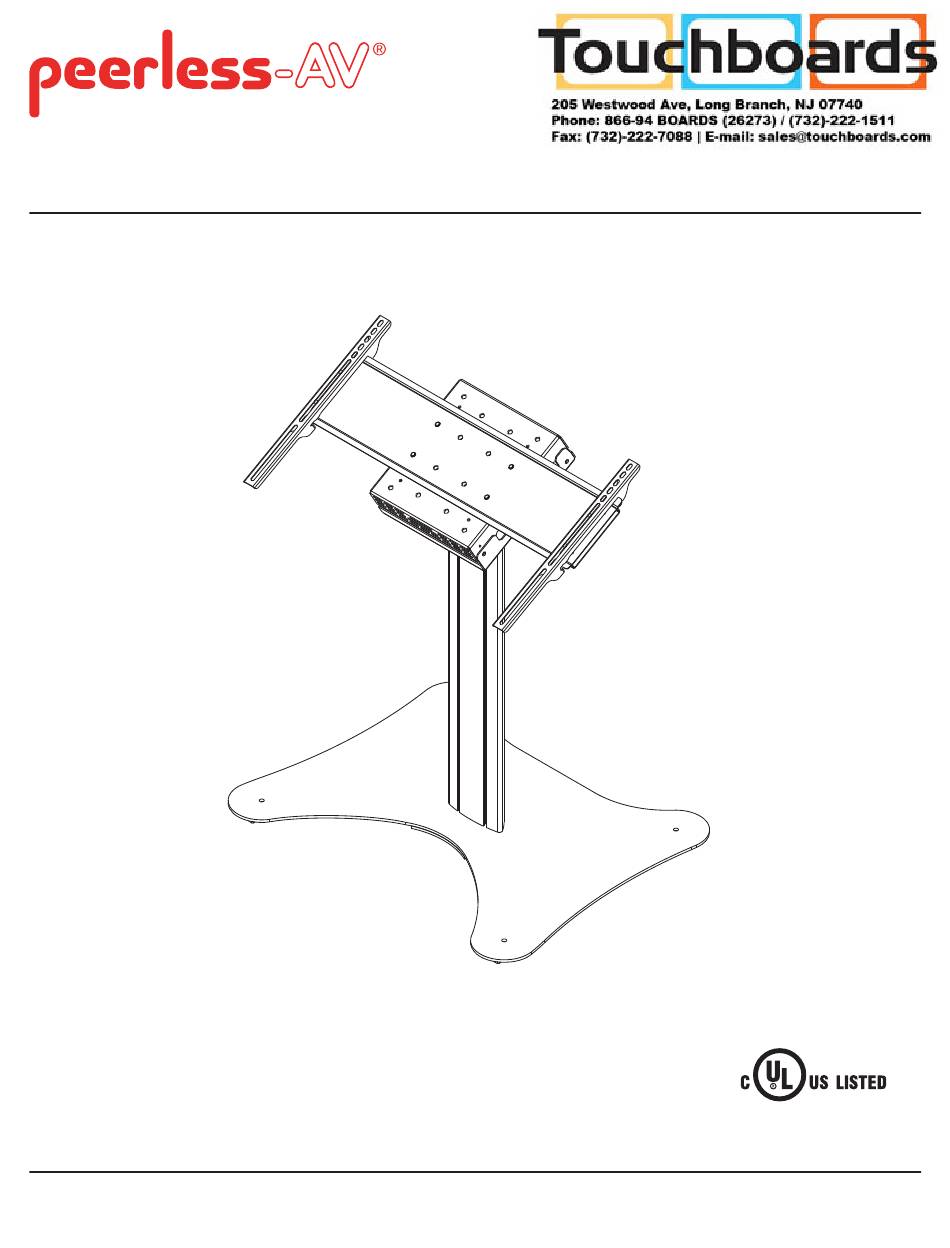

32" - 65" (81 - 165 cm) Kiosk Stand
Models: SS560FK
Suitable For Institutional Use
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
Max UL Load Capacity:
150 lb (68 kg) display
15 lb (6.8 kg) component
ISSUED: 09-30-11 SHEET #: 009-9056-5 (2014-04-08)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS560FK and is the answer not in the manual?

Questions and answers

Summary of Contents for peerless-AV SS560FK

  • Page 1 Suitable For Institutional Use Max UL Load Capacity: 150 lb (68 kg) display 15 lb (6.8 kg) component 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com ISSUED: 09-30-11 SHEET #: 009-9056-5 (2014-04-08)
  • Page 2: Table Of Contents

    NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
  • Page 3: Parts List

    Before you begin, make sure all parts shown are included with your product. Parts List Description Qty. Part Number base 009-1425 column 009-1426 column bracket 009-1424 tilt plate 009-1423 adapter plate 201-1110 adapter bracket 202-1655 3/8-16 x 1" button socket cap screw 520-1354 520-1693 5/16"-18 x 3/8"...
  • Page 4 Security Adapter Bracket Fasteners M5 x 12mm (4) M6 x 12mm (4) M8 x 12mm (4) (520-1064) (520-1050) (520-1724) .75" spacer (4) (540-1059) M5 x 25mm (4) M6 x 25mm (4) M8 x 25mm (4) (520-1122) (520-1211) (520-1101) Multi-washer (4) (580-1398) 4 of 10 ISSUED: 09-30-11 SHEET #: 009-9056-5 (2014-04-08)
  • Page 5: Assembling Stand

    Attach column (B) to base (A) with three Attach the column bracket (C) to column (B) with 3/8-16 x 2-1/2" button socket cap screws (L) and three 3/8-16 x 1" button socket cap screws (H). three M10 lock washers (J). Tighten screws using Tighten screws using 7/32"...
  • Page 6 Attach top plate (P) to adapter plate (E) with four Secure four rubber feet (R) to bottom of CPU as M10 x 15 mm penta-pin screws (T). shown below. Tighten screws using penta-pin tool (U). CPU MAY APPEAR DIFFERENT THAN ILLUSTRATED Secure CPU to top plate (P) using safety belt.
  • Page 7: Installing Adapter Brackets To Flat Panel Display

    Installing Adapter Brackets to Flat Panel Display WARNING • Tighten screws so adapter brackets are fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached.
  • Page 8 For Flat Back Display Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into display as shown below. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not over tighten.
  • Page 9: Mounting Flat Panel Display

    ISSUED: 09-30-11 SHEET #: 009-9056-5 (2014-04-08) © 2014, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners. Peerless Industries, Inc. 2300 White Oak Circle Aurora, Il 60502 www.peerless-av.com...
  • Page 10 Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless® product. This warranty gives specifi c legal rights, and you may also have other rights which vary from state to state. www.peerless-av.com © 2014 Peerless Industries, Inc.
