1. Introduction

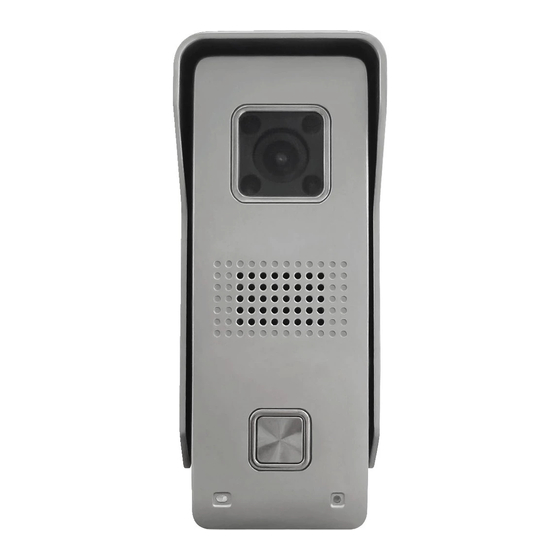

IR LED light
LENs
Speaker
CDS Sensor
Ring Button
Microphone
2. Install the App
Download the App 'SafeSmart' from 'Google Play Store' or 'App Store', and install
on mobile phone.
Special Notice: When open the app, you will receive a tip. Please click 'OK' to
allow the notifications, otherwise, you cannot receive any notification.
Android
3. Connect the Device
Insert TF memory card and fix antenna, connect power supply. It takes
Step 1:
30 seconds to start device.
Special Notice: Do not connect the network cable, otherwise, the device
cannot set the Wi-Fi by scanning QR code.
All manuals and user guides at all-guides.com
Quick Guide
Tamper switch
Reset
Thread hole
iOS
Antenna
Power in DC+(12V)(Red)
Power in DC-(12V)(Black)
Lock Relay COM(Yellow)
Lock Relay NO(Purple)
Doorbell Relay COM(Gray)
Doorbell Relay NO(White)
Orange&White)
Net RJ45(
Orange)
Net RJ45(
Green&White)
Net RJ45(
Green)
Net RJ45(
NOTICE:
For the first time installation,
please tap 'OK'. Otherwise
y o u c a n ' t r e c e i v e a n y
notification.
V150803-2
Door phone
(DC12V 500mA)
power supply
Lock
Lock Power
supply
Doorbell
Doorbell
Power supply
1
2
3
6
4
5
7
8
!
NOTICE:
1
