TBS2603 PoE HDMI Video Encoder/Decoder User Manual

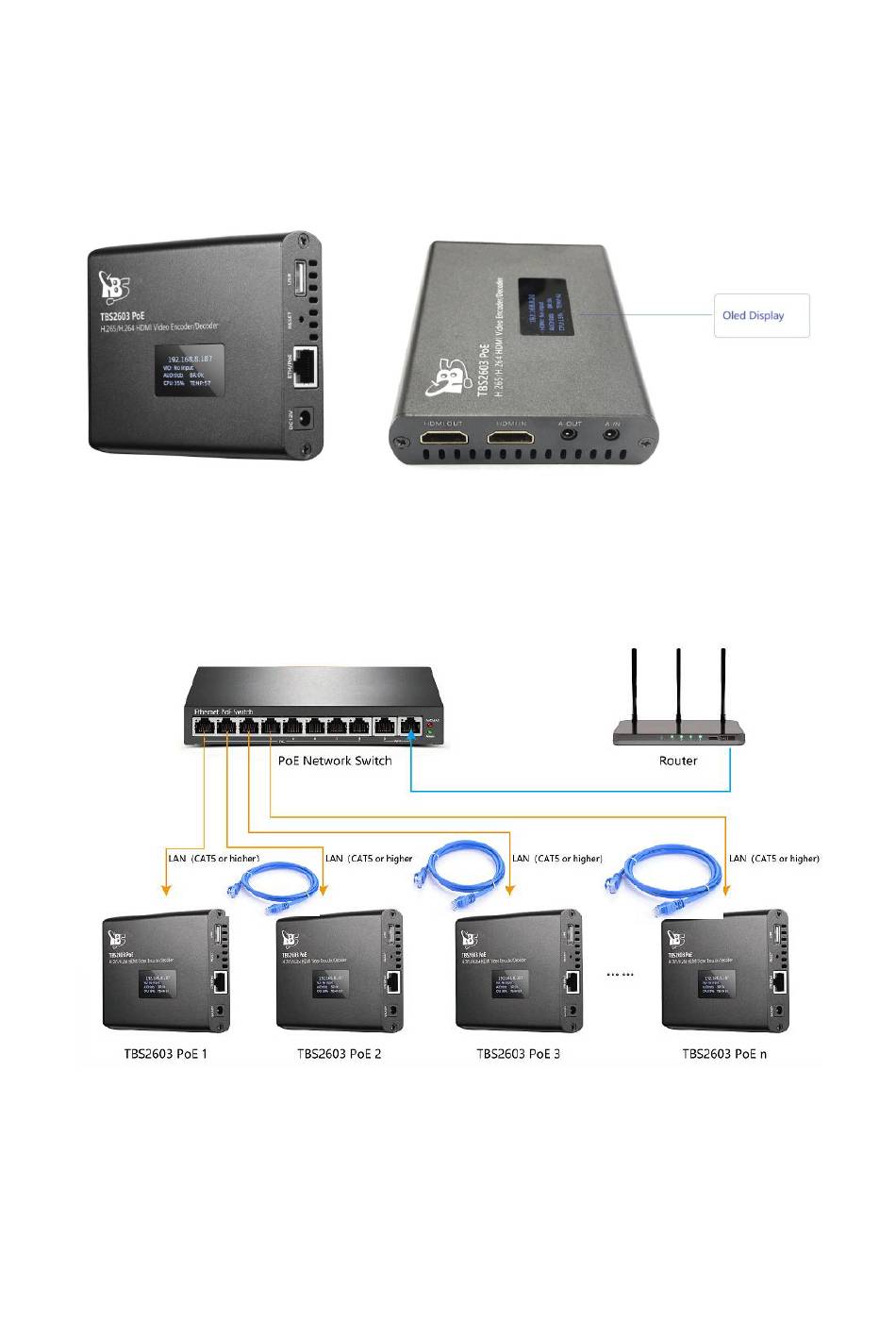

Preparations:
1. Connect HDMI signal to Encoder
2. Connect LAN cable to Encoder. You can connect Encoder to network switch or a Router.
3. Prepare a PC/Laptop and then power on for your Encoder.
DC 12V: power port. These recommended power adapters are "DC 12V/2A or 5V/2A". DC 12V/1A
adapter is also ok.
Eth: RJ.45 port, 1000M. If it's powered over Ethernet, it requires a PoE Network Switch. And also,
the LAN cable should be CAT 5 or higher (CAT 6/CAT 7).
Reset: Reset button. Press and hold it around 8 seconds and then release, reset active.
After reset, IP will back to the default 192.168.1.217. And also configuration will back to the
default.
HDMI OUT: Decode and then HDMI out.
1
Advertisement
Summary of Contents for IBS TBS2603
- Page 1 TBS2603 PoE HDMI Video Encoder/Decoder User Manual Preparations: 1. Connect HDMI signal to Encoder 2. Connect LAN cable to Encoder. You can connect Encoder to network switch or a Router. 3. Prepare a PC/Laptop and then power on for your Encoder.
- Page 2 HDMI IN: HDMI signal input. A-OUT: Decode and audio out. Jack 3.5mm, to Speaker or Earphone. A-in: Extra audio in (Line in), Jack 3.5mm. Oled Display: display basic information. Like device IP, input size, CPU consumption and ect. Encoder control: web UI Login: Default username: admin;...
- Page 3 Dashboard: To monitor device status. For instance CPU, RAM consumption, Traffic (Ethernet port Tx, Rx) statistics; HDMI input & input preview. As above, if the input is correctly detected by Encoder, it will indicate “input resolution and frequency, also the input media content” in Preview. For the “Previewer”, it’s not live Media content.
- Page 4 size is 1920x1080, if it’s set to “auto”, the output video size will be also 1920x1080. Another, we do not recommend that small size input but set to large size output. For instance, 1280x720 in and then 1920x1080 out or smaller size like 576 in and then 1280x720 or 1920x1080 out.
- Page 5 Enable: means do not change any codec of the network stream. For protocol-converting; Video decode & audio decode: this may change codec of the network stream, input is to do transcoding. This Encoder does not support “B-frame encode” network stream in. There’re tricks to help you get more better video quality: 1.
- Page 6 Choose one or multiple protocols and enable it, and URL will be auto created in “Play URL”: NDI | HX output config: just enable it For NDI | HX stream receiving tools, please try the following: 1.NDI officially provided (Studio Monitor): https://ndi.tv/tools/ install and launch “Studio Monitor”, then it will auto to detect your Encoder NDI | HX stream 2.Vmix...
- Page 7 Overlay: OSD overlay Add “text, logo, mosaic, time (system time)” to video. If you upload your logo, please make sure logo is “*.png” format, and also the name must be legal. For example, here’s an illegal name “my log.png”, the name contains a “space”. For long name, we recommend you name it to “my_logo.png”.
- Page 8 Extend: extra features Video mix: different media mixed to a same screen. Need to enable “Mix” in page “Encode” first. NDI decode: decode NDI | HX stream Record: record Media and store to USB hard disk. Please prepare a USB hard disk, and it should be FAT32 or EXT4: Multiple push: push to different platforms simultaneously.
- Page 9 Output config: Set the output resolution and source. VGA output is not supported at present, this Encoder does not leave VGA port. Options (system setting): DHCP: Dynamic Host Configuration Protocol. Please make sure your local Network has an DNS server. Otherwise, Encoder will not get an IP. Upgrade firmware: any new firmware release, please upgrade for your Encoder here.
- Page 10 FAQ: 1.Can not ping or enter Encoder web GUI? Re: please check your PC/laptop works in same network as Encoder or not. In another word, your PC/laptop should have an ip which is same range as Encoder 192.168.1.xxx. 2 devices which work in different 2 different ranges, could not communicate directly. So, you can configure an ip 192.168.1.xxx for your PC/Laptop for first time to configure Encoder.
- Page 11 2> please check your Media server url, port, stream name is correct or not. 3> some media server, it’s needed a safety certification, like “white list”. 6.Have tried everything, but Encoder still not working properly? Re: please try reset Encoder. If not help, please write to us: support@tbsdtv.com...
