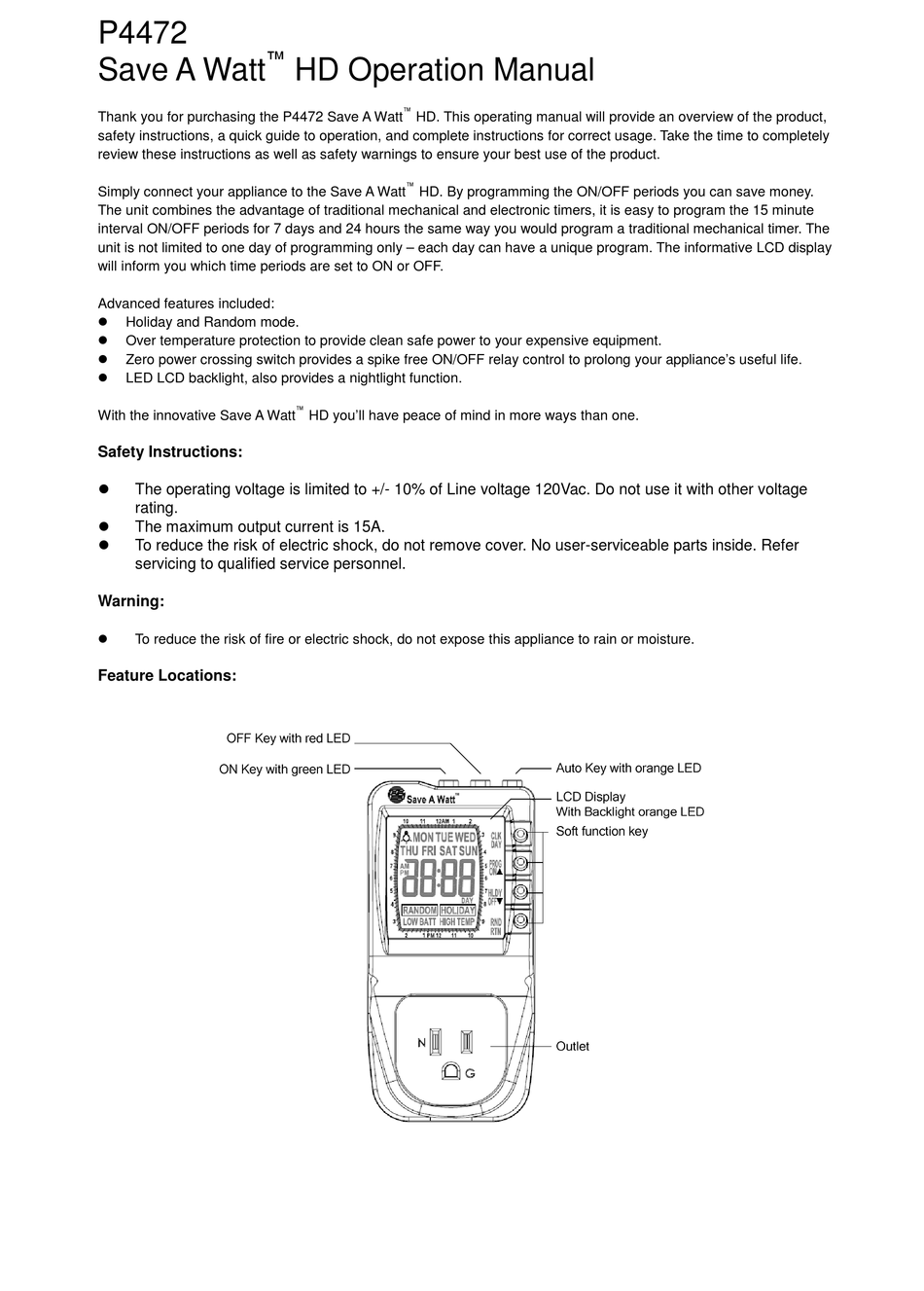

P4472
Save A Watt
Thank you for purchasing the P4472 Save A Watt
safety instructions, a quick guide to operation, and complete instructions for correct usage. Take the time to completely
review these instructions as well as safety warnings to ensure your best use of the product.
Simply connect your appliance to the Save A Watt
The unit combines the advantage of traditional mechanical and electronic timers, it is easy to program the 15 minute
interval ON/OFF periods for 7 days and 24 hours the same way you would program a traditional mechanical timer. The
unit is not limited to one day of programming only – each day can have a unique program. The informative LCD display
will inform you which time periods are set to ON or OFF.
Advanced features included:
Holiday and Random mode.
Over temperature protection to provide clean safe power to your expensive equipment.
Zero power crossing switch provides a spike free ON/OFF relay control to prolong your appliance's useful life.
LED LCD backlight, also provides a nightlight function.
With the innovative Save A Watt
Safety Instructions:
The operating voltage is limited to +/- 10% of Line voltage 120Vac. Do not use it with other voltage
rating.
The maximum output current is 15A.
To reduce the risk of electric shock, do not remove cover. No user-serviceable parts inside. Refer
servicing to qualified service personnel.
Warning:
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
Feature Locations:
™
HD Operation Manual
™
HD. This operating manual will provide an overview of the product,
™
HD. By programming the ON/OFF periods you can save money.
™
HD you'll have peace of mind in more ways than one.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Save A Watt P4472 and is the answer not in the manual?

Questions and answers

Summary of Contents for P3 International Save A Watt P4472

  • Page 1 P4472 ™ Save A Watt HD Operation Manual ™ Thank you for purchasing the P4472 Save A Watt HD. This operating manual will provide an overview of the product, safety instructions, a quick guide to operation, and complete instructions for correct usage. Take the time to completely review these instructions as well as safety warnings to ensure your best use of the product.
  • Page 2 Display Panel: LCD Display With Backlight (Orange LED) Weekly Day Icon Back Light Icon Soft function key AM/PM Icon Program Setting Indicator Random mode Icon Holiday Mode Icon Low Battery Icon Over Temperature Indicator Installation: 1. Using the appropriate flat screwdriver open the battery cover, and position the 3 (AAA) batteries according to the +/- terminal.
  • Page 3 Menu mode:  Includes Clock, Program (PROG), Holiday (HLDY) and Random (RND) 4 modes.  LCD display default will show Clock. Clock mode:  Includes Day selection and Hour, Minute adjustment.  Day: MON, TUS, WED, THU, FRI, SAT and SUN. ▲...
  • Page 4 Example: Monday AM 06:00 to AM 08:00 is ON, PM 07:00 to PM 10:00 is ON, Other time is OFF. Program  Day to Mon  OFF until main display to AM 06:00  ON until main display to AM 08:00  OFF until main display to PM 07:00 ...
  • Page 5 Example: Saturday AM 08:00 to AM 10:00 is ON, PM12:00 to PM 01:00 is ON, PM 06:00 to PM 11:00 IS ON, Other time is OFF. Program  Day to Sat  OFF until main display to AM 08:00  ON until main display to AM 10:00  OFF until main display to PM 12:00 ...

  • Page 6: Power-On Reset

    Random mode: Pressing RND.  It provides a random time offset to the Program output on/off +/- (0 to 15 min). Power ON Reset Main function Main function THU FRI SAT SUN THU FRI SAT SUN Press RANDOM HOLIDAY RANDOM HOLIDAY 5 1 ' LOW BAT HIGH TEMP.
  • Page 7 Low battery indication: When the battery voltage is under 3.3V, the “ LOW BAT.” Icon will appear on the display. After you change the battery, the clock will need re-setting. Retained Programming: Your ON/OFF settings and other programming is retained in non-volatile memory. Your settings and programming will be saved even when there is no power or the battery is exhausted.
  • Page 8 Battery backup function: 1. When power to the unit is interrupted, the internal power supply will be switched to battery backup mode immediately. The LED backlight is also disabled. 2. The battery backup feature also allows the user to program the unit without having it plugged into an outlet. You can change the settings while holding the unit in your hands which is more convenient than crouching down to reach a wall outlet.

  • Page 9: General Specification

    OPERATION VOLTAGE IS LIMITED TO ±10% OF LINE VOLTAGE POLLUTION DEGREE : 2 CAT II GENERAL SPECIFICATION 120 Vrms ± 10%, 50/60Hz POWER RATING POWER CONSUMPTION Max. 2.1 Watt Ratings 15Amp (1800 Watts) Resistive and Inductive, 500 Watts Tungsten, 1/3 H.P. 120V.A.C. L/W/H 5½...
  • Page 10 P3 INTERNATIONAL CORPORATION LIMITED WARRANTY P3 INTERNATIONAL CORPORATION ("P3") warrants to the original retail purchaser only, that its product is free from defects in material or workmanship under the condition of normal use and service for a period of six (6) months from the date of purchase.
