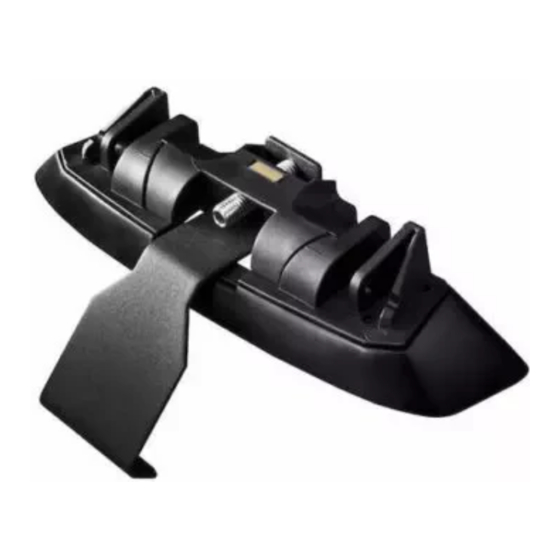

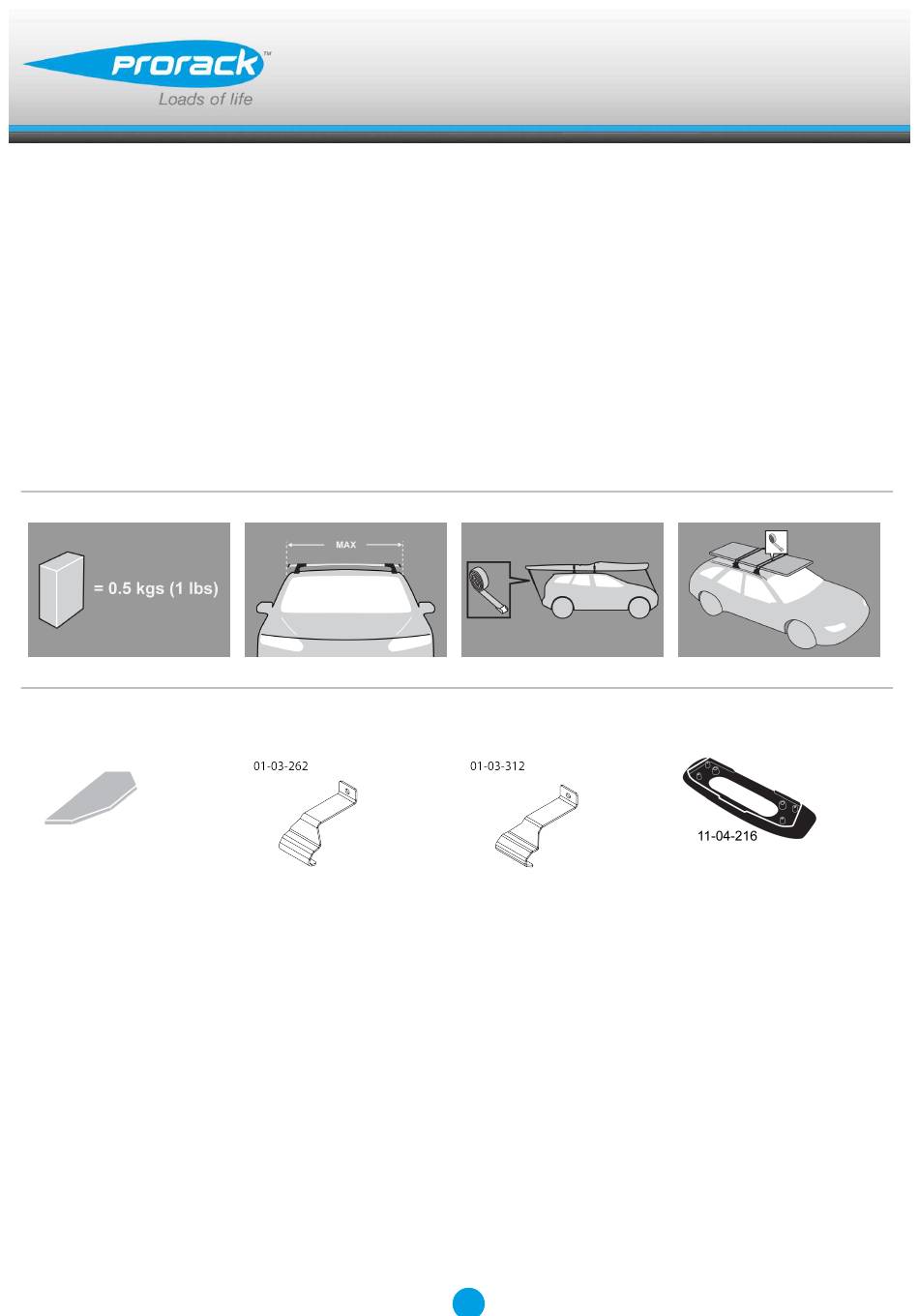

K117
Fitting Kit
EN
Fitting Instructions for Basic Carrier
x 4
x 2
x 2
x 4
Revision No: 4D
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the K117 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yakima K117

  • Page 1 K117 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4D...
  • Page 2 Fitting Kit K117 MAX kgs (lbs) Toyota Camry 20 Series, 5dr Wagon May 98-Aug 02 75 kgs (165 lbs) 75 kgs (165 lbs) Camry, 5dr Estate 97-01 75 kgs (165 lbs) 75 kgs (165 lbs) Camry, 5dr Wagon Sep 97-Sep 02...
  • Page 3 Fitting Kit K117 Camry 20 Series, 5dr Wagon May 98-Aug 02 (AU) -300mm 300mm 844mm 835mm -11 -13/16ths" 11 13/16ths" 33 1/4ths" 32 7/8ths" Camry, 5dr Estate 97-01 (EU) -300mm 300mm 844mm 835mm -11 -13/16ths" 11 13/16ths" 33 1/4ths" 32 7/8ths"...
  • Page 4: First Time Installation

    Fitting Kit K117 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D.
  • Page 5 Fitting Kit K117 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
  • Page 6 Fitting Kit K117 Remove locking screw. Apply protective strip as shown.  Trim if required. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number:...
  • Page 7 Fitting Kit K117 Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
  • Page 8 Fitting Kit K117 Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps over rubber door frame mouldings. Press adjusting screw to adjust the leg...
  • Page 9 Fitting Kit K117 Tighten adjusting screw to 2 Nm (1.5 ft lb) hand tight. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
  • Page 10 Fitting Kit K117 Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
  • Page 11 Fitting Kit K117 Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
  • Page 12 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.prorack.com.au www.prorack.co.nz...
  • Page 13: Warranty And Disclaimer

    Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
  • Page 14 Fitting Kit K117 Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
