Summary of Contents for TYLZA TYBC100

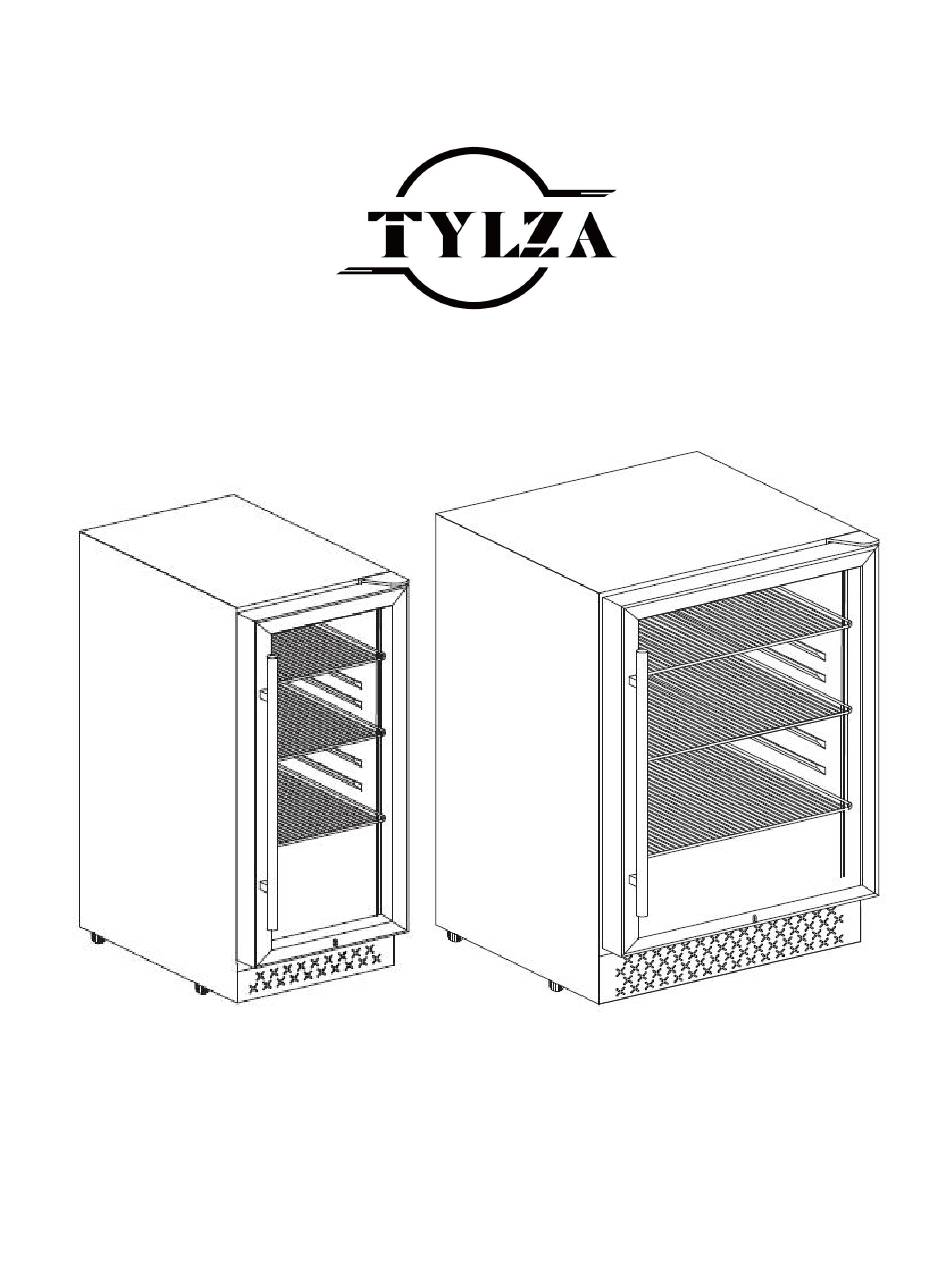

- Page 1 INSTRUCTION MANUAL BUILT-IN BEVERAGE COOLER MODEL: TYBC100 / TYBC150 Read this manual and follow all safety rules and operating instructions before first use of this Beverage cooler.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PRODUCT DIAGRAM INSTALLATION INSTRUCTIONS Before Using Your Beverage cooler To Install Stainless Steel Handle To Install Your Beverage cooler OPERATION INSTRUCTIONS Controls Storage Door Lock Beech Shelves CARE & MAINTENANCE Cleaning Your Beverage cooler Power Failure Vacation Time Moving Your Beverage cooler... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. This Beverage cooler complies with the applicable safety requirements and is safe for daily use. However, basic safety precautions should always be followed when using an electrical appliance, to reduce the risk of fire, electric shock, and personal injury. -
Page 4: Product Diagram
Do not use this wine cooler for other than its intended purpose. For indoor, household use only. Move this wine cooler by 2 people. Failure to do so can result in injury. Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and below 32°C (90°F). -
Page 5: Installation Instructions
Control Panel Top Hinge Beverage Shelves Glass Door with Handle Exhaust Window Safety Child Lock Leveling Legs INSTALLATION INSTRUCTIONS Before Using Your Beverage cooler... -
Page 6: To Install Stainless Steel Handle
Remove the exterior and interior packaging. Check to be sure you have all of the following parts: 3 wired Shelves 2 Keys Stainless Steel Handle Instruction Manual 2 Extra Screws for Installing Handle IMPORTANT: Before connecting this Beverage cooler to a power source, let it stand upright for approximately 24 hours. -
Page 7: To Install Your Beverage Cooler
1 Gasket 2 Screw 3 Screw Driver 4 Handle To Install Your Beverage cooler This Beverage cooler is designed for free standing or built-in (fully recessed) installation. Place your Beverage cooler on a solid and level floor that is strong enough to support it when it is fully loaded. -
Page 8: Operation Instructions
(115 V AC only, 60 Hz), in accordance with the National Electrical Code and local codes and ordinances. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized products service center. Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center. -
Page 9: Storage
After plugging the Beverage cooler into a wall outlet, the cooler would turn on automatically and the LCD screen would show the temperature inside of the cooler. After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours before placing wine bottles in the Beverage cooler. -
Page 10: Door Lock
Door Lock This cooler can be secured with a lock and key. The keys are located inside the plastic bag that contains the Instruction Manual. Insert the key into the lock and turn it clockwise to lock the door, making sure the metal pin is engaged completely. To unlock the door, do the reverse. Remove the key and put it in a secure location. -
Page 11: Power Failure
IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use harsh cleansers or scouring pads to clean any part of the cooler. Turn off the power, unplug the Beverage cooler, and remove all items including shelves. Wash the inside surfaces with warm water and baking soda solution. -
Page 12: Energy Saving Tips
Turn the adjustable leg up to the base to avoid damage. Tape the door shut. Ensure that the Beverage cooler stays securely in the upright position during transportation. Protect the outside of the Beverage cooler with a blanket or a similar item. Energy saving tips - The cooler should be located in the coolest area of the room away from heat sources or direct sunlight. - Page 13 PROBLEM POSSIBLE CAUSE SOLUTION The Beverage cooler may not be Ensure the Beverage cooler has been plugged in, or plug may be loose. plugged in properly. The Beverage cooler does not The Beverage cooler is turned off. Press to turn on the cooler. run.
- Page 14 PROBLEM POSSIBLE CAUSE SOLUTION Not plugged in. Plug the cooler in. The circuit breaker tripped The light does not Check the breaker and/or fuses. or a blown fuse. work. The light button is “OFF”. Press to turn the light ON. The cooler is not leveled.
