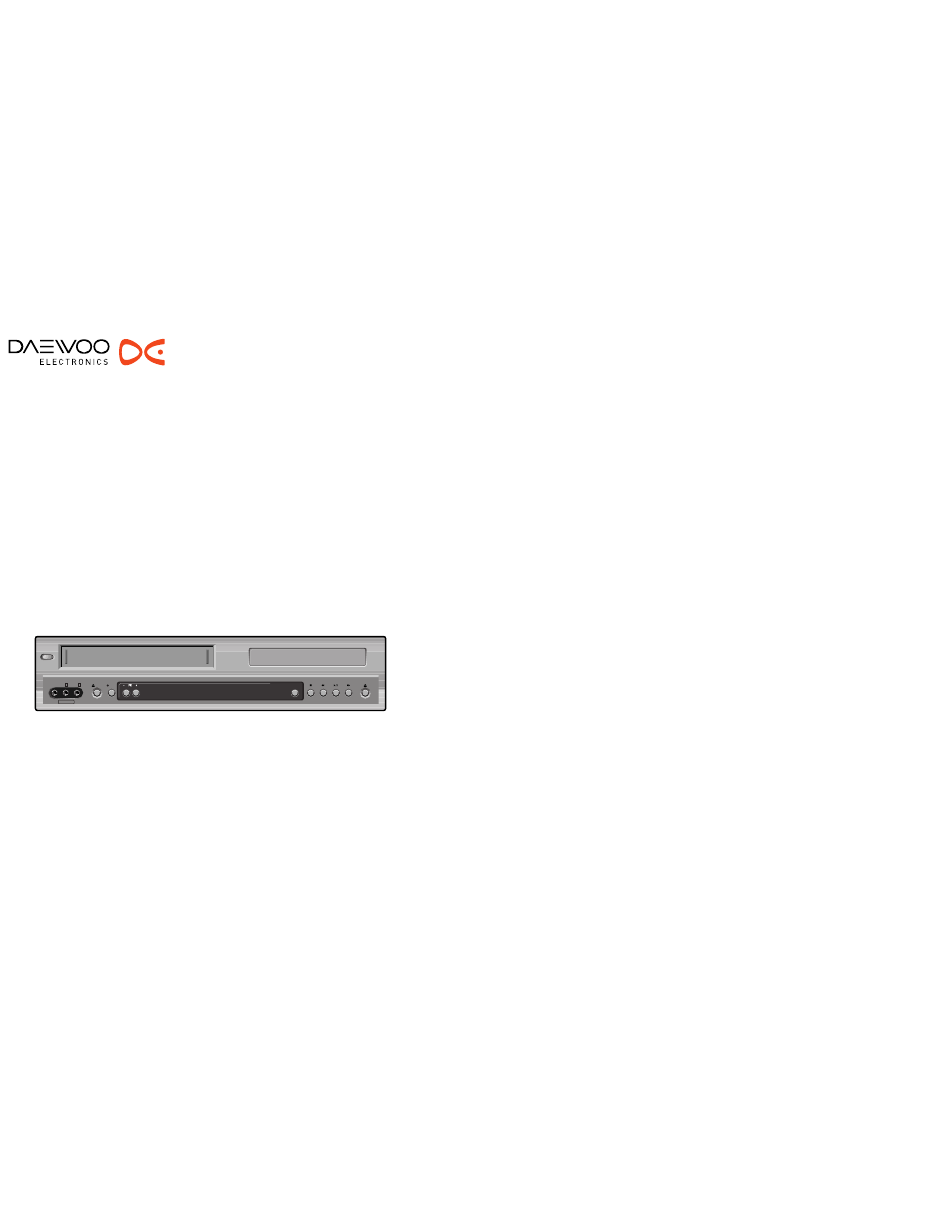

DVD Player + Video Cassette Recorder
SH-7500D
STANDBY/ON
VIDEO
L
AUDIO R
EJECT
REC
AV INPUT
Please read this manual carefully before connecting your DVD+VCR and operating it
for the first time.
Keep the manual in a safe place for future reference.
SELECT
STOP
REW PLAY/PAUSE FF
OPEN/CLOSE
INSTRUCTION MANUAL
P/N: 97P95600D0-6J
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for DAEWOO ELECTRONICS SH-7500D
Summary of Contents for DAEWOO ELECTRONICS SH-7500D
- Page 1 DVD Player + Video Cassette Recorder SH-7500D STANDBY/ON VIDEO AUDIO R EJECT SELECT STOP REW PLAY/PAUSE FF OPEN/CLOSE AV INPUT Please read this manual carefully before connecting your DVD+VCR and operating it for the first time. Keep the manual in a safe place for future reference.
-
Page 2: Table Of Contents
Contents Product Information DVD Operation Playing a desired scene ..........37 Important Safeguards ............. 2 Confirming the current PLAY mode on screen ..41 Advantages of This Product Are ........ 5 Selecting an AUDIO language, SUBTITLE language Read Carefully before Using ......... 6 and 3D AUDIO ............... -
Page 3: Important Safeguards
Important Safeguards Important Safeguards The lightning flash with arrowhead symbol, CAUTION This set has been designed and manufactured to assure with care. Quick stops, excessive force, and uneven within an equilateral triangle, is intended to personal safety. Improper use can result in electric surfaces may cause the product and cart RISK OF ELECTRIC SHOCK alert the user to the presence of uninsulated... -
Page 4: Advantages Of This Product Are
Important Safeguards Advantages of This Product Are ..13 LIGHTNING only those controls that are covered by the • DVD, VCD, CD, CD-R(MP3), CD-RW, VHS • Selective Play (DVD/VCD/CD) For added protection for this unit during a operating instructions. Improper adjustment of •... -
Page 5: Read Carefully Before Using
Read Carefully before Using Identification of Controls Main body (front panel) Cautions in use of DVD-Video player are described and maintenance every 1,000 hours of use by below. technical engineers. • For checking, contact your dealer or your Please read carefully before using a DVD-Video player. nearest service center. - Page 6 Identification of Controls Identification of Controls Main body (Rear Panel) Operation Display Window ^ & DVD & VCR - RECORDING MODE - - REPEAT MODE - AUDIO OUT COMPONENT OUT ANT.IN AUDIO Repeat one chapter OPTICAL [DVD] Timer Recording Standby Repeat track [VCD] COAXIAL...
-
Page 7: Remote Control
Identification of Controls Remote Control [DVD] OPEN/CLOSE button, [VCR] EJECT button @ VCR SELECT button Accessories [DVD, VCR] NUMBER button, [VCR] TRACKING -/+ button $ SYSTEM button [VCR] `This button is not available for this [DVD] Activates Progressive Scan button Instruction Remote control 2 Batteries... -
Page 8: Connecting Up Your Player With Rf Lead
Connecting up your player with RF lead Before you start, unplug all the equipment from the mains supply. Before you start, unplug all the equipment from the mains supply. (Option 1) - How to connect with RF lead (Option 2) - How to Connect with Audio/Video jack REAR PANEL OF TV REAR PANEL OF DVD-VIDEO INPUT 1... -
Page 9: Connecting With Other Vcr Or Camcorder
Connecting with Other VCR or Camcorder How to Connect with Jack in Front Panel ¡ REAR PANEL OF PLAYBACK VCR(CAMCORDER) FRONT PANEL OF DVD-VIDEO Connect AUDIO/VIDEO OUT jack in Camcorder(or playback video) to AUDIO/VIDEO IN jack in rear panel (or front panel) of DVD-Video with connecting cable. STANDBY/ON ™... -
Page 10: Connecting With Audio
Connecting with Audio Connecting to a television with Component jack and a Dolby Digital Amp. How to Connect with Stereo Unit such as Audio Use in COMPONENT In jack attached in TV or amp supporting Dolby Digital. REAR PANEL OF STEREO UNIT REAR PANEL OF DVD-VIDEO How to Connect DIGITAL AUDIO OUT... -
Page 11: Initial Installation
Initial Installation Switch the TV on. You can also start "AUTO SEARCH" in the SETUP "PR PRESET" "AUTO SEARCH". To tune in new stations (manual tuning) and to enter station names see page 27-28. If other stations are positioned on near the current RF OUTPUT Setting up the player RF OUTPUT SET CH, the guide message appears automatically. -
Page 12: Output Select
Setting time and date Output Select Setting time and date To Select DVD Press [DVD] button. Press [VCR] button on the remote control to change into VCR Mode and follow the procedure below. If DVD mode is correctly selected, DVD on the operation display window is lit. -
Page 13: Dvd Playback
VCR Playback DVD Playback Press [ ] button to power on. Press [ ] button to power on. Press [VCR] button of remote control to change into VCR mode. Press [DVD] button of REMOTE to change into DVD mode. Insert the desired tape. Press [OPEN/CLOSE] button to open the disc tray. -
Page 14: Recording
Recording Recording To Record With VCR To Copy From DVD To Videotape Press [ ] button to power on. • Press [VCR] button of remote control to change into VCR mode. Insert the desired DVD disc. When it is a DVD disc with copy protect function, you can’t copy it. Insert a recordable tape. -
Page 15: Tuning In New Stations
Recording Tuning in New Stations One Touch timer Recording (OTR) The TV and player are switched on. To see the picture from your player, press the input or AV (Audio/Video) button on the TV. When your urgent business happens suddenly in watching TV or you want to record the current TV program for the desired time, follow the procedures below. - Page 16 Tuning in New Stations Tuning in New Stations Station names Sorting programme locations If the location numbers used for programmes stored in your TV and player are different, you can change them on If your player is showing no station name or is showing a station name incorrectly, you can correct the player.
-
Page 17: Timer Recording
Timer Recording Timer Recording For timer recordings, clock, date, and stations must be set correctly. Load a cassette with its safety tab in place and with sufficient free space for the recording. Normal timer recording Timer Review – changing and erasing Press "SETUP", choose "TIMER PROGRAM". -
Page 18: More Functions
More Functions More Functions The counter counts in real time from the point you load the cassette. This does not have to be its Resetting the counter to zero beginning! The counter does not count unrecorded parts of the tape. If you rewind beyond the zero position, the counter counts in negative values (e.g. -
Page 19: Connections And Copying
More Functions Connections and Copying The player machine records the complete sound signal transmitted by the TV station. If you are using a RCA cable, select the AV input on the TV to see the picture from the player. On the mono VCR, you will hear the normal mono sound. If you are not using a RCA cable, select the button number on the TV reserved for video input to see the picture from the player. -
Page 20: Playing A Desired Scene
Connections and Copying Playing a desired scene To skip scenes in a disc Assembling Should you wish to assemble your own film, from camcorder footage for example, use the assembly technique To move to next chapter (or track), press [√√ NEXT] button. for smooth edit points: The current chapter (or track) moves to the next chapter (or track). - Page 21 Playing desired scene Playing desired scene Searching DVD with a title number, a chapter number or a time Repeating a defined period If you want to search with a title number, press current title number [SEARCH] button one time. Each time you press [REPEAT] button in playback mode, repeat playback starts as below. It shows current and total title numbers.
-
Page 22: Confirming The Current Play Mode On Screen
Playing desired scene Confirming the current PLAY mode on screen Searching VCD with a track or track time Confirming the current DVD disc mode If you want to search with a track number, press While in playing, press [DISPLAY] button. [SEARCH] button one time. -
Page 23: Selecting An Audio Language, Subtitle Language And 3D Audio
Confirming the current PLAY mode on screen Selecting an AUDIO language, SUBTITLE language and 3D AUDIO Confirming the current VCD disc mode While in playing, press [DISPLAY] button. Selecting an audio language It shows the current disc mode. …† If you want to change the mode, select the item with up/down ( ) cursor and enter The user may select an audio language and subtitle language if a disc includes Multi-language. -
Page 24: Selecting Zoom And Multi Angle
Selecting ZOOM and Multi Angle About MP3, CDDA, JPG and MPG discs Using a zoom function Playing a disc containing MP3 or CDDA files The user can enlarge the current screen about 2 or 4 times. This unit will play MP3 or CDDA files recorded on CD-R and CD-RW discs. Keep pressing [ZOOM] button till the preferred zoom appears. - Page 25 About MP3, JPG and MPG discs About MP3, JPG and MPG discs Playing a disc containing JPG (PHOTO) files Repeat playback mode. MUSIC > MP3 Every time you press [REPEAT], repeat √ 001/018 0:00:34 / 0:03:59 This unit will play JPG files recorded on CD-R and CD-RW discs. Repeat one playback mode changes as follows: Repeat LIST...
- Page 26 About MP3, JPG and MPG discs Displaying menus in a disc Playing a disc containing MPG (MOVIE) files To display menus in a disc This unit will play MPG files recorded on CD-R and CD-RW discs. If a disc includes menus, the user may use them. Select the desired folder.
-
Page 27: Language Setup
Language Setup Language Setup A user can set OSD language, Audio, Subtitle and Disc Menu. Selecting Disc Menu language. While STOP or RESUME STOP, press [SETUP] SPANISH ENGLISH AUDIO GERMAN Set your preferred DISC MENU language with button. AUDIO AUTO SUBTITLE ITALIAN SUBTITLE... -
Page 28: Video Setup
Video Setup Audio Setup A user may select audio menu according to a user’s speaker set. A user can set up a connected TV condition and screen. While STOP or Resume STOP, press DIGITAL OUT BITSTREAM While STOP or RESUME STOP, press DYNAMIC RANGE [SETUP] button. -
Page 29: Others Setup
Others Setup Others Setup While STOP or RESUME STOP, press [SETUP] Changing a password. button. SCREEN SAVER To change your password, move the cursor SCREEN SAVER DEFAULTS RESET DEFAULTS to “PASSWORD” and press [√]. PARENTAL 8 ADULT PARENTAL PASSWORD PASSWORD Enter a current password. -
Page 30: About Dvd
About DVD About DVD This is recorded on a Video CD 2.0, Video CD 3.0 and SVCD. The scenes or information to be viewed (or Playable Disc listened to) can be selected interactively with the TV monitor by looking at the menu shown on the TV monitor. -
Page 31: Basic Information About Vcr And Videotape
Basic information about VCR and Videotape Trouble Shooting (VCR) Terms related with VCR Symptom Checks Automatic fine tuning, a circuit that automatically adjusts TV reception to optimum condition. • “Power On” does not work. Please check whether a power plug is inserted in an electric outlet. CABLE Cable television. -
Page 32: Trouble Shooting (Dvd)
Trouble Shooting (VCR) Trouble Shooting (DVD) Symptom Checks Symptom Checks • Recording a TV program is For recording, you should use videotape with a tab. • The recorder does not play. If a DVD is from overseas, it may not be played. Please check a impossible. -
Page 33: Specifications
Specifications Power 200-240V~, 50/60Hz Consumed electricity Weight 4.6kg Dimension (W x H x D) 435mmx93mmx255mm(Without Foot), 435mmx98mmx255mm(With Foot) Operative temperature +5°C~40°C Installation condition Horizontal / Relative humidity under 80% Laser output 5mW (continuous wave max.) Wave length 635nm (DVD), 730nm (CD) Signal type PAL COLOR Antenna Input/output...
