Design Technology Tiny-Tach 2A Operating Instructions page 2

The TINY-TACH
meter can
TM
be mounted in the desired
location using either sheet
metal screws or by using
double sided tape. For best
results when using tape, be
sure to clean off any dirt,
grease and oil from the
desired mounting location
using a suitable solvent such
as denatured alcohol.
Find a suitable route to run
the pick-up wire to the spark
plug wire. It is not critical
how the wire is routed. It can
be put into existing wire har-
nesses or wrapped around
and taped to metal supports.
CAUTION
KEEP WIRE CLEAR OF
EXTREMELY HOT ENGINE
PARTS SUCH AS THE
MUFFLER, AND MOVING
PARTS.
Wire damage (cuts or burns) will cause the wire to short and your TINY-TACH
covered under warranty.
The RED WIRE should be slipped over an insulated section of the spark plug wire using about 1* turns. PLEASE BE
CERTAIN YOU DO NOT WRAP THE RED WIRE TOO CLOSE TO THE SPARK PLUG THAT ENGINE VIBRATION WILL
ALLOW IT TO COME INTO DIRECT CONTACT WITH THE METAL PORTION OF THE SPARK PLUG. Most engines
have a spark plug cap and will prevent this from happening. After the connections are made, any excess wire can be coiled
up and taped to a convenient area.
* If the signal is not strong enough, you can add one wrap at a time until your signal is clear. The signal strength is controlled
by the number of wraps (too many wraps will pick up electronic noise and give a faulty reading).
WARRANTY: Design Technology, Inc. warrants that for a period of one year from time of purchase it will repair or replace the TINY-TACH
without charge, if it fails to function properly due to a defect in workmanship or materials in the instrument. Damage caused to the wires
and cables by improper care or use is expressly excluded from this warranty. Used TINY-TACH
reseller will be warranted at the discretion of Design Technology, Inc.
The TINY-TACH should be returned, prepaid to: Design Technology, Inc., 768 Burr Oak Drive, Westmont, IL 60559. In order to assure
TM
that you receive the correct model for your application, we request that you please enclose a short note describing the problem, the type
of engine and number of cylinders. Thank you. We hope you enjoy using your new TINY-TACH
Design Technology, Inc.
768 Burr Oak Drive, Westmont, IL 60559
(630) 920-1300
Tachometer and Hour meter

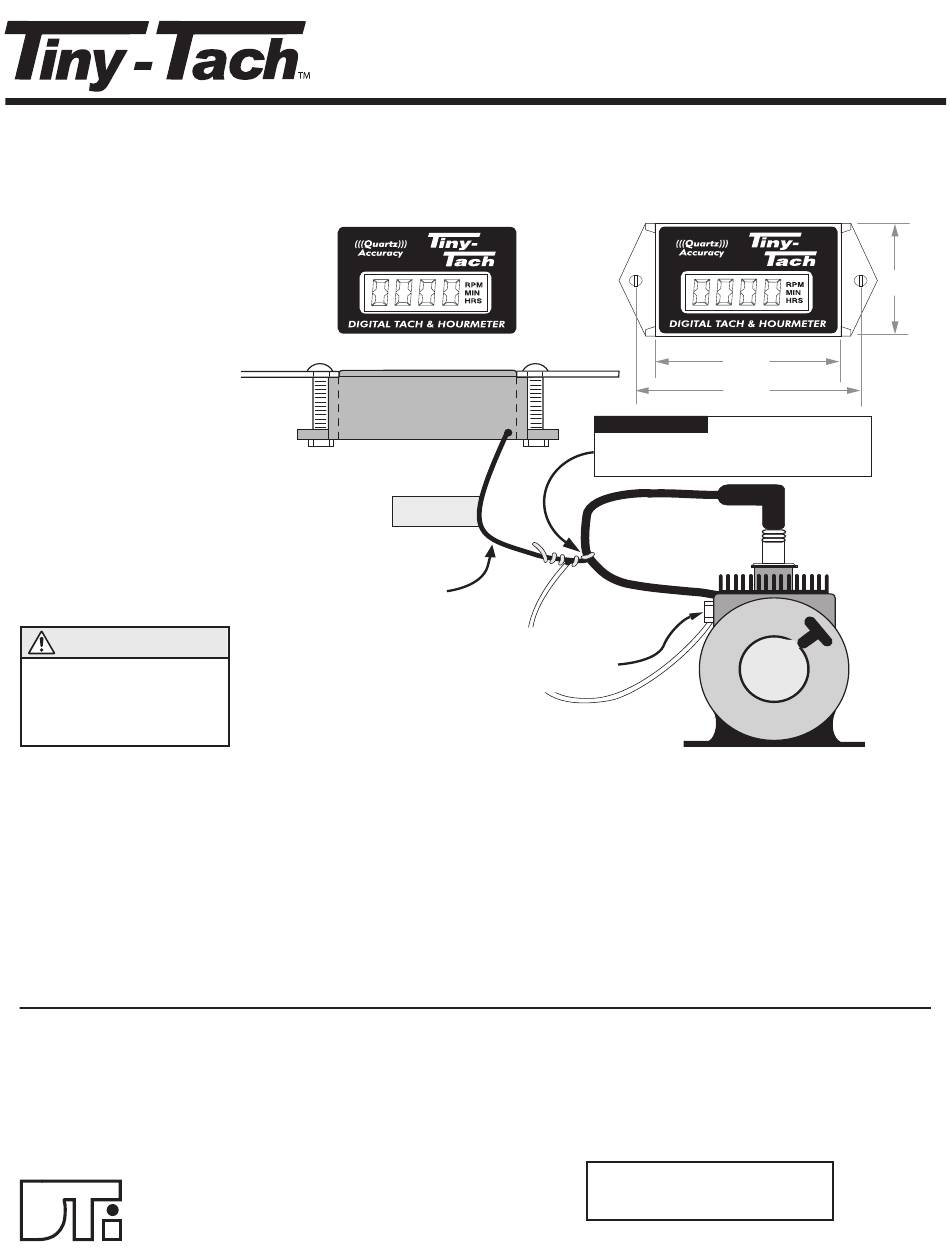

Connecting the Wires
Flush Panel Mount
Can be Recessed into Panel
Do not CUT
the BLACK wire
COIL UP ANY EXTRA
WIRE (DO NOT CUT WIRE)
AND SECURE AWAY
FROM EXTREME HEAT
AND MOVING PARTS
ATTACH WHITE WIRE TO
ENGINE GROUND. LOOSEN
CONVENIENT BOLT ON
ENGINE OR FRAME THEN SLIP
SOLDER LUG UNDER BOLT
AND RETIGHTEN
Surface Mount
2.045
2.500
IMPORTANT
WRAP RED WIRE ABOUT 1* TURN AROUND
SPARK PLUG WIRE. Tip: Cut Off Excess Red
Wire Only After Unit Is Reading Correctly.
will stop working. Wire damage is not
TM
purchased through a 3rd party
TM
TM
Technical Support
630-920-1300
www.tinytach.com
1.540
,
TM
11262-2A
