Velleman SG61008 Manual

PEM7D/C – COUNTER FOR MINI IR SECURITY SYSTEM PEM7D
Referencia Electrónica Embajadores:

1. Introduction

SG61008
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to
a specialized company for recycling. This device should be returned to your distributor or to a local recycling
service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the PEM7D/C 4-digit counter! Please read the manual thoroughly before bringing this device into
service. If the device was damaged in transit, don't install or use it and contact your dealer. The counter should come
with this manual, a 10m connection cable and a mounting bracket with mounting screws.

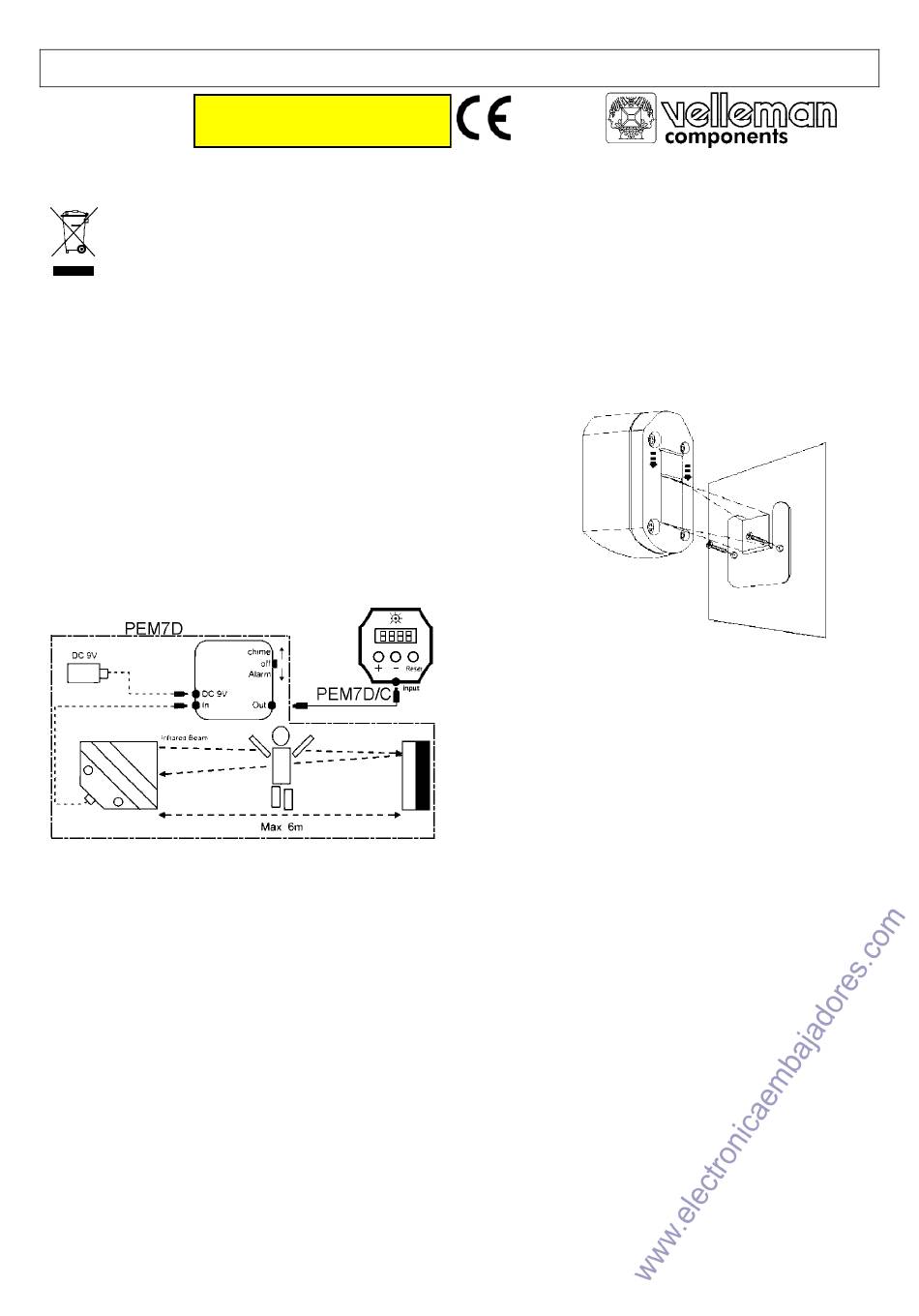

2. Mounting

Fix the mounting bracket to the wall by means of the provided screws
(see figure on the right).
Then attach the PEM7D/C by sliding it downward over the bracket.

3. Connection

4. Use

Above the 4-digit display is a power LED that lights up when the PEM7D/C is correctly connected to the PEM7D.
Under the display are 3 buttons: "+" (to manually add 1 to the count), "-" (to manually subtract 1 from the count) and
"RESET" to reset the count to "0000". You can keep "+" or "-" pressed for more than 1 second for quick operation.
Hence, the PEM7D/C can also be used as a manual counter, but it has to be connected to the PEM7D in order to
receive power.
PEM7D/C
Fig.2
Fig.1
Connect the PEM7D/C to the PEM7D by plugging the
enclosed cable into the input of the PEM7D/C and the
output on the speaker of the PEM7D.
1 VELLEMAN
