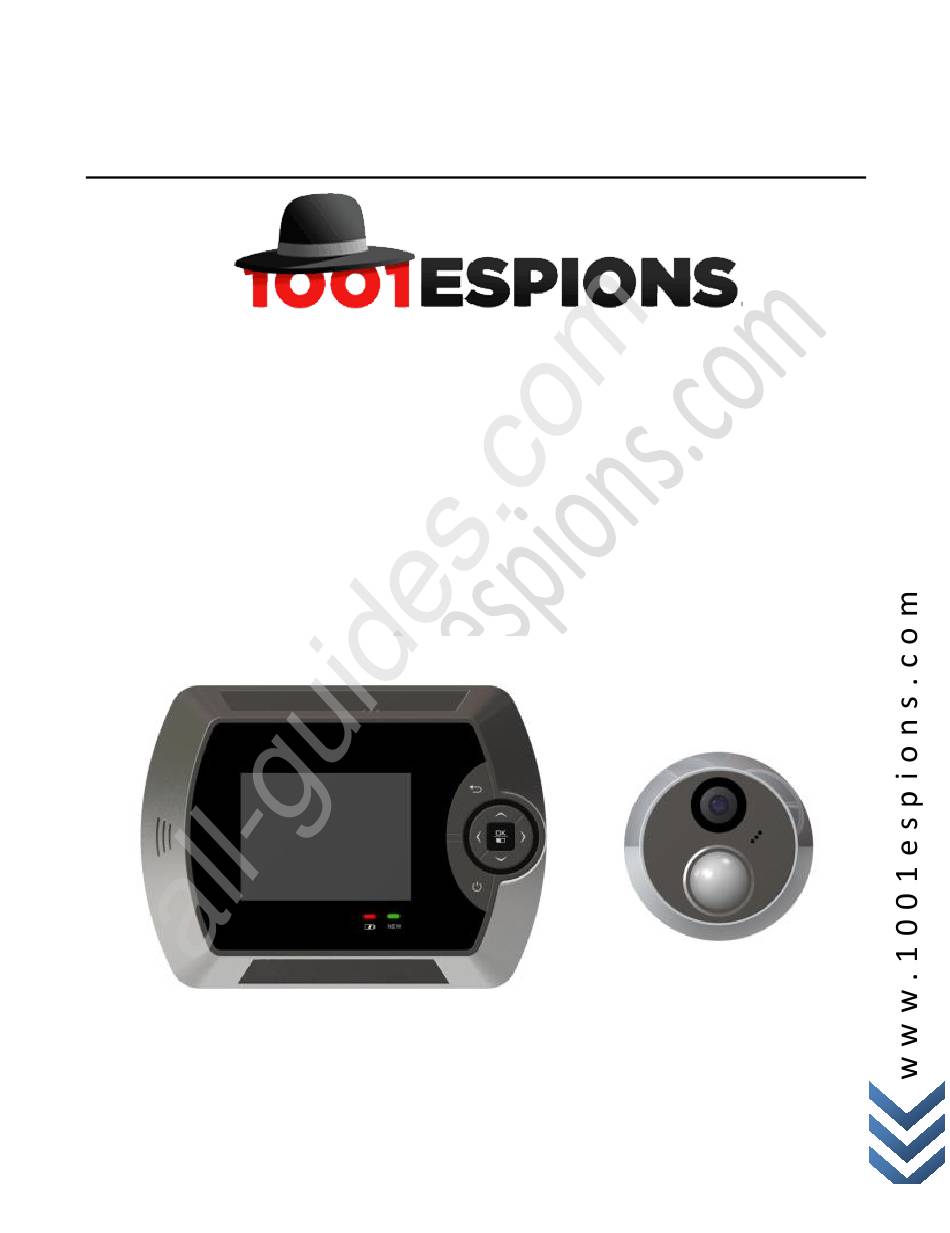

- Page 1 All manuals and user guides at all-guides.com – Judas Numérique Enregistreur Photos, Vidéos, Détecteur de mouvement...
- Page 2 All manuals and user guides at all-guides.com www.1001espions.com Dear Users, Please read the user manual carefully before using this product and Kindly safe keep this manual for future reference. Safety Use Note: Warning: Please install the digital door viewer in the recommended places to ensure safety.
- Page 3 All manuals and user guides at all-guides.com Catalog Chapter I: Product information Package contents Product appearance Main features, functions Main specifications Chapter II: Install diagram Structure chart Installation process Battery installation and remove method 2.3.1 Battery installation method 2.3.2 Battery remove method SD memory card insertion and remove 2.4.1 SD memory card insertion...
- Page 4 All manuals and user guides at all-guides.com www.1001espions.com 2.4.2 SD memory card remove Clock battery replacement 2.5.1 Clock battery remove 2.5.2 Clock battery installation Charge Chapter III： Intellicorder use instruction Live mode 3.1.1 System setting 3.1.2 Time setting 3.1.3 Parameters setting 3.1.4 Playback setting...
-
Page 5: Chapter I Product Introduction
All manuals and user guides at all-guides.com Chapter I Product introduction 1.1 Package contents (1) Intellicorder indoor host 1pc (2) Intellicorder outdoor host 1pc (3) Indoor host mounting plate 1pc (4) Power adaptor 1pc (5) Lithium battery 1pc (6) Clock battery 1pc (Loaded. Not installation for will loss of power, fitted when using) (7) Fixed nut 1pc (8) Screw 2pcs (9) Phillips screwdriver 1pc... -
Page 6: Product Appearance
All manuals and user guides at all-guides.com www.1001espions.com (10) User manual 1pc In the event the packing accessories are incomplete to ensure your interests, kindly contact the dealer or the company immediately. 1.2 Product Appearance... -
Page 7: Product Features And Functions
All manuals and user guides at all-guides.com 1.3 Product features and functions The intellicorder SH1006 is a new generation of visual digital recording door viewer, it incorporated the most advanced technical digital chipset. With a unique assembly method, user can enjoy easy and convenient installation without the need of any wiring and any need to alter or modify their current traditional peep-hole on their door construction. -
Page 8: Product Specifications
All manuals and user guides at all-guides.com www.1001espions.com (4) Indoor host monitoring outside (5) Infrared detection video / photo (6) Own 256M built-in memory, easy to use (7) Support SD card extension, up to 32G (8) Record the date, time, the video length, facilitate to provide valuable data when inquiry... - Page 9 All manuals and user guides at all-guides.com 门内机监视器上的图象分辨力 分辨力 (中心水平)不小于200 TVL(800 lux 环境下)。 Capacitive Electret Diameter 6MM Height: 2.7MM MIC part Microphone Sensitivity: 40 + /-3dB Camera Pixel Width:640, Height:480 300K Pixel Diagonal:115+/-5 degrees Camera Part Camera Angle Horizontal:102+/-3 degrees Vertical: 85+/-3 degrees Digital Zoom 3X digital zoom...
- Page 10 All manuals and user guides at all-guides.com www.1001espions.com 室内室外机防 室內機 IP30；室外機 IP33 水防尘要求 Door thickness is: 35mm-55mm 、 Door Thickness 55mm-85mm and 85mm-105mm. suited Can be customized so that fit for any Installation Part thickness of the door Door peephole size Dia.15mm...
-
Page 11: Chapter Ii Install Diagram
All manuals and user guides at all-guides.com Infrared mobile 近:<1.5M ; 遠:<2.5M Distance monitoring 环境温度 -10 ℃～+55 ℃； 使用條件 相对湿度 10 ％～95 ％； 大气压力 86 kPa～106 kPa。 是否帶 SD 卡銷售 根據客人要求可選 是否帶電池銷售 配一塊 1800mA 鋰電池 Language Kinds of language to set 其它... - Page 12 All manuals and user guides at all-guides.com www.1001espions.com host underside host front host underside Explain the various parts of the structure or button: (1) Battery Cover (SD memory card and lithium battery inside)
-
Page 13: Install Process
All manuals and user guides at all-guides.com (2) Lock bracket for battery cover (3) Color LCD screen (4) Return: (5) Cursor: △▽ (6) OK: confirm setting (7) Power: power on or power off (8) Charge indicator (red): when there the external power adaptor is connected, light on (9) New record indicator (green): recording when in recording mode ,light on (10) Speaker: Play the recorded audio sound under record mode (11) Charging interface... - Page 14 All manuals and user guides at all-guides.com www.1001espions.com (1) Unscrew the sleeve out completely first from the outdoor part, Remove the backing of double-sided adhesive (pic.2.1); (2) Pass the Outdoor slave through the peephole, and stick it to the outside of the door like shown in pic.2.2;...
- Page 15 All manuals and user guides at all-guides.com (3) Removing the double-sided adhesive on the mounting bracket (pic.2.3); Double-sided adhesive pic.2.3...
- Page 16 All manuals and user guides at all-guides.com www.1001espions.com (4) Follow pic.2.4, to stick the mounting bracket on the door, then install the Screw for fixing, and buckle the male connector of the FPC with the female Connector on the mounting bracket;...
- Page 17 All manuals and user guides at all-guides.com Door Fixed nut Director buckle pic.2.4 (5) Remove the insulate sheet on the clock battery (pic.2.5);...
- Page 18 All manuals and user guides at all-guides.com www.1001espions.com Insulate sheet Square groove pic.2.5...
- Page 19 All manuals and user guides at all-guides.com (6) Follow pic.2.6 install the indoor host to the mounting bracket; pic.2.6...
- Page 20 All manuals and user guides at all-guides.com www.1001espions.com (7) Lock the screws with the Philips screwdriver (pic.2.7); Screw pic.2.7...
- Page 21 All manuals and user guides at all-guides.com (8) Install finished. 2.3 Battery install and remove 2.3.1 Battery installation method 2.3.1.1 Push the battery cover lock to the left, it will open automatically (pic.3.1); 2.3.1.2 Install the battery like in Pic.3.2: push the battery Buckle outward, then install the battery in;...
- Page 22 All manuals and user guides at all-guides.com www.1001espions.com Battery cover lock pannel pic.3.1 2.3.2 Battery remove method Opposite to the battery install steps. Battery...
- Page 23 All manuals and user guides at all-guides.com Battery buckle pic.3.2 2.4 SD memory card insertion and remove 2.4.1 SD memory card insertion 2.4.1.1 Follow step 2.3.1.1 to open the battery cover;...
- Page 24 All manuals and user guides at all-guides.com www.1001espions.com 2.4.1.2 Insert the SD memory card to the SD slot like pic.4.1; 2.4.1.3 Replace the battery cover, push the battery cover lock to the right, then buckle up. SD card SD slot pic.4.1...
- Page 25 All manuals and user guides at all-guides.com 2.4.2.1 Follow step 3.1.1 to open the battery cover; 2.4.2.2 Press and release SD card (pic.4.2); 2.4.2.3 Replace the battery cover, push the battery cover lock to the right, then buckle up. Release SD card SD card pic.4.2...
- Page 26 All manuals and user guides at all-guides.com www.1001espions.com 2.5 Clock battery replacement 2.5.1 Clock battery remove 2.5.1.1 Remove the two screws on the indoor host, then take down the indoor host; 2.5.1.2 Remove the cover on the back of the clock battery by rotating tabs into unlocked position.
- Page 27 All manuals and user guides at all-guides.com pic.5.1 2.5.2 Clock battery installation 2.5.2.1 Insert the clock battery under the splinter like pic.5.3, then press the top into the battery container; Battery block splinter pic.5.2 2.5.2.2 Install the clock battery cover by rotating it clockwise;...
- Page 28 All manuals and user guides at all-guides.com www.1001espions.com 2.5.2.3 Install the indoor host. 2.6 Charge 当电量低的时候，电量图标 显示为空，请充电。 2.6.1 Connect the power adaptor to the power supply; 2.6.2 Insert the DC plug to charging pot of the host, the indicate Light turn on (red);...
-
Page 29: Operation
All manuals and user guides at all-guides.com Chapter III Operation Press power on key to turn on the device ( )(5 seconds). Mode selection: Live mode (LIVE) / Record mode (RECORD), through the mode switch in the lower side for selection. - Page 30 All manuals and user guides at all-guides.com www.1001espions.com Notes: Under live mode (LIVE), shut down automatically when non-operation for 40 seconds. Under record mode (RECORD), automatically store data and standby after auto-recording 15 seconds, and start again if have trigger.
- Page 31 All manuals and user guides at all-guides.com Shortly press OK to enter main menu. Press△▽ to select setting, Press OK to enter setting ,press once to return to previous menu，shortly press to return to monitoring interface.
-
Page 32: System Setting
All manuals and user guides at all-guides.com www.1001espions.com System setting Time setting Parameter setting Playback setting 3.1.1 System setting... - Page 33 All manuals and user guides at all-guides.com Press△▽ to switch setting option, and press OK enter to the setting catalog. 3.1.1.1 Language setting Press to select language, then press OK to confirm.
- Page 34 All manuals and user guides at all-guides.com www.1001espions.com 3.1.1.2 Infrared setting Press to select close/far, then press OK to confirm. Close: infrared distance is around 0-1.5M...
- Page 35 All manuals and user guides at all-guides.com Far: infrared distance is around 0-2.5M...
- Page 36 All manuals and user guides at all-guides.com www.1001espions.com 3.1.1.3 Format Press to select YES/NO, then press OK to confirm your selection. Note: Format will delete what saved in the SD memory card, please use with caution. 3.1.1.4 Default setting Press...
- Page 37 All manuals and user guides at all-guides.com 3.1.1.5 Version No. Show software Version No. 3.1.1.6 NAND Remove to SD Card Press △ ▽ to select Yes or No, then press OK key to confirm if removing the built-in...
-
Page 38: Time Setting
All manuals and user guides at all-guides.com www.1001espions.com memory to SD card. 3.1.2 Time setting ▽ Press OK to select or switch setting position, then press△ to adjust time. -
Page 39: Parameter Setting
All manuals and user guides at all-guides.com 3.1.3 Parameter setting Press to switch setting option, then press OK enter to the setting catalog. Note: Settings updates take effect when you reboot the intellicorder. 3.1.3.1 Back light... - Page 40 All manuals and user guides at all-guides.com www.1001espions.com Press to select back light or NO (if need to open screen under record mode), then press OK to confirm your selection (default: NO). 3.1.3.2 Timestamp Press to select YES/NO (if show time when camera/record), then press OK to...
- Page 41 All manuals and user guides at all-guides.com 3.1.3.3 Record setting Press to select camera/record mode, then press OK to confirm your selection (default: record mode).
-
Page 42: Playback Setting
All manuals and user guides at all-guides.com www.1001espions.com 3.1.4 Playback setting ▽ Press OK to enter the sub-content, then press △ to make your desired selection and ▽ press OK to enter root-content, lastly press △ to select play back menu and press OK to play back. - Page 43 All manuals and user guides at all-guides.com Playing back recording, press OK to select play/pause; Press to select backward/forward; Volume + / Volume -, Press △/▽； When the storage space is full, the below reminder will come to the interface. Delete the directory or file: Select the file or directory you need to delete, press button for long time, then choose yes , then press OK button to confirm the deletion.
- Page 44 All manuals and user guides at all-guides.com www.1001espions.com Deleting contents or files, select the one you want to delete, shortly press , then press to select YES/NO, and press OK to delete. 3.2 Record mode (RECORD) When motion is detected, the record indicating light turns green, the recording time is 15 seconds.
- Page 45 All manuals and user guides at all-guides.com motion sensor is about 15 seconds. When recording, press power key to turn on/off the LCD display. Infrared Caution: 1. Susceptible to radio frequency radiation interference, to be away from sources of interference . 2.
- Page 46 All manuals and user guides at all-guides.com www.1001espions.com Chapter IV 1. Q: How long will the image turn out after the SH1006 is powered on? A: Around 5 seconds, because the system needs time to initial. 2. Q: When the SH1006 is working, how long will it enter into standby mode? A: after no operation for 40 seconds, it will enter to standby mode and save power.
- Page 47 All manuals and user guides at all-guides.com A: Outdoor unit is not properly installed, the camera should be in the above, infrared detection head in below, and then fine-tuning the outdoor unit in order to image display properly. 7． Q: How many pictures and how long of video can the memory store? A：It own 256M memory, except for system memory, about 240M left available, so can store pictures about 1113pcs, and 11 minutes of video.
- Page 48 All manuals and user guides at all-guides.com www.1001espions.com Chapter V Fault、solution and Precautions 1. Please do not use sharp objects to graze the LCD of indoor host to prevent scratch on the LCD. 2. When magnifying the image, the noise will become higher, this is normal.
- Page 49 All manuals and user guides at all-guides.com Keep out of strong dry, such as central heating vents.
