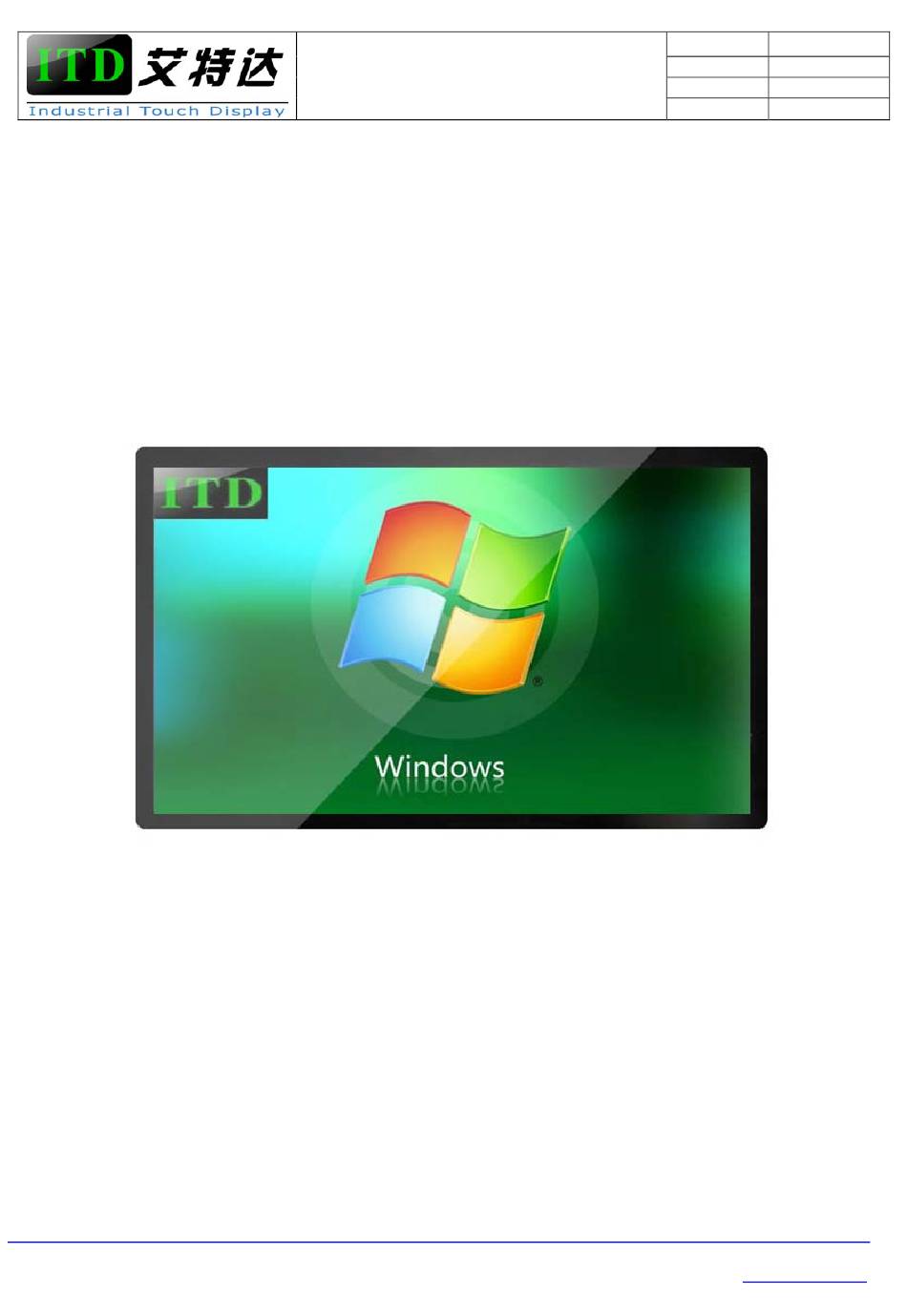

- Page 1 SPECIFICATION TIME 2014.2.28 Mark EDIT USER MANUAL MODEL：ITD55OFT5K1 ITD Technology Co., LTD www.itd‐tech.com ...
-
Page 2: Table Of Contents
* Safety Instructions ……………………………………………………………………3 * Basic Parameters ………………………………………………………………………4~5 * OSD MENU Function Key ……………………………………………………………5 * System Setup ……………………………………………………………………………6~8 * Mechanical Drawing ……………………………………………………………………8 * Solutions for Common Problems ………………………………………………9 * Typical Applications ……………………………………………………………………9 * How to Contact Us ………………………………………………………………………9 ITD Technology Co., LTD www.itd‐tech.com ... -
Page 3: Safety Instructions
E) The equipment has been dropped and damaged. F) The equipment has obvious signs of breakage. 14. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW -10℃ OR ABOVE 60℃. THIS MAY DAMAGE THE EQUIPMENT. ITD Technology Co., LTD www.itd‐tech.com ... -
Page 4: Basic Parameters
SPECIFICATION TIME 2014.2.28 Mark EDIT BASIC PARAMETERS 2. 1 General Model ITD55OFT5K1 IP65(for front panel only) Outline Dimensions Width: 1276.6mm Height: 747.4mm Depth: 60mm Weight（N.W/G.W） 42.2Kg / 48.3Kg (Approx.) Packing Dimension 1389(W) × 850(H) × 190(D)mm Speakers 8Ω10W LCD Type 55”... -
Page 5: Osd Menu Function Key
B) [+] key is designated for selection function in up direction in OSD menu and also to increase the value on selected function. C) [Power] Key is designated for Power On/Off D) [-] key is designated for selection function in down direction in OSD menu and also to decrease the value on selected function. ITD Technology Co., LTD www.itd‐tech.com ... -
Page 6: System Setup
A) 12V DC Power Adapter(below 24” only); B) Power Cord for Adapter; C) 1.8m VGA cable/DVI cable/HDMI cable; D) USB cable(A-A) 4.2 I/O arrangement Description DC2.0 IN HDMI IN DVI IN VGA IN PC AUDIO IN EARPHONE OUT 4.2.1 VGA (D-SUB DB15) Signal Definitions: ITD Technology Co., LTD www.itd‐tech.com ... - Page 7 SPECIFICATION TIME 2014.2.28 Mark EDIT 4.2.2 DVI Signal Definitions： 4.2.3 HDMI Signal Definitions： DESCRIPTION TMDS Data2+ TMDS Data2 Shield TMDS Data2– TMDS Data1+ TMDS Data1 Shield TMDS Data1– TMDS Data0+ ITD Technology Co., LTD www.itd‐tech.com ...
-
Page 8: Mechanical Drawing
B) Insert the CD Kit into your PC system’s CD drive. C) Click the SETUP.EXE installation program. The Setup program begins to execute and load the driver. D) Follow the instructions displayed on the screen. Make your selections carefully when answering questions to complete the installation. Mechanical Drawing ITD Technology Co., LTD www.itd‐tech.com ... -
Page 9: Solutions For Common Problems
Typical Application Banking Automation Gaming/Casino Systems Self-Service Kiosks Entertainment Transport and Ticketing Customized Solutions How to Contact us After-Sales Service Center 3005, Chuangxingda Business Center, NO38, LiuXian 3rd Rd,72 Area, Bao'an, ： Shenzhen, China 0086-755-29192585 ： sales@itd-tech.com www.itd-tech.com ITD Technology Co., LTD www.itd‐tech.com ...
