Relcom CBR-A0050A Assembly Instructions

19" rack mount kit

Advertisement

Assembly
Instructions
CBR-A0050A
CBR-A0060A

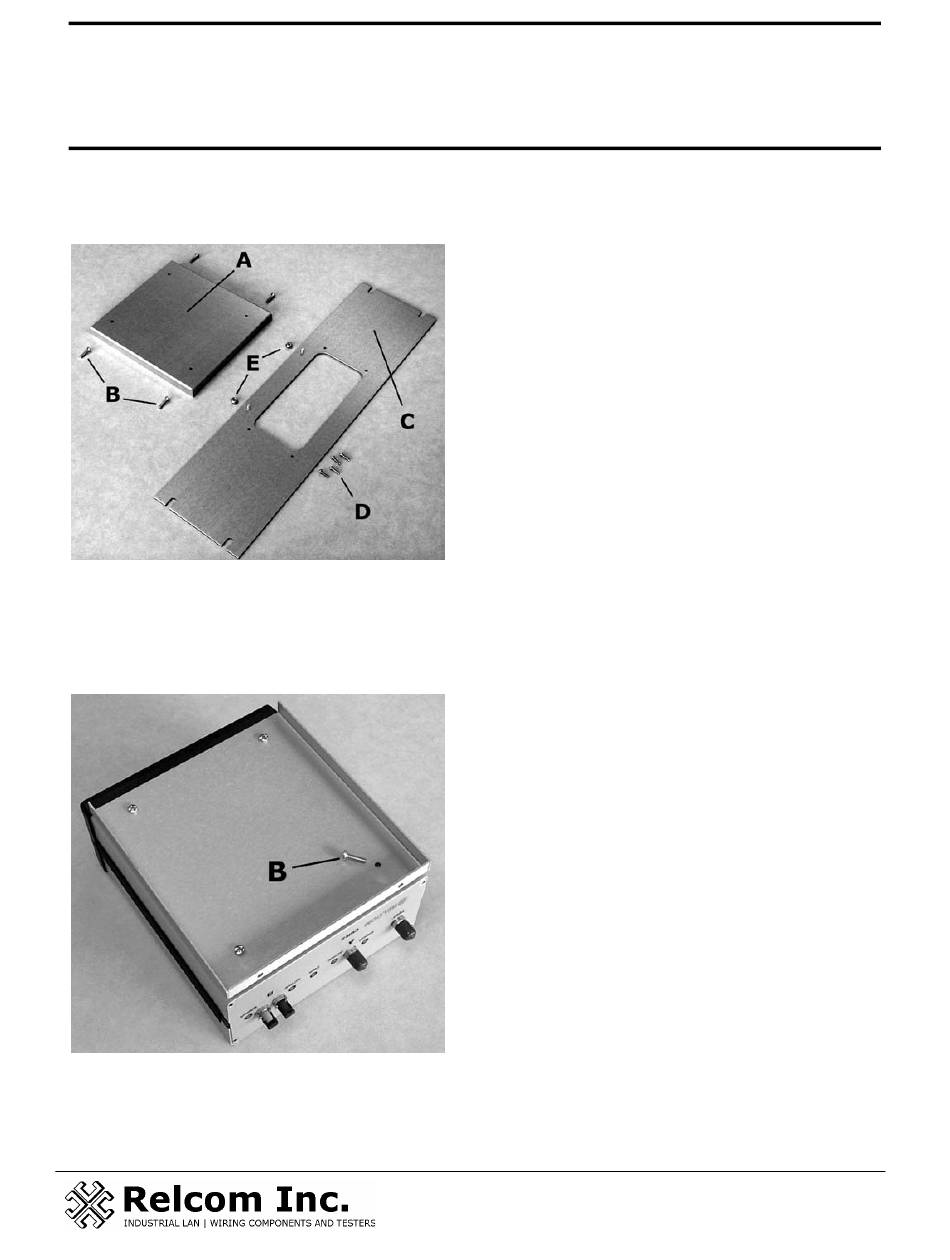

Remove the front Bezel of the Repeater by
removing the two side retaining screws.
Remove the four screws that hold the
Repeater's front panel and discard them.
Place the Repeater upside down on a flat
surface and position the Bottom Support
(A) so that the end with two drilled holes
is in alignment with the front panel of the
Repeater.
Secure the Repeater to Bottom Support
(A) with the four Bottom Screws (B).
19" Rack
Mount Kit
CBR-A0050A

Single Unit Kit

A
Bottom Support
B
Bottom Screws
C
Front Plate (single)
D
Front Screws
E
Locking Nuts
CBR-0060A

Dual Unit Kit

A
Bottom Support
B
Bottom Screws
C
Front Plate (dual)
D
Front Screws
E
Locking Nuts
Forest Grove, Oregon 97116 USA
(503) 357-5607 or (800) 382-3765
Qty
1
4
1
4
2
Qty
2
8
1
8
4
2221 Yew Street
Fax (503) 357-0491
www.relcominc.com
500-146 Rev. 0 02.12.09
