Grizzly H8140 Parts List

-2-

Parts List and Breakdown

�
��
�
REF PART # DESCRIPTION
1 PH8140001 COOLANT TANK
2 PH8140002 NOZZLE WITH UNIVERSAL TUBE
3 PH8140003 VALVE
4 PH8140004 MAGNETIC BASE
5 PH8140005 OUTLET HOSE
6 PH8140006 RETURN HOSE
7 PH8140007 FILTER
8 PH8140008 MOTOR
9 PH8140009 SWITCH
10 PLABEL-14 ELECTRICITY LABEL
11 PH8140011 RESPIRATOR/GLASSES LABEL-HORIZ.
12 PH8140012 NOTICE-MOTOR BURN OUT
13 PH8140013 MODEL NUMBER LABEL
14 PH8140014 MACHINE ID LABEL
15 PH8140015 BIOLOGICAL & POISON HAZARD LABEL
16 PH8140016 EXPLOSION HAZARD LABEL
�
�
�� �
��
�
�� �
��
�� �� ��
�� �� �� �� �
�� � ��
�� �� � �� ���
��� � �� � ���
� �� ��� �� ����
�� ��� ��� ��� �
�� ��
��
�
��
�
��
��

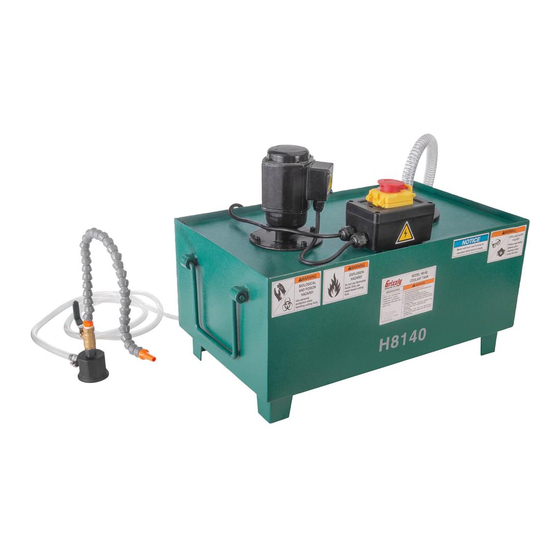

H8140 Coolant Tank
