Chicago Electric 90636 Operating Instructions Manual

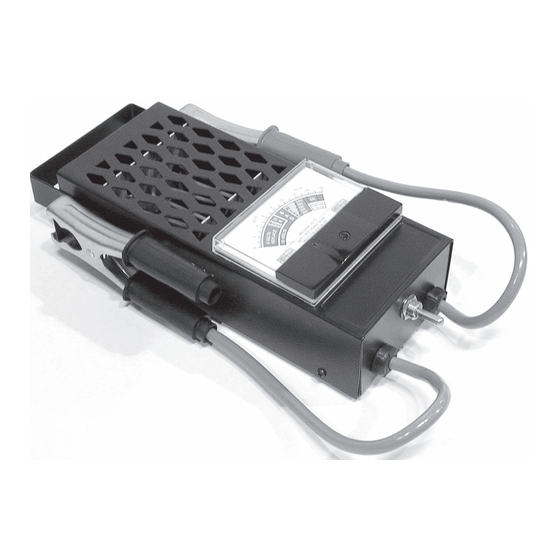

100 amp load ba 100 amp load battery and charging system tester

Download this manual

100 AMP LOAD BA

100 AMP LOAD BA TTER

100 AMP LOAD BA

CHARGING SYSTEM TESTER

VISIT OUR WEB SITE AT HTTP://WWW.HARBORFREIGHT.COM

2003 by Harbor Freight Tools

any artwork contained herein may be reproduced in any shape or form without the express

written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353.

OPERATING INSTRUCTIONS

3491 MISSION OAKS BLVD., CAMARILLO, CA 93011

TTER

TTER Y AND

TTER

90636

Y AND

Page 2: Specifications
Power Switch is dangerous and must be replaced. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users. SKU 90636 For technicial questions, please call 1-800-444-3353. SPECIFICATIONS Description...
Page 3 Do not drop the Battery Tester as it may affect proper operation. Do not smoke or have open flames near the battery. SKU 90636 For technicial questions, please call 1-800-444-3353. CAUTION! Battery acid may cause severe injury to eyes;...
Page 4 If the tester is connected properly, the battery is defective. Press (and hold) the Toggle Switch (C) for at least 5 seconds to simulate an actual load on the battery. SKU 90636 For technicial questions, please call 1-800-444-3353. UNPACKING OPERATING INSTRUCTIONS...
Page 5 Refer to the “Battery Condition Analysis” section below. CAUTION! DO NOT press the Toggle Switch (C) during this test. y l t o l l SKU 90636 For technicial questions, please call 1-800-444-3353. Testing the Charging System Battery Condition Analysis y t i...
Page 6: Inspection, Maintenance, And Cleaning
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. SKU 90636 For technicial questions, please call 1-800-444-3353. Testing the Starter...
