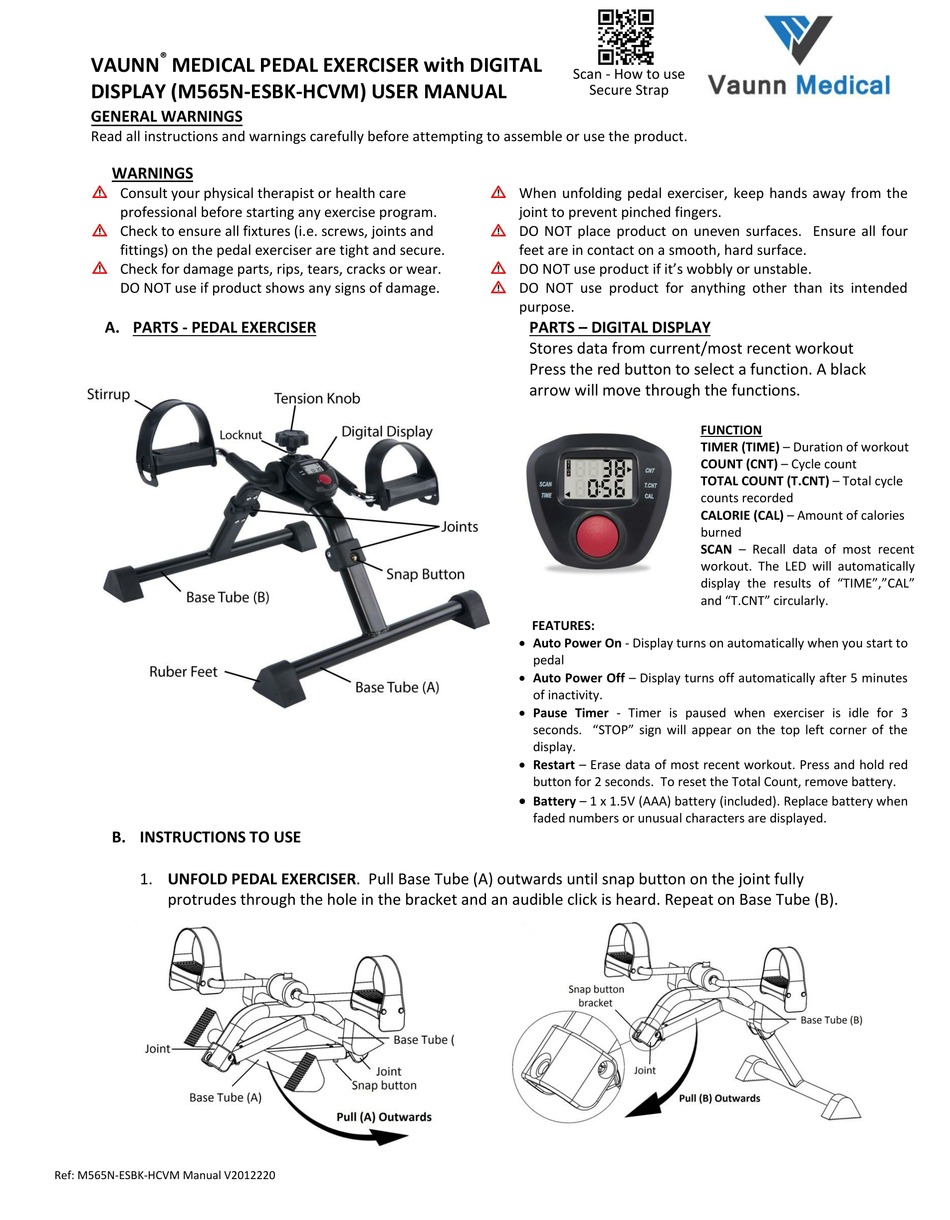

Vaunn Medical M565N-ESBK-HCVM User Manual

®
VAUNN MEDICAL PEDAL EXERCISER with DIGITAL
DISPLAY (M565N-ESBK-HCVM) USER MANUAL

GENERAL WARNINGS

Read all instructions and warnings carefully before attempting to assemble or use the product.

WARNINGS

Consult your physical therapist or health care
professional before starting any exercise program.
Check to ensure all fixtures (i.e. screws, joints and
fittings) on the pedal exerciser are tight and secure.
Check for damage parts, rips, tears, cracks or wear.
DO NOT use if product shows any signs of damage.

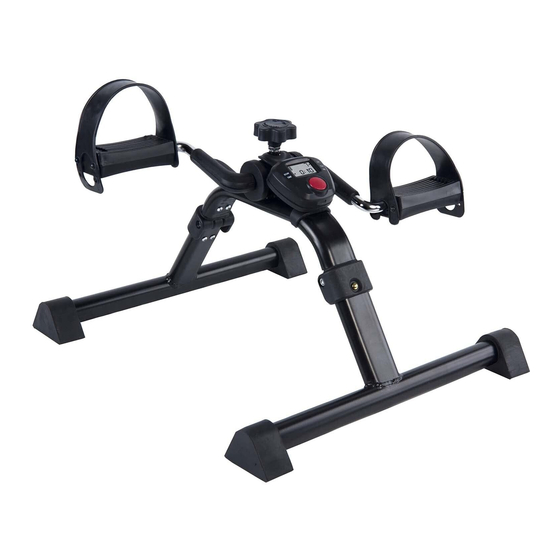

A. PARTS - PEDAL EXERCISER

B. INSTRUCTIONS TO USE

1. UNFOLD PEDAL EXERCISER. Pull Base Tube (A) outwards until snap button on the joint fully
protrudes through the hole in the bracket and an audible click is heard. Repeat on Base Tube (B).
Ref: M565N-ESBK-HCVM Manual V2012220
Scan - How to use
Secure Strap
When unfolding pedal exerciser, keep hands away from the
joint to prevent pinched fingers.
DO NOT place product on uneven surfaces. Ensure all four
feet are in contact on a smooth, hard surface.
DO NOT use product if it's wobbly or unstable.
DO NOT use product for anything other than its intended
purpose.
PARTS – DIGITAL DISPLAY
Stores data from current/most recent workout
Press the red button to select a function. A black
arrow will move through the functions.

FEATURES:

 Auto Power On - Display turns on automatically when you start to
pedal
 Auto Power Off – Display turns off automatically after 5 minutes
of inactivity.
 Pause Timer - Timer is paused when exerciser is idle for 3
seconds. "STOP" sign will appear on the top left corner of the
display.
 Restart – Erase data of most recent workout. Press and hold red
button for 2 seconds. To reset the Total Count, remove battery.

Battery – 1 x 1.5V (AAA) battery (included). Replace battery when
faded numbers or unusual characters are displayed.
FUNCTION
TIMER (TIME) – Duration of workout
COUNT (CNT) – Cycle count
TOTAL COUNT (T.CNT) – Total cycle
counts recorded
CALORIE (CAL) – Amount of calories
burned
SCAN – Recall data of most recent
workout. The LED will automatically
display the results of "TIME","CAL"
and "T.CNT" circularly.
