Summary of Contents for NBB Wheelchair Octagonal

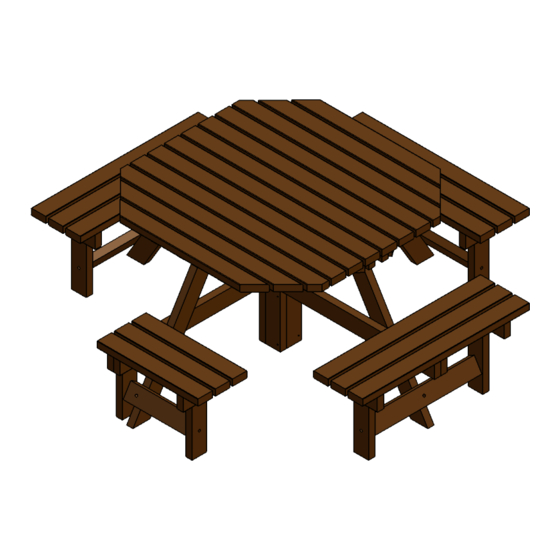

- Page 1 Wheelchair Octagonal / Round Table Instructions Assembly Guide 0800 1777 052 ROPTW-02-220818-RF...
- Page 2 Parts and Fittings Two People required for safe assembly ITEM NO. PART NAME DRG NO: IMAGE QTY. Octagon - Round Seat OR-001-01 - 995x294 - UC2 - 400x88x38 - OR-021-01 UC3 - 643X88X38 - OR-022-01 UC5 - 900x88x38 - OR-025-03 UC1 - 995x88x38 - OR-020-01...
- Page 3 Fixings FIXING QTY. M10 X 140 M10 X 130 M10 X 90 M10 X 60 M10 WASHER M10 NUT Tools Required 17mm Spanner 6mm Allen Key...
- Page 4 Step Bolt leg to UC1 using 90mm bolts supplied, repeat for all other legs. Do not over-tighten bolts during assembly as small adjustments will help parts fit. Step Assemble seats as below using bolts supplied ITEM NO. PART NAME DRG NUMBER Step 2/QTY. Octagon - Round Seat - 995x294 - OR OR-001-01 UC2 - 400x88x38 - OR...
- Page 5 NOTE: Gap will be left after assembly ITEM NO. PART NAME DRG NUMBER Step 3/QTY. UC2 - 400x88x38 - OR OR-021-01 Wheelchair Octagonal Seat Assembly WOR-002-01 UC3 - 378.5x88x38 - WOR WOR-003-01 Step Bolt step 1,2 & 3 assemblies together using 90mm &...
- Page 6 Step 5 Secure seat assemblies to the block using m10x130 bolts. Step 6 Bolt the table top to the 4 legs centrally. NOTE: When locating bolts legs may require adjustment Finally Tighten all bolts fully before use.
- Page 7 Notes:...
- Page 8 THANK YOU FOR PURCHASING THIS PRODUCT CONTACT DETAILS: Email : sales@recycledfurniture.co.uk Web : www.recycledfurniture.co.uk Tel : 0800 1777 052 NBB Recycled Furniture,Unit 5, 145 Sterte Road,Poole, Dorset BH15 2AF All Parts and Fixings checked by: Print Name: Signature...
