TABLE OF CONTENTS
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
3.1. Main unit and charging adaptor ------------------------ 3
4 Disassembly and Assembly Instructions ---------------- 4
4.1. Disassembly Instructions -------------------------------- 4
4.2. Cautions in Assembly ------------------------------------ 6
5 Schematic Diagram ---------------------------------------------- 8
5.1. ES-RT53 ----------------------------------------------------- 8
5.2. ES-RT33 ----------------------------------------------------- 8
6 Exploded View and Replacement Parts List ------------ 9
6.1. Exploded View for ES-RT53 ---------------------------- 9
6.2. Replacement Parts List ---------------------------------10
6.3. Exploded View for ES-RT33 --------------------------- 11
6.4. Replacement Parts List ---------------------------------12
Model No.
Europe
CIS
PAGE
© Panasonic Corporation 2012 Unauthorized copy-
ing and distribution is a violation of law.
Order Number SD1206E38CE

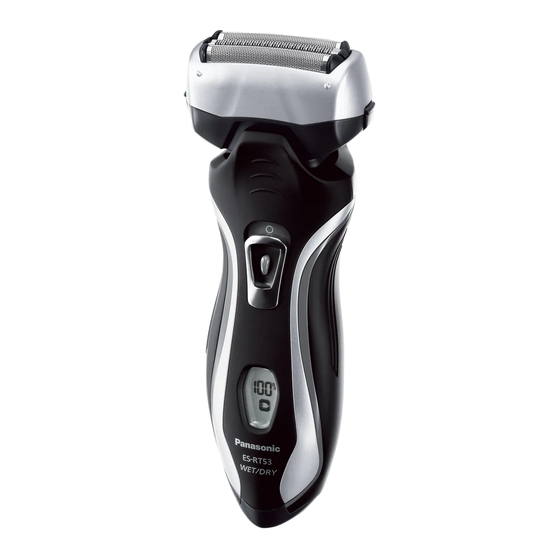

Rechargeable Shaver
ES-RT53
ES-RT33
PAGE
Advertisement
Table of Contents
Related Manuals for Panasonic ES-RT53
Summary of Contents for Panasonic ES-RT53
-

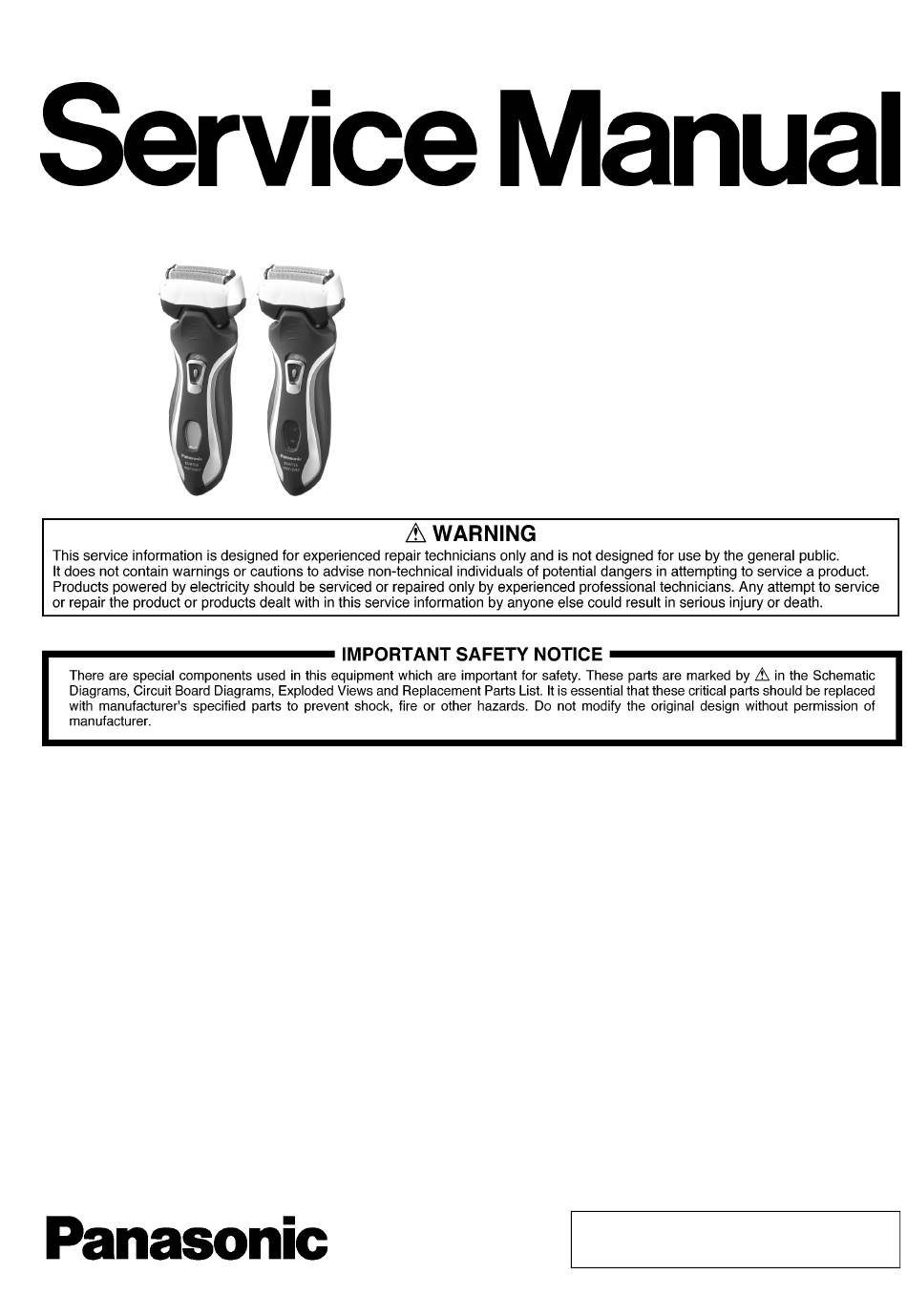

Page 1: Table Of Contents
5.1. ES-RT53 ----------------------------------------------------- 8 5.2. ES-RT33 ----------------------------------------------------- 8 6 Exploded View and Replacement Parts List ------------ 9 6.1. Exploded View for ES-RT53 ---------------------------- 9 6.2. Replacement Parts List ---------------------------------10 6.3. Exploded View for ES-RT33 --------------------------- 11 6.4. Replacement Parts List ---------------------------------12 ©... -
Page 2: Warning
ES-RT33/ES-RT53 1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long. -
Page 3: Troubleshooting Guide
ES-RT33/ES-RT53 3 Troubleshooting Guide 3.1. Main unit and charging adaptor... -
Page 4: Disassembly And Assembly Instructions
ES-RT33/ES-RT53 4 Disassembly and Assembly Instructions 4.1. Disassembly Instructions Follow the procedure below to disassemble the main unit. 3. Loosen a screw and remove the bottom cover. 1. Remove the protective cap, the foil frame with outer foil and the inner blade. - Page 5 ES-RT33/ES-RT53 5. Loosen four screws on and back side of housing A. 8. And take out the battery assembly from housing A. 9. Remove the motor assembly and tube holder. 6. Take out the housing B, from the bottom side.
-
Page 6: Cautions In Assembly
ES-RT33/ES-RT53 4.2. Cautions in Assembly NOTE: 4.2.3. Rechargeable batteries When reassembling, replace the new waterproof rubber. Make sure whether there is NO foreign substance sticking Insert the rechargeable batteries into chassis. Attach the bat- around a part covered with water seal. - Page 7 ES-RT33/ES-RT53 4.2.5. Side panel 4.2.6. Trimmer Set the side panel on the body and insert the projection on back 1. Align the housing with the hooks of trimmer. of side panel into the housing first. Then hook the front side 2.
-
Page 8: Schematic Diagram
5 Schematic Diagram 5.1. ES-RT53 5.2. ES-RT33... -
Page 9: Exploded View And Replacement Parts List
ES-RT33/ES-RT53 6 Exploded View and Replacement Parts List 6.1. Exploded View for ES-RT53... -
Page 10: Replacement Parts List
ES-RT33/ES-RT53 6.2. Replacement Parts List Safety Ref. Part No. Part Name & Description Qty/ Remarks unit WESRT33X7158 PROTECTIVE CAP WESRT33S0048 OUTER FOIL FRAME WES9087Y OUTER FOIL WES9068Y INNER BLADE WESRT33L1008 MOTOR ASSEMBLY WESRT33K3268 FOIL RELEASE BUTTON WESRT33L1088 TRIMMER DRIVING BAR... -
Page 11: Exploded View For Es-Rt33
ES-RT33/ES-RT53 6.3. Exploded View for ES-RT33... -
Page 12: Replacement Parts List
ES-RT33/ES-RT53 6.4. Replacement Parts List Safety Ref. Part No. Part Name & Description Qty/ Remarks unit WESRT33X7158 PROTECTIVE CAP WESRT33S0048 OUTER FOIL FRAME WES9087Y OUTER FOIL WES9068Y INNER BLADE WESRT33L1008 MOTOR ASSEMBLY WESRT33K3268 FOIL RELEASE BUTTON WESRT33L1088 TRIMMER DRIVING BAR...
