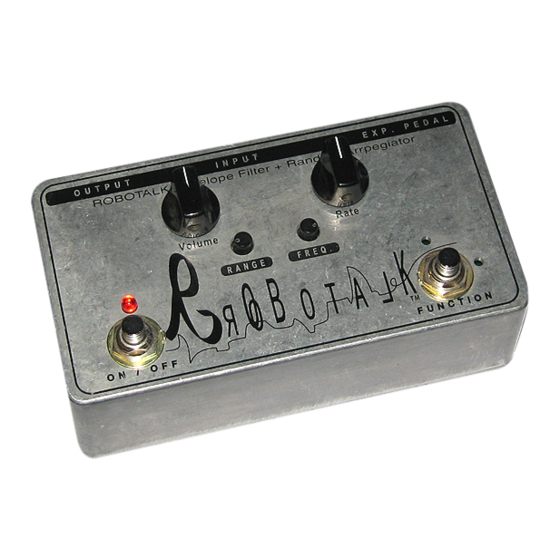

R O B O T A L K I n s t r u c t i o n a l M a n u a l
Functions
INPUT:
OUTPUT:
EXP. PEDAL
Volume:
Rate:
RANGE:
FREQ. :
TRIMMER#1&2:
ON/OFF:
FUNCTION:
Setups
1. Make sure that you connect the Unit, Guitar and Amplifier correctly.
2. Turn on the Amplifier after adjusting the "Volume" knob on Robotalk (the Unit hereon) to the ten
o'clock position. Calibrate the "Volume" knob to the point where the sound volume stays the same
whether the unit is turned on or off. (See Precautions below.)
Warning!
turning on the Amplifier, always make sure to set "Volume" knob to the lowest position. Excessive
amount of output may damage other equipment connected to the unit.
Connection to Guitar or Bass with 1/4" plug.
Connection to Amplifier.
Connection to Expression Pedal (Roland EV-5) or Volume Pedal for High
Impedance (The one with minimum volume setup is recommend.
Control Volume while the unit is on.
Control the speed when Arrpegiator is selected.
Control the strength triggered when Envelope Filter is selected.
Control the frequency range when Arrpegiator is selected.
(Warning!!) Do not change the setup. These are approved factory settings
finely tuned for the optimum performance.
turn on and off the unit.
Switch between Arrpegiator and Envelope Filter.
