Dynali 25 H Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
25 H
MAINTENANCE
H3 SPORT 135 HP
Rev. 3.2 – Issue Date 15.10.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25 H and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynali 25 H

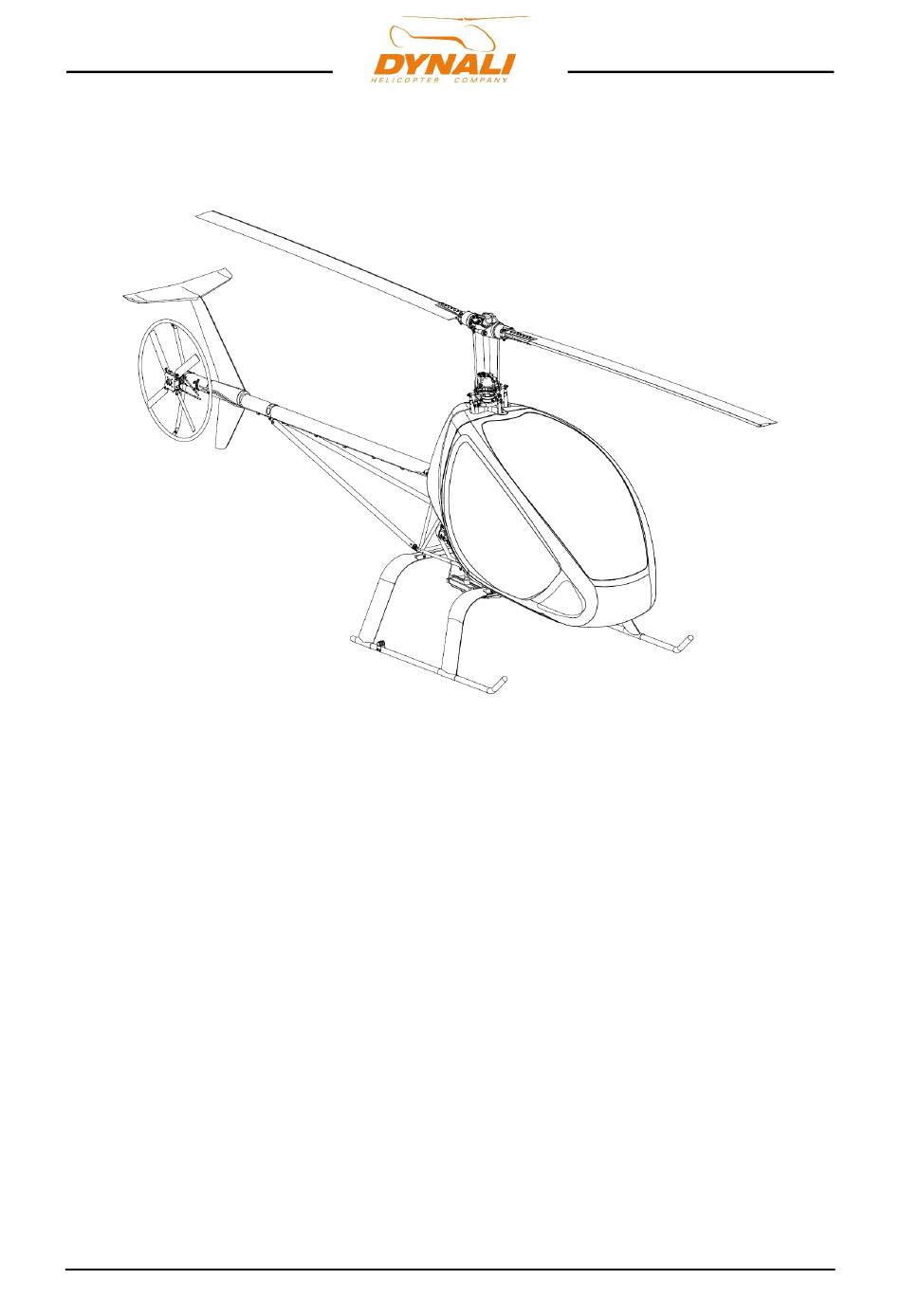

  • Page 1 25 H MAINTENANCE H3 SPORT 135 HP Rev. 3.2 – Issue Date 15.10.2021...

  • Page 2: Table Of Contents

    Maintenance Manual 25 H H3 Sport 135 HP MAINTENANCE TASKS ORDER / ORDRE DES TACHES Task Check Task name Nom de tâche reference M25.302.1 Cleaning air filter Nettoyage filtre à air M25.302.2 Checking water pump Vérification pompe à eau M25.302.3 Checking engine clamps Vérification clames moteur...

  • Page 3: M25.302.1 Cleaning Air Filter

    M25.302.3 – Vérification clames moteur 1. Check that the marks on the four clamps linking the engine to the engine mount are still at the good spot. If not, contact your distributor or Dynali. Rev. 3.2 – Issue Date 20.10.2021...

  • Page 4: M25.304.1

    MAINTENANCE Vérifier que les marques sur les quatre clames liant le moteur au support moteur sont toujours à la bonne place. Sinon, contacter votre distributeur ou Dynali. M25.304.1 - Greasing main transmission shaft M25.304.1 – Graissage arbre de transmission principal 1.

  • Page 5: M25.306.3 Greasing Swashplate Ball Joints

    Maintenance Manual 25 H H3 Sport 135 HP MAINTENANCE Bouger le plateau cyclique dans toutes les directions à l’aide du collectif et cyclique pour éparpiller la graisse. 3. Remove the excess of grease (mast must remain greasy). (See photo hereunder).

  • Page 6: M25.307.1

    Maintenance Manual 25 H H3 Sport 135 HP MAINTENANCE M25.307.1 – Greasing blades’ rods ball joints M25.307.1 – Graissage rotules de bielles de pâles M25.308.1 – Greasing commands ball joints M25.308.1 – Graissage rotules de commandes 1. 5 ball joints on the bellcrank mixer.

  • Page 7: M25.318.1

    Maintenance Manual 25 H H3 Sport 135 HP MAINTENANCE 2. 2 ball joints on the base belccrank. 2 rotules sur le guignol de base. 3. 2 ball joints on the friction damper with Chain Lube. Mark the postion of the damper on its collar with a pen to inspect it positioning the next times.

  • Page 8: M25.304.2

    Maintenance Manual 25 H H3 Sport 135 HP MAINTENANCE Avec une pompe à graisse, remplir via un trou jusqu’à ce que la graisse usagée sorte par l’autre extrémité et soit entièrement remplacée par la nouvelle. Répéter pour chacun des quatre roulements.

  • Page 9: M25.307.2

    Maintenance Manual 25 H H3 Sport 135 HP MAINTENANCE M25.307.2 – Greasing teetering hinge bearings M25.307.2 – Graissage roulements de balancier 1. Unscrew the flanges caps. Retirer les capuchons des flasques. 2. Screw the given tool and grease with a greasing pump until grease ooze then clean it. Make sure the nylon screws are not blocking the inner groove that spreads the grease.

  • Page 10: M25.309.1

    Maintenance Manual 25 H H3 Sport 135 HP MAINTENANCE M25.309.1 – Greasing throttle synchronisation ball joints M25.309.1 – Graissage rotules de synchronisation de gazs 1. Grease both ball joints with Chain Lube. Graisser les deux rotules avec du Chain Lube.
  • Page 11 Maintenance Manual 25 H H3 Sport 135 HP MAINTENANCE 3. Release the tension on the belts. Relâcher les courroies. 4. If the tension wasn’t good, tighten the locking nuts between the tension rods and the ball joints on each side of the pulley and measure again. Repeat action until having the right tension. Then release the clutch.
