"ASEN0958O"
Comando per soffione o bocca vasca / Control for Shower head or bathtub spout
Composto da:
Incasso .ISEN0958 / Concealed body .ISEN0958
Esterno .ESEN0958 / External body .ESEN0958

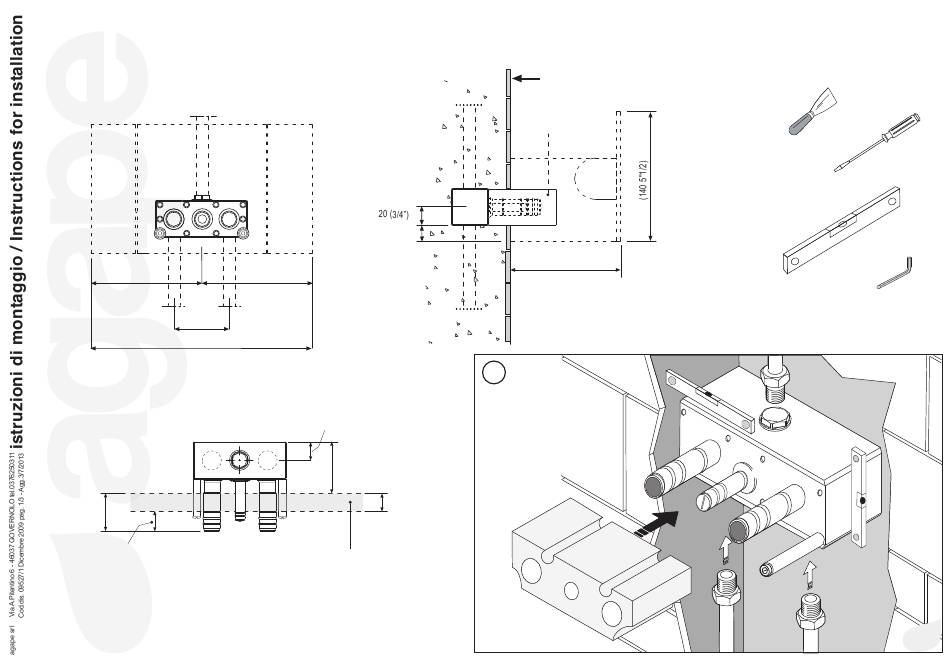

Prospetto frontale / Front elevation
120 (4"3/4)
60 (2"11/16)
240 (9"1/2)
Posizione corpo da incasso e filo rivestimento finito
Position of concealed body and finished wall surface
max 43 (1"3/4)
min 23 (7/8")
Pianta / Plan view
Prospetto laterale / Side elevation
17 (5/8")
120 (4"3/4)
20 (25/32")
min. 57 (1"3/4)
20 (25/32")
Area posizione
filo rivestimento finito
Area for positioning of finished
wall surface
Filo muro finito
finished wall surface
ProtezionePr
otection
120 (4"3/4)
1
Strumenti/Tools
G 1/2"
G 1/2"
G 1/2"
