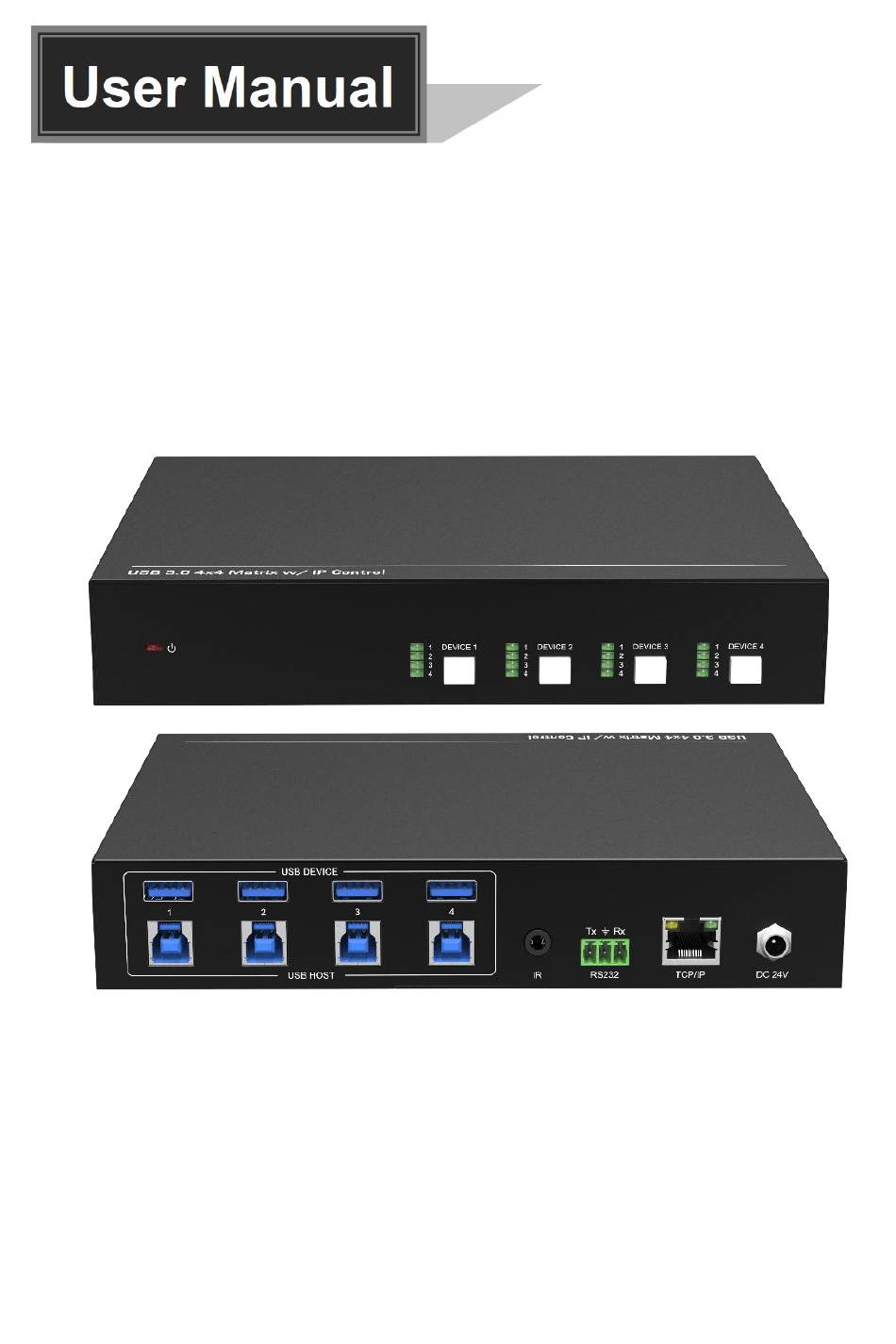

4x4 USB 3.2 Matrix

Version:

_2022V1.0

Table of Contents

Need help?

Do you have a question about the SCT-MX44-USB321 and is the answer not in the manual?

Questions and answers

Summary of Contents for syscomtec SCT-MX44-USB321

Page 2 4x4 USB 3.2 Matrix Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
Page 3 4x4 USB 3.2 Matrix SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...
Page 4: Table Of Contents
4x4 USB 3.2 Matrix Table of Contents .........................1 1. Product Introduction ..........................1 1.1 Features .......................... 2 1.2 Packing List ........................2 1.3 Customer Service ........................... 3 2. Specification ..........................4 3. Panel Description ...........................4 3.1 Front Panel ........................... 4 3.2 Rear Panel ..........................5 4.
Page 5: Product Introduction
4x4 USB 3.2 Matrix 1. Product Introduction Thanks for choosing theSCT-MX44-USB321 4x4 USB 3.2 Matrix. The matrix allowing 4 x USB devices to be shared between 4 x host devices, supporting Plug-and-Play. The USB data transfer rates is up to 5Gbps. The Matrix provides advanced features including an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.
Page 6: Packing List
4x4 USB 3.2 Matrix 1.2 Packing List 1x SCT-MX44-USB321  2x Mounting Ears with 4 Screws  4x Plastic Cushions  1x RS232 cable  1x IR Receiver  1x Remote control  1x USB3.2 cable (USB A to USB B, 1m) ...
Page 7: Specification
4x4 USB 3.2 Matrix 2. Specification Input Input (4) USB Input Connector (4) USB-A USB Standard USB3.2 Gen1 Output Output (4) USB Output Connector (4) USB-B USB Standard USB3.2 Gen1 Control Control port (1)IR IN, (1)RS232, (1)TCP/IP Control Connector (1)3.5mm mini jack, (1)3-pin terminal blocks, (1)RJ45 General Bandwidth 5Gbps...
Page 8: Panel Description
4x4 USB 3.2 Matrix 3. Panel Description 3.1 Front Panel Power LED: Red and green indicator light, the green light is always on when the machine is powered on, the red light is always on in standby mode, and the indicator light is off when the power is off.
Page 9: System Connection
4x4 USB 3.2 Matrix RS232: 3-pin terminal block to connect a computer to control the matrix by sending RS232 commands. TCP/IP: Ethernet port to connect with a computer to control the matrix via GUI. DC 24V: DC connector for power adapter connection. 4.
Page 10: Ir Remote Control
4x4 USB 3.2 Matrix 5. IR Remote Control  Press the STANDBY button to enter or exit Standby mode.  To switch the selected input for one or more of the outputs, first press the number corresponding to the desired INPUT, then press one or more OUTPUTS or the ALL button, then press the ENTER button to execute the change.
Page 11: Gui Control
4x4 USB 3.2 Matrix 6. GUI Control The SCT-MX44-USB321 can be controlled via TCP/IP. The default IP settings are: IP Address:192.168.0.178 Subnet Mask:255.255.255.0 Gateway:192.168.0.1 Please type the IP Address of the control PC in the internet browser, and it will enter the below log-in webpage.
Page 12: Control Tab
4x4 USB 3.2 Matrix 6.1 Control Tab Use the 4x4 button grid on the page to set which inputs are directed to which outputs. For example, clicking the button on the Input 1 row and Output 1 column, directs input 1 to output 1.
Page 13: Rs232 Tab
4x4 USB 3.2 Matrix 6.2 RS232 Tab ASCII or HEX command format can be selected.  Baud Rate: Supports 9600, 19200, 38400, 57600 or 115200.  Command Ending: NULL, CR, LF or CR+LF can be chosen.  Command: Type the command in this box to control the third-party device which is ...
Page 14: Interface Tab
4x4 USB 3.2 Matrix 6.3 Interface Tab Modify the HOST names Modify the Devices names 6.4 Network Tab  ynamic Host Configuration Protocol (DHCP). Modify the static IP Address, Subnet Mask, and Gateway. ...
Page 15: Access Tab
4x4 USB 3.2 Matrix 6.5 Access Tab Modify the login password  Choose the firmware upgrade file and click confirm to upgrade the firmware  Lock or unlock the front panel buttons  6.6 GUI Upgrade Please visit at http://192.168.0.178.100 for GUI online upgrade.
Page 16: Rs232 Control
4x4 USB 3.2 Matrix Select the desired update file and press Apply, it will start upgrading then. 7. RS232 control 7.1 RS232 control software Installation: Copy the control software file to the control PC  Uninstallation: Delete all the control software files in corresponding file path. ...
Page 17 4x4 USB 3.2 Matrix Set the parameters(baud rate, data bit, stop bit and parity bit) correctly to ensure reliable RS232 control...
Page 18: Rs232 Command
4x4 USB 3.2 Matrix 7.3 RS232 Command Command Description Command Example and Feedback >Help >Help <MUB44 >GetStatus >GetStatus <FW Version: 1.0.0 <USB DEVICE 1 HOST <Preset 1 DEVICE 1 HOST <Preset 2 DEVICE 1 HOST <Preset 3 DEVICE 1 HOST <Preset 4 DEVICE 1 HOST...
Page 19 4x4 USB 3.2 Matrix HOST <Preset 6 DEVICE 1 HOST <RS232Baud: 9600 <Telnet On <TelnetProt: 4001 <DHCP Off <IP: 192.168.0.178 >SetRS232Baud >SetRS232Baud <SetRS232Baud: 9600 9600 >Reboot >Reboot <Reboot >SetPower >SetPower On <Power On >SetPower Off <Power Off >SetUSB >SetUSB 01:03 <SetUSB DEVICE 1 HOST...
Page 20: Panel Drawing
4x4 USB 3.2 Matrix 8. Panel Drawing...
