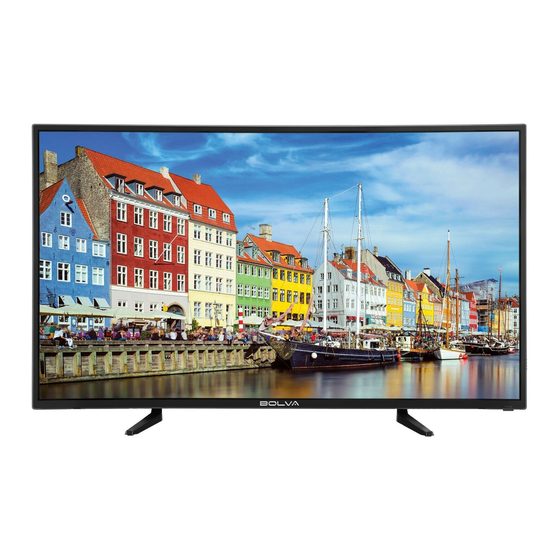

- Page 1 40BV19 USER’S MANUAL 40” FULL HD TELEVISION For technical assistance or troubleshooting please call 1-866-594-5445 or visit www.bolvadigital.com...
-
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. - Page 4 Safety Instructions Please read these instructions carefully. This product complies with all applicable US federal safety requirements, as well as those of the Canadian Standards Association. 1. Cleaning Always unplug the TV before cleaning. Do not use liquid or aerosol cleaners. Use a soft, slightly damp cloth to clean.
- Page 5 Safety Instructions 9. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the TV be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electri- cal Code (U.S.
- Page 6 Safety Instructions 15. Replacement Parts When replacement parts are required, be sure that only an authorized service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards and void any warranty. 16.
-
Page 7: Table Of Contents
Table of Contents Important Safety Instructions ............................1 Table of Contents ................................5 Introduction ..................................6 Installing the Base .................................7 Remote Control Battery Install .................................8 Overview ..................................9 TV Overview Front & Side Panel ..............................11 Rear Panel .................................12 Installation Connection to Antenna & Cable / Satellite Box ......................13 Connection to HDMI Input ............................14 Connection to Component YPbPr Input ........................15 Connection to Composite Input ...........................16... -
Page 8: Introduction
Introduction What’s In The Box l l i you up and running with the best possible connection type for your devices. Enjoy! The package includes the following items. Save the carton & packing for future shipping • Remote Control • AAA Batteries (2) •... -
Page 9: Installing The Base
Installing the Base Place the TV face down on a soft cloth or cushion. Position base as shown. Insert 4 screws ST4X18 (provided) through the holes in the bottom of the base into the post holes and tighten securely. Do not over-tighten. -
Page 10: Remote Control
Remote Control Battery Install Your remote control handset is powered by two (2) AAA type batteries • Turn the remote over and remove • Place two (2) “AAA” batteries into • Replace the cover battery cover. the battery compartment with the “+” and “-“... -
Page 11: Overview
Remote Control Overview... - Page 12 Remote Control Overview Button Function 1. POWER Turn the display ON or OFF (Standby). 2. DISPLAY Provides program information for program being viewed. PLAY/PAUSE (USB) PREVIOUS (USB) NEXT (USB) STOP (USB) 7. REP REPEAT (USB) 8. CH.LIST Press to display a list of channels saved in the TV tuner memory. 9.
-
Page 13: Tv Overview
TV Overview Front & Side Panel IR Receiver A soft light illuminates when the television power is on. 1. POWER - Press the POWER button to turn the TV ON/ OFF (power). The screen image will appear within a few seconds, and the LED will turn on. -
Page 14: Rear Panel
TV Overview Rear Panel Wall Mounting NOTE: You must remove the pedestal before wall mounting. It is recommended that you consult a professional before mounting this TV a wall. Use VESA 200x200 wall mount hardware. HDMI1(ARC) HDMI3(MHL) SPDIF CVBS/Y HDMI2 AUDIO ... -
Page 15: Installation
Connection to Antenna & Cable / Installation Satellite Box It is strongly recommended that the installation of a high quality roof top antenna, digital cable, or satel- lite set top box be used in conjunction with your television for best broadcast reception. For indoor use, we recommend an Apex Digital amplified HDTV antenna. -
Page 16: Connection To Hdmi Input
Installation Connection to HDMI Input Digital Cable / Satellite Set Top Box HDMI cable ( not included ) HDMI1(ARC) HDMI3(MHL) HDMI2 AUDIO Cable / Satellite set top box Coaxial / RF Cable (not included) How to connect with Digital Cable / Satellite Set Top Box Connect the RF coaxial (75 ohm) cable from the video outlet of your cable / Satellite box to the RF input on the TV’s panel. -
Page 17: Connection To Component Ypbpr Input
Connection to Component Installation YPbPr Input Connecting External Equipment to Component Video IN (Y Pb Pr) HDMI1(ARC) SPDIF CVBS/Y Component cables (not included) Digital set top box, gaming console or DVD For BETTER video performance Connect to external equipment that features component video output jacks for better performance. -
Page 18: Connection To Composite Input
Installation Connection to Composite Input Connecting External Equipment to AV Composite IN on your television HDMI1(ARC) SPDIF CVBS/Y Audio Video Cable (not included) Digital set top box, gaming console or DVD For GOOD video performance Connect to external equipment using optional video and audio cables. Composite output jacks are available on most set top cable / satel- lite boxes and DVD players. -
Page 19: Connection To A Personal Computer
Installation Connection to a Personal Computer Connecting a Personal Computer with VGA to your television HDMI3(MHL) HDMI2 AUDIO VGA & Audio Cable (not included) Recommended computer display resolution:1920x1080@60 Hz How to Connect a PC Connect using an optional male to male VGA cable (not included) from your PC to the VGA input on the TV’s panel. -
Page 20: Connection To A Home Theater System
Connection to a Home Installation Theater System Connection to a Home Theater Audio System HDMI1(ARC) CVBS/Y SPDIF HDMI1(ARC) CVBS/Y Optional cables Dolby Prologic Front Left Front Right Center Channel How to Use (Video) Dolby Surround Connection Illustration Press the appropriate INPUT ENTER. -
Page 21: Tv Setup
TV Setup Initial Setup Wizard Initial Setup Wizard After connecting your TV antenna or cable wire, turn the television ON. The quick setup wizard will display on-screen. Select your preferred Picture setting followed by antenna options and performing Auto Scan to receive local broadcast channels that will be stored in the TV tuner memory. -
Page 22: Tv Provider Setup & Channel Auto Scan
TV Provider Setup TV Settings & Channel Auto Scan After the Setup Wizard has been completed, please skip this page as your Cable/Antenna is already set up. The following instructions on this page are provided if you need to make changes at a later time. -
Page 23: Picture Setting
Menu Adjustments Picture Setting The Picture menu offers options to enhance and refine the picture displayed on your TV based on ambient room light and personal preferences. Adjustment options include contrast, brightness, color, sharpness and color temperature. How to Navigate: Press the MENU button on the remote control. -
Page 24: Audio Settings
Menu Adjustments Audio Settings The Audio menu offers options to make sound enhancements while listening through the built-in speakers or to select digital audio options when connected to a Dolby Digital receiver though a (SPDIF) coaxial digital output. How to Navigate: Press the MENU button on the remote control. -
Page 25: Date & Time Settings
Menu Adjustments Date & Time Settings The Time menu includes adjustment of settings for your local time zone and daylight savings time. The clock will adjust automatically after the initial Channel Auto Scan of available broadcast channels in your area (see page 20 for TV Setup). -
Page 26: Setup Settings
Menu Adjustments Setup Settings In the Setup menu you may change the initial set up of preferences that include settings for language, menu display, computer monitoring,closed captions, enhancement of black detail in the picture and resetting your TV back to its fac- tory default status. -
Page 27: Cec
Menu Adjustments The CEC menu includes HDMI CEC \ Auto Standby \ Auto TV on \ HDMI ARC \ Device control \ Device List. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Setup •... -
Page 28: Closed Captions
Menu Adjustments Closed Captions The Setup menu includes adjustments for activating the Closed Caption text feature for display on-screen and customiz- ing CC display types and font styles. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Setup. -
Page 29: Parental Control
Menu Adjustments Parental Control In the Lock menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. How to Navigate: Press the MENU button on the remote control. -
Page 31: Tv Settings
Menu Adjustments TV Settings The Channel provides the setup / changes of your television to receive broadcast channels, store your favorite chan- nels, add or skip channels in memory and label or name channels.(For antenna and Auto Channel Scan setup, please refer to page 20.) How to Navigate: Press the MENU button on the remote control. -
Page 32: Usb Modes
USB Modes 1. Press the INPUT button on the remote control to display the Input Menu. 2. Press the ▲▼ buttons to select MEDIA in the Source menu, and then press the ENTER button. To view Photos on the TV: Photo Music mblog.jpg... -
Page 33: Mhl Setting
MHL Setting Connecting a MHL-enabled device You can connect a MHL-enabled device, such as certain models of smartphones & tablets, and view the device’s screen on the TV. Connecting a MHL-enabled device to the HDMI3 (MHL) input requires a special MHL cable. (Not included) To connect a MHL-enabled device: 1. - Page 34 FHD LED 40” Diagonal 16:9 480i/480p/576i/576p/720p/1080i/1080p 1920x1080 5000:1 178° 178° 16.7M 90 W 2 x 8W 35.8” (W) x 20.7” (H) x 3.2” (D) Weight (may vary 10%) Composite Video Y Pb Pr HDMI SPDIF Digital Audio Output PC / VGA PC Audio IN Headphone Jack...
-
Page 35: Troubleshooting
Troubleshooting Symptom Possible Solutions Cannot receive certain • Perform Channel Scan to add channels into the TV tuner memory. channels through the See page 29. antenna • Readjust your antenna and retry Auto Channel Scan. • Signal from the TV station may be weak in your area. No color •... - Page 36 We warrant this product to be free from defects in material and workmanship under normal use for a one-year period from the original date of purchase from an authorized BOLVA dealer. We will repair or replace the unit free of charge should it become defective under this warranty, providing you, the original purchaser, submit proof of purchase (sales slip) along with the TV and all accessories.
