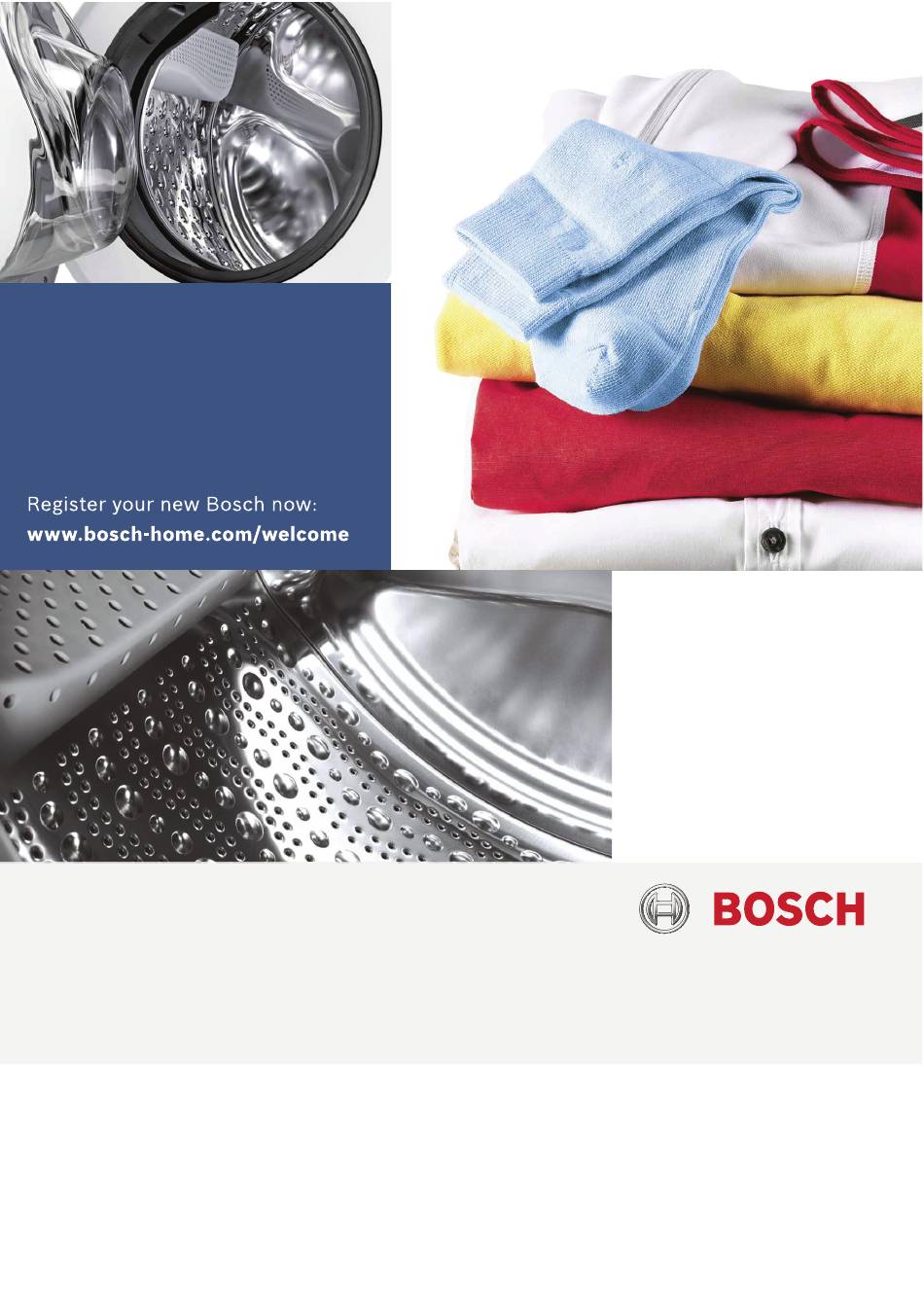

- Page 1 Washing machine WAY28740ES, WAY2874XES en Instruction Manual and Installation Instructions...
- Page 2 Please take a few minutes to read and become familiar with the advantages of your washing machine. To meet the high quality demands required by Bosch, every washing machine that leaves our factory is carefully checked to ensure that it functions correctly and is in perfect condition.
-
Page 3: Table Of Contents
Contents e n I n s t r u c t i o n M a n u a l a n d I n s t a l l a t i o n I n s t r u c t i o n s Before washing Intended use Ø... -
Page 4: Intended Use
Intended use B e f o r e w a s h i n g For use in the household only. Ø The washing machine is suitable for washing machine- Ø washable textiles and hand-washable wool in wash liquor. The washing machine is suitable to be operated with cold Ø... -
Page 5: Safety Instructions
Safety instructions Warning! Danger of death from electric shock! Danger of death if live parts are touched. – Never pull out the mains plug by tugging the power cord. – Insert/pull out the mains plug with dry hands only. Warning! Risk to children! –... - Page 6 Caution! Danger of scalding! When washing at high temperatures, you may be scalded if you touch the hot wash liquor (e.g. if draining hot wash liquor into a washbasin or if draining the washing machine in an emergency). Allow detergent solution to cool down. Caution! Risk of damaging appliance! –...
-
Page 7: Protection Of The Environment
Protection of the environment Packaging/Old appliance Dispose of packaging in an environmentally friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. -
Page 8: The Main Points In Brief
The main points in brief Insert mains plug. Open the washing To switch on, press Select the Turn the tap on. machine door. programme, e.g. button. Algodón/Algodão (Cottons). Dosage: 30% ¼ Please load laundry: max. 8kg Sort the washing. Insert the washing. Do not exceed maximum load. -
Page 9: Getting To Know Your Appliance
Getting to know your appliance... -
Page 10: Detergent Drawer
Detergent drawer Dispenser I Detergent for prewash Softener, starch. Do not exceed the maximum load. Dispenser Dispenser II Detergent for main wash, water softener, bleach, stain remover Insert A for dosing liquid detergent (not for all models) For models with insert for liquid detergent: The detergent drawer features an insert which is used as a dosing aid for liquid detergent. -
Page 11: Operating Elements/Display Elements
Operating elements/Display elements ² All buttons are sensitive, they only need to be touched gently. Switch on and off the appliance. Press the Start wash programme. main switch button. Inicio/Pausa+Carga (Start/ Reload) button to start, interrupt and Select a programme. Rotating the in either cancel the programme (e.g. -
Page 12: Before Each Washing
Before each washing O p e r a t i n g t h e a p p l i a n c e – Install and connect washing machine properly. ² Refer to ~ Page 45 – Before the 1st wash, wash once without any washing. ~ Page 55 1. - Page 13 Otherwise, the load display may malfunction. Press the button. The appliance is switched on. The Bosch logo is indicated on the display panel and all programme indicator lamps are lit. Then always the Algodón/Algodão (Cottons) programme preset at the factory is displayed.
- Page 14 – For appliances with drum light: After switching on the appliance, after opening and closing the washing machine door as well as after starting the programme, the drum is lit. The light goes out automatically. Select a programme. You can use the saved programme or select another programme, Programme overview, refer to ~ Page 23, or select other programmes (see Programas adic.
- Page 15 ~ Page 33 – Do not load washing until the main menu for the saved programme is displayed after the Bosch logo. – The load bar progresses as the washing machine is loaded. If the max. load is exceeded, the bar flashes. Do not exceed indicated max.
- Page 16 5. Changing the settings of the selected programme Take care not to trap any items of clothing between the loading ² door and rubber seal. Close the door. ˜ × × × 1400 2:31 °C Ö Ö Ö The main menu for the selected programme is indicated again on the display panel.
- Page 17 ¦ EcoPerfect : Ø Energy-optimised washing by reducing the temperature while achieving a consistent washing result. When selected, the display lamp is lit. The washing temperature is lower than the selected ² temperature. For special hygiene requirements, the Antialergias (Allergy Plus) programme is recommended. ~ Page 24 G TurboPerfect : Ø...
- Page 18 Menu (Options). Overview of all options ~ Page 29 Ø Select Menu (Options) and e.g. Water Plus buttons: 60°C 2:31h 1400 Extra rinse Water Plus  Rinse Hold Ö × Ö × – Select option by pressing the two buttons displayed on the left.
-
Page 19: Washing
Washing During the wash cycle the programme progress is indicated by a bar on the display panel. The bar progresses in the course of the wash cycle and provides information about the current programme progress. The arrows are switched on and off according to the programme progress. - Page 20 Ø Topping up washing When the programme has started, washing can be reloaded or taken out as required. Select Inicio/Pausa+Carga (Start/Reload). ˜ × × 60°C 2:31h 1400 Reload: Reload is possible Ö Ö – If there is a high water level, high temperature or if the drum ²...
- Page 21 Ø End of programme by Rinse Hold Rinse hold reached: Select "spin" or "drain" and then "start". Spin Drain Ö Ö 1. Select Spin (If required, adjust the spin speed) or Drain. 2. Select Inicio/Pausa+Carga (Start/Reload). End of the programme Finished, remove washing is indicated on the display panel.
-
Page 22: After Washing
After washing Open washing machine door and remove washing.. Remove the washing. ¼ Switch off the device. – Do not leave any items of washing in the drum. In the next ² wash they may shrink or discolour something else. –... -
Page 23: Programme Overview
Programme overview The presettings of the programmes are highlighted in bold. Programme/Type of washing Options/information max. load Name of the programme Brief explanation of the programme and selectable temperature as °C for which textiles it is suitable. selectable spin speeds in rpm, the max. - Page 24 The presettings of the programmes are highlighted in bold. Programme/Type of washing Options/information max. 2 kg Lana/Lã (Wool) Hand or machine-washable wool or rich- cold – 30 – 40 °C wool textiles. 0 ... 800 rpm Especially gentle wash programme to prevent shrinkage, longer programme Á...
- Page 25 The presettings of the programmes are highlighted in bold. Programme/Type of washing Options/information max. 3,5 kg Toallas/Toalhas (Towels) Hard-wearing, heat-resistant towels made kalt. - 60 - 90 °C of cotton. 0 ... 1200 ... 1600 U/min Especially soft towels. ¦ Ï...
- Page 26 see Programas adic. (Additional programmes) The presettings of the programmes are highlighted in bold. Programme/Type of washing Options/information Rinse/Freshen Up Extra rinse with spin. 0 ... 1200 ... 1600 rpm Ï Á : 0 ... 800 rpm Spin Extra spin with selectable spin speed. 0 ...
- Page 27 Starching The washing should not be treated with fabric softener. ² Liquid starch can be used in all wash programmes. Pour starch into the dispenser according to manufacturer’s specifications (if required clean beforehand). Dyeing/Discolouring Dye in household quantities only. Salt may attack stainless steel! Observe specifications of the dye manufacturer! Do not discolourwashing in the washing machine! Soaking...
-
Page 28: Programme Settings/Options
Programme settings/options Depending on the programme, you can use the programme options to adjust the washing process even more efficiently to your items of washing. – Are active without acknowledgement. ² – Not retained after appliance is switched off. – Can be selected or deselected or changed depending on the programme progress. - Page 29 Press Menu (Options) button to Notes select: For heavily soiled washing. Pre-wash on – off Pour detergent into dispensers I and II. Reduces creasing by special spin sequence followed by Less Ironing on – off fluffing and reduced spin speed. ²...
-
Page 30: Automatic Stain Treatment
Automatic stain treatment General information about stains A total of 16 different stains can be selected. The washing machine adjusts the washing temperature, drum movement and soaking time specific to the type of stain. Hot or cold water, gentle or intensive washing control and long or short soaking provide the wash programme with a special sequence for each type of stain. -
Page 31: Consumption Values
Consumption values Programme Load Energy Water ** Programme consumption ** duration ** Algodón/Algodão 8 kg 0,23 kWh 57 l (Cottons) cold °C Algodón/Algodão 8 kg 0,25 kWh 57 l (Cottons) 20 °C Algodón/Algodão 8 kg 1,09 kWh 57 l (Cottons) 40 °C Algodón/Algodão 8 kg 1,43 kWh... -
Page 32: Appliance Settings
Appliance settings By pressing the ajustes básicos 3s. (basic settings 3 sec.) buttons, appliance settings can be changed, e.g. button signal. Simultaneously hold down ajustes básicos 3s. (basic settings 3 sec.) buttons for approx. 3 seconds: language end signal  button signal Ö... -
Page 33: Sensors - Your Washing Machine Is So Intelligent
Sensors – Your washing machine is so intelligent Load adjust Depending on the type of textile and load, the load adjust optimally adjusts the water consumption in each programme. Aqua-Sensor depending on model During the rinse cycle the Aqua sensor checks the degree of turbidity (turbidity is caused by dirt and detergent residue) of the rinsing water. -
Page 34: Care And Maintenance
Care and maintenance C l e a n i n g a n d m a i n t e n a n c e Warning! Danger of death from electric shock! Danger of death if live parts are touched. Switch off the appliance. - Page 35 Cleaning the detergent drawer If it contains detergent or fabric softener residue: Pull out, depress insert, take out drawer all the way. Take out insert: using your finger, press insert upwards. Clean detergent dispenser and insert with water and a brush and dry.
- Page 36 Take the drainage hose out of the holder. Remove the sealing cap, drain water into a suitable receptacle. Press on sealing cap and insert drainage hose into the holder. Note: Residual water may run out. Carefully unscrew the pump cover. Clean the interior, pump cover thread and pump housing (fan impeller in the detergent-solution pump must rotate).
- Page 37 Filter blocked in water inlet hose First, release water pressure in the supply hose: Turn off the tap! Select any programme (except Spin/Drain). Select Inicio/Pausa+Carga (Start/Reload). Leave programme for approx. 40 seconds. Press the button. Appliance is switched off. Pull out the mains plug! Clean the filter: Disconnect the hose from the water tap.
-
Page 38: Emergency Release
Emergency release The programme continues running when the power supply is restored. If the washing is still to be removed, the door can be opened as described below: Warning! Danger of scalding! Wash liquor and washing may be hot. If touched, there is a risk of scalding. -
Page 39: Information On The Display Panel
Information on the display panel Display Cause/Remedy The door cannot be – Washing may be caught. Please open and close washing locked, please open the machine door again and select Inicio/Pausa+Carga A door again, then close it (Start/Reload). and select –... -
Page 40: Faults, What To Do
Faults, what to do? Faults Cause/Remedy Water is running out. – Correctly attach/replace drainage hose. – Tighten screw-fitting on the supply hose. Water not flowing in. – Inicio/Pausa+Carga A (Start/Reload) not selected? Detergent not – Tap not open? washed in. –... - Page 41 Faults Cause/Remedy Display panel/ – Power failure? indicator lights do – Fuse tripped? Switch on/replace fuse. not function while – If the fault occurs repeatedly, call customer service. ~ Page 42 the appliance is running. The programme – Not a fault – unbalanced load detection system adjusts takes longer than imbalance by repeatedly distributing the washing.
-
Page 42: Customer Service
Customer service If you cannot rectify the fault yourself, Faults, what to do? ~ Page 40, please contact our customer service. We will always finds a suitable solution to avoid unnecessary visits by technicians. Please give customer service the product number (E-Nr.) and the production number (FD) of the appliance. -
Page 43: Standard Accessories
Standard accessories I n s t a l l i n g t h e a p p l i a n c e Also required for connection of the water drainage hose to a siphon: 1 hose clip Ø 24–40 mm (DIY store) is also required for connection to a siphon. - Page 44 Hose and cable lengths If the hose holders are used, the possible hose lengths are ² reduced! Available from dealer/customer service: Extension for Aqua-Stop or cold water inlet hose Ø (approx. 2.50 m). Order no. WMZ2380, WZ10130, CZ11350, Z7070X0 Longer supply hose (approx. 2.20 m), for standard model. Ø...
-
Page 45: Installation
Installation Humidity in the drum is caused by the final inspection. ² Secure installation Warning! Risk of injury! – The washing machine is heavy – caution: take care when lifting it. – If the washing machine is raised by protruding components (e.g. - Page 46 Warning! Risk of injury! – The washing machine is heavy – caution: take care when lifting it. – If the washing machine is raised by protruding components (e.g. washing machine door), the components may break off and cause injuries. Do not lift the washing machine by its projecting parts.
- Page 47 Installing the appliance on a base or on a wooden joist ceiling Warning! Washing machine may be damaged!! The washing machine may wander during the spin cycle and topple/fall off the base. Always secure the washing machine feet with fixing brackets.
-
Page 48: Remove Transportation Protection Devices
Remove transportation protection devices Caution! Washing machine may be damaged! Transit bolts which have not been removed may damage e.g. the drum while the washing machine is running. Before using the appliance for the first time, remove the 4 transportation protection devices completely and keep in a safe place. - Page 49 Loosen and remove all 4 transportation lock screws. Take the power cord out of the holders. Remove sleeves. Insert covers. Lock covers firmly by pressing on the locking hook. ²...
-
Page 50: Connecting The Water
Connecting the water Warning! Danger of death from electric shock! Danger of death if live parts are touched. Do not immerse Aqua-Stop safety device in water (contains an electric valve). – To prevent leakage or water damage, follow the instructions ²... - Page 51 on the appliance: for Standard and Aqua-Secure models Carefully turn on the tap and check that the connection points are not leaking. Screw connection is under water pipe pressure. ² Water drainage hose – Do not kink or protract the the water supply hose. ²...
- Page 52 Drainage into a siphon Warning! Water damage possible! If the drainage hose slips off the siphon connection due to high water pressure when draining the washing machine, leaking water may cause damage. Connection point must be secured with hose clip, Ø...
-
Page 53: Alignment
Alignment Loosen lock nut in a clockwise direction with a wrench. Check alignment of the washing machine with a spirit level and, if required, correct. Adjust the height by rotating the foot. All four feet must be firmly on the floor. ²... -
Page 54: Electrical Connection
Electrical connection Electrical safety Warning! Danger of death from electric shock! Danger of death if live parts are touched. – Never pull out the mains plug by tugging the power cord. – Insert/pull out the mains plug with dry hands only. –... -
Page 55: Before The 1St Washing
Before the 1st washing The washing machine was inspected thoroughly before leaving the factory. To remove any water left over from testing procedures, the first washing cycle should be carried out without laundry in the machine. The washing machine must have been installed and connected ²... -
Page 56: Transportation, E.g. If Moving House
Transportation, e.g. if moving house Preparatory work Turn off the tap. Release the water pressure in the supply hose. Maintenance – Filter in the water inlet hose ~ Page 37 Drain any residual detergent solution. Maintenance – Drain pump blocked ~ Page 35 Isolate the washing machine from the power supply. -
Page 57: Index
Index Alignment, 53 Automatic stain treatment, 11, 17, 28, 30 Aqua-Sensor, 33 basic settings 3 sec., 11, 32 Care, 34 the filter, 37 Drum, 34 the siphon, 36 Machine housing/Control Connecting the water, 50 panel, 34 Water drainage, 51 Childlock, 19, 28 Water supply, 50 Cleaning Consumption values, 31... - Page 58 Less Ironing, 29 Load sensor/Load display, 33 Load adjust, 33 Maintenance, 34 Old appliance, 7 Options, 11, 18, 28 Packaging, 7 Programme overview, 23 Pre-wash, 29 Programme selector, 11 Programme Programme sequence steps, 19 Changing the programme, 20 Programme setting, 16, 17, 28 Terminating the Protection of the programme, 20...
- Page 60 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute. Please find the contact data of all countries in the enclosed customer service list. Robert Bosch, Hausgeräte GmbH Carl-Wery-Straße 34 81739 München DEUTSCHLAND *9000946440*...
