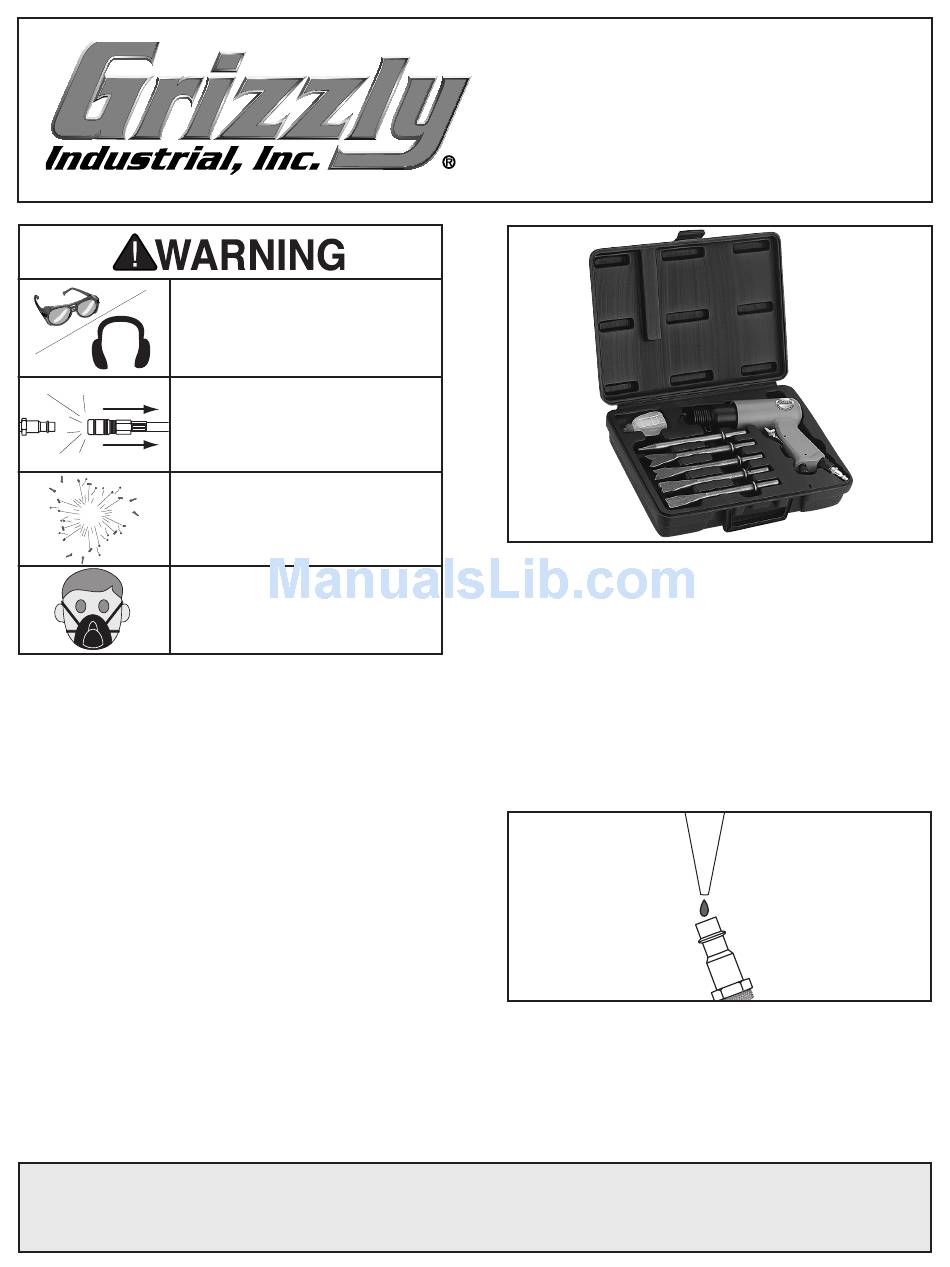

Grizzly H0579 Instruction Sheet

EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection during
use of this tool!
Always disconnect tool from
air to prevent unexpected
operation during service!
EXPLOSION HAZARD!
Never exceed 120 PSI!
RESPIRATORY HAZARD!
Chiseling
dust. Wear the appropriate
protection during use!
Introduction
This 190mm Air Hammer Kit can handle the tough-
est of jobs. It requires 90 PSI with a minimum of 4
CFM compressor capacity. Weighs 3.3 lbs.
Inventory
A. Air Hammer ................................................ 1
B. Oil Bottle ..................................................... 1
C. Five Piece Bit Set ....................................... 1
D.
⁄ " NPT Air Fitting ....................................... 1
1
4
E. Retainer Spring .......................................... 1
Operation
Thread the retainer spring on the air hammer
cylinder.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
INJURY HAZARD!
produces fine
COPYRIGHT © FEBRUARY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#PC8026 PRINTED IN TAIWAN
MODEL H0579
190mm AIR HAMMER KIT
INSTRUCTION SHEET
Figure 1. Model H0579.
Insert the bit by slightly bending the retainer spring
out of the way of the cylinder bore and slide the bit
in. Relax the retainer spring so the "U" sits in front
of the bit flange to hold the bit in place.
Air Hammer MUST have 3-4 drops of oil directly
dropped into the air fitting before each use as
shown in Figure 2.
Figure 2. Lubricating directly into air fitting.
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.
