Summary of Contents for Green Packet OH-735
- Page 1 User Manual LTE Cat.5/ 6 Outdoor Gateway OH‐735 Version V1.0 Date June, 2018 ...
- Page 2 1. O Overview TX4Rx anten nnas or Carri OH‐ ‐735 comes with double e system cap pacity by 1T ier Aggregat tion; viding incre eased data ra ate, downlin nk up to 300 0 Mbps. X4Rx antenn nas over the e same freq uency. For operator w who has limit ted spectru um, it helps ke the most t of spectra al efficiency (bps/MHz) and improv ve data cap pacity as we ell. A h igh quality ...
-
Page 3: Hardware Specifications
Remarks 3GPP Release Version Release 10 UE Category Cat.5, DL MIMO 4x4 DL up to 300 Mbps Cat. 6, 2CA Ethernet port Gigabit RJ‐45 port x 1 Antenna Number 4 LED Indicators Power, SIM/ Internet,LAN, Signal 8 LEDs in total Strength x 4 Reset/ Reboot button Tact switch In side the housing Power supply Input: Universal range 100~240VAC Output: 12V/ 2A DC Version V1.00 Green Packet Berhad Page of 11... - Page 4 2.2 ID Design n 2.2. 1 Appearanc ce Index_OH‐ 735 Index escription Dimension 288(H)x 2 88 (W)x 88 (T T)mm Weight bout 2.5 kg Color Grey Front view Side view Version V1.00 Green Pac cket Berhad Page of 11...
- Page 5 Interface Description RJ‐45 x 1 Gigabit RJ45 x 1 SIM Slot x 1 Mini SIM. Support 1.8V and 3.3V SIM and USIM) Reset/ Reboot button Tact switch 2.4 Software Specs SW Spec Description LTE Standard 3GPP Release 10 Downlink MIMO DL MIMO 2x2 & 4x4 UE Category Cat.5/ Cat.6 Full band search Support Multiple APN Support SIM Lock Support SIM function 1.8V and 3.3V SIM and USIM card PIN/ PUK Code Version V1.00 Green Packet Berhad Page of 11...
- Page 6 Two‐level User Name/ Password support 2 levels: user and admin configuration Web Access (Remote/Local) Supported. Local Firmware Update Supported. SNMP Agent Require customization. TR069 Ready for IOT TR‐143 Not supported. OMA‐DM Not supported. FOTA Firmware Upgrade Require IOT with different networks Version V1.00 Green Packet Berhad Page of 11...
- Page 7 CPE not register to LTE The SYS LED OFF, SIM LED on network network SYS(internet) LED ○●●○ Access in LTE CPE register to LTE The SYS and SIM LED on network network ○○○○ No SIM card Detect no SIM Card The SIM LED Off ○○★○ SIM card SIM Card in abnormal The SIM LED Blinking SIM LED abnormal state ○○●○ SIM card normal SIM Card work well The SIM LED on ○○○● LAN Connected Device connect to CPE The ETH LED on LAN LED Version V1.00 Green Packet Berhad Page of 11...
- Page 8 Firmware CPE starting the The first four RF LEDs blinking Upgrading firmware upgrading alternately. RF Specifications Capability LTE RF Spec Remarks Description Unit LTE Channel Band Width 5MHz / 10MHz / 15MHz / 20MHz MHz 3GPP compliant All RF specification should LTE RF Standard reference with 3GPP Release9 TS Compliant with 3GPP with margin 36.101 LTE Antenna Efficiency > 50% Version V1.00 Green Packet Berhad Page of 11...
- Page 9 Article Number Content Remark ‐ 1 x Assembled product ODU Detail Deliverables need to be defined OH‐735 ‐ 1 x Quick installer guide by customer agreement ‐ Mounting kit PoE Injector x 1 Important note: *Option 1: Power adapter 12V / 2A x 1 Package should include one of the optional items. WG‐1200 Wi‐Fi Router x 1 *Option 2: Power adapter 12V / 2A x 1 There will be price difference among the optional items. Installation Quick Guide QIG (Logo can be customized) Packaging White Box, Device Label, Box Label Version V1.00 Green Packet Berhad Page of 11...
-
Page 10: Fcc Regulations
FCC RF Exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for the transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co‐located or operating in conjunction with any other antenna or transmitter. Version V1.00 Green Packet Berhad Page of 11... - Page 11 The Ascent Paradigm, B‐23A‐3, No 1, Jalan SS7/26A, Kelana Jaya, 47301 Petaling Jaya, Selangor, Malaysia Website: www.greenpacket.com Support Tel： +603 2714 6288 (09:00 – 18:00 Local Time: GMT+8) Support Fax： +603 2714 6289 Copyright©Green Packet Berhad2011‐2014. Reserve all rights. Without going through the company's written permission, no organization or individual have the right to extract and duplicate the content of this document, in whole or in part. Any kind of spreading behavior without approval is prohibited. Trademark statement and other Greenpacket trademarks are owned by Green Packet Berhad. Other trademarks or registered trademarks mentioned in this document are owned by all of their own。 Notes: Because of the product version upgrade or other reasons, the content of the document will not be updated on a regular basis. Unless otherwise agreed, this document is used only as a guide, all statements, information and advice in this document do not constitute any express or implied guarantee. Version V1.00 Green Packet Berhad Page of 11...
Need help?
Do you have a question about the OH-735 and is the answer not in the manual?
Questions and answers

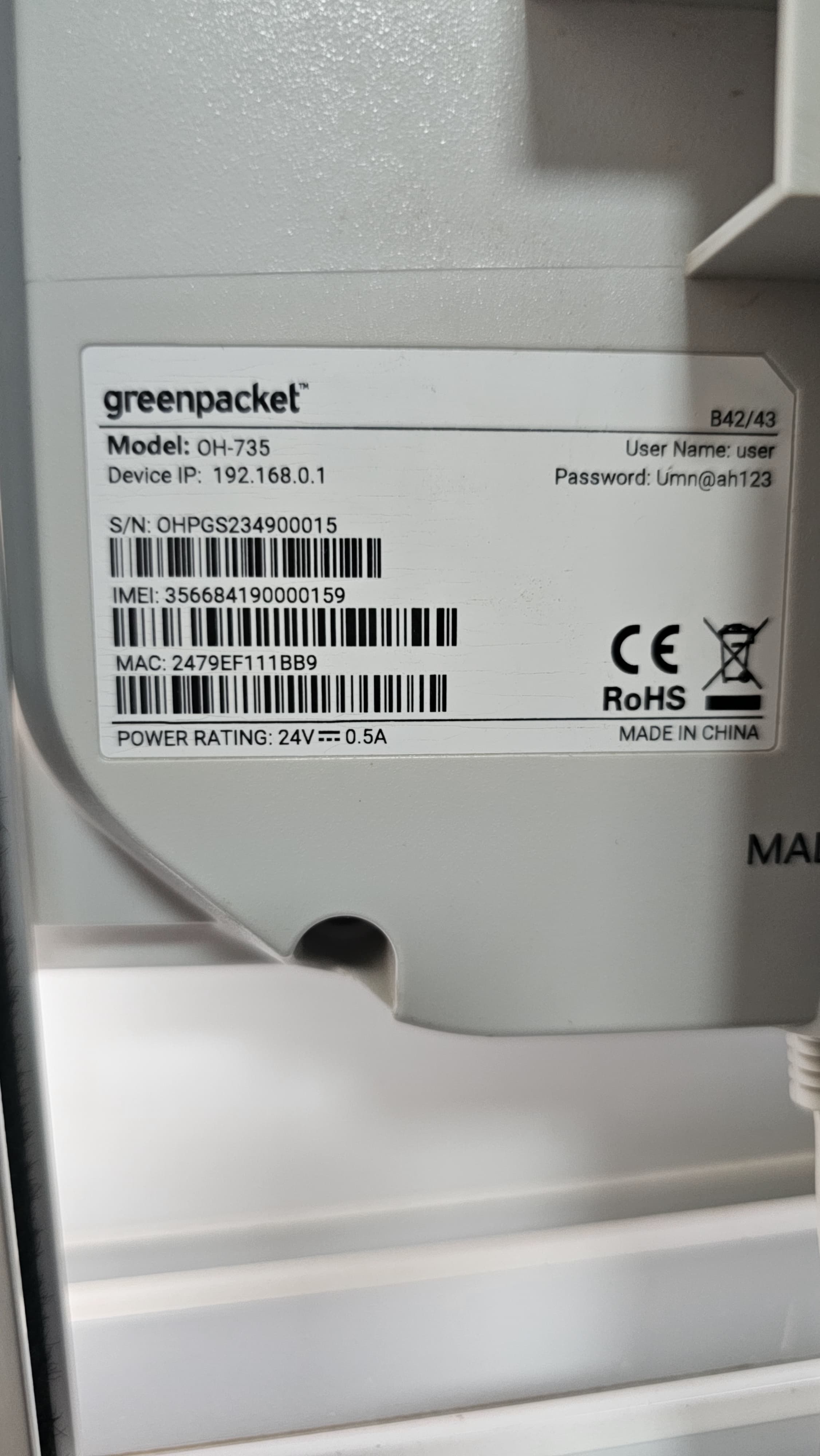

Dear Greenpacket Support, I own a Greenpacket OH-735 device and would like to request the latest official firmware update for it. Device details: Model: OH-735 Serial Number (S/N): OHPGS234900015 IMEI: 356684190000159 MAC Address: 2479EF111BB9 Kindly provide me with the firmware file or a download link, along with any necessary instructions or precautions before performing the upgrade. Thank you for your cooperation.
