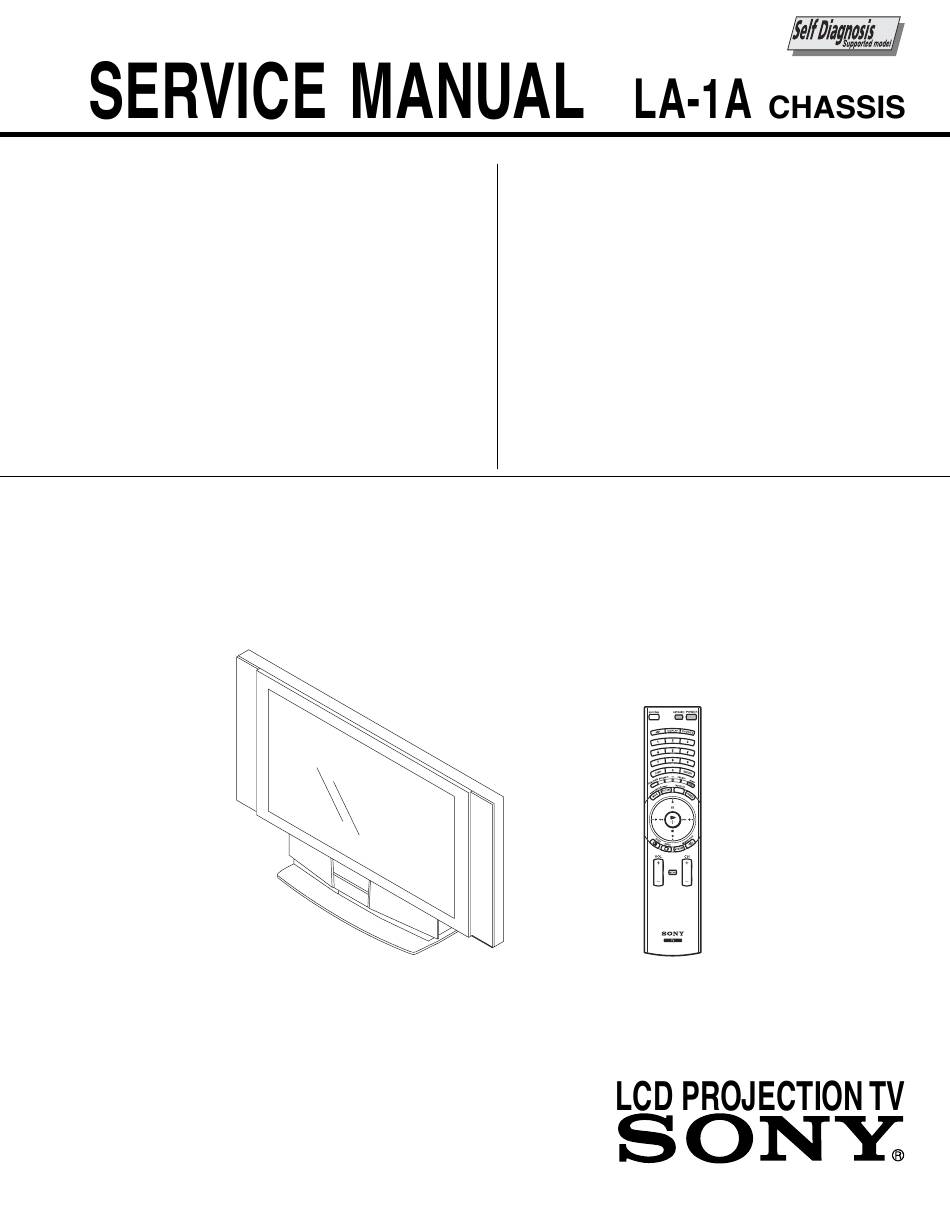

Sony KF-50XBR800RM-Y912 Service Manual

Lcd projection tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL
COMMANDER
––––––
––––––––––––
KF-50XBR800
RM-Y912
KF-50XBR800
RM-Y912
KF-60XBR800
RM-Y912
KF-60XBR800
RM-Y912
DEST. CHASSIS NO.
––––– –––––––––––
US
Canadian
US
Canadian
KF-50XBR800/KF-60XBR800
MODEL
COMMANDER
––––––
––––––––––––
RM-Y912
RM-Y912
DEST. CHASSIS NO.
––––– –––––––––––

Advertisement

Table of Contents
loading

Related Manuals for Sony KF-50XBR800RM-Y912

Summary of Contents for Sony KF-50XBR800RM-Y912

  • Page 1 MODEL COMMANDER DEST. CHASSIS NO. MODEL COMMANDER DEST. CHASSIS NO. –––––– –––––––––––– ––––– ––––––––––– –––––– –––––––––––– ––––– ––––––––––– KF-50XBR800 RM-Y912 KF-50XBR800 RM-Y912 Canadian KF-60XBR800 RM-Y912 KF-60XBR800 RM-Y912 Canadian RM-Y912 RM-Y912 KF-50XBR800/KF-60XBR800...
  • Page 2 Projection System 3 LCD Panels, 1 lens projection system LCD Panel 1.35 inch TFT LCD panel Approx. 3.15 million dots (1,049,088 pixels) Projection Lens High Performance, large diameter hybrid lens F2.4 Antenna 75 ohm external terminal for VHF/UHF Lamp UHP lamp, 100W XL-2000U Television System NTSC, American TV Standard...
  • Page 3 TV Stand SU-GW1 Lamp XL-2000U AV Cable VMC-810/820/830 HG Audio Cable RKC-515HG Control S Cable RK-G69HG Component Video Cable VMC-10/30 HG AV Receiver STR-V555ES or equivalent Memory Stick media 8MB (MSA-8A), 16MB (MSA-16A), 32MB (MSA-32A), 64MB (MSA-64A), 128MB (MSA-128A) Design and specifications are subject to change without notice.
  • Page 4 ( US model only ) After correcting the original service problem, perfom the follow- ing safety checks before releasing the set to the customer: The AC leakage from any exposed metal part to earth ground and l. Check the area of your repair for unsoldered or poorly-sol- from all exposed metal parts to any exposed metal part having a dered connections.
  • Page 6 Section Title Page Section Title Page –––––– –––– –––– –––––– –––– –––– ..... 4-1. Block Diagram (1) ..........Block Diagram (2) ..........Block Diagram (3) ..........2-1. Rear Cover Assembly ........Block Diagram (4) ..........2-2. OU Bracket Removal ........Block Diagram (5) ..........
  • Page 7 Section Title Page –––––– –––– –––– (26) Schematic Diagram of M (1/4) Board ....107 (27) Schematic Diagram of M (2/4) Board ....108 (28) Schematic Diagram of M (3/4) Board ....109 (29) Schematic Diagram of M (4/4) Board ....110 (30) Schematic Diagram of U (1/3) Board ....
  • Page 8 • This device includes a self-diagnosis function. • In case of abnormalities, the STANDBY indicator automatically blinks. It is possible to predict the abnormality location by the number of blinks. The Instruction Manual describes blinking of the STANDBY indicator. • If the symptom is not reproduced sometimes in case of a malfunction, there is recording of whether a malfunction was generated or not. Operate the remote command to confirm the matter on the screen and to predict the location of the abnormality.
  • Page 9 • In cases of malfunctions where it is not possible to determine the symptom such as when the power goes off occasionally or when the screen disappears occasionally, there is a screen display on whether the malfunction occurred or not in the past (and whether the detection circuit operated or not) in order to allow confirmation.
  • Page 10 M board T board A board IC9502 LCD ENGINE S8001 CN1012 3. Lamp Cover LAMP COV IC900 LAMP COV 27 MAIN CPU Q9505,9507-9509 5 OVP (SP DC PROT) HV DET HV DET HV DETECT LAMP DRV LAMP 3 LOW B ERR LAMP LAMP PROT LAMP PRT...
  • Page 11 60XBR800 Cabinet stay (L) Screw (+BVTP 4 x 16) Rear cover assembly Eight screws (+BVTP 4 x 16) Six screws (+BVTP 4 x 16) Three screws (+BVTP 3 x 12) Ballast cover Two screws (+BVTP 3 x 12) Power block Ballast bracket Two screws...
  • Page 12 Note: Be careful about the no dust or dirt are on the surface contacts the optical unit block assembly. ¥ Clean the periphery of the set. ¥ Clean the periphery of the optical unit block assembly in the set (the inside of the control panel, the surface contacts between the optical unit block assembly and the bottom cabinet and periphery).
  • Page 13 BC board BB board board U board Three screws (+BVTP 3 x 12) G board G bracket assembly Screw (+BVTP 4 x 16)
  • Page 14 Two screws (+BVTP 3 x 12) Front cover (L) assembly Front cover (R) assembly A board Four strikes Six screws (60XBR800) Four screws (50XBR800) (+BVTP 4 x 16) Control panel assembly Four strikes Two claws Connector H3 board Three screws T board (+BVTP 3 x 12) Screw (+BVTP 3 x 12)
  • Page 15 Three screws (+BVTP 3 x 12) H1 lid H2 board Two claws Connector Two screws (+BVTP 3 X 12) Claw Fasten tag Three connectors Claw H1 board Two screws (+BVTP 4 X 16) Open the H2 bracket assembly Screen mirror block assembly Four screws (+BVTP 4 x 16)
  • Page 16 1. The SCREEN displays the item being adjusted. By using remote commander (RM-Y910K), all circuit adjust- 2. Press “1” or “4” on the remote commander to select the ments can be made. adjustment item. 3. Press “3” or “6” on the remote commander to change the data. 1.
  • Page 17 • 1 : Changes adjustment item. (item No. moves up) • 4 : Changes adjustment item. (item No. moves down) • 2 : Changes adjustment category. (category moves up) • 5 : Changes adjustment category. (category moves down) • 3 : Changes data value.
  • Page 53 MID5 L/E Item Function Data range Data Remarks Table 1 MHLY Table 2 MHLC Table 2 MVLY Table 2 MVLC Table 2 MHYR Table 2 MHYL Table 2 MHYE Table 2 MHYO Table 2 MHCR Table 2 MHCL Table 2 MHCE Table 2 MHCO...
  • Page 61 3DNR Item Function Data range Data Remarks Table 1 WHCT Table 1 Item case nothing NIQM Table 1 WHCT CLPW Table 1 NIQM CLPP Table 1 CLPW YHBW Table 1 CLPP YBKL Table 1 YHBW YBKO Table 1 YBKL MUTE Table 1 YBKO YHBS...
  • Page 65 1) Before adjustment, set the following adjustment conditions in each mode. Adjustment conditions 5) After the adjustment finished, return the data set in 2) to origi- PICTURE MODE: Vivid nal values, and write the data by pressing the [MUTE] + [EN- Category Item Data...
  • Page 66 1) Enter the Component 480i color bar (100%) signal. 1) Enter the Video window signal, and set the PICTURE MODE 2) Set the adjustment conditions in 1. Preparation, and further set to “Vivid”. the following data. 2) Connect an oscilloscope to the CN702 on the BB board. Adjustment conditions Measurement positions Category...
  • Page 67 5) After the adjustment finished, return the data set in 2) to origi- nal values, and write the data by pressing the [MUTE] + [EN- TER] buttons on the remote commander. 1) Before adjustment, set the following adjustment conditions in each mode.
  • Page 68 1. Set the following adjustment conditions, and display the test 1) Enter the 1/2 window signal, and set the PICTURE MODE to pattern. “Vivid”. 2) Set the adjustment conditions in 1. Preparation. Adjustment conditions 3) Measure the waveform, and adjust so that a difference between Category Item Data...
  • Page 69 4. Adjust the blue in the same manner. 1. Enter the RF monoscope signal. Category Item Data 2. Adjust so that the picture is displayed in the center of the D-GM TPN T-PATN RGB 4 (B) screen. LCD-DR B ODD VR ADJ* LCD-DR B EVEN VR...
  • Page 70 TO H2 BOARD TO H2 BOARD TO M BOARD TO M BOARD CN4502 CN4401 CN9501 CN9002 (1/2) (AUDIO OUT,TUNER, POWER SUPPLY) DATA CN1021 SCL1 DATA1 SDA1 CLK1 V 5.6 SW VIDEO 5.6V SW MON MUTE MON MUTE VAR MUTE VAR MUTE Q1016 DSP CUT DSP CUT...
  • Page 71 BB BOARD BB BOARD BB BOARD BB BOARD BB BOARD CHECK CN2804 CN3203 CN5004 CN5001 CN5002 CONNECTOR CN1004 DATA 4.5V 4.5V G BOARD 4.5V IC1005 CN1603 3.3VC 4.5V +3.3V REG U (1/2) IC1009 BB3.3V +3.3V REG CN1005 MS RST G BOARD CN1604 P-CON CN1007...
  • Page 72 IC3003 IC3303 DRC-MF CN3203 Q3306,3307 DIYDO DRC Y Y-IN BUFFER Y0-7 DIYD7 Q3309,3309 DYO2 DICDO DRC DR B-IN Y0-7 Y0-7 BUFFER C0-7 DYO9 DICD7 Q3310,3311 DRO2 DRC CB R-IN W13ID CR0-7 BUFFER CR0-7 IC3001 DRO9 SDRAM DBO2 DRC H CB0-7 CB0-7 DBO9 DRC V...
  • Page 73 IC2801 IC3408 IC3410 MID-X D/A CONV. CN2805 Q2952 Q3410 Q3411,2951 Q2959,2966 Q2967 DSPY0 Y-IN B_OUT BUFFER BUFFER BUFFER BUFFER BUFFER Y0-7 Q3417,3418 DSPY7 ATT SW Q3415 Q3413 Q2961,2962 Q2963 DRCYIN0 CF-IN R_OUT BUFFER BUFFER BUFFER BUFFER Y0-7 Y0-7 • Q3421,3422 DSPCR0 DRCYIN7 ATT SW...
  • Page 74 IC4603 IC4604 IC4602 IC4801 VIDEO SELECT 3D COMB YCT-MAIN PIC BOOST CN4601 (2/2) CN4601 (1/2) Q4808,4812,4814, Q4818 Q4806 Q4803 Q4629,4630 Q4635,4636,4639 Q4642 Q4643 Q4615 Q4608 MAIN V/Y FL4804 FL4801 4817,4819 Y1IN YOUT FL4604 Y-2103 VDOY YOUT BUFFER BUFFER BUFFER BUFFER Y AMP/BUFFER BUFFER BUFFER...
  • Page 75 Q9016 CN9001 B-INT STBY 3.3V 3.3V Q9020 STBY 5V CN VSS Q9021 D9501 3.3V TEST (BUSY) Q9507-9509 Q9502 BUSY IC9509 CONNECTOR Q9505 LAMP DH MUTE(SCLK) IC9013 SCLK IC9510 STBY-STR-LED IC9017 IC9016 CONTROL (TXD) CN9501 OSD-H IC9012 P ON IC9014 BINT RESET P-ON OSD-V...
  • Page 76 J2001 IC2002 INPUT SELECT S-VIDEO J2003 Q2018,2019 VIDEO 1 V1 VOUT3 BUFFER MONITOR VIDEO VIDEO 8 V2 Q2017 IN 1 (MONO) LOUT3 15 V3 BUFFER AUDIO 22 V4 (MONO) Q2015 ROUT3 AUDIO 30 V5 BUFFER 60 V6 MON MUTE Q2022,2024 63 TV BUFFER J2004...
  • Page 77 IC2502 AUDIO DSP KEY 2 A BOARD CN1013 KEY 1 IC2503 A0T1 S4411 S4410 S4409 S4408 S4407 S4406 S4405 S4404 S4403 S4402 S4401 CHANNEL VOLUME MENU TV/VIDEO CHANNEL VOLUME X2500 A0T2 VAR OUT R 24.576MHz U2 (KEY IN) VAR OUT L AU H L AU H R IC2504...
  • Page 78 IC7201 CN7202 BUS DRIVER CN7201 +3.3V 3.3VD _ BS MS_BS+ L7201 MS_BS _ SDIO MS_SDIR+ MEMORY STICK _ INS MS_SDIR _ SCLK L7202 MS_SCLK+ DIR+ MS_SCLK IC7203 MS_SDO+ BUS BUFFER L7203 MS_SDO BB BOARD MS_SDI+ CN3603 MS_SDI L7204 MS_INS IC7202 BUS DRIVER DI + DI -...
  • Page 79 LAMP DRIVER A BOARD CN1005 A BOARD CN1006 A BOARD CN1004 33V RECT A BOARD CN1007 A BOARD CN1024 T1605, 1606 LINE FILTER...
  • Page 133 CN4601 IC4601 IC9004 IC9004 3.0Vp-p 3.6Vp-p 2.1Vp-p 0.13Vp-p 10M Hz 4M Hz 39.4n sec pin MAIN V/Y w;pin EXTCK/XTAL qd pin XTAL 8pin OSD OSC IC4603 IC4603 IC4603 IC4603 IC4603 IC9502 0.62Vp-p 0.93 Vp-p 1.2 Vp-p 0.8 Vp-p 5.5Vp-p 0.8 Vp-p 20M Hz 6 pin 8 pin Y1 IN...
  • Page 138 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– * A-1603-612-A SCREEN MIRROR BLOCK ASSY (IRP) * X-4040-046-3 COVER (R) ASSY, FRONT (50XBR800) (60XBR800) * X-4039-924-1 COVER (L) ASSY, FRONT (60XBR800) * A-1603-626-A SCREEN MIRROR BLOCK ASSY (IRP) * X-4040-045-3 COVER (L) ASSY, FRONT (50XBR800) (50XBR800)
  • Page 139 Note Note 107 109 Note REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– 4-077-654-01 CUSHION (C) * X-4040-877-2 BRACKET ASSY, H2 (60XBR800) 4-077-653-01 CUSHION (B) * X-4040-880-2 DOOR ASSY, CONTROL (50XBR800) * 4-082-940-03 BRACKET, OU (50XBR800) 4-045-250-01 DAMPER * 3-650-537-00 WASHER...
  • Page 140 #2 #2 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– X-4040-875-1 LID ASSY, H1 * 1-557-056-31 CABLE, P-P 3-703-035-11 SHAFT, LID * A-1300-699-A M BOARD, COMPLETE X-4039-767-1 BRACKET ASSY, H1 * A-1401-405-A H1 BOARD, COMPLETE ! 1-769-837-11 CORD, POWER (WITH NOISE FILTER) 4-029-432-01 SCREW (3X12), (+) BVWHTP...
  • Page 141 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– ! * A-1603-611-A OPTICS UNIT BLOCK ASSY (IRP) 4-314-843-02 SCREW, TAPPINNG, +4X12 (60XBR800) ! 1-900-253-70 CONNECTOR ASSY, SMP-B 2P ! * A-1603-624-A OPTICS UNIT BLOCK ASSY (IRP) 1-500-603-11 CLAMP, FERRITE (50XBR800) (50XBR800) 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
  • Page 142 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– * A-1300-698-A A BOARD, COMPLETE C1054 1-162-966-11 CERAMIC CHIP 0.0022 F 10% 50V **************** C1055 1-126-933-11 ELECT 100 F 20% 16V C1056 1-162-966-11 CERAMIC CHIP 0.0022 F 10% 50V...
  • Page 143 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– C1110 1-107-703-11 ELECT 220 F 20% 25V <DIODE> C1112 1-126-960-11 ELECT 20% 50V C1113 1-136-165-00 FILM 0.1 F D1003 8-719-404-50 DIODE MA111-TX D1004 8-719-404-50 DIODE MA111-TX C1114...
  • Page 144 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– Q1005 8-729-422-33 TRANSISTOR 2SD601A-Q-TX R1036 1-218-718-11 METAL CHIP 0.5% 1/10W Q1006 8-729-900-53 TRANSISTOR DTC114EK R1039 1-216-821-11 METAL CHIP 1/10W Q1007 8-729-900-53 TRANSISTOR DTC114EK R1040 1-218-718-11 METAL CHIP...
  • Page 145 R1099 1-240-067-21 RES-CHIP 1/10W TU1002 8-598-593-20 TUNER, FSS BTF-WA421 R1100 1-240-067-21 RES-CHIP 1/10W R1101 1-216-815-11 METAL CHIP 1/10W R1102 1-216-825-11 METAL CHIP 2.2K 1/10W ***************************************************** R1103 1-216-815-11 METAL CHIP 1/10W R1104 1-216-825-11 METAL CHIP 2.2K 1/10W * A-1300-696-A BB BOARD, COMPLETE R1105 1-216-825-11 METAL CHIP 2.2K...
  • Page 146 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– C2931 1-107-826-11 CERAMIC CHIP 0.1 F 10% 16V C3041 1-164-156-11 CERAMIC CHIP 0.1 F C2932 1-124-779-00 ELECT CHIP 10 F 20% 16V C2951 1-164-156-11 CERAMIC CHIP...
  • Page 147 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– C3372 1-164-156-11 CERAMIC CHIP 0.1 F C3485 1-164-156-11 CERAMIC CHIP 0.1 F C3374 1-164-156-11 CERAMIC CHIP 0.1 F C3486 1-164-156-11 CERAMIC CHIP 0.1 F C3375 1-127-760-11 CERAMIC CHIP...
  • Page 148 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– C8632 1-164-156-11 CERAMIC CHIP 0.1 F FB3302 1-414-235-22 FERRITE FB3303 1-216-809-11 METAL CHIP 1/10W C8633 1-164-156-11 CERAMIC CHIP 0.1 F C8634 1-125-837-91 CERAMIC CHIP 10% 6.3V...
  • Page 149 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– IC3401 6-700-394-01 IC BA25BC0FP-E2 L3903 1-412-052-21 INDUCTOR IC3402 8-759-677-37 IC MT48LC2M32B2TG-7 L8601 1-469-555-21 INDUCTOR 10 H IC3402 8-759-677-39 IC MB81F643242B-D L8602 1-469-553-21 INDUCTOR 4.7 H...
  • Page 150 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– Q3308 8-729-216-22 TRANSISTOR 2SA1162-G R2833 1-216-864-11 SHORT CHIP R2835 1-216-809-11 METAL CHIP 1/10W Q3309 8-729-422-33 TRANSISTOR 2SD601A-Q-TX R2852 1-216-833-11 METAL CHIP 1/10W Q3310 8-729-216-22 TRANSISTOR 2SA1162-G...
  • Page 151 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R2931 1-216-864-11 SHORT CHIP R2998 1-216-809-11 METAL CHIP 1/10W R2932 1-216-864-11 SHORT CHIP R2999 1-216-809-11 METAL CHIP 1/10W R3001 1-216-833-11 METAL CHIP 1/10W R2935 1-216-801-11 METAL CHIP...
  • Page 152 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R3111 1-216-809-11 METAL CHIP 1/10W R3411 1-216-797-11 METAL CHIP 1/10W R3116 1-216-797-11 METAL CHIP 1/10W R3117 1-216-797-11 METAL CHIP 1/10W R3421 1-216-864-11 SHORT CHIP R3422...
  • Page 153 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R3813 1-216-809-11 METAL CHIP 1/10W R8615 1-218-668-11 METAL CHIP 0.5% 1/10W R3818 1-216-864-11 SHORT CHIP R8616 1-218-668-11 METAL CHIP 0.5% 1/10W R3819 1-216-864-11 SHORT CHIP R8617...
  • Page 154 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– RB3401 1-234-524-21 RES, CHIP NETWORK 33 C4618 1-125-891-11 CERAMIC CHIP 0.47 F 10% 10V C4619 1-125-891-11 CERAMIC CHIP 0.47 F 10% 10V RB3402 1-234-524-21 RES, CHIP NETWORK 33...
  • Page 155 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– C4680 1-126-947-11 ELECT 47 F 20% 25V C4828 1-164-156-11 CERAMIC CHIP 0.1 F C4829 1-125-837-91 CERAMIC CHIP 10% 6.3V C4681 1-107-826-11 CERAMIC CHIP 0.1 F 10% 16V...
  • Page 156 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– <CONNECTOR> L4610 1-469-555-21 INDUCTOR 10 H CN4601 * 1-793-923-11 CONNECTOR, IN (PLUG) 64P L4611 1-469-555-21 INDUCTOR 10 H L4612 1-469-555-21 INDUCTOR 10 H L4613 1-469-555-21 INDUCTOR...
  • Page 157 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– Q4641 8-729-422-33 TRANSISTOR 2SD601A-Q-TX R4620 1-216-808-11 METAL CHIP 1/10W Q4642 8-729-422-33 TRANSISTOR 2SD601A-Q-TX R4621 1-216-864-11 SHORT CHIP Q4643 8-729-216-22 TRANSISTOR 2SA1162-G R4622 1-216-814-11 METAL CHIP 1/10W...
  • Page 158 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R4679 1-216-817-11 METAL CHIP 1/10W R4741 1-216-813-11 METAL CHIP 1/10W R4680 1-216-817-11 METAL CHIP 1/10W R4742 1-216-835-11 METAL CHIP 1/10W R4681 1-216-805-11 METAL CHIP 1/10W...
  • Page 159 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R4822 1-216-817-11 METAL CHIP 1/10W R4879 1-218-706-11 METAL CHIP 3.9K 0.5% 1/10W R4880 1-216-857-11 METAL CHIP 1/10W R4823 1-216-817-11 METAL CHIP 1/10W R4881 1-216-811-11 METAL CHIP...
  • Page 160 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– * A-1401-410-A BF BOARD, COMPLETE IC7202 6-701-763-11 IC DS90LV017ATMX IC7203 8-759-698-08 IC SN74CBTLV1G125DCKR ******************* * 4-374-906-01 HOLDER (TV/V), LED <COIL> <CAPACITOR>...
  • Page 161 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– C127 1-107-826-11 CERAMIC CHIP 0.1 F 10% 16V FB149 1-414-921-11 FERRITE C128 1-162-970-11 CERAMIC CHIP 0.01 F 10% 25V C129 1-162-970-11 CERAMIC CHIP 0.01 F 10% 25V...
  • Page 162 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R161 1-216-801-11 METAL CHIP 1/10W <CRYSTAL> R164 1-216-833-11 METAL CHIP 1/10W R186 1-216-864-11 SHORT CHIP X101 1-795-725-21 CRYSTAL OSCILLATOR (SMD) 49.090908MHz R189 1-216-864-11 SHORT CHIP X102...
  • Page 163 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– C1645 1-126-947-11 ELECT 47 F 20% 25V D1612 8-719-060-90 DIODE S2L60F C1646 1-163-021-91 CERAMIC CHIP 0.01 F 10% 50V D1613 8-719-510-02 DIODE D1NS4-TA2 C1647 1-163-021-91 CERAMIC CHIP...
  • Page 164 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– <IC LINK> R1647 1-216-041-00 RES-CHIP 1/10W R1648 1-216-089-91 RES-CHIP 1/10W PS1601 ! 1-576-390-91 IC LINK 2.5A 50V R1649 1-216-049-11 RES-CHIP 1/10W PS1602 ! 1-576-390-91 IC LINK 2.5A 50V R1650...
  • Page 165 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– <DIODE> S4409 1-692-431-21 SWITCH, TACTILE (UP) S4410 1-692-431-21 SWITCH, TACTILE (LEFT) D4301 8-719-016-73 DIODE STZ6.8TT146 D4302 8-719-016-73 DIODE STZ6.8TT146 S4411 1-692-431-21 SWITCH, TACTILE (MENU) D4303 8-719-016-73 DIODE STZ6.8TT146...
  • Page 166 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– * A-1300-699-A M BOARD, COMPLETE C9527 1-162-970-11 CERAMIC CHIP 0.01 F 10% 25V C9528 1-162-970-11 CERAMIC CHIP 0.01 F 10% 25V ****************** C9530 1-162-970-11 CERAMIC CHIP...
  • Page 167 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– <FILTER> Q9018 1-801-806-11 TRANSISTOR DTC144EKA Q9019 8-729-216-22 TRANSISTOR 2SA1162-G FL9001 1-233-736-21 FILTER, EMI Q9020 8-729-027-23 TRANSISTOR DTA114EKA-T146 FL9002 1-233-736-21 FILTER, EMI Q9021 1-801-806-11 TRANSISTOR DTC144EKA Q9022...
  • Page 168 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R9027 1-216-841-11 METAL CHIP 1/10W R9087 1-216-809-11 METAL CHIP 1/10W R9028 1-216-809-11 METAL CHIP 1/10W R9088 1-216-845-11 METAL CHIP 100K 1/10W R9089 1-216-845-11 METAL CHIP...
  • Page 169 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R9151 1-216-836-11 METAL CHIP 1/10W R9546 1-216-841-11 METAL CHIP 1/10W R9152 1-216-845-11 METAL CHIP 100K 1/10W R9153 1-216-833-11 METAL CHIP 1/10W R9547 1-216-864-11 SHORT CHIP...
  • Page 170 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R9627 1-216-821-11 METAL CHIP 1/10W * A-1300-700-A U BOARD, COMPLETE R9628 1-216-821-11 METAL CHIP 1/10W ****************** R9629 1-216-821-11 METAL CHIP 1/10W R9630 1-216-813-11 METAL CHIP...
  • Page 171 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– C2052 1-107-826-11 CERAMIC CHIP 0.1 F 10% 16V C2542 1-126-794-11 ELECT 4.7 F 20% 25V C2053 1-126-941-11 ELECT 470 F 20% 25V C2543 1-162-966-11 CERAMIC CHIP...
  • Page 172 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– D2020 8-719-977-28 DIODE UDZSTE-1710B <COIL> D2027 8-719-977-28 DIODE UDZSTE-1710B L2001 1-469-555-21 INDUCTOR 10 H D2028 8-719-977-28 DIODE UDZSTE-1710B L2002 1-469-555-21 INDUCTOR 10 H D2029 8-719-977-28 DIODE UDZSTE-1710B...
  • Page 173 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R2009 1-216-853-11 METAL CHIP 470K 1/10W R2070 1-216-830-11 METAL CHIP 5.6K 1/10W R2010 1-216-853-11 METAL CHIP 470K 1/10W R2071 1-216-830-11 METAL CHIP 5.6K 1/10W R2011...
  • Page 174 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R2129 1-216-833-11 METAL CHIP 1/10W R2510 1-218-723-11 METAL CHIP 0.5% 1/10W R2130 1-216-830-11 METAL CHIP 5.6K 1/10W R2511 1-216-836-11 METAL CHIP 1/10W R2131 1-216-809-11 METAL CHIP...
  • Page 175 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– R2583 1-216-809-11 METAL CHIP 1/10W C7033 1-124-779-00 ELECT CHIP 10 F 20% 16V C7034 1-164-156-11 CERAMIC CHIP 0.1 F R2584 1-216-809-11 METAL CHIP 1/10W C7035...
  • Page 176 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– <FERRITE BEAD> R7045 1-216-833-11 METAL CHIP 1/10W R7047 1-216-833-11 METAL CHIP 1/10W FB7001 1-414-760-21 FERRITE FB7002 1-414-760-21 FERRITE R7051 1-216-864-11 SHORT CHIP FB7003 1-414-760-21 FERRITE R7053...
  • Page 177 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK ––––––– –––––––– ––––––––––– ––––––– ––––––– –––––––– ––––––––––– ––––––– MISCELLANEOUS REMOTE COMMANDER ************** ******************* 1-419-661-11 COIL, CHOKE 4.0mH 1-477-670-11 REMOTE COMMANDER (RM-Y912) ! 1-468-510-13 POWER BLOCK 1-500-386-11 FILTER, CLAMP (FERRITE CORE) 1-500-603-11 CLAMP, FERRITE 1-543-653-11 CORE ASSY, BEAD(DIVISION TYPE) (60XBR800) * 1-557-056-31 CABLE, P-P...
  • Page 178 HISTORY INFORMATION FOR THE FOLLOWING MANUAL: LA-1A SERVICE MANUAL CHASSIS MODEL COMMANDER DEST CHASSIS NO. KF-50XBR800 RM-Y912 KF-50XBR800 RM-Y912 Canadian KF-60XBR800 RM-Y912 KF-60XBR800 RM-Y912 Canadian ORIGINAL MANUAL ISSUE DATE: 10/2002 ALL REVISIONS AND UPDATES TO THE ORIGINAL MANUAL ARE APPENDED TO THE END OF THE PDF FILE. REVISION DATE REVISION TYPE SUBJECT...
  • Page 179 DESCRIPTION Needs to be added A-1300-943-B M BOARD, COMPLETE (FOR KF-50XBR800 ONLY) A-1300-699-A M BOARD, COMPLETE A-1300-699-B M BOARD, COMPLETE (FOR KF-60XBR800 ONLY) LCD PROJECTION TV Sony Corporation Sony Technology Center English Technical Services 2003DJWEB-1 9-965-350-91 Service Promotion Department ©2003.04...
  • Page 180 4-091-169-12(1) © 2002 Sony Corporation...
  • Page 181 WARNING Note to CATV system installer This reminder is provided to call the CATV system To prevent fire or shock hazard, do not installer’s attention to Article 820-40 of the NEC that expose the LCD Projection TV to rain or provides guidelines for proper grounding and, in moisture.
  • Page 182 The model and serial numbers are located at the rear of the cabinet, unplug the LCD Projection TV immediately LCD Projection TV, below the Sony logo, on the sticker, and have it checked by qualified service personnel and also on the TV box (white label). Record these before operating it further.
  • Page 183 Important Safety Instruction Important Safeguards 1) Read these instructions. For your protection, please read these instructions completely, and keep this manual for future reference. 2) Keep these instructions. Carefully observe and comply with all warnings, cautions 3) Heed all warnings. and instructions placed on the set or described in the 4) Following all instructions.
  • Page 184 Overloading On contamination on the screen surface Do not overload wall outlets, extension The screen surface has a special coating to reduce a cords or convenience receptacles picture displayed by reflecting. If you clean the screen beyond their capacity, since this can surface in the wrong way, the screen may be damaged.
  • Page 185 ❑ Never block the slots and openings Antenna Grounding According to the NEC by placing the set on a bed, sofa, rug Refer to section 54-300 of Canadian Electrical Code for or other similar surface. Antenna Grounding. ❑ Never place the set in a confined Antenna lead-in wire space, such as a bookcase or built-in cabinet, unless proper ventilation is...
  • Page 186 Servicing About the LCD Projection TV Do not attempt to service the set by yourself Although the LCD projection TV is made with high- since opening the cabinet may expose you to precision technology, black dots may appear or bright dangerous voltage or other hazards.

  • Page 187: Table Of Contents

    Contents Introducing the Sony LCD Projection Watching Digital TV ..........49 Using Favorite Channels........50 Using Twin View™..........51 Presenting the Sony LCD Projection TV....9 Using the Freeze Function ........54 Using This Manual..........10 Using Scrolling Channel Index......55 Enjoying Your LCD Projection TV.......11 Using Wide Screen Mode........57 Replacing the Lamp ..........13...

  • Page 188: Introducing The Sony Lcd Projection Tv

    Introducing the Sony LCD Projection Presenting the Sony LCD Projection TV Thank you for purchasing the Sony LCD Projection TV. This manual is for models KF-50XBR800 and KF-60XBR800. Features Some of the features that you will enjoy with your new LCD projection TV include: ❑...

  • Page 189: Using This Manual

    Introducing the Sony LCD Projection TV ❑ Component Video Inputs: Offers the best video quality for DVD (480p, 480i) and Digital Set-top box (1080i, 720p, 480p, 480i) connections. ❑ S-VIDEO Inputs: Provides a high-quality image for connected equipment. ❑ Favorite Channel Preview: Preview up to eight favorite channels without leaving the current channel.

  • Page 190: Enjoying Your Lcd Projection Tv

    (1 minute or less). ❑ When the projection lamp wears out, the screen image becomes dark. Replace the lamp with a new Sony XL-2000U replacement lamp (not supplied). ✍ Be sure to attach the lamp cover securely; otherwise, your LCD projection TV will not turn on.
  • Page 191 Introducing the Sony LCD Projection TV Notes on the LCD To enjoy clear pictures ❑ Be sure not to allow sunlight or light from a lamp to shine directly onto Projection TV the screen. ❑ The screen surface is easily scratched. Do not rub, touch, or tap it with a sharp or abrasive object (see “Use of the Cleaning Cloth”...

  • Page 192: Replacing The Lamp

    Do not touch the glass with your fingers on the new lamp. Collecting the used lamp For environmental conservation, Sony collects the used lamps. Please put the used lamp in the lamp box and give it to your Sony dealer where you bought the lamp. ✍...
  • Page 193 Introducing the Sony LCD Projection TV Turn off the power switch on the LCD projection TV and after several minutes, unplug the power cord. (The cooling fan will continue to blow for about two minutes after turning the power off.) ✍...
  • Page 194 Introducing the Sony LCD Projection TV Loosen the two screws that secure the lamp, then pull out the lamp. The lamp is very hot immediately after use. Never touch the front glass of the lamp or the surrounding parts. Loosen the two screws with the Hold the handle and pull hex key supplied with the lamp.
  • Page 195 Mount the front panel in the order of 1 to 2, as shown in the illustration. ✍ Consult your Sony dealer for a Sony XL-2000U replacement lamp. ✍ Take great care when replacing the lamp or plugging in/unplugging the connecting cords. If you handle them roughly, the LCD projection TV may fall or be moved, and the TV stand or floor surfaces may be scratched.

  • Page 196: Installing And Connecting The Lcd Projection Tv

    Installing and Connecting the LCD Projection TV Contents The box contains your new LCD projection TV, a remote control and two AAA batteries. No peripheral cables are included. If you intend to add additional equipment to your LCD projection TV, please check the hookup instructions for your desired setup before you begin.

  • Page 197: Carrying Your Lcd Projection Tv

    Installing and Connecting the LCD Projection TV Carrying Your LCD Projection TV Carrying the LCD projection TV requires at least two people. Do not grasp the pedestal or the front panel of the LCD projection TV, otherwise these parts might break off. When moving the LCD projection TV, support the screen bottom with one hand while grasping the top part with the other hand, as shown in the illustration below.

  • Page 198: To Prevent The Lcd Projection Tv From Falling Down

    Installing and Connecting the LCD Projection TV To Prevent the LCD Projection TV from Falling Down Pay special attention to children around the LCD projection TV. If children should climb onto or push the LCD projection TV or its stand, it may fall down.

  • Page 199: Recommended Viewing Area

    Installing and Connecting the LCD Projection TV Recommended Viewing Area The picture quality may be affected by your viewing position. For the best picture quality, install your LCD projection TV within the areas shown below. Sit at least 1.8 m (approx. 6 ft.) for KF-50XBR800 or 2.2 m (approx. 7 ft.) for KF-60XBR800 away from your LCD projection TV, and within 60°...

  • Page 200: Lcd Projection Tv Controls And Connectors

    Installing and Connecting the LCD Projection TV LCD Projection TV Controls and Connectors Front Panel Menu The front panel menu controls allow access to the on-screen menus without the use of a remote control. Pressing brings up the on-screen menus. Controls MENU The arrow buttons move the on-screen cursor in the menus and by pressing...
  • Page 201 Installing and Connecting the LCD Projection TV Item Description 1 MEMORY STICK Memory Stick insertion slot. For details, see “Inserting and Removing a Memory Stick” on page 60. 2 MEMORY STICK When lit, indicates that the Memory Stick is being read. ACCESS LED (Do not remove the Memory Stick when the indicator is lit.)
  • Page 202 (VAR/FIX) video component. L (MONO)/R 9 CONTROL S To control other Sony equipment with the LCD projection IN/OUT TV's remote control, connect the CONTROL S IN jack of the equipment to the CONTROL S OUT jack on the LCD projection TV with the CONTROL S cable.

  • Page 203: Connector Types

    Some DVD Players are equipped with the following three video connectors: Y - Green or B–Y) - Blue or R–Y) - Red CONTROL S cable CONTROL S connections are exclusive to Sony products and allow greater control of all Sony equipment. Push into connection.

  • Page 204: Basic Connections (Connecting Cable Tv Or Antenna)

    Installing and Connecting the LCD Projection TV Basic Connections (Connecting Cable TV or Antenna) Connecting Directly The connection you choose depends on the cable found in your home. Newer homes are equipped with standard coaxial cable (see A); older homes to Cable or an probably have 300-ohm twin lead cable (see B);...
  • Page 205 Installing and Connecting the LCD Projection TV Cable and Antenna If your cable provider does not feature local channels, you may find this set up convenient. CATV cable (No connection to TO CONVERTER) Rear of LCD projection TV CONVERTER Antenna cable VHF/UHF Select CABLE or antenna (ANT) mode by pressing on the remote...
  • Page 206 Installing and Connecting the LCD Projection TV Using a coaxial cable, connect the cable box’s OUT jack to the LCD projection TV’s AUX jack. Cable box Rear of LCD projection TV CONVERTER 75-ohm coaxial cable (not supplied) Signal CATV cable (unscrambled channels) VHF/UHF ✍...
  • Page 207 Cable box Also, set Cable to ON in the Channel menu (see page 73). ✍ Your Sony remote control can be programmed to operate your cable box (see “Programming the Remote Control” on page 82). ✍ To change channels using the cable box, set your LCD projection TV to channel 3 or 4 depending on the cable box channel output.

  • Page 208: Connecting A Vcr And Cable

    Installing and Connecting the LCD Projection TV Connecting a VCR and Cable Use this hookup if: ❑ You have cable TV that does not require a cable box. Disconnect all power sources before making any connections. Connect the cable TV cable to the VCR’s IN jack. Using a coaxial cable, connect the VCR’s OUT jack to the LCD projection TV’s VHF/UHF jack.

  • Page 209: Connecting A Vcr And Cable Box

    With this setup you can: ❑ Use the LCD projection TV remote control to change channels on your cable box when the signal is scrambled. To program your Sony remote control to operate your cable box, see “Programming the Remote Control” on page 82.
  • Page 210 Installing and Connecting the LCD Projection TV VMC-810S/820S (not supplied) VIDEO (yellow) YC-15V/30V (not supplied) AUDIO-L (white) AUDIO-R (red) S VIDEO VIDEO (yellow) AUDIO-L (white) AUDIO-R (red) Coaxial cable Cable box VIDEO Coaxial cable Rear of LCD projection TV ✍ If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow) instead of the S VIDEO cable.

  • Page 211: Connecting Two Vcrs For Tape Editing

    Installing and Connecting the LCD Projection TV Connecting Two VCRs for Tape Editing If you connect two VCRs, you can record from one VCR to the other while using your LCD projection TV to monitor what is being recorded. Disconnect all power sources before making any connections. Using AUDIO and VIDEO cables, connect the playback VCR’s Audio and Video OUT jacks to the recording VCR’s Audio and Video IN jacks.

  • Page 212: Connecting A Satellite Receiver

    Installing and Connecting the LCD Projection TV Connecting a Satellite Receiver Disconnect all power sources before making any connections. Connect the satellite antenna cable to the satellite receiver’s SATELLITE IN jack. Using AUDIO and S VIDEO cables, connect the satellite receiver’s AUDIO and S VIDEO OUT jacks to the LCD projection TV’s AUDIO and S VIDEO IN jacks.

  • Page 213: Connecting A Satellite Receiver With A Vcr

    Installing and Connecting the LCD Projection TV Connecting a Satellite Receiver with a VCR Disconnect all power sources before making any connections. Connect the satellite antenna cable to the satellite receiver’s SATELLITE IN jack. Connect the CATV cable to the VCR’s VHF/UHF IN jack. Using a coaxial cable, connect the VCR’s OUT jack to the LCD projection TV’s VHF/UHF jack.
  • Page 214 Installing and Connecting the LCD Projection TV ✍ Be sure your VCR’s video input is set correctly. Consult your VCR’s operating manual for instructions. ✍ Use TV/VIDEO to select - VIDEO 1 to watch satellite TV or the VCR (your VCR must be turned on). - VHF/UHF to watch cable TV.

  • Page 215: Connecting An Audio Receiver

    Installing and Connecting the LCD Projection TV Connecting an Audio Receiver Disconnect all power sources before making any connections. Using audio cables, connect the LCD projection TV’s AUDIO OUT (VAR/ FIX) jacks to the audio receiver’s audio LINE IN jacks. Rear of LCD projection TV AUDIO-R (red) AUDIO-L...

  • Page 216: Connecting A Dvd Player With Component Video Connectors

    Installing and Connecting the LCD Projection TV Connecting a DVD Player with Component Video Connectors This is the preferred hookup to use if: ❑ Your DVD player has component (Y, B-Y, R-Y) jacks. Disconnect all power sources before making any connections. Using three separate component video cables, connect the DVD player’s Y, B-Y and R-Y jacks to the Y, P and P...

  • Page 217: Connecting A Dvd Player With A/V Connectors

    Installing and Connecting the LCD Projection TV Connecting a DVD Player with A/V Connectors Use this hookup if: ❑ Your DVD player does not have component (Y, P ) jacks. ✍ If your DVD player has video component output connectors: for best picture quality use the connection described on page 37.

  • Page 218: Connecting A Digital Tv Receiver With Component Connectors

    Installing and Connecting the LCD Projection TV Connecting a Digital TV Receiver with component connectors Disconnect all power sources before making any connections. Be sure to read the Set-top box manual. Using three separate component video cables, connect the Digital TV Set-top box’s Y, P and P jacks to the LCD projection TV.

  • Page 219: Connecting A Digital Tv Receiver With Dvi-Hdtv Connector

    Installing and Connecting the LCD Projection TV Connecting a Digital TV Receiver with DVI-HDTV connector Disconnect all power sources before making any connections. Be sure to read the Set-top box manual. Using a DVI-D single link cable, connect the Digital TV Set-top box's DVI-HDTV connector to the LCD projection TV.

  • Page 220: Connecting A Camcorder

    Installing and Connecting the LCD Projection TV Connecting a Camcorder For easy connection of the camcorder, the LCD projection TV has side Audio and Video inputs (shown below). However, if you prefer, you can also connect the camcorder to the LCD projection TV’s rear Audio and Video IN jacks.

  • Page 221: Connecting Two Vcrs For Tape Editing

    Installing and Connecting the LCD Projection TV Connecting Two VCRs for Tape Editing Connecting two VCRs lets you record from one VCR to the other. By connecting them as shown below, you can view (monitor) what is being recorded. Using the AUDIO and VIDEO cable, connect the AUDIO and VIDEO IN jacks to the playback VCR's AUDIO and VIDEO OUT jacks.

  • Page 222: Using The Control S Feature

    Using the CONTROL S Feature CONTROL S allows you to control your LCD projection TV system and other Sony equipment with one remote control. In addition to allowing you to control multiple devices with one remote control, the CONTROL S...

  • Page 223: Setting Up The Lcd Projection Tv Automatically

    Installing and Connecting the LCD Projection TV Setting Up the LCD projection TV Automatically After you finish connecting your LCD projection TV, you can run Auto Setup to set up your channels. The Auto Setup screen appears when you turn your LCD projection TV on for the first time after installing it.

  • Page 224: Using The Features

    Using the Features Using the Remote Control The following table describes the buttons on the remote control that are for more advanced functions. Button Descriptions Button Description 1 MUTING Press to mute the sound. Press again or press VOL + to restore the sound.
  • Page 225 Using the Features Button Description qs VOL +/– Adjusts the volume. qd POWER Turn on and off the LCD projection TV and other audio/ buttons video equipment you have programmed into the remote (GREEN) control. For instructions, see “Programming the Remote Control”...

  • Page 226: Watching The Tv

    Using the Features Watching the TV Many TV features can be accessed directly through the remote control. The following will explain the function of some of the buttons found on your remote control. Buttons for LCD 1 FUNCTION Press until the TV indicator lights up. Projection TV This activates the remote control for use with the LCD projection TV.
  • Page 227 Using the Features qa TV/VIDEO Press repeatedly to scroll through available video inputs: TV, VIDEO 1, VIDEO 2, VIDEO 3, VIDEO 4, VIDEO 5, VIDEO 6 and VIDEO 7. If you select as a in the Setup menu, your LCD projection Skip Video Label TV will skip the video input you selected (see “Video Label”...

  • Page 228: Watching Digital Tv

    Using the Features Watching Digital TV When you have connected the DTV receiver, you can enjoy digital TV programs. This LCD projection TV is capable of receiving the 1080i, 720p, 480p and 480i digital TV formats. To view a digital TV program Connect the DTV receiver to HD/DVD IN 5 or 6 on the LCD projection TV (for details, see page 39).

  • Page 229: Using Favorite Channels

    Using the Features Using Favorite Channels The Favorite Channel feature lets you select programs from a list of favorite channels that you preset. Creating a List of Press MENU to display the Menu. Favorite Channels Press B or b to highlight the Channel icon and press Press to select Favorite Channels.

  • Page 230: Using Twin View

    Using the Features Using Twin View™ Twin View enables you to watch two programs at the same time. You can also change the size of both the left and right pictures. Activating Twin To display twin pictures Pictures Make sure your LCD projection TV is tuned to a working channel.
  • Page 231 Using the Features ✍ Hookups that affect your ability to use Twin View: - If you are viewing all channels through the cable box, the Twin View feature will not work. The cable box only unscrambles one signal at a time, so the right picture will be the same as the left picture.
  • Page 232 Using the Features Changing the The zoom feature lets you change the size of the left and right pictures. Picture Size To enlarge the left To enlarge the right picture (reduce the picture (reduce the right) left) Press B to Press b to activate the left activate the right...

  • Page 233: Using The Freeze Function

    Using the Features Using the Freeze Function button allows you to temporarily capture a program’s picture. FREEZE You can use this feature to write down information such as phone numbers, recipes, etc. To use the Freeze function When the program information you want to capture is displayed, press FREEZE The LCD projection TV switches to Twin View mode and displays the “frozen”...

  • Page 234: Using Scrolling Channel Index

    Using the Features Using Scrolling Channel Index Scrolling Channel Index allows you to view and select from all receivable channels scrolling on the screen without leaving the current channel. ✍ Scrolling Channel Index will not function when Parental Lock is activated.
  • Page 235 Using the Features Press The selected channel will be enlarged for normal viewing. To cancel Scrolling Channel Index Press again to resume normal viewing.

  • Page 236: Using Wide Screen Mode

    Using the Features Using Wide Screen Mode Wide Screen Mode lets you watch 4:3 normal broadcasts in several Wide Screen Modes (16:9 aspect ratio). ❑ Press WIDE MODE repeatedly to toggle through the following Screen Mode settings. You can also access the Screen Mode settings in the Screen menu. For details, see page 71.

  • Page 237: Using The Memory Stick Picture Viewer

    Supported Image This LCD projection TV's Memory Stick viewer can display only still Types images that have been recorded on Memory Stick media by Sony brand digital still and video cameras. ✍ The LCD projection TV's Memory Stick viewer is compatible with Memory Sticks up to and including 128MB It is not compatible with Memory Sticks that exceed 128MB.
  • Page 238 Using the Features About DCF File Names Most Sony brand digital still and video cameras automatically record still images using DCF compliant directory and file names, as shown in the following example: Image Directory Name 1 0 0 MS DC F...
  • Page 239 Using the Features Inserting and To insert a Memory Stick Removing a Memory Locate the Memory Stick slot (see pages 21-22) and insert the Memory Stick Stick into the Memory Stick slot as illustrated below. When inserted properly, it should slide in with little resistance and click into place.
  • Page 240 Using the Features Push the Memory Stick gently into the slot, and then release it. The Memory Stick media is ejected. Pull the Memory Stick completely out of the slot. When removing the Memory Stick, do not attempt to just pull it from its slot.
  • Page 241 Using the Features Press MEMORY STICK on the remote control. The Memory Stick Menu appears. M em o r y St i ck I n d ex Sl i de s how Se t up Move: Selec t : To select an option, press V or v to highlight the option and press Option Description Index...
  • Page 242 Using the Features Press V or v to highlight Index and press . The Memory Stick Index appears. Memory Stick Index The selected image is Menu highlighted in yellow Page– Page+ – D ir ect or y Name:900MS D FC Page 1/42 FileN ame: DS C 00004 Image 12/254...
  • Page 243 Using the Features Using the Memory The Memory Stick Slideshow lets you watch a slideshow of the images that are on the Memory Stick. Stick Slideshow Insert a Memory Stick that contains the images you want to view. For details, see page 60. Press MEMORY STICK on the remote control.
  • Page 244 Using the Features Press b (or press ), and then V or v to change setting. to enter the setting, and then B. Press To exit the Memory Stick Setup Menu, press the arrow button to Menu and press Using the Rotate The Rotate Picture Screen lets you rotate an image from an index of thumbnails.

  • Page 245: Using The Menus

    Using the Menus Overview Opening and choosing a menu Press to display the menu screen. MENU Press B or b to highlight the desired menu icon and press to select Use the arrow button to scroll through the features. See the specific menu page for instructions on moving through the menu.

  • Page 246: Using The Video Menu

    Using the Menus Using the Video Menu To select the Video Menu Press MENU Press B or b to highlight the Video icon and press Use the arrow button to scroll through the features. Press to select a feature. That feature’s adjustment appears.
  • Page 247 68Using the Menus Option Description Advanced CineMotion Obtains a smooth picture movement that Video approaches the original film-like quality when reproducing movies or other video sources on 24 frame per second films. On The LCD projection TV automatically detects the signal type of a film and processes it appropriately.

  • Page 248: Using The Audio Menu

    Using the Menus Using the Audio Menu To select the Audio Menu Press MENU Press B or b to highlight the Audio icon and press Use the arrow button to scroll through the options. Press to select an option. That option’s settings appear. Use the arrow button to scroll through the settings.
  • Page 249 Using the Menus Option Description Speaker Select to turn on the LCD projection TV speakers. Select to turn off the LCD projection TV speakers and listen to the LCD projection TV's sound only through your external audio system speakers. Audio Out Variable The LCD projection TV’s speakers are turned off, Easy control...

  • Page 250: Using The Screen Menu

    68Using the Menus Using the Screen Menu To select the Screen menu Press MENU Press B or b to highlight the Screen icon and press Use the arrow button to scroll through the features. Press to select a feature. That feature’s options appear. Use the arrow button to scroll through the options.
  • Page 251 Using the Menus Option Description 4:3 Default Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9 screen, keeping the original image as much as Select the default possible. Screen Mode to use for 4:3 Normal Select to return the 4:3 picture to normal sources.

  • Page 252: Using The Channel Menu

    Using the Menus Using the Channel Menu To select the Channel Menu Press MENU Press B or b to highlight the Channel icon and press Use the arrow button to scroll through the features. Press to select a feature. That feature’s options appear. Use the arrow button to scroll through the options.
  • Page 253 Using the Menus Option Description Channel Removes and adds viewable channels. Skip/Add Use the arrow button to scroll through the channels until you find the channel you want to skip/add. Press to select it. Press V or v to toggle between “Add” and “Skip.” Press to select.

  • Page 254: Using The Parent Menu

    Using the Menus Using the Parent Menu The Parent Menu allows you to set up the TV to block programs according to their content and rating levels. To select the Parent Menu Press MENU. Press B or b to highlight the Parent icon and press Use the 0-9 buttons on the...
  • Page 255 Using the Menus Option Description If you are not familiar with the Parental Guideline rating system, you should select Child, Youth, or Young Adult to help simplify the rating selection. To set more restrictive ratings, select Custom. For descriptions of Child, Youth, and Young Adult ratings, see page 77.
  • Page 256 Using the Menus Selecting Custom US custom rating options If you selected U.S.A. as the country of residence on page 76, the Custom Rating Options Rating Menu includes the following options. (If you selected Canada, see page 78.) To ensure maximum blocking capability, the age-based ratings should be blocked.
  • Page 257 Using the Menus Canadian custom rating options If you selected Canada as the country of residence on page 76, the Custom Rating Menu includes the following options. (If you selected U.S.A., see page 77.) Option Description English Rating All children. Children 8 years and older.

  • Page 258: Using The Setup Menu

    Using the Menus Using the Setup Menu To select the Setup Menu Press MENU Press B or b to highlight the Setup icon and press Use the arrow button to scroll through the features. Press to select a feature. That feature’s options appear. Use the arrow button to scroll through the options.
  • Page 259 Using the Menus Option Description Video Label Allows you to label the audio/video components you connected to the LCD projection TV so you can identify them when using TV/VIDEO. When in the Setup menu’s Video Label feature, press V or v to highlight an input to label, then press select it.
  • Page 260 Using the Menus Option Description Clock/Timers Select to set the clock and to program your TV to turn on and off at two scheduled viewing times. Timer 1 You can use the Timers to programthe TV to turn on and off and tune to a Timer 2 specific channel at two scheduled viewing times.

  • Page 261: Other Information

    If you enter a new code number, the code number you previously entered at that setting is erased. ❑ In some rare cases, you may not be able to operate your component with the Sony remote control. In this case, use the component’s own remote control unit. RM-Y912...
  • Page 262 Minolta 305, 304 Wards 327, 328, 335, VCRs 331, 332 Mitsubishi/ 323, 324, 325, Manufacturer Code Yamaha 314, 330, 336, Sony Multitech 325, 338, 321 Admiral Zenith 314, 336, 337 (M. Ward) Olympic 309, 308 DVD Players Aiwa 338, 344...

  • Page 263: Operating Other Components With Your Lcd Projection Tv Remote Control

    Other Information Operating Other Components with Your LCD Projection TV Remote Control Operating a VCR Press FUNCTION until the DVD/VCR indicator lights up. To Do This ... Press SAT/CABLE (POWER) Turn on/off Change channels CH +/– Record N and REC simultaneously Play Stop Fast forward...
  • Page 264 Other Information Operating a Cable Press FUNCTION until the SAT/CABLE indicator lights up. To Do This ... Press SAT/CABLE (POWER) Turn on/off Select Cable Box SAT/CABLE (FUNCTION) Select a channel 0-9 buttons, ENTER CH +/– Change channels Back to previous channel JUMP Operating a Satellite Press FUNCTION until the SAT/CABLE indicator lights up.

  • Page 265: Notes On Using Memory Stick Media

    Other Information Notes on Using Memory Stick Media Memory Stick When using Memory Stick media, follow these precautions: Precautions ❑ To avoid permanent damage to still image data, do not turn off the TV or remove Memory Stick media from the insertion slot while data is being read (as indicated by the Memory Stick indicator light being on).

  • Page 266: Troubleshooting

    75). ❏ If your LCD projection TV’s power is on, and LAMP (red) indication is flashing, the lamp for the light source burns out. Replace it with new Sony XL-2000U replacement lamp (see page 13). ❏ If your LCD projection TV does not turn on, and a red light keeps flashing, your LCD projection TV may need service.
  • Page 267 Other Information Problem Possible Remedies ❏ Adjust the Color settings in the Video menu (see page 67). No color ❏ Only snow and noise Check the Cable setting in the Channel menu (see “Cable” on page 73). ❏ appear on the screen Check the antenna/cable connections.
  • Page 268 Other Information Problem Possible Remedies ❏ There is a black box on the You have selected a text option in the Setup menu and no text is available. (see page 79 to reset Setup selections) To turn this feature off, select OFF in the screen Caption Vision option.

  • Page 269: Flashing Indicators On The Front Of The Monitor

    (see page 13). The LAMP indicator flashes. ❑ The lamp for the light source burns out. Replace it with new one (see page 13). If the LCD projection TV is not recovered after correcting the problems, contact with qualified Sony personnel.

  • Page 270: Specifications

    Other Information Specifications Projection System 3 LCD Panels, 1 lens projection system LCD Panel 1.35 inch TFT LCD panel Approx. 3.15 million dots (1,049,088 pixels) Projection Lens High Performance, large diameter hybrid lens F2.4 Antenna 75 ohm external terminal for VHF/UHF Lamp UHP lamp, 100W XL-2000U...
  • Page 271 Other Information In Standby Under 1 W Supplied Accessories Remote Control RM-Y912 AAA Batteries 2 supplied for remote control Cleaning Cloth Hex key wrench Brackets with screws Optional Accessories TV Stand SU-GW1 Lamp XL-2000U AV Cable VMC-810/820/830 HG Audio Cable RKC-515HG Control S Cable RK-G69HG...
  • Page 272 Index – – Cable box 26 Cable or antenna 25 Activating a Twin View screen Camcorder 41 Adding channels to the channel list Digital TV Receiver 39 Adjusting audio, Steady Sound DVD player 37 ANT button – Satellite receiver 33 Antenna, connecting –...
  • Page 273 Picture size, adjusting in Twin View POWER buttons (GREEN) Image Revision Presetting channels Inputs, labeling – Problems, troubleshooting – Installation of the projection TV Ratings JUMP button setting 76 Jump, using viewing blocked programs 76 Rear panel controls and connections Remote control Label Function of buttons 47...
  • Page 274 TV power button TV/VIDEO button Twin View™ activating a picture 51 described 9 using 51 using with TV remote control 84 with cable box, connecting 30 with cable, connecting 29 with satellite receiver, connecting 34 Video inputs, labeling Video menu Video Modes, selecting Viewing area, recommended VOL +/–...
  • Page 275 If, after reading this instruction manual, you have additional questions related to the use of your Sony projection TV, please call one of the following numbers (English only). Customers in the continental United States contact the Direct Response Center at:...

This manual is also suitable for:

Kf-50xbr800Kf-60xbr800Kf-60xbr800rm-y912

Table of Contents
