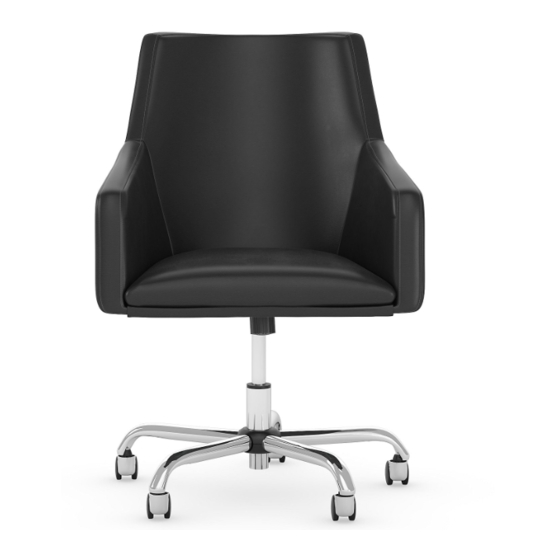

CH2401BLL-03
1
2
CASTER
5-STAR BASE
Part #
Part #
H188313
H188788
2
1
max weight
275lbs
3
GAS LIFT
Part #
H188754
3
7
6
4
5
SEAT CUSHION
4
5
MECHANISM
W/BACK CUSHION
Part #
Part #
H189075
S188790
Lot Code:
A188825
3
An assistant is required.
Es necesario un ayudante.
Un assistant est nécessaire.
6
7
ALLEN WRENCH, 5mm
SCREW
4
5/16" x 7/8" L
Part #
Part #
H189111
H122485
Advertisement
Table of Contents
Related Manuals for Bush Business Furniture CH2401BLL-03
Summary of Contents for Bush Business Furniture CH2401BLL-03
- Page 1 CH2401BLL-03 A188825 An assistant is required. Es necesario un ayudante. Un assistant est nécessaire. max weight 275lbs SEAT CUSHION CASTER 5-STAR BASE GAS LIFT MECHANISM ALLEN WRENCH, 5mm SCREW W/BACK CUSHION 5/16” x 7/8” L Part # Part # Part #...
- Page 2 CH2401BLL-03 OPERATING INSTRUCTIONS A188825 To raise the seat height, stand up from the chair while lifting the lever (A) under the right side of the seat.To lower the seat height, lift the lever (A) while sitting in the chair. Para ajustar la altura del asiento: Para elevar la altura del asiento, levántese...
- Page 3 CH2401BLL-03 OPERATING INSTRUCTIONS A188825 Tilt Tension Knob (B) under the seat adjusts the amount of force needed to recline the chair. To increase tension,turn knob (B) clockwise.To reduce tension,turn knob (B) counterclockwise. Tensión de inclinación La perilla (B) debajo del asiento ajusta la cantidad de fuerza necesaria para reclina la silla.Para aumentar la tensión,...
- Page 4 IMPORTANT SAFETY INFORMATION HAIR WARNING WARNING DO NOT STAND ON THIS CHAIR. DO NOT USE THIS CHAIR AS A STEP LADDER. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY! - Use this product only for seating one person at a time. - This chair has been tested and approved for users weighing 275lbs (125kg).
- Page 6 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
