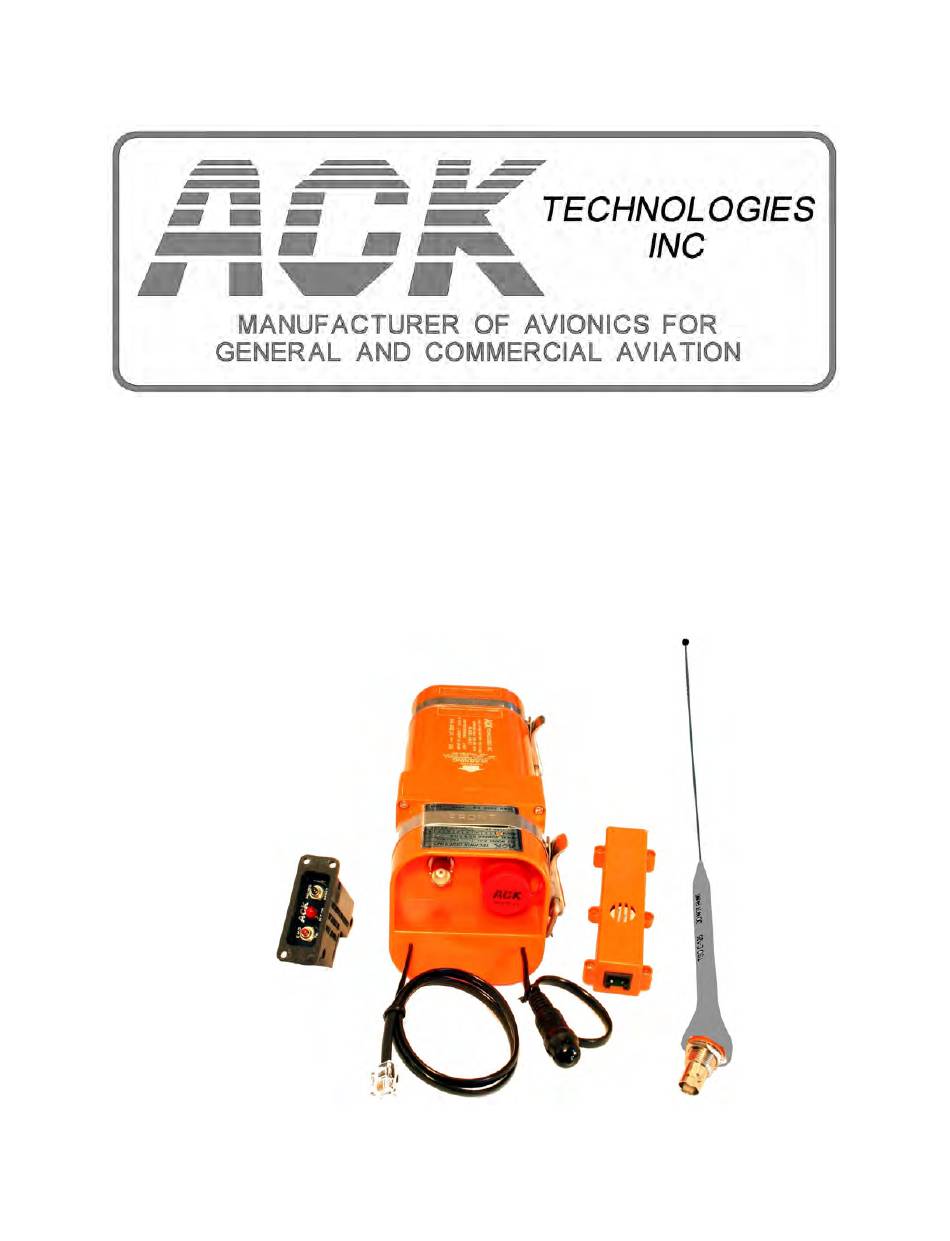

- Page 1 WARNING: Once an ELT is programmed from the default Serial Number format, it can not be programmed back to Serial Number for- mat except by the factory. MODEL E-04 121.5/406 MHz ELT PROGRAMING MANUAL REVISION 1.3 December 7th 2017...
- Page 2 Table of Contents Page Content Minimum System Requirements / E-04.PK.1 contents Programming Overview Software & Printer Installation Programming (using the dongle) Programming (using the software) Programming (using the various protocols.) Programming (locating the IACO 24 Bit address.) Appendix A (Country code listing)
- Page 3 -10 Megabytes Available Hard Drive Space -USB Port Supported Operating Systems -Windows 10, 8, 7 -Windows XP Service pack 3 or higher E-04.PK.1 Programming Package includes: -Programming Operation / Installation Manual -Programming Dongle (part # E-04.PRG Version 3.0) -USB Extension Cable -3/32” Hex Driver -Software CD (version 3.0)
- Page 4 Model E-04 Programming Overview The ACK programming process itself is quite simple and may be accomplished in a matter of minutes however programming the Model E-04 121.5/406 MHz ELT requires a basic understanding of the COSPAS/SARSAT coding protocols and the requirements of various countries throughout the world and their specific requirements.
- Page 5 Install Brother QL-700 Printer 1.) Install the Brother QL-700 printer follow the manufacturers installation instructions. 2.) Load the DK-2606 label tape in the printer. 3.) Open the “Start” menu, select control panel. 4.) Open “Printers and Faxes” in control panel. 5.) Right click on Brother QL-700, then click on “properties”.
- Page 6 Programming ELT’s Once you have the software and driver installed you are ready to program ELT’s. To program an ELT follow these steps: 1.) Disconnect Antenna, Remote Control, and GPS cables. 2.) Remove the ELT transmitter head from the battery pack by removing the four screws attaching the transmitter head to the battery pack using the hex driver supplied.
- Page 7 This is the opening screen make sure After the read is complete the screen the dongle is plugged in and the indicates how the ELT is currently green LED on the dongle is lit. Click programmed. After completing this on the read button. step you may program the ELT.
- Page 8 Programming Serial Number Protocol In the serial number protocol you are only allowed to change the country code. 1.) When selecting this option use the dropdown menu to select the country you wish to program it for. 2.) Click the “Program” button and monitor the progress bars. 3.) After completing programming the “Verify”...
- Page 9 5.) After completing programming the “Verify” button highlights yellow, select “Verify” and monitor the progress bars. 6.) If the “Verify” button highlights green it was successfully programmed, and review programmed data in the fields below to make sure it is correct. 7.) make sure to select the Brother QL-700 printer from the drop down list.
- Page 10 APPENDIX A A list of contacts for each country can be accessed on the COSPAS/SARSAT web site www.cospas.org on the web site go to “Contacts” and select “National Contacts for Beacon Matters (Coding, Registration and Type Approval)”...
- Page 11 APPENDIX B Windows XP After software installation remove the CD and plugin the dongle. A dialog box should appear saying “Found New Hardware”. It should ask if you have a installation CD insert it now. Insert the CD and the system should load the driver.
