16-07-2019
OPERATING MANUAL
Technical description. Installation manual. Certificate.
ПШБА.464415.101 РЭ
1. PURPOSE

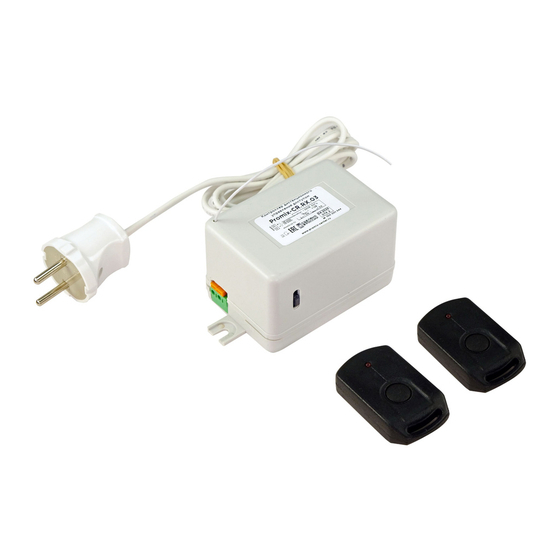

Remote control system Promix-RDS is designed for radio remote control of various actuators
(electromagnetic, electromechanical locks, latches; turnstiles, etc.).
The system includes: actuator, power supply unit, receiver, controller unit, remote controls. The
power supply unit, receiver, and controller unit are designed as a single unit (controller
CR.RX.03, hereinafter – the controller). The receiver of the controller receives control signals of
remote controls Promix-CR.TX.01. The power supply unit of the controller is used to control the
connected actuators.
2. DELIVERY SET
Controller Promix-CR.RX.03
Remote control Promix-CR.TX.01 with a battery
Operating manual
Check the completeness of the product upon purchase! The manufacturer will
not accept any further claims for completeness.
3. CLIMATIC OPERATING CONDITIONS OF THE
CONTROLLER
• resistance to climatic factors according to GOST15150-69:УХЛ4;
• ambient air temperature: from -30 to +50 °С;
• relative air humidity not more than 80% at +25 °С and lower temperatures without
condensation and frost formation.
REMOTE CONTROL SYSTEM
Promix-RDS.01
Promix-
1 pc.
2 pcs.
1 pc.
1
Advertisement
Table of Contents
Summary of Contents for PROMIX RDS.01
- Page 1 (controller Promix- CR.RX.03, hereinafter – the controller). The receiver of the controller receives control signals of remote controls Promix-CR.TX.01. The power supply unit of the controller is used to control the connected actuators. 2. DELIVERY SET Controller Promix-CR.RX.03...
- Page 2 4.3 TECHNICAL DATA OF THE RECEIVER Supply voltage (direct current), V Current consumption, mA Operating frequency, MHz 433.92 Sensitivity, µV Reception range of signals from the remote control Promix-CR.TX.01 (in direct visibility and absence of interference), m, not less than...
- Page 3 When pressing the control button on the remote control Promix-CR.TX.01, it sends a unique code via a radio channel. The controller Promix-CR.RX.03 receives the sent code and, if this code is recorded in the controller memory (see Section 7), activates its output contact for the programmed time (the supply voltage is applied to or removed from the actuator), what is accompanied by a continuous beep signal.
- Page 4 Promix-RDS.01 Fig.1. Diagram of the controller connection 6. CONNECTION Connect the actuator to the controller terminals, observing the polarity of the supply voltage: the left terminal is positive, and the right one is negative. To do so, press the orange lever of the terminal block with a screwdriver and, holding it pressed, insert the wire into the hole.
- Page 5 Promix-RDS.01 4. Press the remote control button, wait for a sound signal, confirming recording of the remote control number into the controller memory. After entering the programming mode all the previously recorded remote controls will be deleted from the controller memory. The programmed time of the open lock time remains saved.
- Page 6 The controller Promix-CR.RX.02 meets the fire safety requirements as per GOST 12.1.004-91. Promix-RDS.01 set is not hazardous for life and health of people and for environment. After the expiration of the service life, the set can be disposed of without any special environmental protection measures.
- Page 7 Manual are followed. Within the period of warranty, ETC PROMIX LLC undertakes to eliminate defects of the system components, caused by the Manufacturer's fault, or to replace defective components and units free of charge.
