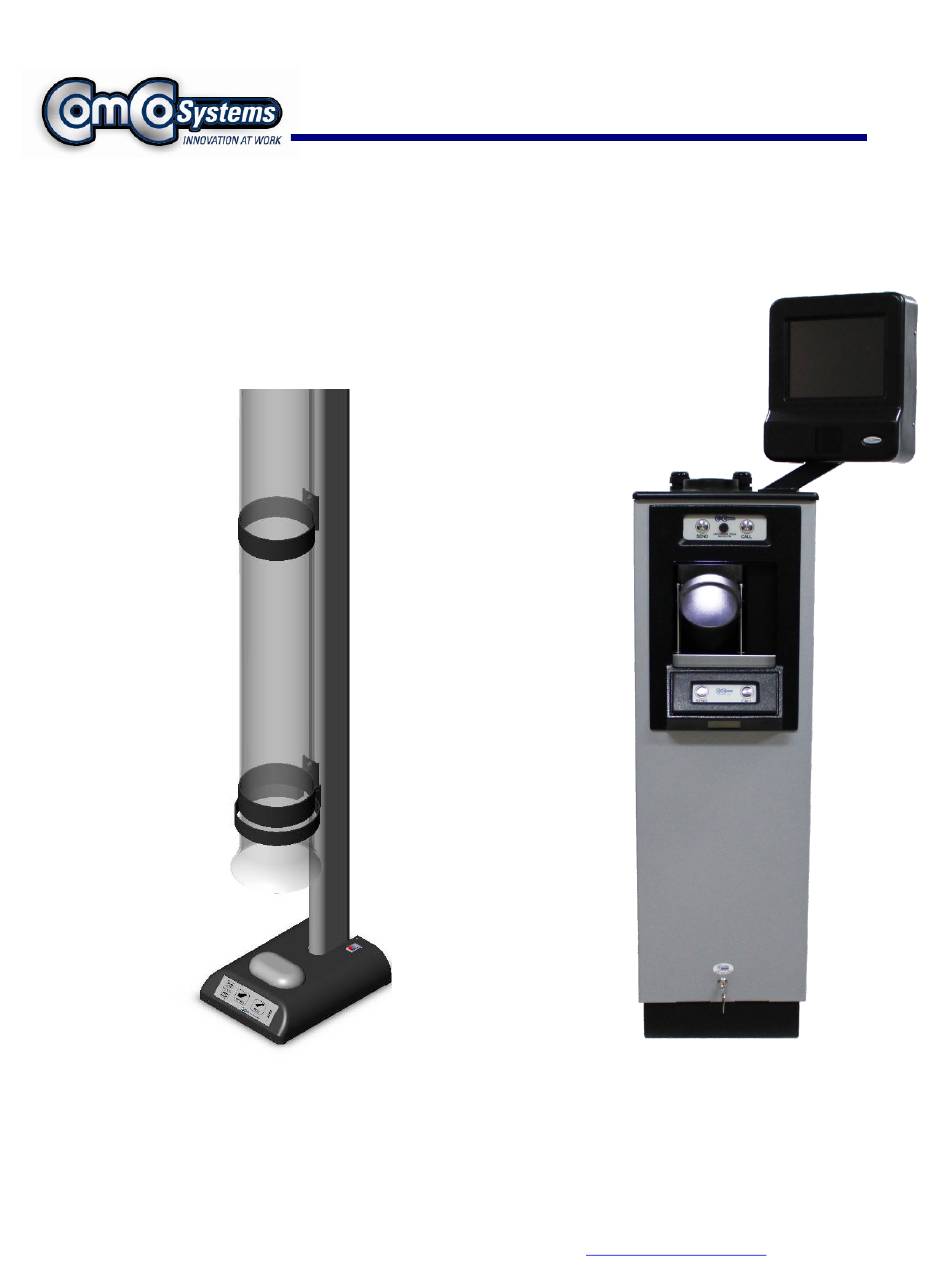

Page 1 522AX S eries Installation and Operator Manual ComCo Systems Inc. | 800.533.3794 www.comcosystems.com 500660 Rev. -...
Page 2 This publication contains materials protected by copyright. No part of this publication may be reproduced in any form or used as the basis for the sale or manufacture of apparatus without prior written consent by ComCo Systems. ©2008 ComCo Systems INC All rights reserved Some of the materials and applications described in this publication may be protected under one or more of the following US patents: DES272076, 4180354, 4971481, 4984939, 5584613, 6039510, or other Patents Pending.
Page 3: Table Of Contents
522AX Contents Series System Features Single Sided Teller Chute Customer Unit Blower System Controller Operation Single-Sided Chute Teller Unit Operations Specification Customer Unit Operations Specification Installation Blower Operations Specification System Controller Carriers Operations Specification Installation & Maintenance System Setup and Installation Field Wiring Diagram System Riser Help Desk Information...
Page 4: System Features
Customer Unit (CU) CU-522AX-201283 Fully automatic door operation with tip tube, integrated blower module, 522 System Controller and optional 2 way video SC-521-200703 unit. System Controller 3 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 5 522AX Series Single-Sided Teller Chute STC-4500-200656 Model: pg. 4 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 6: Operation
Send. Carrier dispatches to the customer unit. 1. System Power On/Off Switch 2. Control Panel Customer Manual Door Open/Close Retrieve Carrier from Customer Send Carrier to Customer System Power Indicator LED 5 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 7: Operations
522AX Operation Series Single-Sided Teller Chute (P/N: 200656) Switch Operating Instructions Fig. 1.0 ON/OFF Power cycles the complete system (Inside Unit, Outside Unit & Blowers). Power ON the system power light will be present and opens the customer unit door. Power OFF complete system power down and closes the customer unit door.
Page 8: Specification
(TU-101-200656) Current (max) 1 amps Installation of this unit must be done with only the assemblies supplied in STC2000 field service installation kit (P/N: 200745). See Appendix B. 7 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 9: Customer Unit
522AX Series Customer Unit CU-522AX-201283 Model: pg. 8 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 10: Operations
(NOTE: DO NOT INSERT LOOSE ITEMS DIRECTLY INTO UNIT) CALL Generates an audible tune at the Teller Center when depressed. Upper Switch Panel (P/N: 201350) Lower Switch Panel (P/N: 201328) 9 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 11: Specification
522AX Specification Series Customer Unit (P/N: 201283) Dimensional & Electrical Specifications Item Measurements Value Customer Video Module Nominal Voltage 12 VDC (CV-200-200903-10) Current (max) 3.5 amps Door Motor Module Nominal Voltage 120 VAC, 60Hz (DM-100-200367) Current (max) 1 amps Blower Module Nominal Voltage 120 VAC, 60Hz (201282)
Page 12: Installation
* Plug Rating 15A 250V Field Wiring Serviceable FUSE Location Rating: 1A 250VAC Fuse L – Black UL Listed Only GND – Green N – White 11 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 13 522AX Installation Series Customer Unit (P/N: 201283) Mounting & Access Base ISO View Completed installation of base on a typical island Remove front panel for installation or service access. Fasten Mounting Bracket to Island. Using minimum ¼” hardware position leading edge of bracket “X”...
Page 14 522AX Series Single Pack Blower 522AX Blower Model: 13 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 15 522AX Installation Series Single Pack Blower Module (P/N: 201282) Line Voltage Installation For Installation of this unit refer to construction site plans or cut sheet for locating the unit. If the blower is installed in a closed canopy, the exhaust port must be vented to outside air to prevent overheating. Refer to field service wiring kit (P/N: 200438-1) for all control and 115 VAC plugs.
Page 16 522AX Series 522 System Controller SC-521-200703 Model: 15 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 17: Specification
522AX Specification Series 4 1/2” Carrier (P/N: 602033) Carriers must be closed fully before they are inserted into either the teller unit or the customer unit. Carriers that are not fully closed may fail to leave the sending unit, may become lodged within the transmission tubing, or possibly lose their contents during transmission.
Page 18 7. Carrier arrives at Customer Unit, cycle timer times out 8. Vacuum blower deactivates 9. Customer Unit door opens and presents carrier 10. Send cycle ends; System is now in ready state 17 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 19 Operation 522AX Series Recall cycle 1. Customer inserts carrier into Customer unit tip tube 2. Customer presses SEND 3. Customer unit door closes and retracts carrier (Note: if the safety switch actuator at the top of the door is lifted when the door is closing, the door will reverse and the cycle will be canceled) 4.
Page 20 All Class 2 interconnecting cabling must be done in compliance with the ARTICLE 800.33 (A) FPN No.2, exception No.2, of the NEC (National Electrical Code) by an authorized/qualified personnel. 19 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 21 Installation 522AX Series Control/Audio Field Wiring Diagram AUDIO CONNECTIONS BEHIND RIGHT ACCESS COVER (Shown without front cover) pg. 20 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 22 522AX Installation Series System Riser Diagram & Options Parts Descriptions: 21 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 23: Carriers
Installation 522AX Series Tubing All tubing must be sealed properly. Seal all joints – especially those at the teller and customer units. All inside edges of tube joints must be de-burred and ground to an angle to prevent excessive wear on carriers.
Page 24 Appendix A 522AX Series 23 pg. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500660 Rev. -...
Page 25 522AX Appendix B Series Customer Unit (P/N: 201283) Field Service Wiring Kit 200438-1 Part Number Description Quantity 601479 Cable, AC Power 601500 AC Power Entry Module, R/A 603125 Plug, 10 Position, Phoenix 601434 Zip Tie, 14” STC2000 Teller Unit (P/N: 200656) Field Service Installation Kit Part Number Description...
Page 26 Lake Dallas, TX. 75065 RMA# XXXX All RMAs will be processed in the order they are received. ComCo Systems will not accept any returns that do not have an RMA# assigned. To check on the status of an RMA call our Customer Service Representatives with your RMA#.
Page 27 522AX Appendix D Series ComCo Systems www.comcosystems.com 24/7 Toll Free Number 800.533.3794 940.222.2699 • Customer Service & Technical Support service@comcosystems.com 800.533.3794 Option 2 support@comcosystems.com • Parts Orders parts@comcosystems.com 800.533.3794 Option 4 • Equipment and System Sales sales@comcosystems.com 800.533.3794 Option 5 •...
