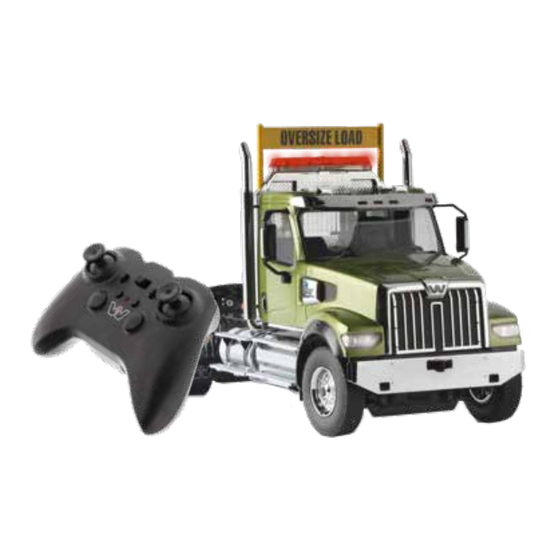

Western Star 49X SBFA Tandem Heavy-Haul Tractor Operating Instructions

Radio-Control 1/16
49X SBFA Tandem Heavy-Haul Tractor
Power (On/O )
Forward Reserved Reserved
Backward
Power Light
Lights On / O Cycle
SET

START ENGINE:

Start engine sound,
and truck can move
forward / backward
after triggering this
button.
Front Steering Fine Tune
Right
Horn Sound On / O
27009
Scale 1:16
Radio-Control 1/16
49X SBFA Tandem Heavy-Haul Tractor
Truck, Controller,
USB charger with cable,
Two AA batteries, Lithium battery,
Window box package
Taillights cycle
Left-turn Right-turn
Hazard Warning
Light On / O
Sound
On / O
Product Weight (truck, exclude battery)
Hauling Capacity
Left

5th wheel latch

Lock / Unlock
40 min.(loaded) / 60min.(unloaded)
2.27kg / 4.99lbs
max. 5kg / 11lbs
© 2020 Diecast Masters Company Limited
Data change in Battery/USB PARAMETERS:
Output: DC 7.4V, 800mA

Precautions Of Li-Po Batteries

1. Battery can be charged only by originally configured USB charger lead.
2. Be sure to charge with the white Big socket port, not the yellow socket.
3. 7.4V Li-Po must be equipped with 5V USB charging plug.
4. Any Li-Po battery with a damaged appearance should NOT be charged to
5. The battery should be charged according to the specified charging time period.

Safe Usage Instructions for Li-Po Batteries

30m / 98.4ft
Uncharged state: red light always lit
Charged state:
10 km/h
Red light always lit + Green light flashes
Full charging state:
1:16
Red and green light always lit
When the battery is fully charged, please
210 min.
remove the USB charger lead promptly
AA size x 2
This product contains small parts and is not intended for children under the age of 14.
The remote control requires 2 X 1.5V AA non-rechargeable batteries and the RC model requires a 7.4 V 2000mAh Li-Po
battery (included)
The RC model motor can generate heat and should not be touched to avoid possible burns.
Periodically check the wire, plug, shell and other parts of the charger for wear or damage and discontinue use if detected until
repaired or replaced.
The RC model should only be charged using the recommended guidelines.
The LEDs (Light Emitting Diodes) can emit radiation and should not be pointed directly at the eyes.
Aviation restrictions forbid the use of Radio Control devices within a radius of 3 miles or 5000 meters from any airport runway
or facility.

IMPROPER USE OF THIS PRODUCT

Do not dismantle, modify or otherwise alter the operation of this product in any manner. Do not operate this product in an
unlawful or illegal manner or as to jeopardize the safety of the operator or others.

IMPORTANT NOTICES

Please note: This product has been manufactured under strict performance guidelines and tested to meet safety standards
and requirements. This product is not intended for operators under the age of 14. The manufacturer bears no responsibility
for injury or accidents resulting from the use of abnormal parts, excessive wear, improper assembly or operation. Please
operate this product in a safe and responsible manner.
avoid fire hazards from spontaneous combustion.
Li-Po batteries pose a higher danger compared with other batteries.
This company does not bear any responsibility resulting from improper
usage.
DO NOT attempt to charge the Li-Po battery with any charger other than
the included original charger. Failure to do so may result in an explosion
or fire. DO NOT dismantle, subject to impact, incinerate or reverse the
connections of the battery. Avoid metal objects impacting the positive and
negative polarities of the battery. Please prevent sharp objects from
penetrating the battery to avoid the potential of fire.
Please use caution when charging the battery and ensure charging
occurs in a visible area. DO NOT leave battery unattended while charging.
Battery should be kept out of reach of children to avoid any injury.
A degraded battery should not be attempted to be recharged. Battery
expansion, deformation, explosion or fire may occur.
Degraded batteries should be disposed of properly following regional or
national disposal guidelines to ensure protection of the environment.

WARNING
