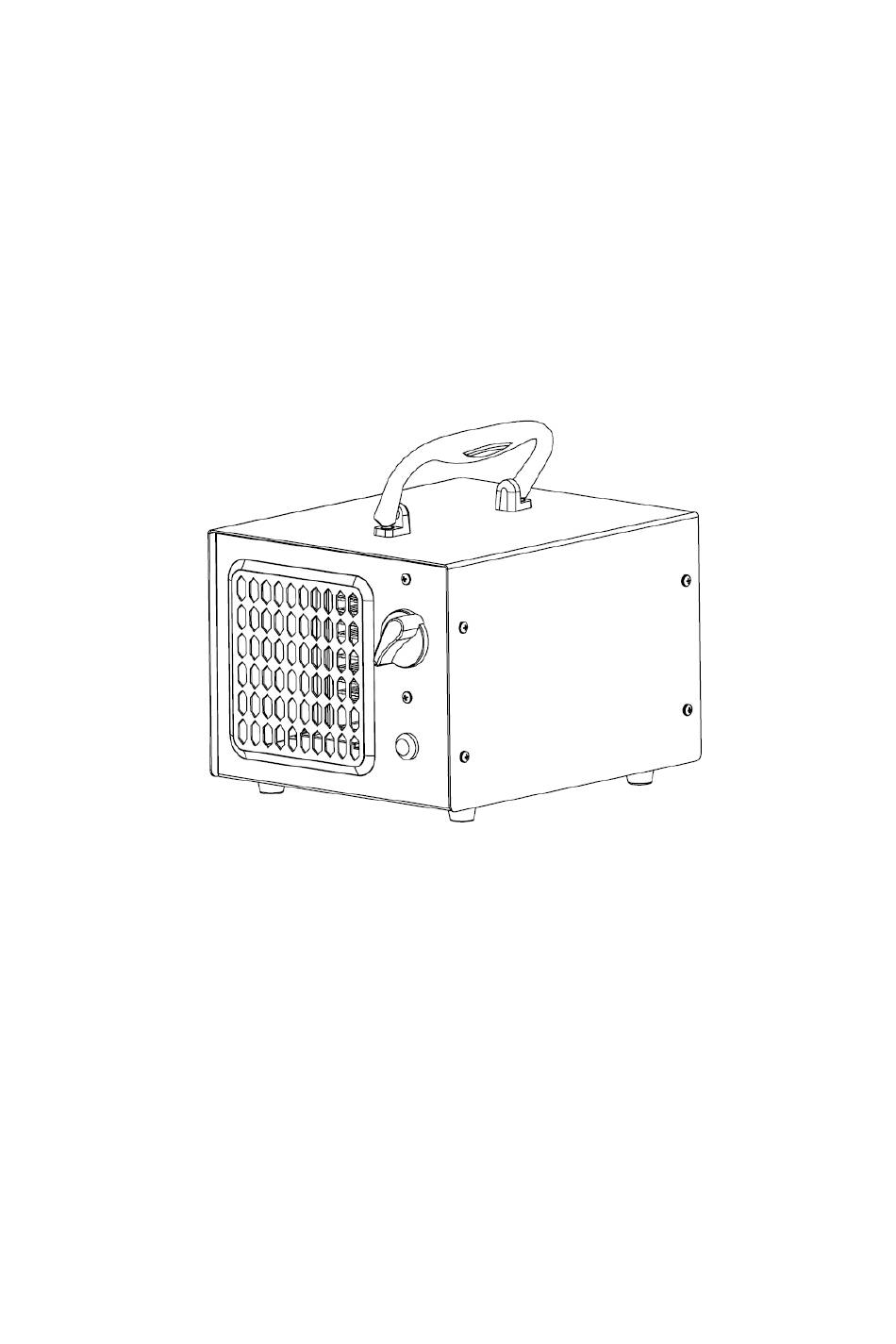

- Page 1 HE-152R Commercial Air Purifier USER MANUAL CAUTION: Read manual carefully for proper installation and operation...
-
Page 3: Table Of Contents
CONTENTS Getting Started 1. Specifications………………………………………………………….1 2. Product Features………………………………………………………1 3. Introduction…………………………………………………………….2 4. Applications…………………………………………………………….3 How To Use 5. Quick Start Guide……………………………………………………...4 6. Operating……………………………………………………………….4 Care And Troubleshooting 7. Replacing the ozone module…………………………………………5 8. Replacing the Fuse…………………………………………………….6 9. Troubleshooting………………………………………………………..6 Warranty Terms 10. Service and Warranty…………………………………………………7 11. -
Page 4: Specifications
1. SPECIFICATIONS Model: HE-152R Rated Voltage: AC 220-240V/50Hz or AC100-120V/50-60Hz Power Consumption: Air Volume: Max 106 CFM(3 m /min) Ozone Plates 95X70MM, 1pc ceramic ozone plate Active Oxygen(on): 7000mg/H Sound Level (DB): 40DB Product Size (mm): 220 x 170 x 160 mm N.W./G.W.:... -
Page 5: Introduction
3. INTRODUCTION The Commercial Air Purifier is designed to remove odors in unoccupied spaces. The unit has a timer that will enable it to run for a maximum duration of 3 hours. The timer will then shut the commercial air purifier off. You should allow 40 minutes before returning to the treated area. -
Page 6: Applications
(Back View) Part Name Function Fuse Holder Houses removable fuse. (Spare fuse included) 100-120V or 220~240V grounded cord ( unless Power Cord otherwise) 4. APPLICATIONS ⚫ For home use: Air sterilizer, living room. Kitchen. Bathroom, pet room ⚫ For Restaurant air sterilizer, Hotel room purifier, KTV smell remover, store sterilizer, office building, and Fishing shop. -
Page 7: Quick Start Guide
5. QUICK START GUIDE ⚫ When placing the device, set it on top of something solid to give it a steady base and prevent it from tipping over. ⚫ Make sure no humans, animals, pets are present in the area before starting the treatment ⚫... -
Page 8: Replacing The Ozone Module
7. REPLACING THE OZONE MODULE ⚫ When the air purifier no longer produces enough ozone to be effective, the ozone module should be replaced. (Usually it should be replaced after working 6000 hours) How to replace the ozone module: ➢ Turn off the local power supply. -
Page 9: Replacing The Fuse
8. REPLACING THE FUSE Fuse holder (located on the back of the unit next to the power cord) ✓ How to replace the fuse: ⚫ To replace fuse, pull out the plastic fuse holder ⚫ Remove old fuse and insert new fuse. ⚫... -
Page 10: Service And Warranty
10. SERVICE AND WARRANTY The commercial air purifier comes with 2 Year Limited Warranty. This device is warranted to be free from all defects in material in normal use for a period of 1 year from date of purchasing. The warranty is granted only to the original purchaser. -
Page 11: Warranty Card
11. WARRANTY CARD To activate warranty you must return this card within 30 days of purchase. --------------------------------------------------------------------------------------------- FOR YOUR RECORDS Please record the model and serial number below, for easy reference, in case of loss or theft. These numbers are located on the back panel of your air purification unit.
