USER GUIDE
PIR - MOTION SENSOR
Part Number: E9T-OBP
Power supply: battery CR123A 3V
Lifetime: 5 years
Radio frequency: 902 MHz
RF power Max: +3dBm
Wireless range: Up to 30 meters
Detection range: Up to 5 meters
Lux sensing: 0 to 1000Lux
Operational temperature: -10°C / 45°C
EEP (Profil EnOcean
): A5-07-03
®
Dimensions: 65 mm (l) x 65 mm (L) x 39 mm (h)
Weight: 54 g
Warranty: 2 years
The ILLUMRA
PIR Motion Sensor detects motion and links directly to controllers such as the
®
ILLUMRA
LED Dimmer, ILLUMRA
ON/OFF Controllers, etc. The ILLUMRA
®
®
offers hands-free convenience by turning lights On when entering closets, bathrooms, and
other areas and saves energy by automatically turning lights OFF after an adjustable timeout
when no motion is detected. An integrated light sensor can be configured to keep lights off
when natural light is available.

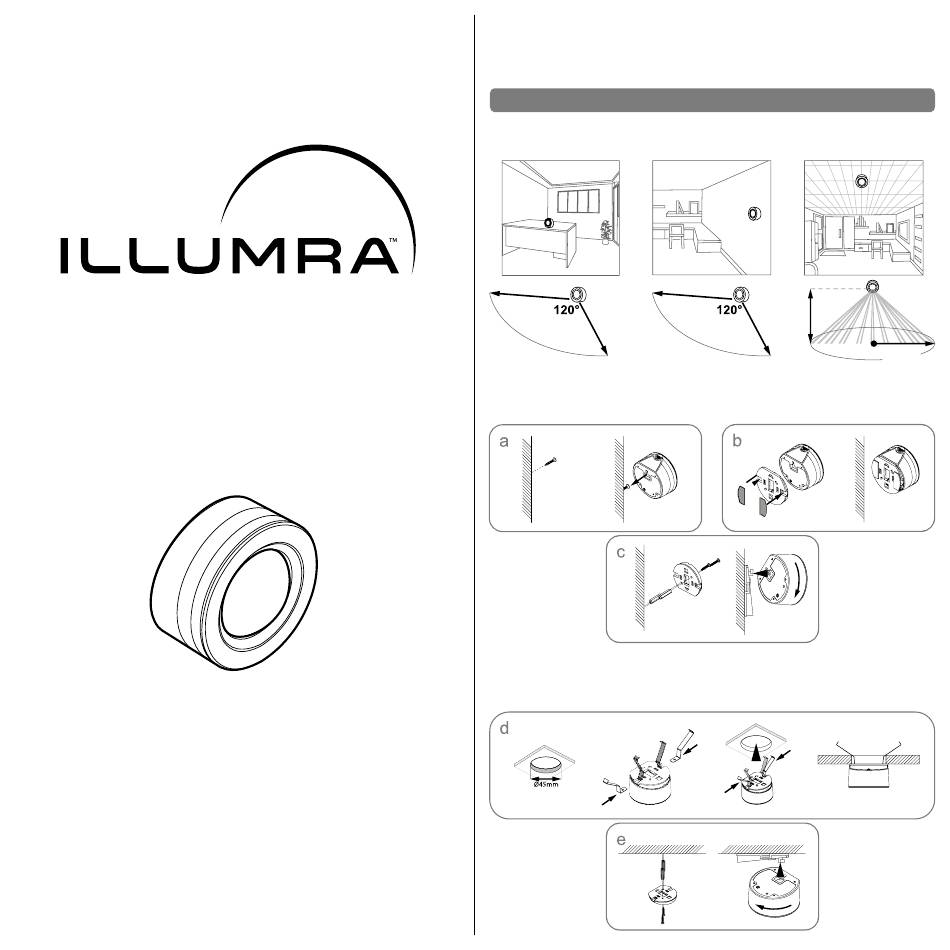

INSTALLATION
Thanks to its shape and the included accessories, you can install your PIR Motion Sensor
anywhere in your house.
On your desk
5m (16ft)
5m
(16ft)
ON YOUR WALL
a
Use a screw to hang your sensor on the wall.
b
Stick your sensor on the wall with the double sided tape.
c
Screw the support on the wall to mount your sensor on it.
ON YOUR CEILING
d
Drill a 45mm diameter hole in thin ceiling to insert the included fastening hooks and mount
the support in them.
e
Mount your sensor into the support.
PIR Motion Sensor
®
On your wall
On your ceiling
5m (16ft)
2.3m
5m
(8ft)
(16ft)
3m
(10ft)
