Eshine ES960S User Manual

Solar Charger Power Bank Use Manual
Applicable to all digital devices with DC 5V input

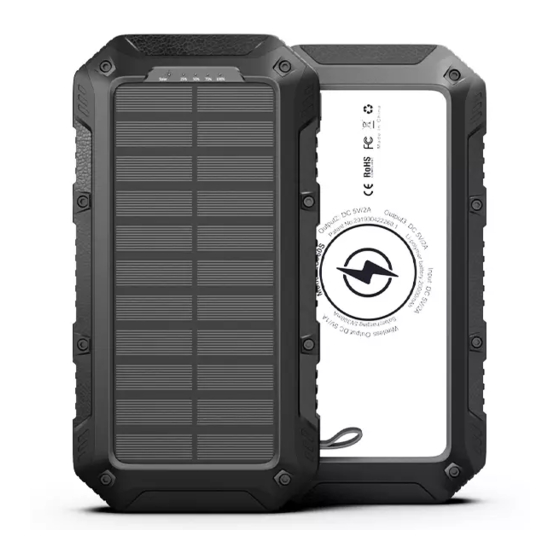

INTRODUCTION
It is a portable power bank for all kinds of digital devices like smart phones, tablet PC ,MP3/MP4 , hand-held games
console etc.
Micro USB as the main charging port, the solar panel can be use as the emergency charger, a built-in rechargeable high
performance Lithium polymer battery cell. 3 USB outputs and wireless charging area., with CVCL (constant voltage and
current limitation ) and anti-short circuit protection . An unique LED lighting lamp with lighting function .
Specifications
Input:Micro USB DC 5V/2A
Output:USB1 DC 5V/1A，USB2 DC 5V/2A ,
USB3 DC 5V/2A
5
Wireless Output:DC 5V/1A
Functions display
1，Solar panel
1
2，Solar charging indicator
3，USB Input port 1 , 2 , 3
4，USB silica gel plug for protection
5，Input Micro USB
6，Power indicator
7，Power switch/shift
8，Lanyard
9，LED lighting
10，Wireless Charger
11，Wireless Charger indicator
Charging for power bank
Use input Micro USB to connect 5V DC power supply, which automatically charges for the built-in battery,the battery
indicator shows the current battery capacity status. The Blue LED indicator will keep on when the charger is full in
charged.
Solar panel can automatically charge the mobile power bank under the directly sunlight , the solar charging indicator
lights up automatically.
When the mobile power bank is charged, if the output USB port has an external load, the power bank and the external
load are charged at the same time.
Charge for your phone.
1.When mobile charger being in the standby state, after the USB output port is connected to the mobile phone, it can
automatically detects the load, and charge the mobile phone antomactically. The power indicator display the battery
level information at the same time.Multiple output ports allow simultaneous load, mobile charger can automatically
distribute charging currents to charge digital products, and the total charging current will not exceed themaximum output
current.
2.If the phone support QI protocol wireless charging, when power shows, put the phone into the wireless charging
area can automatically recharging for your phone, When being standby mode , the wireless charging indicator light
is red light, when in charging mode it become red and green lights gradients
Output cut off
In the discharging state, the output port load is removed (or the digital product is fully charged), and the mobile charger
will detect that automatically. After about 30 seconds, the 5V output turned off and the power indicator turned off.
All manuals and user guides at all-guides.com
ES960S英文说明书
2 3 6
4
7 11
10
9
8
LED lighting function
In any state, double-click the button to turn on the LED lighting. The lighting is divided into three brightness levels:
high, medium and low. The brightness can be switched by pressing a single button. The sequence is: high, medium
and low. At any brightness, double-click the button to turn off it.
The product automatically memorizes the brightness level when the light is turned off. it is still the brightness level
at the time of the last turn-on.
Battery display
The power display is consist of 4 blue LED lights, each light means about 25% . In the standby state, press
the power switch that the blue LED lights on and display battery information.
Charging status :
Power LED1 LED2 LED3 LED4
100% on on on on
75%~99% on on on flash
50%~75% on on flash off
25%~50% on flash off off
0%~25% flash off off off
Discharging status :
Power LED1 LED2 LED3 LED4
75%~100% on on on on
50%~75% on on on off
25%~50% on on off off
10%~25% on off off off
0%~10% flash off off off
Protection function
1. Constant voltage output, over voltage protection
2. Constant current output, over loaded protection ( After output overload protection is released, it can be
restored )
3. Short-circuit of output protection ( After the short-circuit is released, after charging or pressing the key to
re-open the output )
4. Internal built-in battery protection ( both with battery protection and software protection)
Warning：
DO NOT put this speaker under the over heating environment(such as inside the airtight car which is under
great sunlight heating, Radiators, Stoves and any other equipment or devices which produce high temperature).
The over heating would probably damage the speaker or even cause any potential threaten to the safety of human
life.
Products within the sophisticated electronic components.non-professionals person can not remove the product.
otherwise it will accidentally hurt yourself or damage the product.
There is a lithium-ion battery inside the product. Please pay attention to the use under the local laws and
regulations.Batteries can not be discarded,DO NOT put the disposal battry under the over heating environment like
strong sunlight ,fire ,or any other similar conditions. pay attention to recycling.
