SLIDE DRYING BENCH

MH6616 / X1

INSTRUCTION BOOK

Page 1 of 20

M6627 Issue 7.2

Table of Contents

Need help?

Do you have a question about the Electrothermal MH6616 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bibby Sterilin Electrothermal MH6616

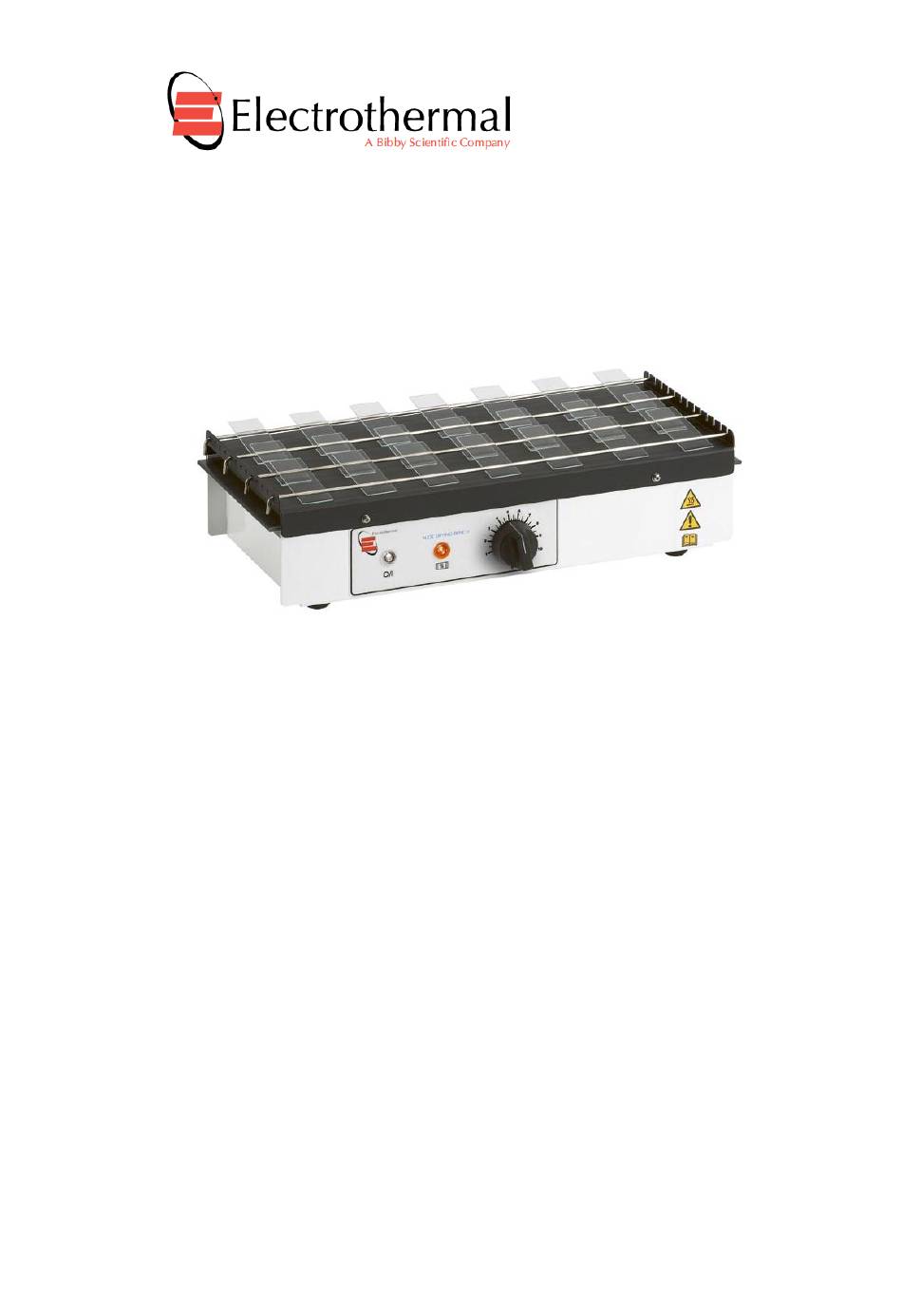

Page 1 SLIDE DRYING BENCH MH6616 / X1 INSTRUCTION BOOK Page 1 of 20 M6627 Issue 7.2...
Page 2 Please take your time to read this Instructions book in order to understand the safe and correct use of your new Bibby Scientific, product. It is recommended the Responsible Body for use of this equipment reads this Instruction book and ensures the user(s) are suitably trained in its operation. Section 1.

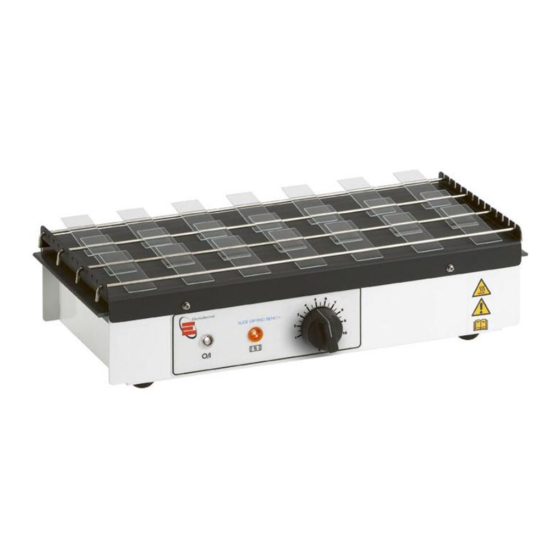

Page 3 INTRODUCTION 1.1. This Slide Drying Bench aids the preparation of microscope slides at the specimen mounting stage. Accepting up to 50 slides, it has the facility for drying slides in different orientations. The temperature control is provided by a built-in energy regulator controlling temperature up to 100C. The case and top are painted aluminium.
Page 4 SYMBOLS AND USING THIS INSTRUCTION BOOK. 2.1. Throughout this Instruction book the following symbols are shown to identify conditions which pose a hazard to the user, or to identify actions that should be observed. These symbols are also shown on the product, or its packaging. When a symbol is shown next to a paragraph or statement it is recommended the user takes particular note of that instruction in order to prevent damage to the equipment or to prevent injury to one’s self or other people.
Page 5: Safety Information
SAFETY INFORMATION. This product has been designed for safe operation when used as detailed in accordance with the Manufacture’s instructions. NOTE: Failure to use this equipment in accordance with the manufacture’s operating instruction may compromise your basic safety protection afforded by the equipment and may invalidate the warranty / guarantee.
Page 6 Do not operate or handle any part of this product with wet hands. Do not touch the heating surface whilst in use. Do not lean or stretch over equipment. Keep the Mains Plug and Lead set cable away from the heating surface.
Page 7: Unpacking And Contents
UNPACKING AND CONTENTS. Please check the contents of this carton against the diagram. Item No Description Mains Cord set. (Illustration only- may vary depending on variant) Support rods Slide Dry Bench Instruction book Unit Serial Number Unit Model/Cat Number. For your future reference please record your products Serial and Model numbers.
Page 8: Installation
INSTALLATION. 5.1. Electrical safety and installation. 5.1.1. This equipment is designed to safe under the following conditions:-  Indoor use.  Altitude up to 2000 meters.  Temperatures between 5C and 40C.  Maximum relative humidity 80% for temperatures up to 31C decreasing linearly to 50% relative humidity at 40C.
Page 9: Environmental Protection
ENVIRONMENTAL PROTECTION. 6.1. Maximum consideration to environmental issues within the design and manufacturing process without compromising end product performance and value. 6.2. Packaging materials have been selected such that they may be sorted for recycling. 6.3. At the end of your product and accessories life, it must not be discarded as domestic waste.
Page 10: Product Operation
PRODUCT OPERATION This unit has been designed for safe operation when used as described in accordance with the manufactures instructions. Note: failure to use this equipment in accordance with the manufactures ‘Instruction book’ may compromise your basic safety protection afforded by this equipment and may invalidate the terms of the Warranty / Guarantee.
Page 11: Technical Specification
TECHNICAL SPECIFICATION. 8.1. Specification. Maximum power consumption. 150 Watts Fuse rating (115V). 2.5 Amps (5 x 20mm dia Glass Quickblow) Fuse rating (230V). 1.25 Amps (5 x 20mm dia Glass Quickblow) Operational climatic conditions. Temperature range 5C to 40C. Humidity not to exceed 80%. Heating Element Silicone Rubber Mat Heater.
Page 12: Maintenance
MAINTENANCE 9.1. General Information Unplug the unit from the mains input voltage supply and allow it to cool before undertaking any maintenance tasks. Maintenance should only be carried out under the direction of the Responsible Body, by a competent electrician. Failure to do so may result in damage to the product and in extreme cases be a danger to the end user.
Page 13 9.3. Replacing the Heater Mat. WARNING: The Insulation Pressure Plate contains insulation made from Refractory Ceramic Fibres (RCF) classified as a category 2 carcinogen under EU Directive 67/548/EC. Follow the guidelines for working with RCF as laid down in the ECFIA Code of Practise. In the event of a heater element becoming open circuit the following procedure should be adopted for its replacement.
Page 14 9.4. Spillage and Decontamination. In the event of spillage switch off and unplug this product from the mains electrical supply. Wipe off all excess liquid from the reaction block and surrounding area using an absorbent soft cloth. Allow sufficient time for any ingressed liquid to evaporate before commencing with use. If in doubt please consult Customer Support.
Page 15: Parts And Accessories
PARTS & ACCESSORIES. 230V 115V Heater Mat AZ9136 AZ9137 Insulating Pressure Plate AZ9138 AZ9138 Slide Support Rod Qty 4 AZ9139 AZ9139 Rubber Feet Qty 4 AZ9140 AZ9140 Neon Clear AZ9141 AZ9142 Neon Amber AZ9143 AZ9144 Handles Qty 2 AZ9145 AZ9145 Energy Regulator AZ9127 AZ9128...
Page 16 APPENDIX ‘A’. DECONTAMINATION CERTIFICATE. Bibby Scientific Limited Beacon Road, Stone, Staffordshire ST15 0SA. Great Britain E-mail: Tel: +44(0)1785 812121. Fax: +44(0)1785 810405 electrothermalhelp@bibby-scientific.com DECONTAMINATION CLEARANCE CERTIFICATE For the Inspection, Repair or Return of Medical, Laboratory or Industrial Equipment. Prior to a Service Engineer working on equipment that has been in an environment where substances hazardous to health may have been used, you are requested to provide the following information: CUSTOMER DETAILS Company:-...
Page 17 11. CUSTOMER SUPPORT. For help and support in using this product, please contact Customer Services at the following address. For the America’s and Canada, contact: Bibby Scientific Limited. Beacon Road, Techne Incorporated, 3 Terri Lane, Stone, Suite 10 Burlington, NJ 08016 USA. Staffordshire ST15 0SA, Great Britain.
Page 18 NOTES Page 18 of 20 M6627 Issue 7.2...
Page 19 Page 19 of 20 M6627 Issue 7.2...
Page 20: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY. CE marked products and associated accessories covered by this Instruction book conform to the essential requirements of the following directives: EMC Directive. Low Voltage Directive. A full copy of the EC Declaration / Conformity document can be obtained from the manufacture at the email address : info@bibby-scientific.com Distributors Stamp For the America’s and Canada, contact:...
