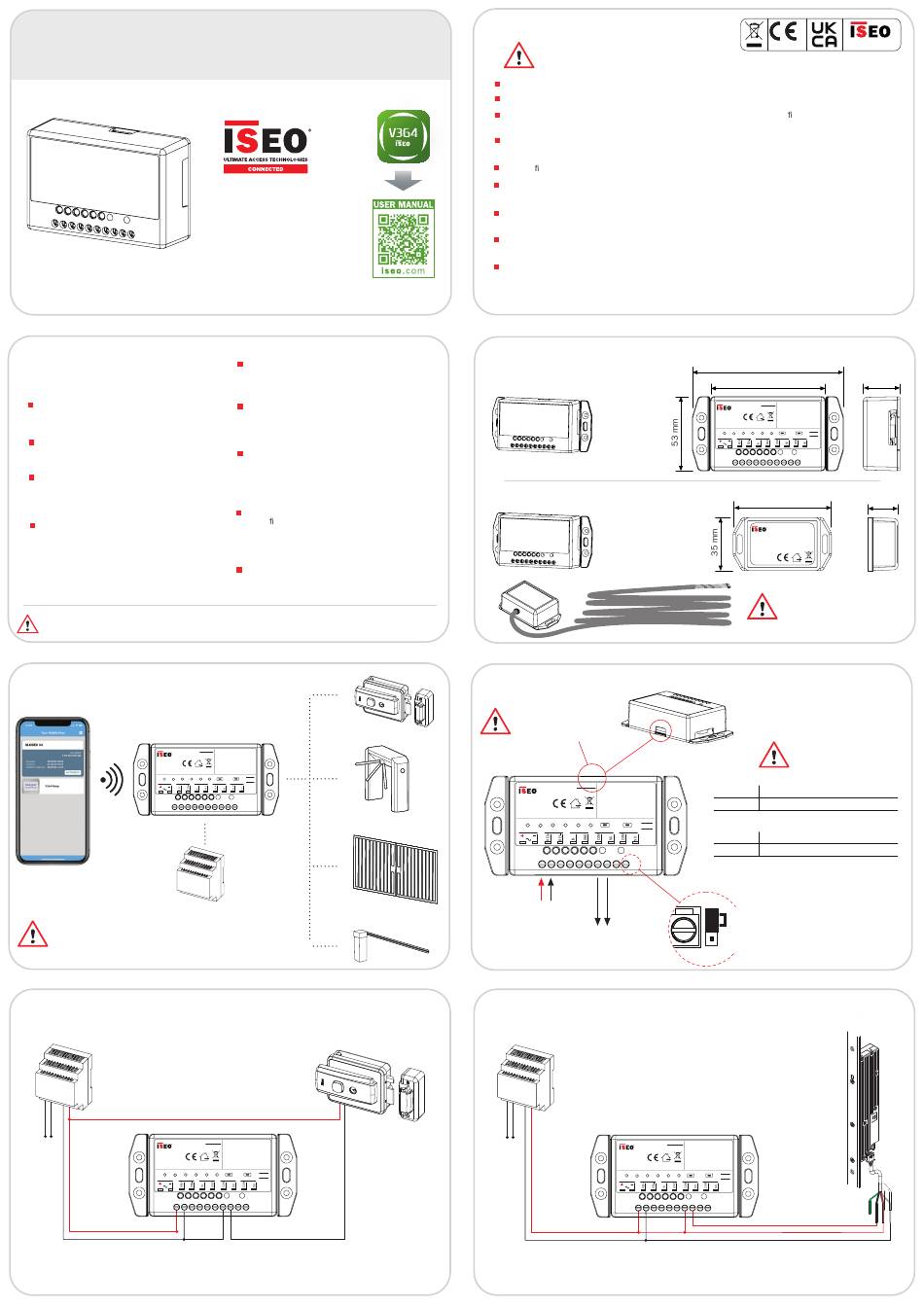

Iseo V364 Installation Manual

V364 RELAY
INSTALLATION GUIDE (EN)
Non contractual document. Subject to change. Cod. KW14341 - 28/06/2022
V364 Relay Installation Guide(EN) - © 2022 Iseo Serrature S.p.a.

1. TECHNICAL DATA

PRODUCT:
V364 Relay.
APPLICATION:
To open any electrical device.
MODELS:
1. V364 Relay (with built in BLE module).
2. V364 Relay with remote BLE module.*
PACKAGE CONTENT:
- 1 V364 Relay
- 1 DIN rail mounting clip with screws
- 1 BLE remote module with cable
(only for model 2)*
- 1 Installation guide (EN/IT)
If the power supply has a power greater than 90W and it's not SELV type (Safety Extra Low Voltage - double
insulation, overcurrent and short-circuit protected), it must be provided upstream of the lock power input, an
appropriate protection switch (circuit breaker), or delayed fuse with protection value equal to 1A.

3. PRINCIPLE OF WORKING

On average
10mt*
V364 RELAY
ULTIMATE ACCESS
T E C H N O L O G I E S
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
12 - 24VAC (4VA) OUTPUT: 1A - 30VDC/VAC
V364 Power REX IN
Power IN REX
VDC
*Phone Bluetooth trasmission total distance may vary
depending on V364 Relay location and surrounding
environment. For example walls, doors, glazed surfaces
can reduce or stop the communication between phone
and V364 Relay.

5. CONNECTION EXAMPLE: V364 RELAY OPENS AN ELECTRIC LOCK

Power
supply
230VAC
V364 RELAY
ULTIMATE ACCESS
T E C H N O L O G I E S
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
12 - 24VAC (4VA) OUTPUT: 1A - 30VDC/VAC
V364V Power REX IN
Power IN REX
VDC
Iseo Serrature s.p.a
Via San Girolamo 13
25055 Pisogne (BS)
ITALY
Tel. +39 0364 8821
iseo@iseo.com
COMMUNICATION INTERFACE:
Bluetooth 5.0 - Frequency 2,40 - 2,4835 GHz
Maximum power: 5,25 mW
POWER SUPPLY:
10 ÷ 30 VDC (2W)
12 ÷ 24 VAC (4VA)
OUTPUTS:
- 1 Power Relay: RELAY
NO contact (normally open)
30VDC/VAC - 5A max with RESISTIVE loads
HOUSING:
- To e xed to the wall.
- To be placed inside a box.
- On a DIN35 Rail with the additional mounting clip.
OPERATING TEMPERATURES:
- Working and storage: -25°C/+70°C.
- H.R.: Max. 95% without condensing.
REMOTE ANT .
OUT RELAY SW1 MASTER SER
AUX
INPUT RELAY OUTPUT
POWER IN
Electric lock
REMOTE ANT .
OUT RELAY SW1 MASTER SER
AUX
INPUT RELAY OUTPUT

WARNINGS

Read this manual prior to use the device in order to ensure a safe and proper use.
Preserve this manual as future reference.
The installation and maintanance of the device must be carried out by quali ed technical staff, adequately
trained by ISEO.
The instructions should be carefully followed during installation. These instructions and any maintenance
instructions should be passed on by the installer to the user.
No modi cations of any kind are permitted, except for those described in these instructions.
The product must be destined only for the use for which it is expressly designed and therefore as a
credential reader for civil and industrial locations. Any other use is considered improper and dangerous.
The electrical connection must be made according to the constructor's instructions and respecting the
regulations in force.
In the event of a failure and/or poor operation, remove the power supply using the main switch and do not
tamper with it. For all repairs, exclusively contact a technical assistance center authorized by the constructor.
Disconnect the power supply before carrying out any technical service that involves opening or accessing
the internal parts of the product.

2. MODELS AND DIMENSIONS

V364 Relay (with built in BLE)
V364 Relay with remote BLE
V364 Relay
Remote BLE

4. ELECTRICAL CONNECTIONS

Remote BLE connector
available only with V364
Relay with remote BLE.
REMOTE ANT .
V364 RELAY
ULTIMATE ACCESS
T E C H N O L O G I E S
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
12 - 24VAC (4VA) OUTPUT: 1A - 30VDC/VAC
V364 Power REX IN OUT RELAY SW1 MASTER SER
AUX
Power IN REX INPUT RELAY OUTPUT
VDC
Power IN
RELAY

6. CONNECTION EXAMPLE: V364 RELAY OPENS MULTIBLINDO eMOTION

Power
supply
230VAC
V364 RELAY
ULTIMATE ACCESS
T E C H N O L O G I E S
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
12 - 24VAC (4VA) OUTPUT: 1A - 30VDC/VAC
V364 Power REX IN
Power IN REX
VDC
EC Declarations of conformity available at:
https://www.iseo.com/it/en/download
109 mm
82 mm
REMOTE ANT .
V364 RELAY
ULTIMATE ACCESS
T E C H N O L O G I E S
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
12 - 24VAC (4VA) OUTPUT: 1A - 30VDC/VAC
V364 Power REX IN OUT RELAY SW1 MASTER SER
AUX
Power IN REX INPUT RELAY OUTPUT
VDC
65 mm
V364 RELAY
ULTIMATE ACCESS
T E C H N O L O G I E S
Remote Bluetooth Module
MADE IN ITALY
Max cable length = 3mt
IP53
For INPUTS and OUTPUTS
technical data see Box 1.
INPUTS Description
Power IN Power supply
OUTPUTS Description
RELAY 5A power relay NO
*
Output NO (default)
Output NC
Multiblindo
eMotion
REMOTE ANT .
OUT RELAY SW1 MASTER SER
AUX
INPUT RELAY OUTPUT
ULTIMATE ACCESS
T E C H N O L O G I E S
26 mm
15 mm
