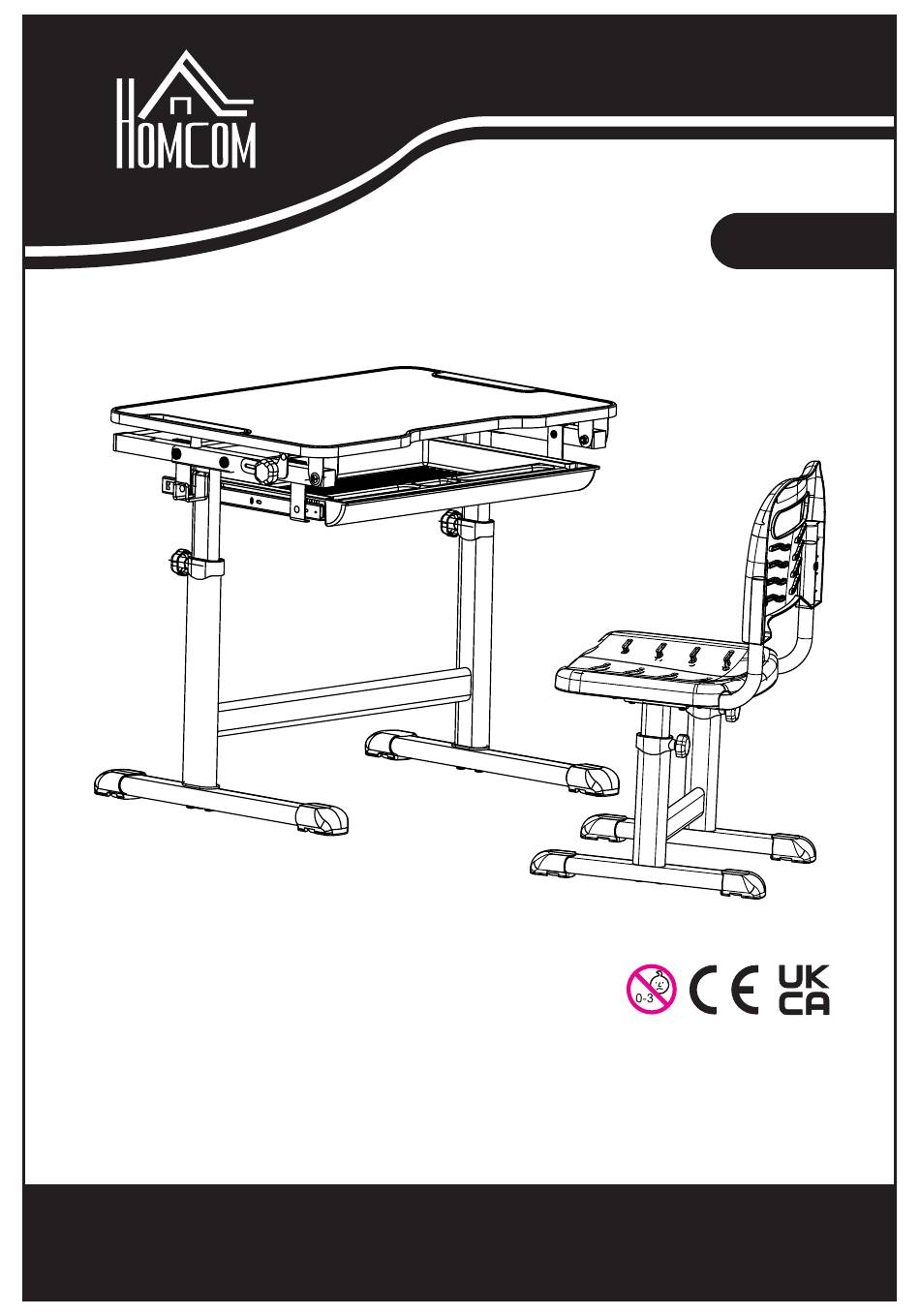

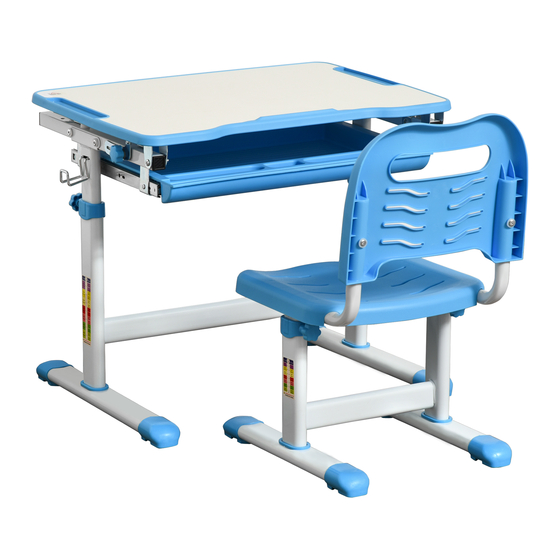

- Page 1 INfca090V01_UK 312-064 *The picture is only for reference, goods in kind prevail. IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
- Page 2 1.Using Instruction ● Lift up: Hold the both sides of the desk or the chair and pull it up equably to the height you need until you hear the sound "KA". ● Lower down: Hold the both sides of the desk or the chair and pull it up equably to the highest point, then lower it down to the lowest point, when you hear the sound "KA".pull it up to the height you need.(Note: If you pull it up before it...
- Page 3 A1.Desk board set*1 A2.Desk leg*1 A3. Drawer*1 A6.Right Sliding Rail"1 A5.Left Sliding Rail*1 A10.Chair leg*1 A7. Desk Base*2 A12.Strengthened Tube*1 A11.Wand Tube*2 A14.Seat pad*1 A13.Backrest*1 A15.Feet tube*2 Please check the below two pictures carefully before assembling and make sure every components in the pictures are included in the package.
- Page 4 B2.Dual purpose screw driver B3.Internal hexagon wrench B4.Hook*1 B6.M6 screw pad *22 (Pre installed) B7.Internal hexagon head screw (M5*12)*10(Pre installed) B8.Internal hexagon head screw (M6*14 )12 (Pre installed) B10.Cross recessed screw (M5*20 )*4 B12.Cross recessed screw (M4*8 )*4 Desk Assembly: 1.Assemble the two sliding rails (A5&A6) to the desk board set, and tighten the bolts (B7) and screw pads (B6) with the internal hexagon wrench (B3).
- Page 5 2.Adjust the drawer with the sliding rail under the board,(aimingat the installation holes) and tighten up the bolt (B12) with the internal hexagon wrench. 3.Fix the desk legs (A2) and desk bases (A7) with bolts (B7+B6)and screw them with the internal hexagon wrench. Adjust the foot screws so that it can stay on the ground stably.
- Page 6 4.Put the whole desk board set on the legs. Aiming at the installation holes, rotate the board, use screws pads (B7)to fix them, tighten the bolts with the internal hexagon wrench. 5.Assemble the book rack (A4), Hang the hooks to the both legs.
- Page 7 Chair Assembly: 1.Fix the chair legs (A10) and the feet tubes (A15) with, (B8+B6) and screw them with the internal hexagon wrench. Adjust the foot screws so that it can stay on the ground stably. 2.Fix the chair bend tubes (A11) and the strengthen tubes (A12)with bolts (B8) and screw pad (B6).At this step, you don't need to tighten them up.
- Page 8 3.Put the seat pad on the wand tubes, aiming at the holes, and fix them with bolts (B10), at this step, you don't need to tighten them up. 4.Insert the backrest into the wand tubes, aiming at the holes, and use the locking rotary knob (B5) to tighten. Adjust all installation holes and then screw all the bolts with the internal hexagon-wrench.Now you have finished all the assembly of the chair!
