PAN08-1B/-2B/-3B Roller shutter controller

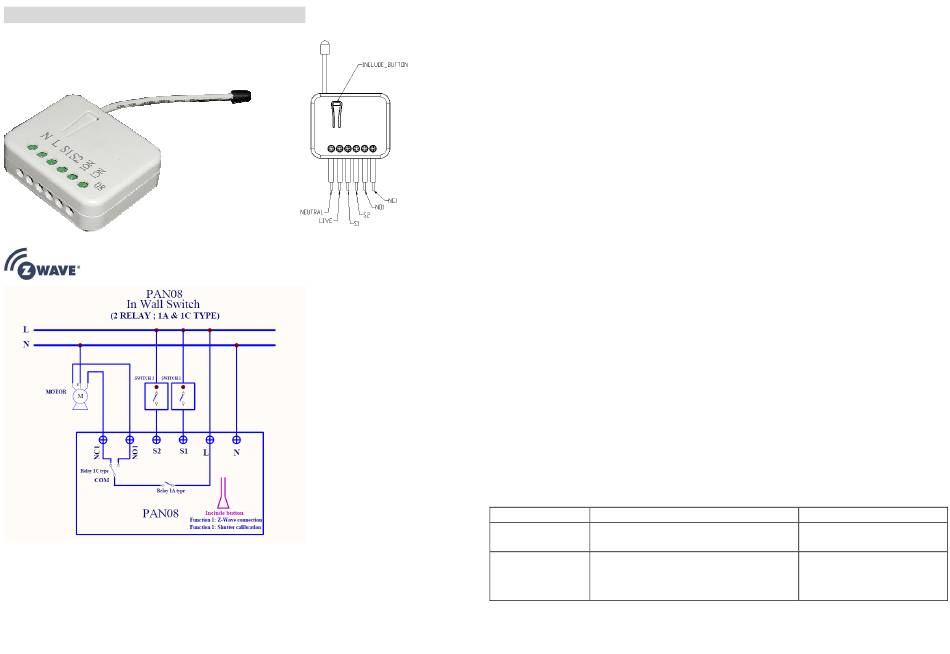

Fig 1. Assembling
The in-wall Roller Shutter Controller is designed to switch rise/lower roller shutter
connected to its terminals using radio waves, controllers and a push button directly
connected to this Roller Controller.
This in-wall Roller Shutter Controller is a transceiver which is a Z-Wave Plus
enabled device and is fully compatible with any Z-Wave
design let the Controller can easily hide itself into the wall box and that will be good
for the house decoration.
The new smart relay calibration technology can reduce the inrush current caused by
the load and let the module work perfectly with many kind of Roller Shutter.
This in-wall Roller Shutter Controller is able to detect position of the Shutter by using
the patterned power measuring method, so it can be remote controlled not only fully
up or down , but also can be adjusted to ex. 30% or 50%. And when manual
controlled by push button, the controller also can memorize the position and send the
new shutter position to its controller (ex. IP-Gateway).
TM
Adding to Z-Wave Network
In the front casing, there is an include button with LED indicator below which is used
to carry out inclusion, exclusion, reset or association. When first power is applied, its
LED flashes on and off alternately and repeatedly at 0.5 second intervals. It implies
that it has not been assigned a node ID and start auto inclusion.
Auto Inclusion
The function of auto inclusion will be executed as long as the PAN08 does not have
Node ID and just connect the PAN08 to main power.
Note: Auto inclusion timeout is 2 minute during which the node information of
explorer frame will be emitted once every several seconds. Unlike "inclusion" function
as shown in the table below, the execution of auto inclusion is free from pressing the
Include button on the PAN08.
The table below lists an operation summary of basic Z-Wave functions. Please refer
to the instructions for your Z-Wave
Setup function, and to include/exclude/associate devices
Function Description
No node ID The Z-Wave Controller does not allocate
a node ID to the PAN08.
1. Put your Z-Wave controller into
Inclusion
inclusion mode by following the
(Add a new node)
instructions provided by the
controller manufacturer.
1
TM
enabled network. Slim
TM
Certificated Primary Controller to access the
LED Indication
LED 2-second on, 2-second
off
One press one flash LED
TM
