Alvarion EMP5605H Quick Start Manual

Package Contents

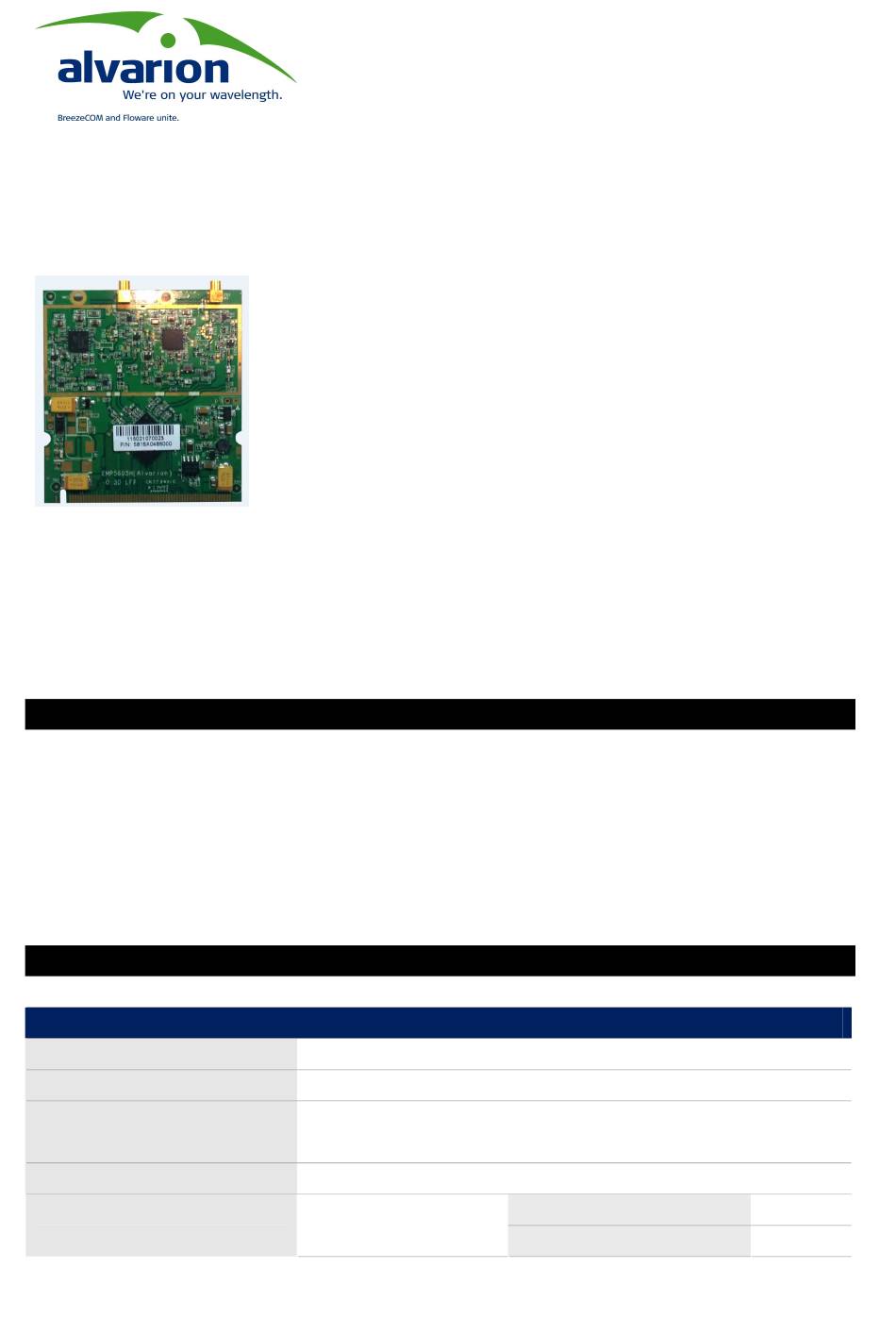

1 x MiniPCI Adapter (EMP5605H
(ALVARION))
Features
Industrial-best sensitivity
-70dBm@MCS7/MCS15
Supports IEEE 802.11a/802.11n
Enables bandwidth up to 300Mbps
2T2R design architecture
MMCX antenna connector
Specification
Hardware Specification
Standard
Chipset
Physical Interface
Power Requirements
Current Consumption Information
High Power 5GHz 11n Mini-PCI Adapter
5GHz
Alvarion miniPCI series radio modules perform extreme high
power and economize the power consumption on the system
platform. EMP5605H (ALVARION) is an 802.11a/n WiFi 2x2 mini-PCI
module designed specifically for integration to maximum
performance ratio. EMP5605H (ALVARION) delivers the ultimate
wireless triple play experience for video, voice, and data
transmission in the home, for the business, and on the road.
With enhanced features on the ESD protection, industrial-based
operating
consumption, industrial-best sensitivity than normal module,
MMCX connectors, and stable heating protection design, makes
the module is easily to integrate into a wide range of any
platform.
-90dBm@6Mbps, -72dBm@54Mbps, -89dBm@MCS0/MCS8,
Compatible among multiple wifi networks
Fast throughput for 802.11a and 802.11n
Higher and greater reliable throughputs over range
Two MMCX connectors
WECA(WiFi & WiFi5 Compliance), IEEE802.11a/n, RoHS
Atheros AR9220
32-bit Mini-PCI Type III A
2 x MMCX Connector
External DC power in supported, Voltage=5V
Tx Current Consumption
EMP5605H (ALVARION)
IEEE802.11a/n 2T2R
temperature, economized
Continuous Tx@802.11a
Continuous Tx@802.11n
