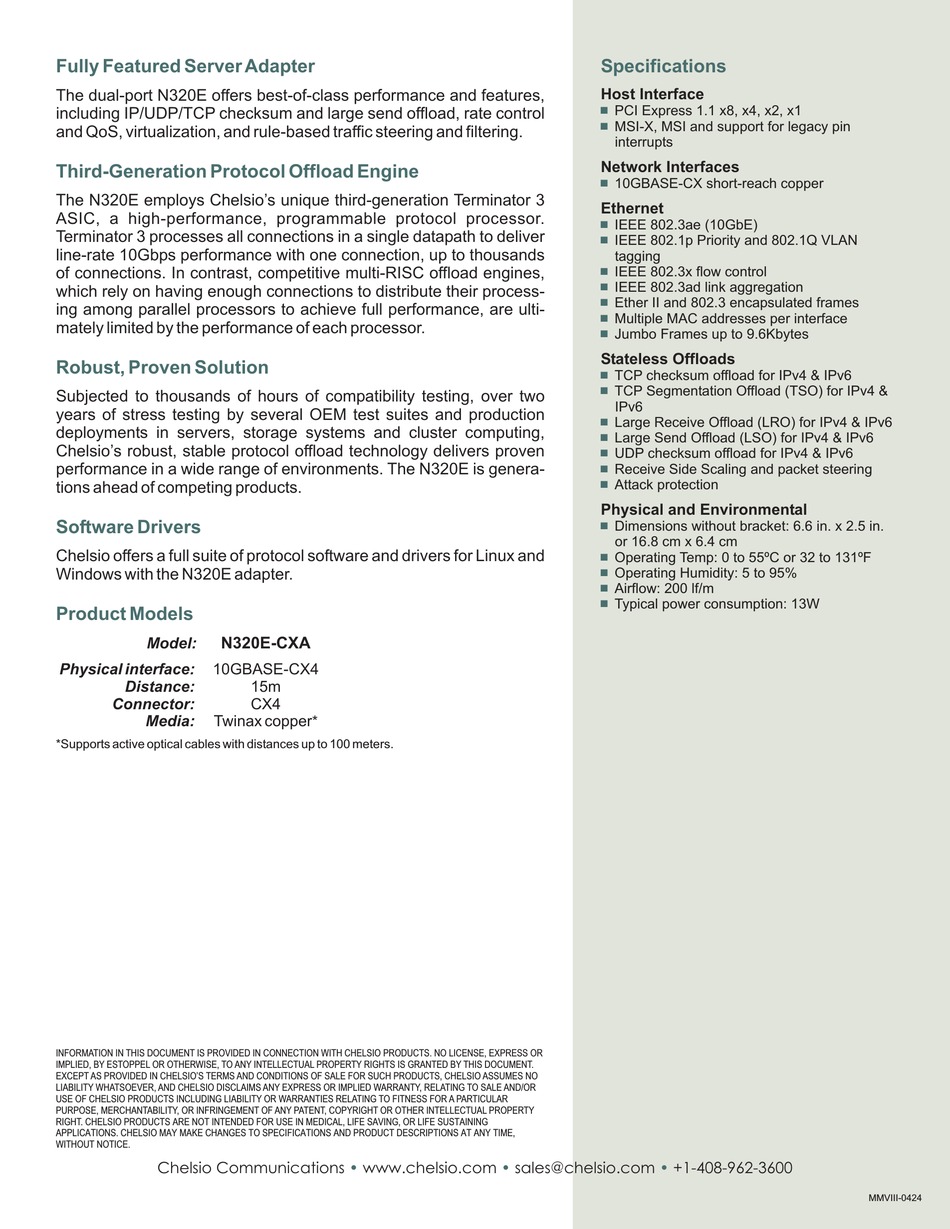

Specifications; Software Drivers - Chelsio Communications N320E-CXA Specifications

Fully Featured Server Adapter
The dual-port N320E offers best-of-class performance and features,
including IP/UDP/TCP checksum and large send offload, rate control
and QoS, virtualization, and rule-based traffic steering and filtering.
Third-Generation Protocol Offload Engine
The N320E employs Chelsio's unique third-generation Terminator 3
ASIC, a high-performance, programmable protocol processor.
Terminator 3 processes all connections in a single datapath to deliver
line-rate 10Gbps performance with one connection, up to thousands
of connections. In contrast, competitive multi-RISC offload engines,
which rely on having enough connections to distribute their process-
ing among parallel processors to achieve full performance, are ulti-
mately limited by the performance of each processor.
Robust, Proven Solution
Subjected to thousands of hours of compatibility testing, over two
years of stress testing by several OEM test suites and production
deployments in servers, storage systems and cluster computing,
Chelsio's robust, stable protocol offload technology delivers proven
performance in a wide range of environments. The N320E is genera-
tions ahead of competing products.

Software Drivers

Chelsio offers a full suite of protocol software and drivers for Linux and
Windows with the N320E adapter.
Product Models
N320E-CXA
Model:
Physical interface: 10GBASE-CX4
Distance:
Connector:
Media: Twinax copper
*Supports active optical cables with distances up to 100 meters.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH CHELSIO PRODUCTS. NO LICENSE, EXPRESS OR
IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT.
EXCEPT AS PROVIDED IN CHELSIO'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, CHELSIO ASSUMES NO
LIABILITY WHATSOEVER, AND CHELSIO DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR
USE OF CHELSIO PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR
PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY
RIGHT. CHELSIO PRODUCTS ARE NOT INTENDED FOR USE IN MEDICAL, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS. CHELSIO MAY MAKE CHANGES TO SPECIFICATIONS AND PRODUCT DESCRIPTIONS AT ANY TIME,
WITHOUT NOTICE.
Chelsio Communications
15m
CX4
*
• www.chelsio.com

Specifications

Host Interface
+
PCI Express 1.1 x8, x4, x2, x1
+
MSI-X, MSI and support for legacy pin
interrupts
Network Interfaces
+
10GBASE-CX short-reach copper
Ethernet
+
IEEE 802.3ae (10GbE)
+
IEEE 802.1p Priority and 802.1Q VLAN
tagging
+
IEEE 802.3x flow control
+
IEEE 802.3ad link aggregation
+
Ether II and 802.3 encapsulated frames
+
Multiple MAC addresses per interface
+
Jumbo Frames up to 9.6Kbytes
Stateless Offloads
+
TCP checksum offload for IPv4 & IPv6
+
TCP Segmentation Offload (TSO) for IPv4 &
IPv6
+
Large Receive Offload (LRO) for IPv4 & IPv6
+
Large Send Offload (LSO) for IPv4 & IPv6
+
UDP checksum offload for IPv4 & IPv6
+
Receive Side Scaling and packet steering
+
Attack protection
Physical and Environmental
+
Dimensions without bracket: 6.6 in. x 2.5 in.
or 16.8 cm x 6.4 cm
+
Operating Temp: 0 to 55ºC or 32 to 131ºF
+
Operating Humidity: 5 to 95%
+
Airflow: 200 lf/m
+
Typical power consumption: 13W
• sales@chelsio.com • +1-408-962-3600
MMVIII-0424
