Summary of Contents for Anchor UHF-EXT500-H

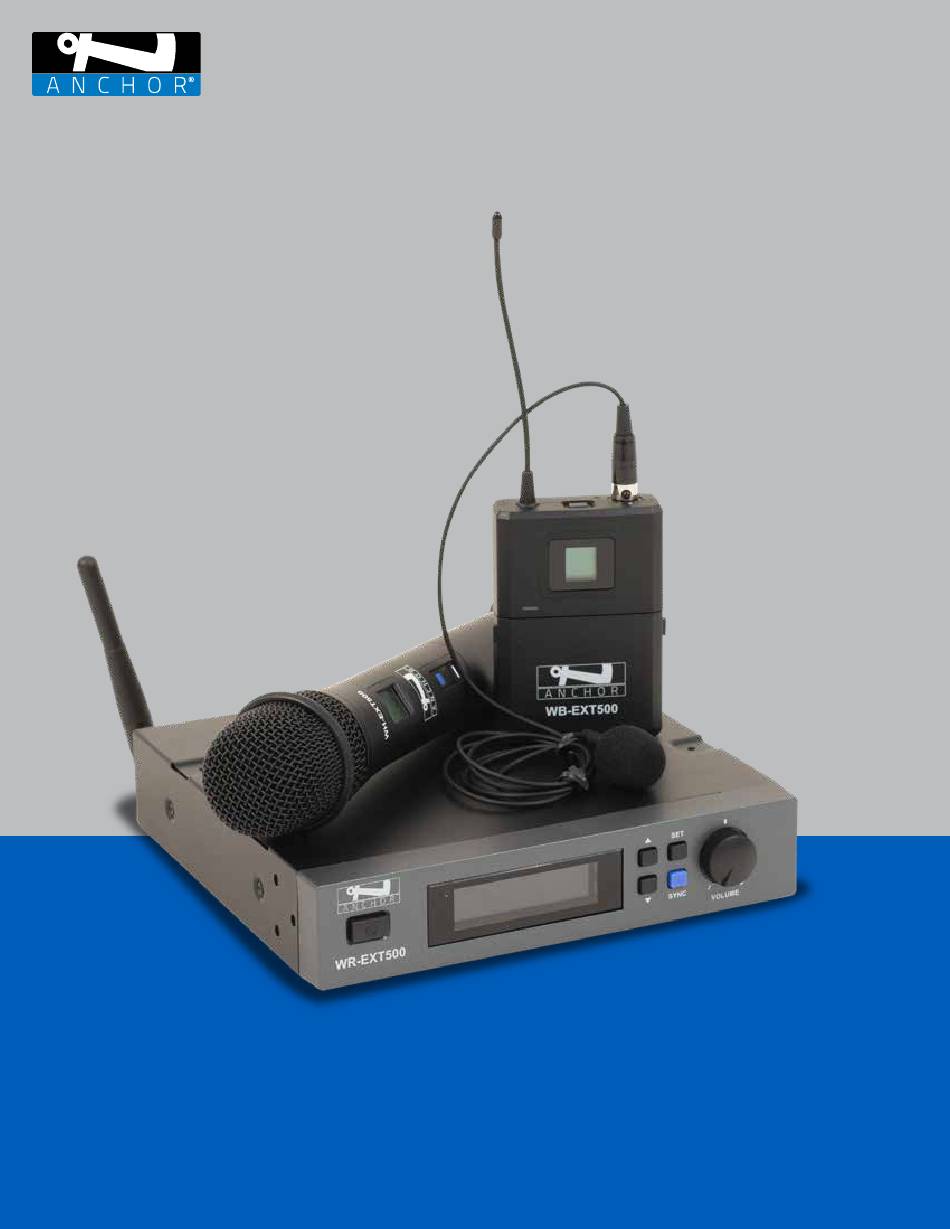

  • Page 1 OWNER’S MANUAL U H F- E XT 5 0 0...
  • Page 2: Table Of Contents

    Our Technical Support team will help to troubleshoot. If unsuccessful and under warranty, they will issue you a Return Merchandise Authorization (RMA) number. Once you ship your product back to Anchor Audio with the RMA number clearly noted on the box, we will diagnose your unit and repair your unit then ship it back to you.
  • Page 3 UHF-EXT500 INTRODUCTION The PLL synthesized wireless microphone system operates in UHF 540 - 570 MHz frequency band with 700 selectable channels. Please read this instruction manual carefully before operating the system. This manual covers the function and operation of the wireless microphone system. FCC STATEMENT This device complies with part 15 of the FCC rules.
  • Page 4 BASIC SYSTEM OPERATION - WR-EXT500 Front Panel 1. Power Button 2. LCD Display: Display channel, frequency and settings 3. Button : Tap the channel forward/backward 4. SYNC Button: Press the button to actuate the synchronization with the transmitter 5. SET Button: Press button to activate the manual or auto-scan or preset mode 6.
  • Page 5 BASIC SYSTEM OPERATION - WH-EXT500 1. Power Button: Press for 2 seconds to power the microphone on or off 2. Power LED: Indicates the power/low battery level status. LED Indicator Status Green Ready Flashing Green The synchronization process is actuated Flashing Red Low battery power with less than 10 minutes of operation left 3.
  • Page 6 SETTING UP THE HANDHELD MICROPHONE / BELT PACK TRANSMITTER Open the battery cover and insert batteries into the battery compartment conforming to the polarity +/- marks. Unscrew the handheld Mic and open the battery cover to insert the battery into the battery compartment and confirm the marks of the polarity +/-.
  • Page 7 SETTING UP CHANNEL ON RECEIVER Notice: Do not put two or more transmitters operating nearby when setting up the frequency channel. Please keep transmitter at least one meter away from receiver. Manual Mode Setting up interference-free channel by manual operation Using the button to select the “MANUAL”...
  • Page 8: Connecting The Receiver

    Preset Mode Set multiple channels by using preset channels. There are 4 preset groups. Excluding the interference from external, there are 8 preprogrammed channels that can be operated simultaneously in each group. Use the button to select the “PRESET” mode. Press “SET”...
  • Page 9: Setting Up Channel On Receiver

    Auto-Scan Mode Set interference-free channel by automatic frequency function. Using the button to select the “SCAN” mode. Press “SET” button for 2 seconds till LCD display is flashing. Press button to scan in forward direction, and it will stop at the free-interference channel automatically. Press the “SET”...
  • Page 10 Insert Batteries SECONDS SECONDS SYNC Step 2 PRESS AND HOLD SYNC MUST BE LESS THAN 1 METER AWAY FROM Belt pack OR HANDHELD MICROPHONE SYNC PRESS AND HOLD SYNC Step 1...
  • Page 11 SYSTEM OPERATION Prior to setting up, please check that the transmitter and receiver are tuned to the same frequency or channel. Two or more transmitters operating in the same frequency can not be used at the same time and same area. Connect the provided DC power supply to the receiver with an appropriate AC power source.
  • Page 12: Quick Start Guide

    QUICK START GUIDE 1. Connect Receiver to Power Cable then plug into a Grounded Power Outlet 2. Connect Mixer or Amplifier Balanced XLR Cable Unbalanced 1/4” Phono Cable 3. Scan Free Channel SECONDS...
  • Page 13: Synchronizing A Transmitter With A Receiver

    SYNCHRONIZING A TRANSMITTER WITH A RECEIVER Automatic frequency synchronization via remote channel for easy setup 1. First, switch the transmitter and the receiver on. Press and hold the SYNC button on your transmitter. The SYNC flashes on the receiver display panel. Press the SYNC button on the receiver front panel, the transmitter will set the same channel as receiver automatically.
  • Page 14: Color And Label Identification

    COLOR AND LABEL IDENTIFICATION You can also stick the color label on the receiver and transmitter for quickly identifying the paired system.
  • Page 15: Basic Connections

    MOUNTING THE RECEIVER To combine two receivers in 19” standard rack, use the two short L type metal racks and two metal connecting plates, included in the UHF-EXT500 box. TROUBLESHOOTING UHF-EXT500 Problem Solution • Check the power supply of the microphone and receiver •...
  • Page 16: Technical Specifications

    TECHNICAL SPECIFICATIONS UHF-EXT500 Receiver Frequency Range UHF 540 ~ 570 MHz (Regionally Selected) Case Half 19” EIA Rack Metal Case Oscillator PLL Synthesized Modulation FM S/N Radio > 100 dB at 200 KHz deviation and 60 dBµV antenna input Image & Spurious Rejection 70 dB minimum Receiving Sensitivity At 2µV over 52 dB S/N ratio AF Response 80 Hz to 18 KHz T.H.D.
  • Page 17: Important Safety Instructions

    Before attempting to power up the unit for the first time, the following European Union CE Mark precautions must be followed: The presence of the CE Mark on Anchor Audio equipment means that it has been designed, tested, and certified as complying with all applicable WARNING European Union (CE) regulations and recommendations.
  • Page 18 IMPORTANT SAFETY INSTRUCTIONS (CONT’D) Read Instructions – All the safety and operation instructions should be read before the 15) Outdoor Antenna Grounding – If an outside antenna or cable system is connected to product is operated. the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
  • Page 19: Anchor Audio Warranty / Anchor Audio Return Authorization Procedures

    ANCHOR AUDIO WARRANTY Anchor Audio products are warranted to be free from defects in materials and workmanship for the period of SIX (6) YEARS from the date of original purchase unless listed below. Warranted for a period of TWO (2) YEARS: •...
