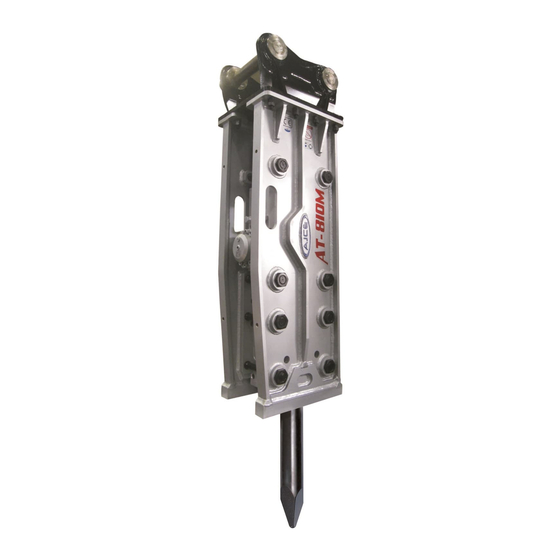

Hydraulic Breaker
Operation Manual
& Parts List
M SERIES
(MEDIUM & LARGE RANGE)
600M,710M,810M,1000M,
1200M,1400M,1500M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Series and is the answer not in the manual?

Questions and answers

Summary of Contents for AJ M Series

  • Page 1 MAR 2021 Hydraulic Breaker Operation Manual & Parts List M SERIES (MEDIUM & LARGE RANGE) 600M,710M,810M,1000M, 1200M,1400M,1500M...

  • Page 2: Table Of Contents

    Contents 1. Safety Precautions ····································································································································· 4 2. Storage ························································································································································ 6 3. Preparation for Installation and Operation ······························································································ 7 (1) Checking instructions before installation ··························································································· 7 (2) General view of breaker installed 　 ·································································································· 7 (3) Hydraulic pipe lines for exclusive use ······························································································ 8 (4) Inspecting and charging N gas into the back head ······································································...
  • Page 3 Preface We totally appreciate your purchasing AJCE Hydraulic Breaker. The Hydraulic Breaker, developed by AJCE's plentiful experiences and know-hows for many years, will satisfy customers under any working conditions with its highest power and long-time durability. However, without proper handling, regular inspection, the advanced demolition tool fails to display its excellent quality, resulting in various problems.

  • Page 4: Safety Precautions

    1. Safety Precautions DO NOT OPERATE THE BREAKER UNLESS THE FOLLOWING SAFETY INSTRUCTIONS HAVE BEEN THOROUGHLY READ AND UNDERSTOOD. READ THIS MANUAL BEFORE INSTALLING, OPERATING OR MAINTAINING THIS EQUIPMENT! ∎ Flying debris from the breaker, chisel, rock or other material may cause serious or fatal injury to the operator.
  • Page 5 ∎ Warning sticker Hearing Protection Eye Protection Breathing Read the manual Protection before use ∎ Safety symbols This safety symbol may This safety symbol appears in This safety symbol appears in appear on the breaker. It is these instructions to identify these instructions to identify used to alert the operator an action or condition that...

  • Page 6: Storage

    2. Storage ∎ Short term storage 1. Store breaker in dry and flat area. Rain or snow may cause a rust in the breaker. 2. Using your excavator, place the breaker horizontal on wooden pallet. 3. The breaker mount cap area shall be positioned higher than the chisel. 4.

  • Page 7: Preparation For Installation And Operation

    3. Preparation for Installation & Operation (1) Checking instructions before installation ∎ Check the specifications to determine correct carrier sizes, hydraulic pressure, and hydraulic flow requirements. ∎ If the hydraulic pressure and hydraulic flow has exceeded, the breaker warranty is not applied. ∎...

  • Page 8: Hydraulic Pipe Lines For Exclusive Use

    (3) Hydraulic pipe lines for exclusive use Operation of the hydraulic breaker requires installation of hydraulic pipe lines for exclusive use of the hydraulic breaker. As hydraulic pipe lines are depending on base machines, our service engineer must firstly check hydraulic pressure, oil capacity, pressure loss and other conditions. Use only genuine parts in case of replacement because hydraulic pipe lines(hoses, pipes and fittings) are made of materials carefully selected in consideration of durability.
  • Page 9 (4) Inspecting and charging N gas into the back head ∎ Lay down the breaker and let the chisel extend fully to charge gas. ∎ Stay clear of the chisel while charging the breaker with gas. The chisel may be impacted by the piston and forced out abruptly. ∎...
  • Page 10 ∎ Insert 3-way valve after its handle is fully turned counterclockwise. ∎ Turn the 3-way valve handle clockwise slowly. Stop turning it when the needle of the gauge starts to move. If it is turned clockwise too tightly, the valve may easily be damaged. Pay special attention to ensure that the nitrogen gas is not charged excessively.
  • Page 11 (5) Inspecting and charging N gas into the accumulator ∎ Use special care to handle and store the N gas cylinder as it is a high pressurized container. ∎ Use N gas only. ∎ Inspection of N gas pressure in the accumulator ①...
  • Page 12 ∎ N gas pressure into the accumulator Ambient Temperature(℃/℉) Accumulator gas pressure 0/32 10/50 20/68 30/86 40/104 kg/㎠ * Each specifications are shown in the accumulator sticker below. ∎ Accumulator sticker(A) symbol - Appears on the back head charging valve PRESSURIZED CONTAINER! DISCHARGE PRIOR TO DISASSEMBLY! DO NOT OPEN WITHOUT READING THE OPERATION MANUAL OR...

  • Page 13: Hydraulic Oil

    (6) Hydraulic oil ∎ Recommended hydraulic oils and greases for hydraulic breakers by AJCE Hydraulic Oil Grease SPEC Summer Winter All Season (MOS2) Company ISO VG 46 ISO VG 32 ISO VG 46 NLGI No2 MOBIL MOBIL MOBIL MOBIL GREASE DTE 25 DTE 24 DTE 15M...

  • Page 14: Precautions For Safe Operation

    4. Precautions for safe operation ∎ Proper position must be applied for an effective use of breaking force. When position is incorrect, the blowing energy of the piston is too weak to break rocks. Instead, blowing force applies shocks to the breaker body, chisel and boom of the base machine, thereby resulting in damage to those parts.
  • Page 15 ∎ It is undesirable to carry out hammering under the below condition, because vibrations during hammering may be transmitted to tracks of the base machine. During hammering, however, proper position must be always applied to the breaker. Special care must be taken not to hammer under abnormal condition.
  • Page 16 ∎ Stop operation as soon as hose vibrate excessively. Excessive vibration of high and low-pressure hoses of breaker calls for an instant disassembly and repair. Contact the nearest service station appointed by AJCE. For caution’s sake, check oil leakage at the back head. The operator is required to pay attention to follow points during operation. ∎...
  • Page 17 ∎ Do not continue to hammer for more than one minute. When rocks are not broken after more than one minute’s hammering at the same point, change the place to be hammered. Extended hammering at the same place causes the chisel to wear out excessively.
  • Page 18 ∎ On a hard and large rock, start breaking from the edge. Even a hard and big rock can be easily broken when hammering begins at a crack or an edge. ∎ Operate breaker at proper engine speed. Break rocks at the specified engine speed. Raising engine speed more than necessary, does not strengthen hammering force but increases oil temperature to the detriment of pistons and valves.
  • Page 19 ∎ Do not allow the breaker to fall to break a rock. Falling down the breaker will apply excessive force in order to the breaker or the base machine, causing damage to many parts and the base machine. ∎ Warm up base machine engine prior to operation. Especially in winter, the base machine engine should be warmed up for five to ten minutes 30°C~40°C(86°F~105°F) before breaker operation.
  • Page 20 Blank Firing To understand "Blank Firing", the operator needs to be aware that if the chisel is not pressed against the work surface, the chisel will drop down in the lower body cavity far enough so that the piston cannot strike it. Blank firing occurs whenever the breaker is operating and the piston is not able to strike the chisel solidly or not strike the chisel at all.

  • Page 21: Underwater Operation

    5. Underwater Operation(Option) ∎ Underwater usage of the breaker without the underwater kit and air compressor will cause serious damage to the hydraulic breaker. ∎ The range of application : 500M ~ 1500M and 180F ~ 550F ∎ Underwater operation of the breaker is possible to pour air into the striking area between the piston and the chisel.
  • Page 22 ∎ If the hose is curved and bent extremely when you set up the hose, it will cause that air cannot go and move around smoothly. ∎ be careful that the hose which connects the air compressor and the equipment should not be curved or bent by the equipment. ∎...
  • Page 23 ∎ Generally, control the air valve adjuster to set up that pressure should be at least 1.5kg/cm higher than the water pressure which is the crushing site. In other words, the water pressure goes up 1kg/cm per 10m depth of water. Therefore, the minimum air pressure of the manometer can be calculated with next formula.
  • Page 24 (2) Installing the underwater kit ∎ Clean the air check valve hole on the cylinder. ∎ Remove the air check valve with the standard tool. ∎ Apply the O-ring to the cylinder's air check valve hole and install it. ∎ Connect the hose to the air check valve hole and install it. ∎...

  • Page 25: Maintenance

    6. Maintenance (1) Daily breaker inspection Before starting operation, be sure to inspect the breaker referring to the following table. Inspection Item Inspection Point Remedy Looseness, missing and damaged bolts and nuts ∎ Through bolts ∎ Check looseness ∎ Bracket mounting bolts ∎...
  • Page 26 Inspection Item Inspection Point Remedy Abnormal wear and crack on tool ∎ Deformed, burred and worn out chisel should ∎ Chisel be repaired. ∎ Excessively worn out tool needs to be replaced. Greasing ∎ Grease at start every 2 ~ 3 hours using the grease pump.

  • Page 27: Tightening Torque & Gas Pressure

    (2) Tightening Torque & Gas Pressure Mode 100M 300M 400M 450M 1400M Part Unit 600M 710M 810M 1000M 1200M Item 200M 350M 430M 500M 1500M 25~30 38~42 96~105 190~ 270~ 290~ 320~ 320~ 370~ Through bolt nut kg․ m 25~30 30~35 60~70 140~150...

  • Page 28: Regular Breaker Inspection And Maintenance

    (3) Regular breaker inspection and maintenance Regular inspection is essential for keeping the hydraulic breaker operating in its best condition. Consult the AJCE service station for a regular inspection and maintenance. Customers are recommended to contact the service station for inspection within six months after delivery. (4) Replacement of chisel Chisel is deformed of burrs produced in a long-term use.

  • Page 29: Chisel Claim Judgment Criteria

    (5) Chisel claim judgment criteria ∎ For all chisel warranty, below pictures shall be given. - Picture of cylinder serial number and chisel serial number (Chisel serial number is carved besides key area) - Picture with scale showing the total length of chisel (If the chisel worn out over 100mm, it is out of warranty) - Picture for claim area AJCE Chisels are manufactured through a process of strict manufacturing and quality control,...

  • Page 30: Trouble Shooting Guide

    7. Trouble Shooting Guide (1) Problems in operation If the breaker does not work or blow frequency and blow power get worse, check the arranging method. And then inspect according to the following order. Symptom Cause Required action ∎ Excessive back head gas pressure ∎...

  • Page 31: Gas Leakage

    ∎ Accumulator gas leakage ∎ Replace o-ring, or refill N Pressure line vibration ∎ Accumulator diaphragm damage ∎ Replace diaphragm ∎ Replace chisel with genuine ∎ Chisel diameter incorrect replacement parts ∎ Chisel jammed from chisel pin wear ∎ Smoothen rough surface of chisel Bad chisel ∎...

  • Page 32: Oil Leakage

    (3) Oil leakage Even if oil is leaking, it is necessary to replace parts at all times. Check the following points listed in the chart below. The user can check the marked points before calling the dealer. Area of oil leakage Condition Causes &...

  • Page 33: Wear Tolerance

    8. Wear Tolerance Wear tolerance of each kind expendable parts come to decide. The usage of exceeding the wear tolerance causes fatal damage to breaker. Prevent the damage through the regular inspection and exchange of expendable parts including seals and all kinds of bushes. (1) Upper bush &...
  • Page 34 (2) Chisel pin & Stop pin & Bush pin Chisel pin Stop pin Bush pin Outside Outside Outside Outside Length of Length of Model diameter of diameter of diameter of diameter of Reject Reject Reject (mm/inch) (mm/inch) (mm/inch) (mm/inch) (mm/inch) (mm/inch) MINI 20(0.79)
  • Page 35 (3) Chisel Length of Length of Model New(mm/inch) Reject(mm/inch) MINI 268(10.55) 150(5.91) 100M 297(11.69) 200(7.87) 200M 326(12.83) 200(7.87) 300M 330(12.99) 200(7.87) 350M 374(14.72) 200(7.87) 400M 425(16.73) 250(9.84) 430M 507(19.96) 250(9.84) 450M 564(22.20) 250(9.84) 500M 561(22.09) 250(9.84) 600M 650(25.59) 300(11.81) 710M 701(27.60) 350(13.78) 810M...
  • Page 36 (5) Regular check and parts replacement recommendation The below parts are to be regularly checked and to be replaced as following chart. 6 months 12 months 18 months 24 months Part Name Regular check 600 hours 1200 hours 1800 hours 2400 hours ●...

  • Page 37: Warranty Policy

    9. Warranty Policy (1) The Terms of Warranty The Warranty provided by Supplier hereunder shall extend either by the date of Bill of Loading to Distributor or for the date of distributor's invoice for the Products to the buyer, whichever comes first. Distributor shall advise AJCE of the sales of the products to buyer either by facsimile or e-mail not later than 15 Days after the date of sale.
  • Page 38 ∎ Distributor will keep damaged products least Year inspection, analysis of AJCE engineers. Reimbursement will be decided within 7 Days after AJCE decision If any written [Warranty Claim Report] with photos is reported to AJCE. AJCE will make its best efforts to settle any claim made by distributor in a shortest time.
  • Page 39 ■ Crack on thread area after 1 month or Through bolt / nut 6 months / 600 hours 100 hours. This is to be caused by loosen Side bolt / nut nut. Dampers 6 months / 600 hours ■ Exceed wear limit Side plates ■...
  • Page 40 Delivery & Installation Report Document No.: Date: Company Name Distributor Address & Tel. Company Name Customer Address & Tel. Manufacturer Year of Mfg. Excavator Model Total Operating tons hours weight hours Model Serial No. Breaker Model l/min Oil Flow Pressure (psi) (g/min) Warranty Start...
  • Page 41 Warranty Claim Report Document No.: Date: Company Name Customer Address & Tel. Excavator Model Year of Mfg. Model Serial No. AJCE Breaker Installation Operating hours Date Hours Description * Details photos shall be provided to AJCE within 15 days from the claim date. Otherwise, the claim is not accepted.
  • Page 42 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE 600M MAIN BODY - 42 -...
  • Page 43 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE PART NO. PART NAME REMARKS A60100 MAIN BODY (TOP) 1~32,33,34~49 A60101 MAIN BODY (BOX) 1~32,33-1,34~49 N60100 SEAL KIT A60110 CYLINDER ASSY 1~27,41 B60110 CYLINDER D60210 SOCKET PLUG 1BP22A O-RING D60370...
  • Page 44 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE A60700 THROUGH BOLT ASSY 46~49 C60710 THROUGH BOLT C60720 THROUGH BOLT TOP NUT C60730 THROUGH BOLT WASHER C60740 THROUGH BOLT BOTTOM NUT K60100 H-WEDGE CHISEL K60200 MOIL POINT K60300 V-WEDGE CHISEL...
  • Page 45 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AB-600M (BOX) PART NO. PART NAME REMARKS F60110 BOX BRACKET F60910 LOWER DAMPER F60930 FRONT PLATE F60940 FRONT SIDE PLATE F45960 SIDE PLATE (A) F50920 UPPER DAMPER F18320 UPPER PLATE...
  • Page 46 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE F60150 COVER PLATE (B) RP1" IN/OUT PLUG RP884623 CHISEL PIN PLUG RP4018 STOP PIN PLUG RP4018X GREASE PLUG RP1808022 ADAPTER PLUG F18800 SIDE BOLT ASSY 23~25 F18810 SIDE BOLT F18820...
  • Page 47 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AT-600M (TOP) PART NO. PART NAME REMARKS F60210 TOP BRACKET RIGHT F60220 TOP BRACKET LEFT F18800 SIDE BOLT ASSY F18810 SIDE BOLT F18820 SIDE WASHER F18830 SIDE NUT F18340 MOUNT CAP...
  • Page 48 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE 710M MAIN BODY - 48 -...
  • Page 49 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE PART NO. PART NAME REMARKS A71100 MAIN BODY (TOP) 1~32,33,34~48 A71101 MAIN BODY (BOX) 1~32,33-1,34~48 N71100 SEAL KIT A71110 CYLINDER ASSY 1~27,41 B71110 CYLINDER D60210 SOCKET PLUG 1BP22A O-RING D71370...
  • Page 50 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE C71710 THROUGH BOLT C71720 THROUGH BOLT TOP NUT C71730 THROUGH BOLT WASHER C71740 THROUGH BOLT BOTTOM NUT K71100 H-WEDGE CHISEL K71200 MOIL POINT K71300 V-WEDGE CHISEL K71500 BLUNT CHISEL K71600...
  • Page 51 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AB-710M (BOX) PART NO. PART NAME REMARKS F71110 BOX BRACKET F71910 LOWER DAMPER F71930 FRONT PLATE F60940 FRONT SIDE PLATE F71970 SIDE PLATE (B) F71920 UPPER DAMPER F28340 UPPER PLATE...
  • Page 52 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE F71150 COVER PLATE (B) RP1" IN/OUT PLUG RP884623 CHISEL PIN PLUG RP4018 STOP PIN PLUG RP4018X GREASE PLUG RP1808022 ADAPTER PLUG F18700 SIDE BOLT ASSY 23~25 F18710 SIDE BOLT F18720...
  • Page 53 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AT-710M (TOP) PART NO. PART NAME REMARKS F71210 TOP BRACKET RIGHT F71220 TOP BRACKET LEFT F28800 SIDE BOLT ASSY F28810 SIDE BOLT F28820 SIDE WASHER F28830 SIDE NUT F28340 MOUNT CAP...
  • Page 54 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE 810M MAIN BODY - 54 -...
  • Page 55 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE PART NO. PART NAME REMARKS A81100 MAIN BODY (TOP) 1~52,53,54~68 A81101 MAIN BODY (BOX) 1~52,53-1,54~68 N81100 SEAL KIT A81110 CYLINDER ASSY 1~47,61 B81110 CYLINDER D81210 SOCKET PLUG 1BP25 O-RING D71370...
  • Page 56 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE B81360 VALVE SLEEVE B81610 BACK HEAD D10640 GAS CHARGING VALVE ASSY 16,49~51 D10641 GAS CHARGING VALVE D10642 GAS CHARGING VALVE PLUG 1BP16 O-RING A81500 FRONT HEAD ASSY (TOP) 52,53,54~63 A81510...
  • Page 57 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AB-810M (BOX) PART NO. PART NAME REMARKS F81110 BOX BRACKET F81910 LOWER DAMPER F81930 FRONT PLATE F81940 FRONT SIDE PLATE F71970 SIDE PLATE (B) F81920 UPPER DAMPER F28340 UPPER PLATE...
  • Page 58 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE F81150 COVER PLATE (B) RP1" IN/OUT PLUG RP884623 CHISEL PIN PLUG RP4018 STOP PIN PLUG RP4018X GREASE PLUG RP1808022 ADAPTER PLUG F28800 SIDE BOLT ASSY 23~25 F28810 SIDE BOLT F28820...
  • Page 59 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AT-810M (TOP) PART NO. PART NAME REMARKS F81210 TOP BRACKET RIGHT F81220 TOP BRACKET LEFT F28800 SIDE BOLT ASSY F28810 SIDE BOLT F28820 SIDE WASHER F28830 SIDE NUT F28340 MOUNT CAP...
  • Page 60 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE 1000M MAIN BODY - 60 -...
  • Page 61 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE PART NO. PART NAME REMARKS A100100 MAIN BODY (TOP) 1~52,53,54~68 A100101 MAIN BODY (BOX) 1~52,53-1,54~68 N100100 SEAL KIT A100110 CYLINDER ASSY 1~47,61 B100110 CYLINDER B100111 (S/N 001~159) D81210 SOCKET PLUG...
  • Page 62 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE B100360 VALVE SLEEVE B100610 BACK HEAD D10640 GAS CHARGING VALVE ASSY 16,49~51 D10641 GAS CHARGING VALVE D10642 GAS CHARGING VALVE PLUG 1BP16 O-RING A100500 FRONT HEAD ASSY (TOP) 52,53,54~63 A100510...
  • Page 63 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AB-1000M (BOX) PART NO. PART NAME REMARKS F100110 BOX BRACKET F100910 LOWER DAMPER F100930 FRONT PLATE F100940 FRONT SIDE PLATE F71970 SIDE PLATE (B) F81920 UPPER DAMPER F38340 UPPER PLATE...
  • Page 64 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE F100150 COVER PLATE (B) RP1" IN/OUT PLUG RP1236023 CHISEL PIN PLUG RP4022 STOP PIN PLUG RP4023X GREASE PLUG RP1808022 ADAPTER PLUG F28800 SIDE BOLT ASSY 23~25 F28810 SIDE BOLT F28820...
  • Page 65 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AT-1000M (TOP) PART NO. PART NAME REMARKS F100210 TOP BRACKET RIGHT F100220 TOP BRACKET LEFT F100800 SIDE BOLT ASSY F100810 SIDE BOLT F100820 SIDE WASHER F100830 SIDE NUT F38340 MOUNT CAP...
  • Page 66 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE 1200M MAIN BODY - 66 -...
  • Page 67 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE PART NO. PART NAME REMARKS A120100 MAIN BODY (TOP) 1~52,53,54~72 A120101 MAIN BODY (BOX) 1~52,53-1,54~72 N120100 SEAL KIT A120110 CYLINDER ASSY 1~47 B120110 CYLINDER B120111 (S/N 001~1706) D120210 SOCKET PLUG...
  • Page 68 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE B120610 BACK HEAD D10640 GAS CHARGING VALVE ASSY 16,48~50 D10641 GAS CHARGING VALVE D10642 GAS CHARGING VALVE PLUG 1BP16 O-RING A120500 FRONT HEAD ASSY (TOP) 51,52,53~62,68 A120510 FRONT HEAD ASSY (BOX)
  • Page 69 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AB-1200M (BOX) PART NO. PART NAME REMARKS F120110 BOX BRACKET F120910 LOWER DAMPER F120930 FRONT PLATE F120940 FRONT SIDE PLATE F45970 SIDE PLATE (A) F71970 SIDE PLATE (B) F120920 UPPER DAMPER...
  • Page 70 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE SW16 SPRING WASHER F120150 COVER PLATE (B) RP1-1/4" IN/OUT PLUG RP1236023 CHISEL PIN PLUG RP4022 STOP PIN PLUG RP4023X GREASE PLUG RP1808022 ADAPTER PLUG F100800 SIDE BOLT ASSY 24~26 F100810...
  • Page 71 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AT-1200M (TOP) PART NO. PART NAME REMARKS F120210 TOP BRACKET RIGHT F120220 TOP BRACKET LEFT F48800 SIDE BOLT ASSY F48810 SIDE BOLT F48820 SIDE WASHER F48830 SIDE NUT F38340 MOUNT CAP...
  • Page 72 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE 1400M MAIN BODY - 72 -...
  • Page 73 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE PART NO. PART NAME REMARKS A140100 MAIN BODY (TOP) 1~52,53,54~72 A140101 MAIN BODY (BOX) 1~52,53-1,54~72 N140100 SEAL KIT A140110 CYLINDER ASSY 1~47 B140110 CYLINDER B140111 (S/N 001~208) D120210 SOCKET PLUG...
  • Page 74 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE B140610 BACK HEAD D10640 GAS CHARGING VALVE ASSY 16,49~50 D10641 GAS CHARGING VALVE D10642 GAS CHARGING VALVE PLUG 1BP16 O-RING A140500 FRONT HEAD ASSY (TOP) 51,52,53~62,68 A140510 FRONT HEAD ASSY (BOX)
  • Page 75 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AB-1400M (BOX) PART NO. PART NAME REMARKS F140110 BOX BRACKET F140910 LOWER DAMPER F140930 FRONT PLATE F140940 FRONT SIDE PLATE F45970 SIDE PLATE (A) F71970 SIDE PLATE (B) F48920 UPPER DAMPER...
  • Page 76 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE SW16 SPRING WASHER F140150 COVER PLATE (B) RP1-1/4" IN/OUT PLUG RP1457431 CHISEL PIN PLUG RP4028 STOP PIN PLUG RP4028X GREASE PLUG RP1509032 ADAPTER PLUG F140800 SIDE BOLT ASSY 24~26 F140810...
  • Page 77 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AT-1400M (TOP) PART NO. PART NAME REMARKS F140210 TOP BRACKET RIGHT F140220 TOP BRACKET LEFT F48800 SIDE BOLT ASSY F48810 SIDE BOLT F48820 SIDE WASHER F48830 SIDE NUT F48340 MOUNT CAP...
  • Page 78 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE 1500M MAIN BODY - 78 -...
  • Page 79 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE PART NO. PART NAME REMARKS A150100 MAIN BODY (TOP) 1~50,51,52~70 A150101 MAIN BODY (BOX) 1~50,51-1,52~70 N150100 SEAL KIT A150110 CYLINDER ASSY 1~46,61 B150110 CYLINDER B150111 (S/N 001~352) D150210 SOCKET PLUG...
  • Page 80 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE B150610 BACK HEAD D10640 GAS CHARGING VALVE ASSY 16,48~50 D10641 GAS CHARGING VALVE D10642 GAS CHARGING VALVE PLUG 1BP16 O-RING A150500 FRONT HEAD ASSY (TOP) 51,52,53~62,68 A150510 FRONT HEAD ASSY (BOX)
  • Page 81 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AB-1500M (BOX) PART NO. PART NAME REMARKS F150110 BOX BRACKET F150910 LOWER DAMPER F150930 FRONT PLATE F150940 FRONT SIDE PLATE F45970 SIDE PLATE (A) F71970 SIDE PLATE (B) F150920 UPPER DAMPER...
  • Page 82 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE SW16 SPRING WASHER F150150 COVER PLATE (B) RP1-1/4" IN/OUT PLUG RP1457431 CHISEL PIN PLUG RP4028 STOP PIN PLUG RP4028X GREASE PLUG RP1509032 ADAPTER PLUG F48800 SIDE BOLT ASSY 24~26 F48810...
  • Page 83 AJCE PARTS LIST - M SERIES MEDIUM & LARGE RANGE AT-1500M (TOP) PART NO. PART NAME REMARKS F150210 TOP BRACKET RIGHT F150220 TOP BRACKET LEFT F150800 SIDE BOLT ASSY F150810 SIDE BOLT F150820 SIDE WASHER F150830 SIDE NUT F48340 MOUNT CAP...
