Summary of Contents for ecoStage B480

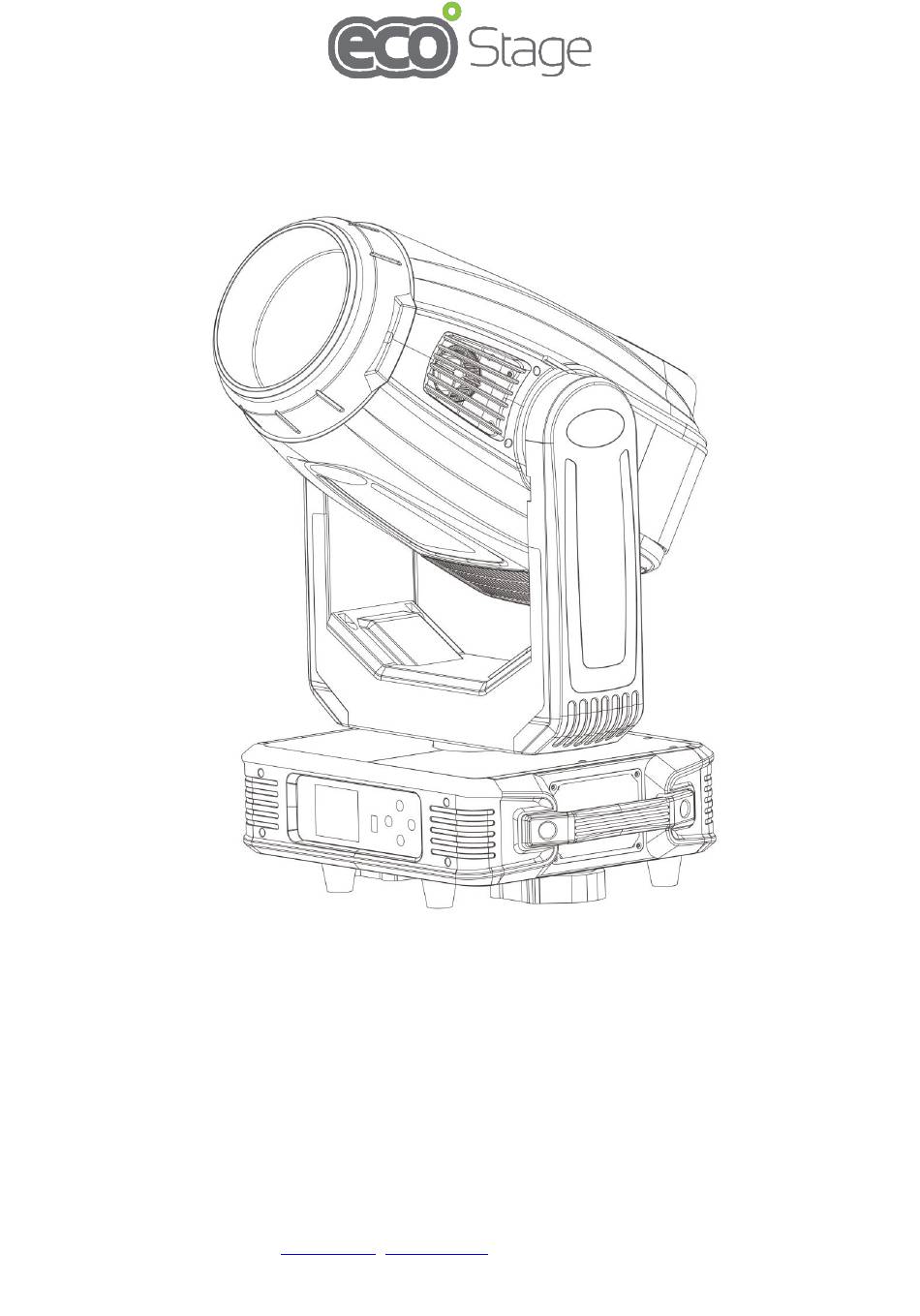

- Page 1 470W BEAM SPOT WASH(CMY) WEIGHT：24.5 KG POWER：600W BEAM+SPOT+WASH , הוד השרון רח' הנגר דנאור מערכות תאטרון ואולפנים בע"מ www.danor.com sales@danor.com | 09 7444222 |...
-
Page 2: Table Of Contents
ITEM Item..........................02 1.Production introduce....................02 2.Fixture size.......................03 3.Parts introduce....................... 04 4. Color and gobo description...................05 5.Safety information....................06 6.Packing and shipping .....................07 7.Installation standard....................08 8.AC power........................ 09 9.Lamp model and replace..................09 10.Control panel ......................11 11.Control panel menu perate...............11 12. DMX Channels......................16 13. -
Page 3: Fixture Size
standard DMX512 signal mode is supported by the RDM protocol. Production enforce standard IEC 60598-1:2014，IEC60598-2-17:2017. Channels mode : 34/39CH; Lamp: OSRAM SIRIUS HRI 470W XL; Power: 110-240V,50/60Hz; Total power: 600W; Display: 2.8 inch screen display, can reverse 180°; Color Wheel: 11 Colors+2700k +3200k+white+CMY Color glass: imported Italian ODL color chip, special high temperature resistant raw material, and bright color. -
Page 4: Parts Introduce
2. PARTS INTRODUCE 470W HYBRID WITH CMY each part of product structure and main composition product name description for better know the light unit. 470W HYBRID WITH CMY Control panel function introduction, mark for the part name on the panel, familiar with the function of every part. , הוד... -
Page 5: Color And Gobo Description
4. COLOR AND GOBO DESCRIPTION 4.1 Color wheel with 11 colors (2700K+3200K)+white+CMY,pure colors,perfect effect; 4.2 Static gobo wheel with 14gobos +white,rich gobos; 4.3 Rotate gobo wheel with 9gobos+white,smooth gobo rotation,replace easily; Two rotation prism, one 8 facet prism, one linear 4 prism, one fixed 16 prism,each two prism can combined using together. -
Page 6: Safety Information
5. SAFETY INFORMATION 5.1.1 Safety warning message. 1.This product is only suitable for professional use, and does not apply to security for other purposes.After you got the lights, please check the package whether have any damage caused by transportation. If there is any damage, do not use this fixture, and please contact the dealer or manufacturer as soon as possible. -
Page 7: Packing And Shipping
5.4.1 PREVENTION OF ELECTIC SHOCK The electrical connection must only be carried out with corresponding qualifications; Before installing, make sure you use the power voltage lamps must comply with the identified power, voltage and have an overload or leakage protection; Each lamp must be properly grounded, installed in accordance with the relevant standards;... -
Page 8: Installation Standard
the product into the fly-case up-side-down. 4. After packed the product, put the accessory into the accessory case, then closed and lock the fly-case. 5. Fly-case only up stacked two layers. Prohibited upside down 6. When packed with carton box, equipment should be put into the foam first, then set into a carton, pay attention to the vertical position. -
Page 9: Ac Power
transmission and must add\ DMX 512 signal amplifier. Do not use two outputs to separate the connection, if separate a continuous connection to branch, DMX512 splitter is necessary. If use the DMX512 splitter. At first connect DMX512 Splitter input terminal to controller .And then connected from the splitter output terminal to next device. - Page 10 1. Use cross screwdriver to open the light body cover(picture 1) （1） 2. After open the cover,you can see the lamp inside,please wait the lamp be cool after used but not touch it in hot status.(picture 2) （2） 3. One hand press the lamp holder,another hand hold the lamp,and pull out the wires(picture 3,4) （3）...
-
Page 11: Control Panel
CONTROL PANEL TOUCH Button SCREEN DISPLAY The control panel has a user friendly touch screen to display the operation data and other information. There are four buttons on the right side. Each button has a dedicate function. Top button is for upward movement , lower button is for downward movement. The left button is for exiting the selected function where the right button in for confirming the function or data. - Page 12 Mode: CH mode 39CH Pan Scan Normal Pan Reverse: Pan Scan Reverse Tilt Scan Normal Tilt Reverse: Tilt Scan Reverse Pan/Tilt optical sensor testing off Opto Check: Pan/Tilt optical sensor testing on Pan/Tilt Scan Speed setting Noml nomal Pan/Tilt Scan Speed setting PT Speed: Slow slow...
- Page 13 Value-1 < Back ChanlDef No function FactSett Only factory only LimitTime No function Limit limitCont No function Return to default DefConfig back UseManage SAVE Save and back FacConfig EPRT for factory only back back Verify1: 0-255 need password Verify2: UNLOCK need password back MOTER...
- Page 14 Effect_W: Effect_R: Effect_A: Static Gobo: Rot Gobo: Gobo Rot: GRot Fine: Prism1: Prism1 Rot: Prism2: Prism2 Rot: Pattern_S: Pattern_R: Beam_S: Beam_R: Frost: Zoom: Zoom Fine Focus: Focus Fine: Aoto Focus: Strobe: Dimmer: Dimmer Fine: Value+1 > Value-1 < Back Back CH00-CH39 VALUE 0-255...
- Page 15 Back 470W LightType: HYBRID WITH CMY Device model Run Time: Machine runing hours 0-99999 Run Count: Machine runing times 0-99999 Fan 1: Fan 1 speed 0-9999 OTHER Fan 2: 0-9999 Fan 2 speed INFO Temp: Deceive temperature DisVersion: Version of display software Vxxx XY Version: Version of Pan/Tilt software...
-
Page 16: Dmx Channels
Lamp off No signal come in , lamp keep lighting Lamp Lamp off Default: Lamp on Turn off lamp angle calibration Angle Cail: Turn on lamp angle calibration 12.DMX Channels XMLIET 470W HYBRID WITH CMY Channels 34 CH 39 CH Function Pan rotate 0-255 0~540°... - Page 17 153-157 GOBO 6 158-161 GOBO 7 162-166 GOBO 8 167-171 GOBO 9 Color wheel 172-176 GOBO 10 177-180 GOBO 11 181-185 GOBO 12 186-189 GOBO 13 190-215 Clockwise flow from fast to slo 216-217 Stop 218-243 Anti - clockwise flow from slow to fa 244-249 Sound control color 250-255...
- Page 18 52-57 GOBO 9 58-63 GOBO 10 64-69 GOBO 11 70-75 Slim Beam 1 76-81 Slim Beam 2 82-87 Slim Beam 3 88-95 GOBO 1 shake 96-103 GOBO 2 shake 104-111 GOBO 3 shake 112-119 GOBO 4 shake Fixed GOBO 120-127 GOBO 5 shake 128-135 GOBO 6 shake...
- Page 19 50－52 GOBO 7 53－55 GOBO 8 56－59 GOBO 9 GOBO shake form slow to fast （GOBO rotation index mode） 60－67 GOBO 1 shake 68－75 GOBO 2 shake Rotation GOBO 76－83 GOBO 3 shake 84－91 GOBO 4 shake 92－99 GOBO 5 shake 100－107 GOBO 6 shake 108－115 GOBO 7 shake 116－123 GOBO 8 shake...
- Page 20 20-23 Prism 2 24-255 Prism 3 Index mode 0-255 Index Rotation mode Stop Prism 1 1－127 Clockwise flow from fast to slo Rotation Stop 129－255 Anti - clockwise flow from slow to fa 一 Index mode Prism 1 8-11 Prism 2 12-15 Prism 3 Rotation mode...
- Page 21 129－255 Anti - clockwise flow from slow to fa 一 Index mode Macro 1 8-11 Macro 2 12-15 Macro 3 16-19 Macro 4 Rotation mode Prism macro 2 20-23 Macro 1 24-27 Macro 2 28-31 Macro 3 32-35 Macro 4 一...
-
Page 22: Routine Maintenance
Dimmer fine 0-255 Linear Dimmer 13.ROUTINE MAINTENANCE CLEANING AND MAINTENANCE WARNING! 1、Turn off the power before opening any cover. 2、After the power supply is broken, the bottom is cooled and the lid is opened. 3、Dust or floats can be blown gently with a vacuum cleaner or a pressure blow machine. 14.SIMPLE TROUBLESHOOTING 1.The whole device reacts...
