READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
*Maximum initial battery voltage (measured without a load)
3042597
is 20 volts. Normal voltage is 18 volts.
JD580320
WEAR CSA APPROVED
EYE PROTECTION
STRUCTIONS BE
THIS MAN
AW
WEAR EAR
PROTECTION
5073-356
WEAR A
FACE MASK
Advertisement
Table of Contents
Related Manuals for RADLEY 5073-356
Summary of Contents for RADLEY 5073-356
- Page 1 5073-356 READ ALL INSTRUCTIONS BEFORE FIRST USE. STRUCTIONS BE KEEP THIS MANUAL FOR FUTURE REFERENCE. THIS MAN KEEP AWAY FROM CHILDREN. *Maximum initial battery voltage (measured without a load) 3042597 is 20 volts. Normal voltage is 18 volts. JD580320 WEAR CSA APPROVED...
- Page 2 Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual PRODUCT SPECIFICATIONS BLOWER/SWEEPER Air speed 130 MPH Blower tube 18.5” (470 mm) Noise level 92 dBA (maximum) Weight 3 lbs 9 oz BATTERY AND CHARGER Battery voltage: 20V 2.0 Ah Li-ion (Maximum charged battery voltage, measured without load, is 20V with a nominal value of 18V) Charger...
-
Page 3: Table Of Contents
5073-356 TABLE OF CONTENTS Product specifications .………….……………………………………………………………1 Table of contents ..………….……………………………………………………………2 General safety warnings ...….……………………………………………………………3-5 Important safety instructions ...……………………………………………………………3 Safety symbols .……….……………………………………………………………3-5 Electric gardening tool safety ..………………………………………………………5-7 General safety warnings ..…….……………………………………………………………5 Work area safety ..………….……………………………………………………………5 Electrical safety .……….……………………………………………………………5-6 .……….……………………………………………………………6-7 Personal safety Service ..………….……………………………………………………………7... -
Page 4: General Safety Warnings
Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual GENERAL SAFETY WARNINGS IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL SAFETY AND OPERATIONAL INSTRUCTIONS. Failure to follow the safety rules listed below and other basic safety precautions may result in serious personal injury. KEEP THIS MANUAL, SALES RECEIPTS AND APPLICABLE WARRANTY FORMS FOR FUTURE REFERENCE. - Page 5 5073-356 SYMBOL MEANING Failure to obey a NOTICE or a CAUTION (without a safety alert) MAY result in property damage to you or to others. Always obey all messages following this symbol to reduce the risk of property damage. ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA Z94.3 or ANSI SAFETY STANDARD Z87.1...
-
Page 6: Electric Gardening Tool Safety
Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual SYMBOL MEANING To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit protection. This tool is wired at the factory for 120 V AC operations. It must be connected to a 120 V AC, 15 A circuit that is protected by a time-delayed fuse or circuit breaker. - Page 7 5073-356 Do not expose power tools, battery chargers or batteries to rain or wet conditions. Water entering the tool, chargers or batteries will increase the risk of electric shock. Do not abuse the cord. Never use the power cord for carrying, pulling or unplugging the charger.
-
Page 8: Specific Safety Rules
Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual Do not force the tool. Use the correct tool for the application. The correct power tool will do the job better and safer when used at the rate for which it was designed. - Page 9 5073-356 Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
- Page 10 Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual Cover as much of your body as possible to help protect you from debris and pieces of toxic and allergenic plants being thrown by the blower. WARNING: Use hearing protection. Use hearing protection such as ear plugs or ear mufflers to protect your hearing, particularly if the blower is used for extensive periods or if the surrounding environment of operation exposes the operator to loud noises.
- Page 11 5073-356 WARNING: Know what you are going to blow, before you blow. WARNING: Inspect the area to be cleared for hazards before each use. Remove any foreign objects such as sticks, rocks, broken glass, nails, wire, tools, toys, etc. which can be thrown by the blower.
- Page 12 Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual WARNING: Avoid blowing near open windows or doors, or anywhere near bystanders or animals as doing such may cause exposure to the potentially hazardous dust, particularly downwind of your blowing operation due to the respiratory hazard reasons jpreviously stated.
-
Page 13: Battery & Charger Safety
5073-356 WARNING: When blowing very dusty materials in extremely dry conditions for long periods of time, static electricity may build up and discharge without warning. To avoid this situation in dry dusty conditions, only operate the blower for short periods of time and turning the blower OFF at regular intervals. -
Page 14: Battery Pack Recycling
Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual NOTE: The battery liquid is slightly acidic. Do not incinerate the battery. It can explode in a fire. Do not use an extension cord. Plug the charger cord directly into an electrical outlet. -
Page 15: Symbols
5073-356 SYMBOLS WARNING: Some of the following symbols may appear on the blower. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more e cient and safer operation of this tool. Volts Read the manual... -
Page 16: Know Your Blower

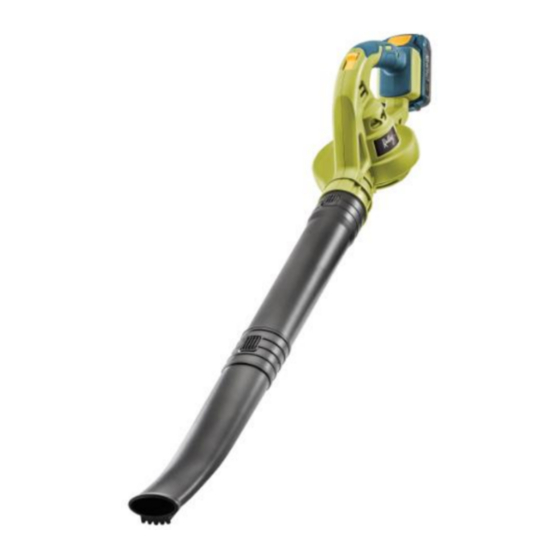

Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual KNOW YOUR BLOWER Battery Switch Handle release button Nozzle release Front nozzle buttons section Battery 5350-547 Rear nozzle Blower section housing intake Battery charger DKYC2100400U Charger base Green Adapter... -
Page 17: Know Your Battery
5073-356 KNOW YOUR BATTERY CHECKING THE BATTERY CHARGE STATUS The level of charge remaining in the battery can be checked by using the battery LED power indicator that is contained on the end of the battery. NOTE: The battery charge remaining may be checked while the battery is installed in the tool with the ON/OFF switch turned OFF. -
Page 18: Assembly And Operating
Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual ASSEMBLY AND OPERATING CHARGING THE BATTERY PACK Place the battery charger (1) in a dry location near a 110–120V 60 Hz electrical outlet (Fig. 1). Plug the battery charger into the outlet and make sure the green LED indicator light (6) comes ON. -
Page 19: Installing The Battery Pack In The Blower
5073-356 INSTALLING THE BATTERY PACK IN THE BLOWER Remove the discharged battery pack (1) from the tool by pressing the battery release button (2) on the rear of the battery downward (Fig. 3) and pulling the battery pack out of the tool handle (3) (Fig. 4). -
Page 20: Operating The Blower
Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual WARNING For safety reasons, the operator must read the sections of this Owner’s Manual entitled GENERAL SAFETY WARNINGS, ELECTRIC GARDENING TOOL SAFETY, SPECIFIC SAFETY RULES, BATTERY & CHARGER SAFETY, BATTERY PACK RECYCLING and SYMBOLS before using this blower. Verify the following every time the blower is used: 1. - Page 21 5073-356 NOTES: a) Use a soft dry brush or a dry rag to remove the debris. b) NEVER use water or any other liquid as you will damage the motor and/or the screen. c) NEVER insert a screwdriver or other small tool into the intake grille. You may break the grille or the blower fan.
-
Page 22: Maintenance
Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 23: Exploded View
5073-356 EXPLODED VIEW... -
Page 24: Parts List
Cordless Grass Trimmer & Blower/Sweeper - Owner’s Manual PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the blower. Any attempt to repair or replace electrical parts on this blower may create a safety hazard unless repairs are performed by a qualified technician. -
Page 25: Warranty
WARRANTY RADLEY CORDLESS BLOWER/SWEEPER WARRANTY If this Radley Tool fails due to a defect in material or workmanship within one year from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. This warranty does not include expendable parts including but not limited to blades, brushes, belts, light bulbs and/or batteries. - Page 26 EXCLUSIVE TO HOME HARDWARE For information on the entire line-up of Radley power tools visit homehardware.ca or your local Home Hardware retail store. MADE IN CHINA / FABRIQUÉ EN CHINE HOME HARDWARE STORES LIMITED ST. JACOBS, ONTARIO N0B 2N0 ORDER ONLINE / COMMANDE EN LIGNE 5073-356 ©...
