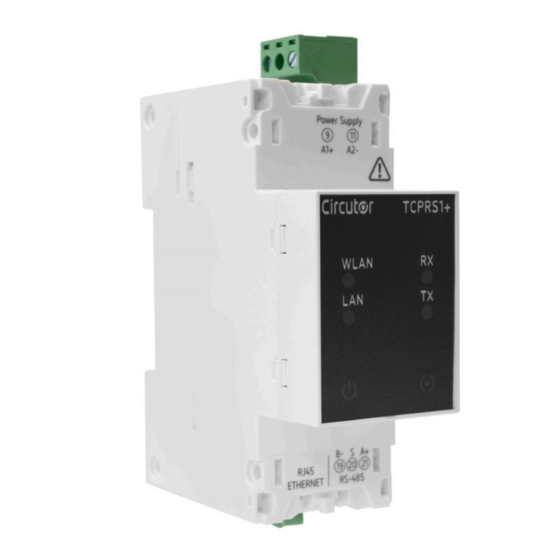

RS-485 to TCP/IP converter
TCPRS1+
INSTRUCTION MANUAL
(M349B01-03-21A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCPRS1+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Circutor TCPRS1+

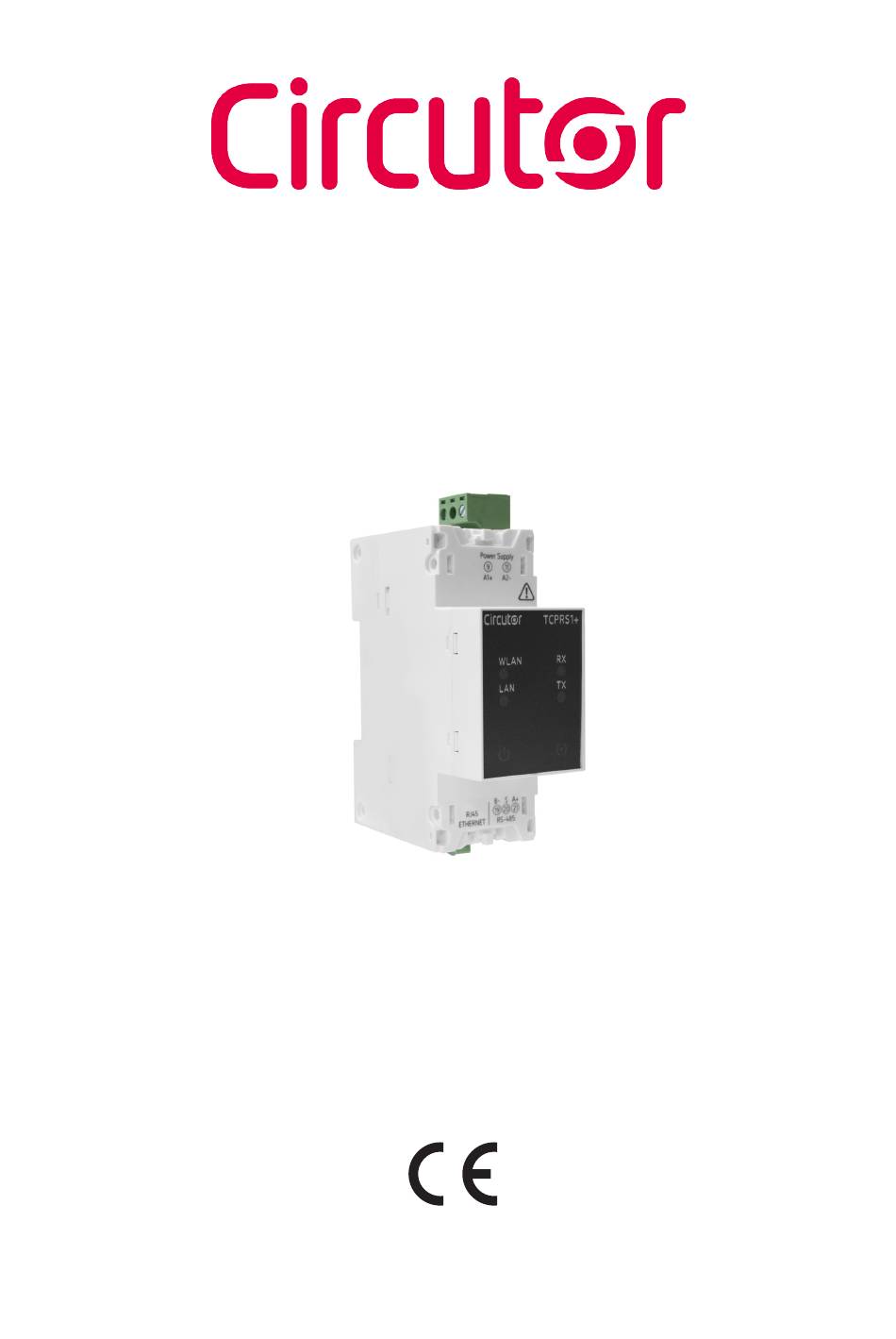

  • Page 1 RS-485 to TCP/IP converter TCPRS1+ INSTRUCTION MANUAL (M349B01-03-21A)
  • Page 2 TCPRS1+ Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals.
  • Page 4: Table Of Contents

    TCPRS1+ CONTENTS SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������3 DISCLAIMER ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �����������������������������������������������������������������������������������������������������������������������������������������������������������������������5 SYMBOLS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������5 1�- VERIFICATION UPON RECEPTION ������������������������������������������������������������������������������������������������������������������������������������6 2�- PRODUCT DESCRIPTION �������������������������������������������������������������������������������������������������������������������������������������������������6 3�- INSTALLATION OF THE DEVICE ��������������������������������������������������������������������������������������������������������������������������������������� 7 3�1�- PRELIMINARY RECOMMENDATIONS ������������������������������������������������������������������������������������������������������������������������ 7 3�2�- INSTALLATION ��������������������������������������������������������������������������������������������������������������������������������������������������������� 7 3�3�- DEVICE TERMINALS �������������������������������������������������������������������������������������������������������������������������������������������������8 4�- OPERATION ���������������������������������������������������������������������������������������������������������������������������������������������������������������������9 4�1�- LED INDICATORS ������������������������������������������������������������������������������������������������������������������������������������������������������9 5�- COMMUNICATIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������11...
  • Page 5: Revision Log

    TCPRS1+ REVISION LOG Table 1: Revision log� Date Revision Description 12/21 M349B01-03-21A First Version SYMBOLS Table 2: Symbols� Symbol Description In accordance with the relevant European directive. Device covered by European Directive 2012/19/EC. At the end of its useful life, do not leave the device in a household refuse bin.
  • Page 6: 1�- Verification Upon Reception

    Check that it has been delivered with the following: - An installation guide If any problem is noticed upon reception, immediately contact the transport com- pany and/or CIRCUTOR’s after-sales service 2.- PRODUCT DESCRIPTION The TCPRS1+ is a gateway designed to convert an RS-485 physical environment to Ethernet and/or Wi-Fi.
  • Page 7: 3�- Installation Of The Device

    TCPRS1+ 3.- INSTALLATION OF THE DEVICE 3�1�- PRELIMINARY RECOMMENDATIONS In order to use the device safely, personnel operating it must follow the safety meas- ures that comply with the standards of the country where it is to be installed; operators must wear the required personal protective equipment (rubber gloves, approved facial protection and flame-resistant clothing) to prevent injuries from electric shock or arcs caused by exposure to current-carrying conductors, and they must heed the various...
  • Page 8: 3�3�- Device Terminals

    TCPRS1+ 3�3�- DEVICE TERMINALS Ethernet Figure 1: TCPRS1+ terminals� Table 3: List of TCPRS1+ terminals� Device terminals 9: A1 ~/+, Power supply 20: S, GND for RS-485 11: A2 ~/-, Power supply 21: A+, RS-485 19: B-, RS-485 Ethernet: Ethernet connection Instruction Manual...
  • Page 9: 4�- Operation

    TCPRS1+ 4.- OPERATION 4�1�- LED INDICATORS WLAN Alarma / Alarm Figure 2: LEDs: TCPRS1+� The TCPRS1+ have 6 indicating LEDs:  CPU, Indicates device status: Table 4: LED CPU� Description Flashing: White color: Indicates that the device is powered  WLAN, Indicates the status of Wi-Fi connectivity: Table 5: LED WLAN�...
  • Page 10 TCPRS1+  RX, TX, Indicates the status of RS-485 / RS-232 communications: Table 7: LEDs RX and TX� Description Flashing: Orange color: Indicates the frame reception. Flashing: Orange color: Indicates the frame delivery.  Alarm, Indicates that an alarm has been generated: Table 8: LED Alarm�...
  • Page 11: 5�- Communications

    TCPRS1+ 5.- COMMUNICATIONS 5�1�- USAGE ENVIRONMENT AND HEALTH Wireless communications emit radio frequency electromagnetic energy, like other radio devic es. Because wireless communications operate under the guidelines found in radio frequency stand ards and recommendations, they are safe for users to use. In some settings and situations the use of wireless communications may be restricted by the building’s owner of representatives of the organisation.
  • Page 12: 5�4�- Web Page

    To access the configuration website, open the screen shown in and enter the Username and Figure 4 Password. The default values are shown in Table 10 Figure 4: Accessing the configuration website� Table 10: Accessing the configuration website� Accessing the configuration website Username admin Password circutor Instruction Manual...
  • Page 13 TCPRS1+ Note: For security reasons, you need to change the login password. You can change it on the Security � screen, Figure 8 Note: To register the device in the PSS software, the credentials defined on this website must be used. The website of the device can be used to: ...
  • Page 14 TCPRS1+  On the Communications screen, modify the settings for Ethernet and Wi-Fi communications, as well as enable or disable the Wi-Fi Access Point network used for configuration through the MyConfig Wifi App ( Figure 6 Figure 6: Website: Communications� ...
  • Page 15 TCPRS1+  On the Security screen ( ), change the login password to the configuration website. Figure 8 Figure 8: Website: Security�  On the Firmware screen, update the device’s firmware ( Figure 9 Figure 9: Website: Firmware� When the device is updating, the CPU and Alarm LEDs flash alternately every second. Note: After updating the device, you have to exit the web page and enter it again to avoid display problems in the browser.
  • Page 16: 6�- Technical Features

    TCPRS1+ 6.- TECHNICAL FEATURES AC Power supply Rated voltage 100 ... 264 V~ Frequency 50 ... 60 Hz Consumption 2 ... 7 VA Installation category CAT III DC Power supply Rated voltage 100 ... 300 V Consumption 1.6 ... 2 W Installation category CAT III RS-485 Interface...
  • Page 17 TCPRS1+ Standards Audio/video, information and communication technology equipment - Part 1: Safety EN 62368-1:2020/ requirements A11:2020/ AC:2020-05 Generic standard for assessment of low power electronic and electrical equipment EN 50663: 2017 related to human exposure restrictions for electromagnetic fields (10 MHz - 300 GHz) ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;...
  • Page 18: 7�- Maintenance And Technical Service

    TCPRS1+ 7.- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 ( España) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 19: 9�- Ce Certificate

    TCPRS1+ 9.- CE CERTIFICATE Instruction Manual...
  • Page 20 TCPRS1+ Instruction Manual...
  • Page 21 TCPRS1+ Instruction Manual...
  • Page 22 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.es central@circutor.com...
