Summary of Contents for TQ-Systems HPR50-CHR01-UM

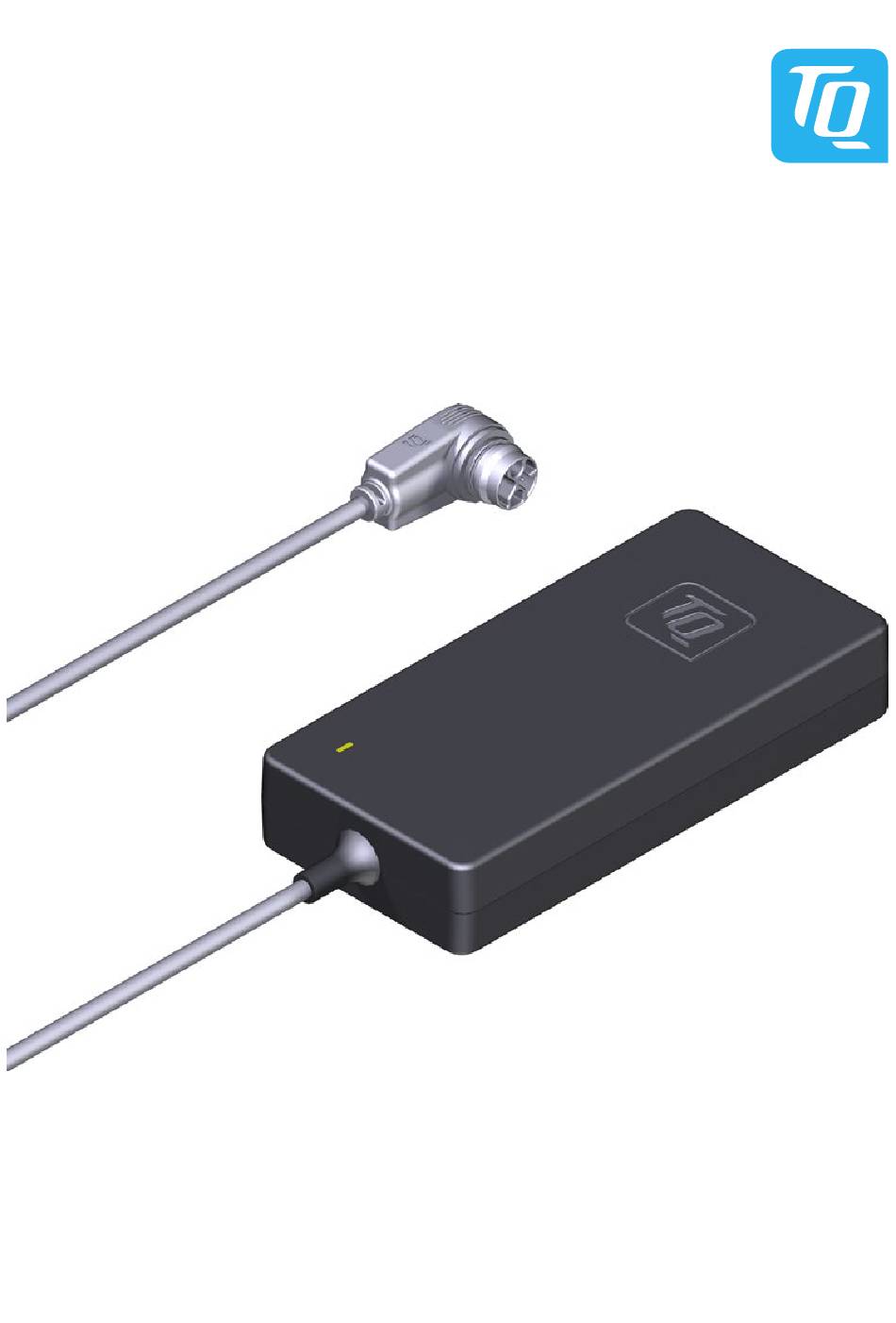

- Page 1 4 A Charger User Manual...
-
Page 2: Hazard Classification
Safety This instruction contains information that you must observe for your personal safety and to prevent personal injury and damage to property. They are highlighted by warning triangles and shown below according to the degree of danger. ► Read the instructions completely before start-up and use. This will help you to avoid hazards and errors. -
Page 3: Intended Use
Any other use or use that goes beyond this is considered improper and will result in the loss of the warranty. In case of non-intended use, TQ-Systems GmbH assumes no liability for any damage that may occur and no warranty for proper and functional operation of the product. -
Page 4: Technical Data
— This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc- tion concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Operation
Operation Battery / Range Extender charging WARNING Fire or electric shock hazard due to damage to Battery, Range Extender, Charger, cable and plug ► Never use the Charger if you notice any damage to the Battery, Range Extender, Charger, cables or connectors. ►... - Page 6 Integrated Battery charging ► Open the cover (item 1 in Fig. 2) on the charging port (item 2 in Fig. 2) in the bike frame. ► Check that the contacts in the charging port are free of dirt and clean them if necessary. ►...
- Page 7 Optional Range Extender Charging NOTE — When connecting the Charger to the optional Range Extender, it is checked whether the Range Extender is connected to the charging port of the Battery in the bike frame. In this case, the drive system is deacti- vated during the charging process for safety reasons.
- Page 8 Notes on the charging process NOTE The temperature of the Battery or Range Extender must be within the permissible charging temperature range (0 °C to 40 °C / 32 °F to 104 °F). Otherwise, the charging process will not be started. —...
-
Page 9: Transport And Storage
Transport and storage — Store the Charger in a dry place, protected from direct sunlight. — Do not drop the Charger to avoid damaging it. Cleaning ► Disconnect the Charger from the power supply and, if necessary from the charging port. ►... - Page 10 The information in this publication is reviewed regularly and any necessary corrections are included in subsequent editions. All trademarks mentioned in this manual are the property of their respective owners. Copyright © TQ-Systems GmbH TQ-Systems GmbH | TQ-E-Mobility Art.-No.: HPR50-CHR01-UM Gut Delling l Mühlstraße 2 l 82229 Seefeld l Germany...
