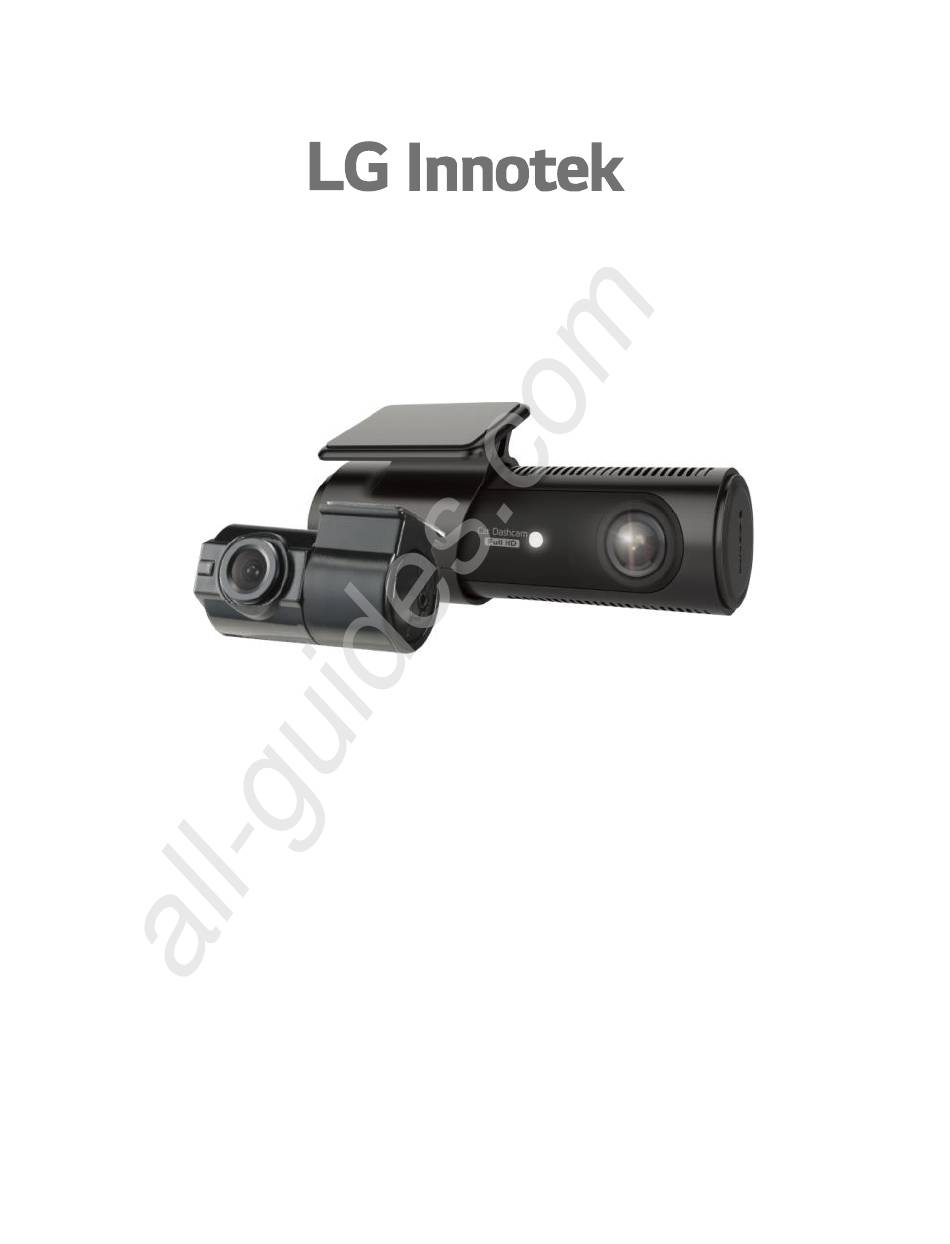

- Page 1 All manuals and user guides at all-guides.com LGD521 User Manual 2CH Front Full HD / Rear HD High Resolution Front 30FPS / Rear 30FPS Format free recording Low battery and high temperature shutdown Security LED & Audio prompts Wireless Connectivity...
-
Page 2: Caution For Safety
All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Caution for Safety For safety and prevention of any property damage, be sure that user use the product after reading the following(Operation and Caution) carefully. Caution on Operation and Storage ... - Page 3 All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Caution for Safety For safety and prevention of any property damage, be sure that you use the produc t after reading the following (Caution on SD Card) carefully. Caution on SD Card ...
-
Page 4: Product Specifications
All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Product Specifications Item Specifications ARM Cortex-A7 CPU Flash Memory Video Recording 2 channels Camera Front: 4M pixels / Rear: 1M pixels Front : FHD (1920 x 1080P) Recording Resolution Rear : HD (1280 x 720P) Memory Device micro SD Card (up to 128GB opt) - Page 5 All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Package These are the accessories included with the product at the time of purchase. Rear(HD) Camera, Main Body(LGD521) Bracket Rear Camera Video Cable [Consumable] Manual MicroSD Card & Adapter...
-
Page 6: Product Parts

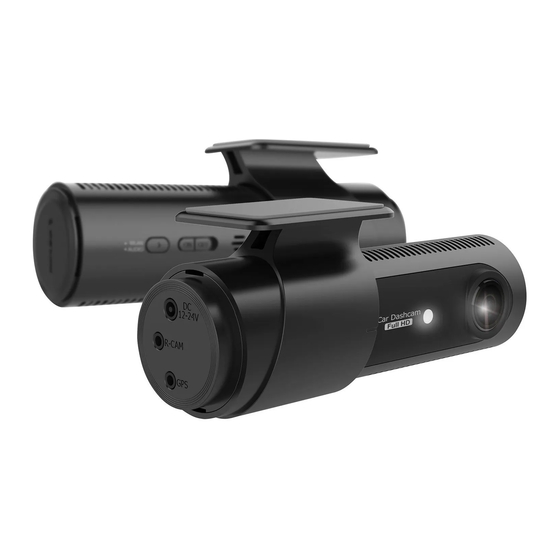

All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Product Parts Front Camera Security LED WLAN Button(Multi Key) Power Button GPS LED REC LED Mic/Speaker Power Connection Rear Camera SD Card Slot Connection Connection ▶ How to remove the bracket... -
Page 7: Product Installation
All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Product Installation ▶ Front Camera Installation 1. Insert the MicroSD card in the card 2. Remove the protective tape from 3. Connect the cigarette lighter cable slot. (Check the MicroSD card direction) the bracket. -
Page 8: Recorded Video
All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Recorded Video ▶ Title of Recorded Video Files Title of aaab_cccc_dddddd_eeeeee_f.avi recorded file Type of Description Remarks recording Normal recording inf0_0000_140120_091603_I.avi Impact recording evt0_0000_140120_091603_I. avi Motion recording moe0_0000_140120_091603_P channel Description Remarks 1 channel... - Page 9 Recordings of an accident can also be deleted. ▶ On-Screen Display (OSD) Description (1) Model name : LG INNOTEK LGD521 (2) F/W Version : V :1.0.772 (3) Date recorded : 2016/11/28 MON 10:07:51 (4) G-Sensor Value : X :-0.2 Y :-0.0 Z :-0.9...
- Page 10 All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Recording Scenario ▶ Driving Mode ① Recording of an impact event in the driving mode A buffer video of 10 seconds will be included in the video when an impact event occurs in the driving mode. ...
-
Page 11: Led Operation
All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM LED Operation ▶ Front Security LED and User Notice LED Status Security Item Remark 2 Channel 1 Channel (Blue) (White) WLAN ON WLAN OFF WLAN ON WLAN OFF (Red) (Green) (Red) (Green) -
Page 12: Sensor Operation
All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM High Temperature Cut-off The temperature cut-off function is used to protect the product from high temperature. The high temperature cut-off function is not enabled in the normal mode. ... -
Page 13: Time Settings
All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM SD Card To insert or remove a SD card to and from the product, you need to turn off the product first. ▶ Automatic Formatting Update is performed only when you insert a SD card with the update firmware and restart the product by turning it off/on. - Page 14 All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Linking the Viewer with the Smartphone ▶ PC Viewer System Requirements ① Windows PC Viewer OS : Windows 7 (32/64 bit) or higher CPU : Intel core i3 or higher ...
- Page 15 ▶ Before use LG Innotek Smart Manager Application Application is available for both Android and iOS. Search ‚LG Innotek‛ in Google Play Store or Apple iOS App Store.. Google Play Store App Store Real time video and playback can be delayed depending on the type of Smartphone.
- Page 16 All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Using the Smartphone App ▶ Home Screen 1) Version: Displays the version of the app. 2) Reset the password : Resets the WLAN password saved in your phone (not the black box password) to 00000000. (This function is supported only in an Android phone and not in an iPhone.) ※...
- Page 17 All manuals and user guides at all-guides.com ▶ Live View ※ Touch "Live View" to start live view with a ringing sound in the black box. The screen definition of the recording saved in the black box switches to 4 Mbytes for front and 2 Mbytes for rear. ※...
- Page 18 All manuals and user guides at all-guides.com ▶ Configuration 1) You can fetch the values set in the black box and change the basic settings or system settings. You need to press the Transmit button to apply the settings to the black box. 2) Transmit : Press the Transmit button at the top after changing values to transmit the changed values to the black box and reboot the black box.
-
Page 19: Using The Pc Viewer
Switch to full screen Latitude/Longitude Flip horizontally G sensor information Flip vertically Play screen <Windows PC Viewer> - LG Innotek recommends above Windows7(32/64bit)/Intel core i3/RAM 2GB/Display 1920x1080 < MAC PC Viewer> - LG Innotek recommends above OSX : 10.11.x (OS X El Capitan) - Page 20 All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Using the PC Viewer ▶ Viewer Settings Video Adjustment JPEG Storage Path Brightness Contrast Saturation Volume Select Language Play Mode Repeated Play Always at the Top Front Camera Flip Horizontally Flip Video Flip Vertically Rear Camera...
- Page 21 All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Using the PC Viewer ▶ Settings 1 Basic Settings System Settings Recording Mode Front Video Definition Rear Video Definition Normal High High Motion Detection Driving Mode Parking Mode Sensitivity G-Sensor G-Sensor Voice Recording...
- Page 22 All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Using the PC Viewer ▶ Settings 2 Basic Settings System Settings Time Zone Daylight Saving Time Camera Sensor Settings Reset the Sensor Brightness Color Adjust Percentage of SD Card Folders Some files may be deleted when the black box boots.
-
Page 23: Firmware Update
All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM Firmware Update Firmware Update 1. Power off dshcam and separate SD card from Dashcam. 2. Insert SD card to PC and copy firmware file to SD card. 3. Insert SD Card Dashcam and Power on. 4. -
Page 24: Warranty And Customer Service
④ LG Innotek does not guarantee the accuracy of the contents in this Quick Manual as there may be technical errors and/or omissions. ⑤ LG Innotek shall not be responsible for any problems and/or damages that may occur from the use of Unauthorized parts and accessories. -
Page 25: Product Warranty
In accordance with Personal Information Security Law & related legislation, LG Innotek Co., Ltd. will not be held responsible for any problem due to illegal use of this product. The recorded video produced by this product constitutes the secondary data that may help to determine the circumstances of an accident. - Page 26 All manuals and user guides at all-guides.com Non LCD FHD-HD DASHCAM LGD521...
