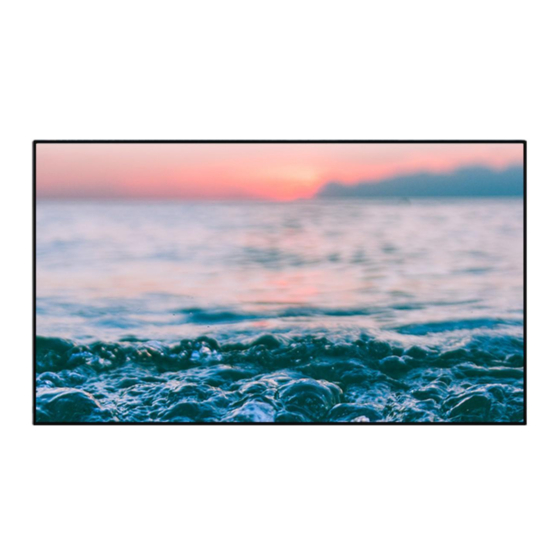

Clevertouch CM Series User Manual

75” (189cm) display
Hide thumbs Also See for CM Series:
Table of Contents

Advertisement

Quick Links

75" (189cm) DIGITAL SIGNAGE DISPLAY
USER MANUAL
CTL-75DS4KV
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM Series and is the answer not in the manual?

Questions and answers

Related Manuals for Clevertouch CM Series

Summary of Contents for Clevertouch CM Series

  • Page 1 75” (189cm) DIGITAL SIGNAGE DISPLAY USER MANUAL CTL-75DS4KV ENGLISH...

  • Page 2: Table Of Contents

    Contents Important Safety Information ........2 General View ............6 Control Buttons on the Display .......7 Connecting the IR Receiver........8 Turning the Display On/Off ........8 Remote Control ............9 First Time Installation..........10 Android Launcher ..........10 Using Main Display Menu ........14 Vsign Lite ..............15 Media Playback via USB Input ......16 CEC and CEC RC Passthrough ......18 Usage of the Start URL ........18...

  • Page 3: Important Safety Information

    • Please place the product in a position that electric Important Safety Information cables cannot be affected by the operations on the product. CAUTION • Follow all warnings and instructions marked on the RISK OF ELECTRIC SHOCK product. DO NOT OPEN •...
  • Page 4 • Do not shake the product. Ensure that it stays in a Safety checks balanced stance on its position. Upon completion of service or repair work, request the service technician to perform safety checks to ensure • Do not throw or drop any object on your product. that the product is in proper operating condition.
  • Page 5 monitor where it cannot be pushed, pulled over, or Foreseeable misuse and incorrect use knocked down. • For apparatus intended to be used in vehicles, ships • Care should be taken to route all cords and cables or aircraft or at altitudes exceeding 2000m above sea connected to the monitor so that they cannot be level, for outdoor use or in general for the application pulled or grabbed by curious children.
  • Page 6 • Remove dead batteries from equipment and all Markings on the Product batteries from equipment you know you are not going to use for a long time. Otherwise the batteries may The following symbols are used on the product as leak and cause damage.

  • Page 7: General View

    General View Front Side 1. LCD Panel Rear Side (1) 14 15 1. RS232 Android Sockets 2. VGA 5. USB (2.0) 3. Ethernet 8. Micro SD 4. USB (2.0) 6. HDMI2 In 7. HDMI3 In 9. IR Input 10. Headphone/Line Out 11.

  • Page 8: Control Buttons On The Display

    Rear Side (2) 1. SPDIF Optical Out 2. Audio In 3. RJ12 (for sensor) 4. RJ12 (service use only) Control Buttons on the Display To turn on the Display: Press the centre of the joystick in and hold it down for a few seconds, the Display will turn on.

  • Page 9: Connecting The Ir Receiver

    Connecting the IR Receiver Before plugging the Display into the mains supply, connect the supplied IR receiver to the IR input on the Display. Place the IR receiver in sight of your own remote control. Simply operate your remote control whilst pointed at the IR receiver and it will relay the control signal to your Display.

  • Page 10: Remote Control

    18. Rapid advance: Moves frames forward in media such Remote Control as movies 19. No function 20. Info: Displays information about on-screen content 21. No function 22. Picture: Displays Picture menu 23. Internet: Opens the predefined Start url (in Set- tings>Signage>Link Options menu).

  • Page 11: First Time Installation

    First Time Installation When turned on for the first time, the Country selection screen will be displayed. Select the desired country and press OK. Set ID, OSD Orientation, Auto Software Update options can be configured using this menu. Model name, Serial number and Software version options are for information only.
  • Page 12 Setting up the internet connection Navigation Toolbar Over the bottom edge of the screen navigation toolbar There is a secondary ethernet socket on the rear will be available. Touch the Collapse/Expand button side of the Display for Android source only. Plug an of the tool bar to expand it.
  • Page 13 to scan for networks and get location information, even corners of the screen. Touch the desired position when WLAN is turned off. option to set. Top left, Top right, Bottom left and Bottom right options will be available. Ethernet: Under the Ethernet caption you can see the LAN status (Connected - Not connected) and Home screen applications: The applications of also MAC/IP addresses if connected.
  • Page 14 text that is typed by the user will be collected, 1.6. About expect passwords. Using the options of this menu you can display detailed Text to speech - Choose the TTS engine. TTS is informations about the Android system, manage the a feature used by the apps.
  • Page 15 follow the below mentioned steps in order to install a protected. Additionally you can connect to your router/ third party application. modem via WPS or add new networks by using the related options. • Copy the file with the extension “.apk” onto a FAT formatted USB storage device •...

  • Page 16: Using Main Display Menu

    • The Wireless feature of the Display supports 802.11 sub-menu options of the highlighted menu press OK a,b,g & n type modems. It is highly recommended button. When you highlight a menu option some of that you should use the IEEE 802.11n communication the sub-menu items of this menu may appear on the protocol in order to avoid any possible problems while upper side of the menu bar for quick access.

  • Page 17: Vsign Lite

    as explained below. Vsign Lite Select All: Selects all files. Vsign Lite is a signage application runs without CMS Delete All: Clears all selected options. and managed through Display. Display software is Play All: Plays selected files in order of selection. integrated with it.

  • Page 18: Media Playback Via Usb Input

    It is recommended to use the Display’s USB input/s 2.3.1. Creation of the Templates directly, if you are going to connect a USB hard disk. Scroll to one of the previously defined templates Note: When viewing image files the Media Browser menu and press OK.

  • Page 19: Cec And Cec Rc Passthrough

    directory of the removable device, Media Browser the screen and the Display will turn itself off after a will play the Photos in a sequence (in file name order) period of 5 minutes. instead of Video or Audio files. If not, it will be checked Note: The setting of the USB Auto Play option in the for Video content and as last Audio.
  • Page 20 • Open this file with a text editor software such as Notepad. • Write the desired URL (for example, www.starturl.com) in the file and save changes. • Connect the USB strorage device to the Display. Highlight USB Operations option in the Settings>Signage>USB menu and press OK.

  • Page 21: Settings Menu Content

    Settings Menu Content Picture Menu Content You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Text, Game, Sports, Signage and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen.
  • Page 22 Press OK to open the Audio Link menu screen. Using this screen you can discover Audio Link (Optional) and connect the sound devices to your Display wirelessly. Sets the sound to obtain fixed output level between sources. If the Dolby Audio menu item is set to an option other than Off the AVL setting options will change.
  • Page 23 Controls Sets the OSD (On Screen Display) rotation of your Display. Landscape, Portrait 1 OSD Orientation and Portrait 2 options are available. Sets the rotation of the browser. Landscape, Portrait1 and Portrait2 options are available. One of the portrait options will be set by default depending on the model. Browser This option will rotate the browser only and the changes will be applied after the Orientation...
  • Page 24 Select ASCII/HEX protocol for UART 1. Default value is HEX. There is no need to restart the Display after selection in order to work with the protocols correctly. If the selection is changed, the latest selected protocol will be preserved and started when the Display is booted up.
  • Page 25 Clone to USB Copies the database files from the unit to a connected USB device. Clone from USB Copies the database files from a connected USB device to the unit. Copy app cache Copies app cache data from a connected USB device to the unit. from USB Note: This feature may not be available depending on the model of your unit.
  • Page 26 Press OK to open the OPS Settings menu screen. Three sub-menu options are available. OPS Information: Displays read-only information about the OPS unit, if supported. OPS Status: Displays whether the OPS module is on or off. Allows the change of status via soft PSON signal (0.5s) Boot Signal: Enables or disables sending of a PSON signal.
  • Page 27 System Menu Content Language Sets the OSD menu language preference. Date/Time Sets date and time. Enables or disables selected source options. There will be Regular, Enhanced and Disabled options available for HDMI sources, if your Display supports Ultra HD. Regular and Enhanced options are affecting the colour settings of the selected HDMI source.

  • Page 28: Connectivity

    the current IP and MAC addresses, if a connection is Connectivity established. Wireless Access Point (Optional) To configure wired or wireless settings you should If the network type is set as Wired Device access point access the Network menu in the Settings menu. feature will be available.
  • Page 29 Connecting to your mobile device via WLAN other WLAN 11b appliances. The standard values of the transmission speed are the theoretical maximum • If available, you can download a virtual remote values for the wireless standards. They are not the controller application from the server of your mobile actual speeds of data transmission.

  • Page 30: Apps

    • Set the device to pairing mode Connectivity Troubleshooting • Start device discovery on the Display Wireless Network Not Available Note: Refer to the user manual of the wireless device to learn how to set the device to pairing mode. •...

  • Page 31: Internet Browser

    In order to open the Start url that is defined the in In the initial screen of the browser, the thumbnails of Settings>Signage>Link Options menu highlight the the predefined (if any) links to web sites available will Custom App option and press OK. be displayed as Speed Dial options along with the Edit Speed Dial and the Add to Speed Dial options.

  • Page 32: Osd Rotation Support

    In some circumstances video contents might not be Controlling With An External PC able to be played. OSD Rotation Support You can change the rotation OSD (On Screen Display) of your Display if desired. While performing First time installation set the OSD Orientation option as desired when the Signage menu is displayed.
  • Page 33 In general, the RS-232 commands are sent for operating the implemented functions via serial port and utility. A suitable utility can be used such as described below. Secure Commands This feature is controlled by the Secure Command profile option. If option is enabled, all commands will be registered as secure.
  • Page 34 Connecting to the Display (RS232 port) Run the software and select Serial as Connection Type. Enter the Display’s serial port in the field Serial Line (in the following example it is COM4) and “115200” in the field Speed. Then click the Open button. English - 33 -...

  • Page 35: Rs232/Lan Command Tables

    RS232/LAN Command Tables AUDIO COMMANDS Command Description Parameter Return VOLUME Set volume level. integer n (0 ≤ n ≤ 100) #*set volume to n GETVOLUME Volume level information. no parameter #*volume level is ... #*set headphone volume to n Set headphone volume HEADPHONEVOLUME integer n (0 ≤...
  • Page 36 #*DAP (Dolby Audio Processing Availability) is inactive Get DAP (Dolby Audio #*DAP (Dolby Audio Processing GETDAPAVL no parameter Processing) AVL state. Availability) Mode is off #*DAP (Dolby Audio Processing) state is ... SETDYNAMICBASS Set dynamic bass state. integer n (0 = off, 1 = on) #*set dynamic bass state to n #*the dynamic bass state is ...
  • Page 37 #*volume LEVEL is decreased to .. Decrease Volume Level VOLUMEDOWN no parameter by 1 step #*Volume level is at min value. You can not decrease volume level further #*Fixed Volume is set to ... #*Fixed volume availability is set to ... #*Headphone volume control availability is set to ...
  • Page 38 Sets the browser settings string #*Setting URL is set SETSETTINGSURL (URL set by the command is openned with long press on CMS key) Gets the browser settings no parameter #*Setting URL is ... GETSETTINGSURL Sets the start URL string #*Start URL is set SETSTARTURL Gets the start URL no parameter...
  • Page 39 GENERAL DISPLAY COMMANDS Command Description Parameter Return Turns the led on/off. Led is ON (Used for setting the led integer n (0 = off, 1 = on) statu of current state) Led is OFF Get led on/off state. #*LED is on GETLED (Used for getting the led no parameter...
  • Page 40 Load factory settings to NVRAM. #*Factory Settings were loaded to FACTORY Settings are updated with no parameter NVRAM. defaults. Clears flash. string-integer n (n = 0, n = 1, Send key.., n = up, .., n = menu, n key sent ..ext.) Reset process was successfully RESET...
  • Page 41 VIDOFF Select video off. no parameter Video off. VIDON Select video on. no parameter Video on. #*video is on GETVIDSTATE Get video state. no parameter #*video is off Display the current date TIME no parameter Time = ... and time. #*set time mode to n SETTIMEMODE Set time mode...
  • Page 42 integer n (0 = digital_ #*no services of selected type network_type_terrestrial, 1 = available BROADCAST Set broadcast type. digital_network_type_cable, 2 = digital_network_type_ #*Set broadcast ... satellite) string-integer n (picture, MAINMENUITEM Select main menu item. sound, settings, installation, #*selectMainMenuItem() set to n channellist, mediabrowser) SHOWBUILDOPTIONS Show build options.
  • Page 43 integer n (0,14 = TV, 1,15 = SCART1 (CVBS), 3 = SCART2 (CVBS), 5 = FAV, 6 = S-Video, 7 = HDMI1, 8 = HDMI2, 9 = HDMI3, 10 = HDMI4, 11 = YPbPr, 12 = Pc, 13 = SCART2 (S-VIDEO), 16 = Select source.
  • Page 44 #*tv_portal_status:0 #*Portal status 0 is sent to listening socket(if open) Gets tv is portal mode GETPORTALMODE no parameter or not. #*tv_portal_status:1 #*Portal status 1 is sent to listening socket(if open) #*Time is set succesfully. Sets front panel clock SETFRONTPANEL- string-integer n( 10:00, time( values : 10:00 , #*Given time parameter is wrong! CLOCK...
  • Page 45 #*TV will be sent to Active Standby state! Enter active standby ENTERACTIVESTANDBY no parameter state #*TV is in Active Standby state already! #* TV is not in Active Standby EXITACTIVESTANDBY Exit active standby state no parameter state! #*Wake on Lan is set to enable. integer n ( n = 1 (enable), n = SWOL Set Wake on Lan option...
  • Page 46 #*Error! Security Type can not be changed when Access Point is active #*Error! Security type parameter sets the security type of string n (‘none’ or ‘WPA2- should be given SETWIFIAPSECURITY- access point. The value PSK’ note: string is case TYPE should be "none"...
  • Page 47 Clone from FTP server #* Invalid parameter string "<ip-of-ftp-server/ Before this process, path>" please check network #* "file_name" is cloned NETCLONE configuration (If a static successfully ftp://user_name:password@ ip address is set, it will ip_addr/source_path also be cloned) #* "file_name" clone is failed #*Network type is set to: <network- type>...
  • Page 48 Speed test is started. INTERNETSPEED start internet speed test no parameter Prints "No internet connection found" message if fails. GETINTERNETSPEED get internet speed no parameter #*The internet speed is ... Mbps #*SUCCESS Hostname ABC is Creates the file (if does written into the file not exist) "/conf/ip_tuner/ SETHOSTNAME...
  • Page 49 #*The horizontal position is ... GETHPOS Get horizontal position. no parameter #*GETHPOS is available only for VGA Source. #*set vertical position to ... #*invalid value entered VPOS Set vertical position. int n (-25 ≤ n ≤ 25) #*VPOS is available only for VGA Source.
  • Page 50 VIDEO WALL COMMANDS Command Description Parameter Return SETROWCOUNT Set row count. integer n (0 ≤ n ≤ 100) #*set row count to n GETROWCOUNT Get row count. no parameter #*row count is ... SETCOLUMNCOUNT Set column count. integer n (0 ≤ n ≤ 100) #*set column count to n GETCOLUMNCOUNT Get column count.
  • Page 51 MEDIA BROWSER COMMANDS Command Description Parameter Return set view style (Flat or #*The view style is set to ... (Flat SETVIEWSTYLE string n (Flat, Folder) Folder) or Folder) get view style (Flat or #*The view style is ... (Flat or GETVIEWSTYLE no parameter Folder)
  • Page 52 This command will turn on the panel, if panel is in active standby state and the parameter value will set volume value, if the Startup Volume Enable item (in Volume Settings integer (volume value) #TV will be turned on menu) value is enable. TON must be called with a parameter for volume level.
  • Page 53 string-string (alarm url - emergency message) Send emergency alarm #Emergency Alarm is set !!! [message content should be "word1+ word2+word3 ..."] STEA Stop emergency alarm none #Emergency Alarm is stopped !!! string-int (message text - 0) Send Message [message content should be #Message Sent in SUCCESS !!! "word1+ word2+word3 ..."] Send Message/Trigger...
  • Page 54 #SetMacAdress Succesfull #*FAILURE - Wrong parameter value! string-int ( ex: eth0- Set mac address #*FAILURE - Invalid parameter! 00:09:df:86:34:25) #*FAILURE - Invalid mac address! #*FAILURE - Could not write MAC address! #*Hwaddr: mac_address - get_mac_address Get mac address none Succesfull Set static IP, Default Gateway and string ( ex: 192.168.0.15-...
  • Page 55 string n ( on time_off time_ source in format: hh:mm_ hh:mm_source ) ------------------------------------ new command is available with Ronesans_B2B r232185 - Raphael V7.36.0.0: "SETSCHEDULEOP number_enabled_ontime_ offenabled_offtime_days_ source" set scheduler #*Schedule parameters are ... (set/ SETSCHEDULEOP (SETSCHEDULEOP parameters not set). 4_1_08:00_1_22:00_ 0111110_HDMI) Available source names: LastSource...
  • Page 56 Sets signage id automatically. For usage the AUTOSETSIGNAGEID feature the no parameter #*AdvancedVideoWall profile item AdvancedVideoWall is disabled. profile item should be enable. #*FAILURE, wait to check C2 availability (process still not finished) Returns the handshake result #*FAILURE, C2 is not READY C2CONNECTION no parameter between G6F and C2...
  • Page 57 #*FAILURE, lacking parameter! #*FAILURE, parameter exceeds the limit! string (red_green_blue_ #*FAILURE, no parameter after '_' LED Bar Color drive white) (color level value as character! string) #*FAILURE, all colors are not processed #*SUCCESS Sends message C2MSG to UART2 (C2 string #*SUCCESS, Message Send: %s connection) #*FAILURE, lacking parameter!

  • Page 58: Rs232 Hex Commands

    RS232 HEX Commands Protocol Test Steps • Before testing, please know the board type you have. There are two types of board. The UART 0 and UART 1 connections of the these boards are explained below: 1. RJ12 is connected to UART 0, DSUB9 is connected to UART 1. Therefore, UART 0 and UART 1 could be tested separately in this type of the board 2.
  • Page 59 Reply sent by display for Command received by display successful operation Byte Number Header Data Notes Header Data Setting Action Type code Size flag code Name Operation Quick standby should be enabled to be able to turn on tv with this command. XY can be either 00 or 01.
  • Page 60 Reply sent by display for Command received by display successful operation Byte Number Header Data Notes Header Data Setting Action Type code Size flag code Name Operation XY can be either 00 or 01. 00 means OFF, 01 means ON. INCREMENT DECREMENT range: 0x64-0x1E...
  • Page 61 INCREMENT DECREMENT INCREMENT DECREMENT INCREMENT DECREMENT EXECUTE Toggles video freeze status. English - 60 -...

  • Page 62: Maximum Pixel Rates

    Maximum Pixel Rates For UHD panels, Source Max. Resolution Colour Space Bits/Component Pixel/Rate HDMI 4K@60Hz YCbCr4:4:4/RGB 8 bit 594MHz 4K@30Hz / OPS (Optional) YCbCr4:4:4/RGB 8 bit 594MHz 4K@60Hz Input Matrix Input Dot clock Timing fH (kHz) fV (Hz) (MHz) HDMI 720 x 400 31.5 70.156...

  • Page 63: Supported Media Formats From Usb

    Supported Media Formats from USB Video File Formats Video Codec Resolution Bit Rate Container MPEG program stream (.DAT, .VOB, .MPG, .MPEG), MPEG MPEG1/2 transport stream (.ts, .trp, .tp), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf) MPEG program stream (.MPG, .MPEG), MP4 (.mp4, .mov), 1080Px2@30fps, MPEG4...
  • Page 64 EAC3 (.ec3), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), 32KHz, 44.1KHz, 32Kbps ~ 6 EAC3 MPEG transport stream (.ts, .trp, .tp), MPEG program stream 48KHz Mbps (.DAT, .VOB, .MPG, .MPEG) AAC (.aac), AVI (.avi), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, AAC, HEAAC 8KHz ~ 48KHz .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), FLV...

  • Page 65: System Features

    Wireless LAN Transmitter Specifications System Features Max Output Panel Frequency Ranges Power Panel type 75” (189cm) 16/7 DLED 2400 - 2483,5 MHz (CH1-CH13) < 100 mW Resolution 3840x2160 UHD 5150 - 5250 MHz (CH36 - CH48) < 200 mW Horizontal 89°...

  • Page 66: Accessories Included

    couraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit Products different from that to which the receiver is connected.

  • Page 67: Vesa Wall Mount Measurements

    Vesa Wall Mount Measurements Hole Pattern Sizes (mm) Screw Sizes min. (mm) Length (X) max. (mm) Thread (Y) Installation On An Indented Wall Plane view Side view Minimum 50 mm Minimum 70 mm Minimum 50 mm Minimum 50 mm Ambient temperature range: 0-35ºC When installing the product on an indented wall, allow at least the space specified above between the product and wall for ventilation and ensure that the ambient temperature is kept between 0ºC-35ºC.
  • Page 68 Safety Warnings Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan. Apparatet må tilkoples jordet stikkontakt. Apparaten skall anslutas till jordat uttag. Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing – and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard.
  • Page 69 TR: İşbu belgede; Sahara Presentation Systems PLC, telsiz HU: Sahara Presentation Systems PLC, igazolja, hogy a ekipmanı tipi Monitor’nin 2014/53/AB sayılı direktife uygun Monitor típusú rádióberendezés megfelel a 2014/53/ olduğunu beyan eder. AB uygunluk beyanının tam metni EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes internet adresinde mevcuttur: szövege elérhető...
  • Page 70 Vestel Trade Co. Vestel Benelux B.V. Organize Sanayi Bölgesi, 45030 Manisa/Türkiye P.O. Box 29179 3001 GD - Rotterdam / Netherlands Phone: 90 - 236 233 25 82 Phone: 31 - 10 235 1000 Fax: 90 - 236 233 25 84 Fax: 31 - 10 235 1003 vesteltrade@vestel.com.tr info@vestelbenelux.nl...
